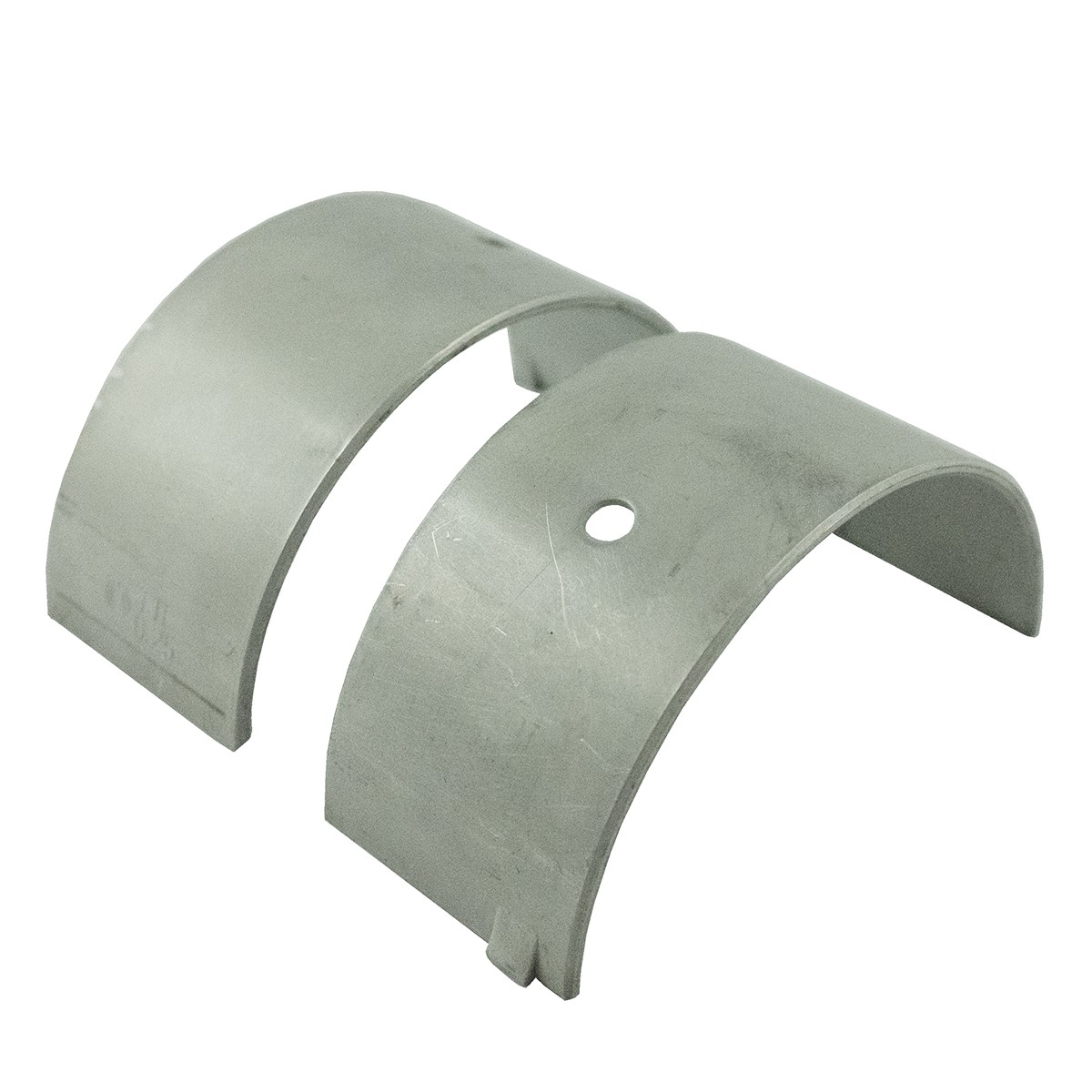

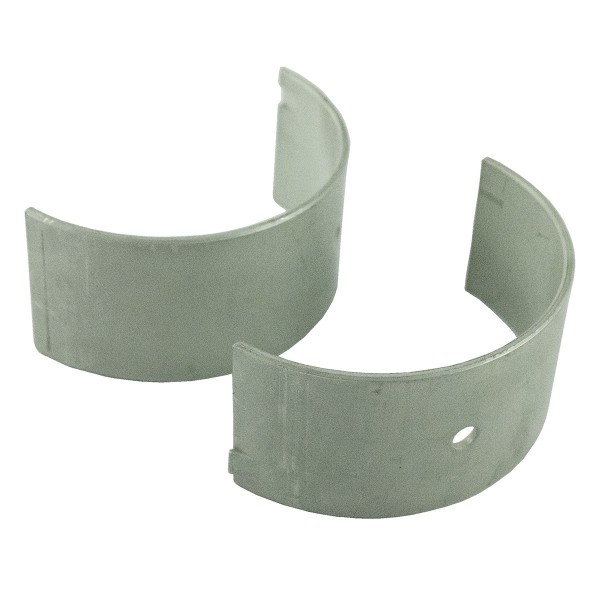

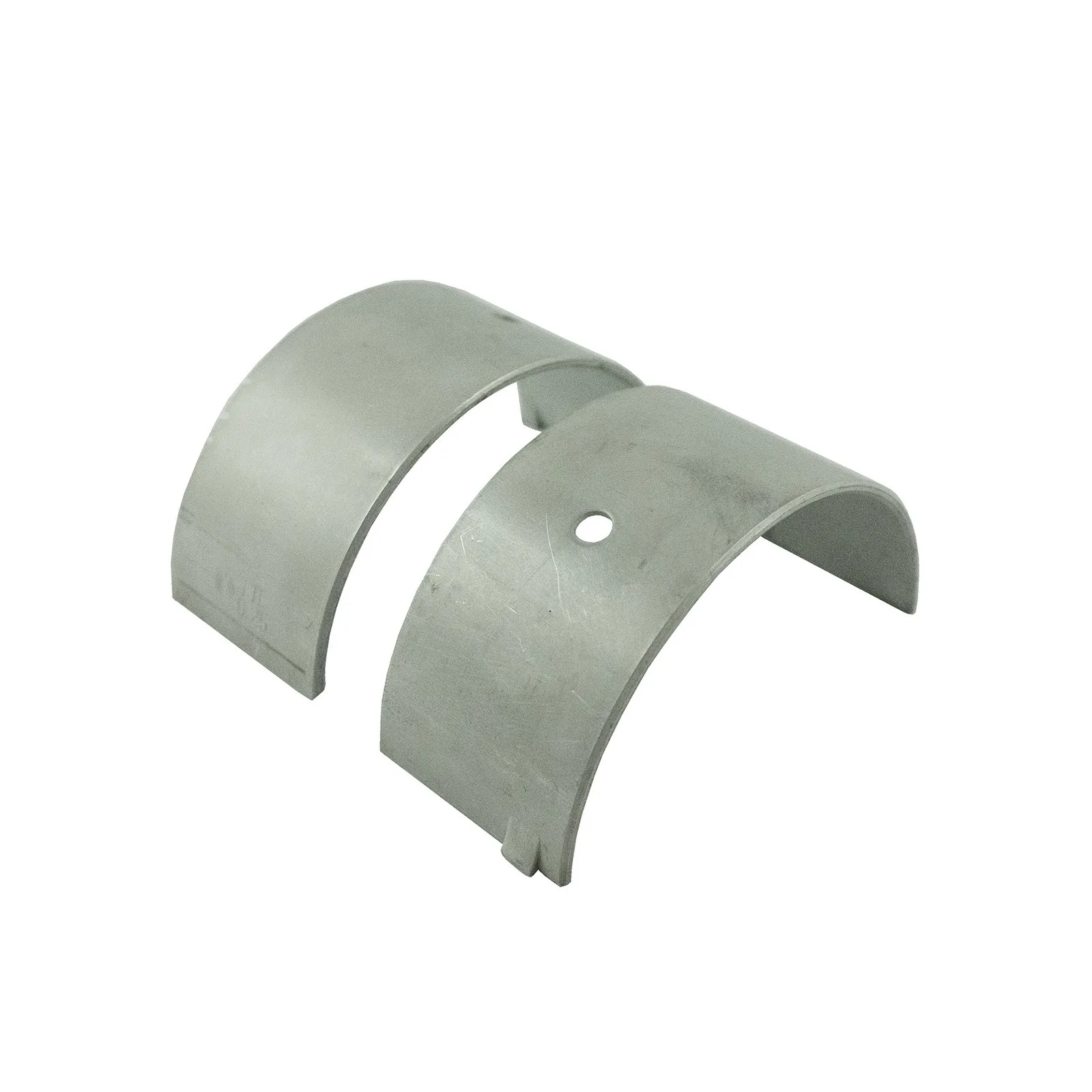

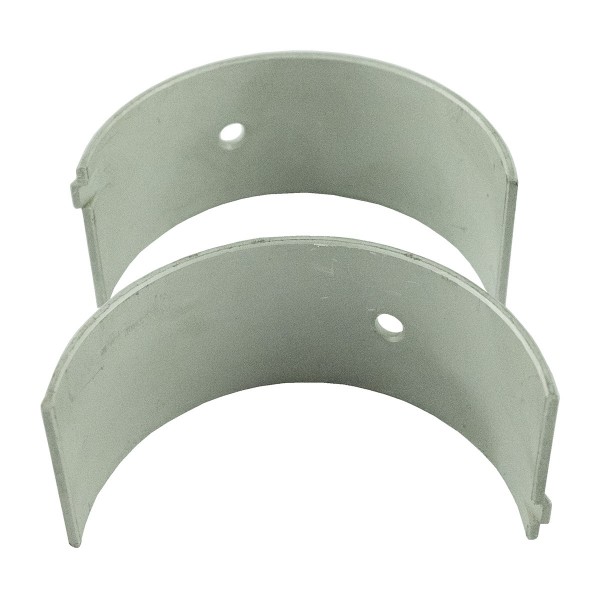

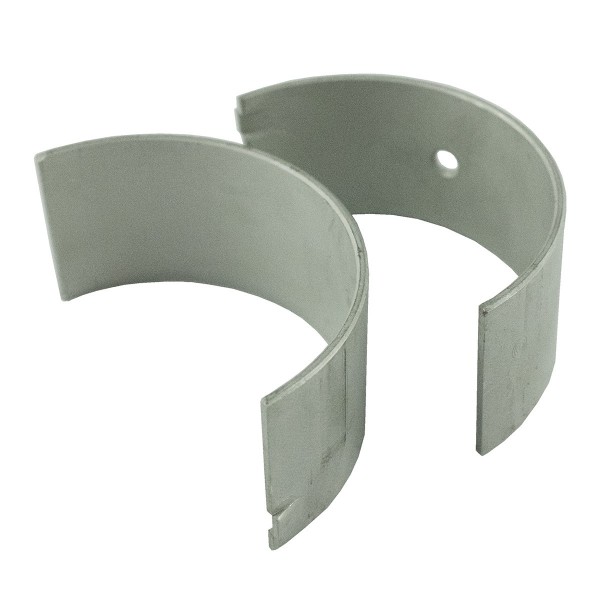

Connecting rod bearings / Hinomoto / STD + 0.25 mm / 010

Connecting rod bearings of standard size + 0.25 mm (so-called first cut bearings 010 ), width 27.70 mm , thickness 1.50 mm and outer diameter after assembling about 61 mm, for Japanese tractors and mini tractors of the Hinomoto brand.

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions :

• width: 27.70 mm,
• thickness: 1.50 mm,
• diameter: 61 mm,
• part numbers:: 8-07-101-01.

The first signs of wear of the connecting rod bearings are an unnatural, steady knock coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:B32:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
