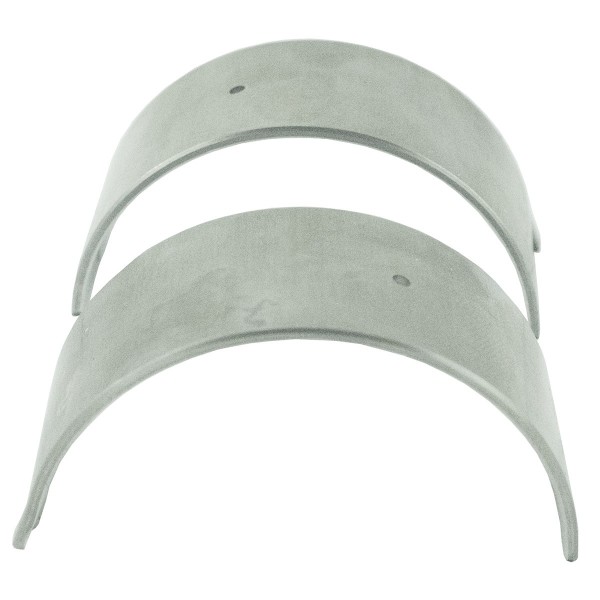

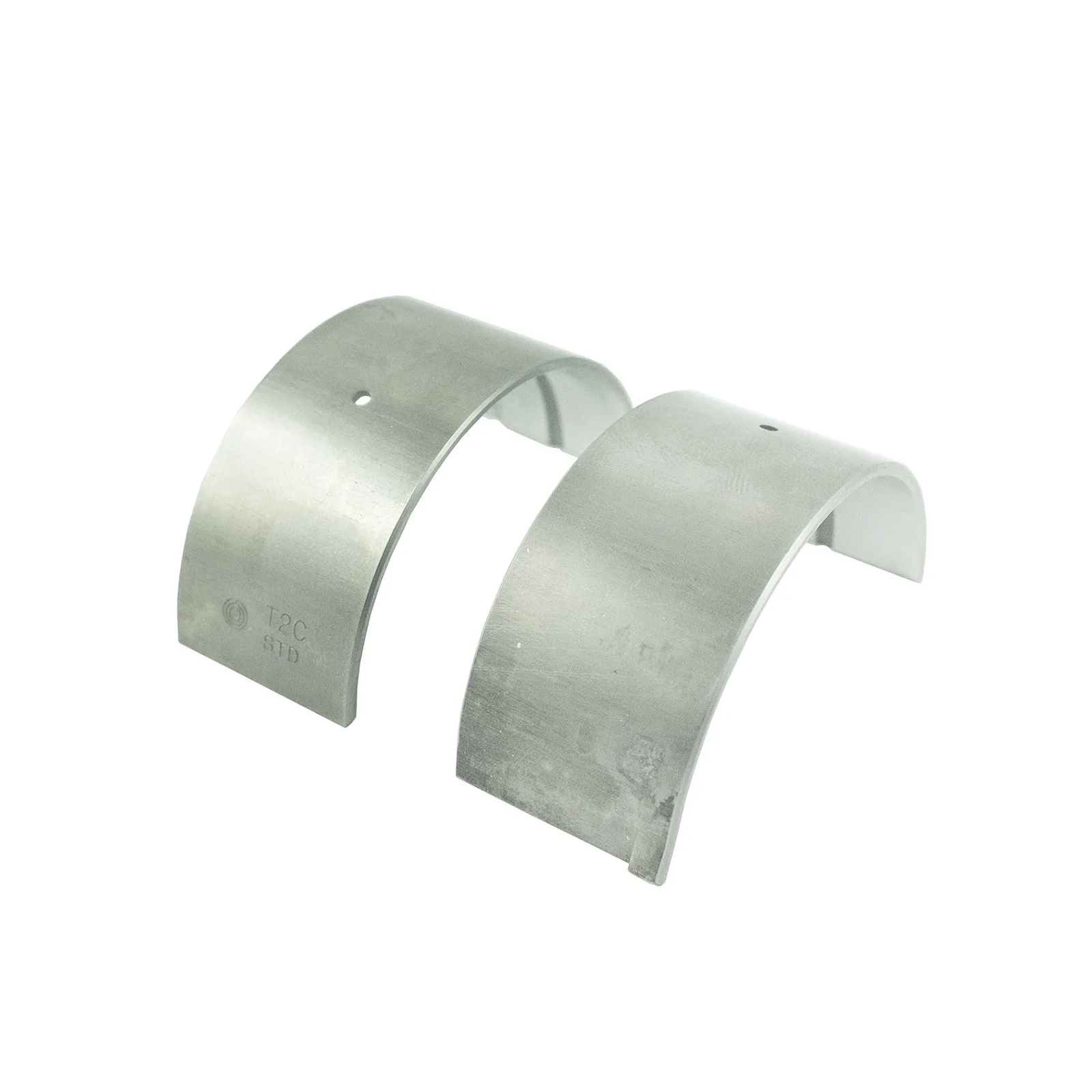

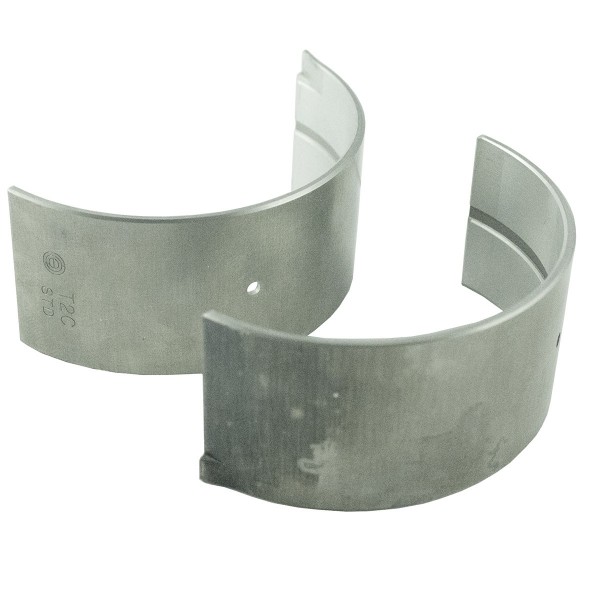

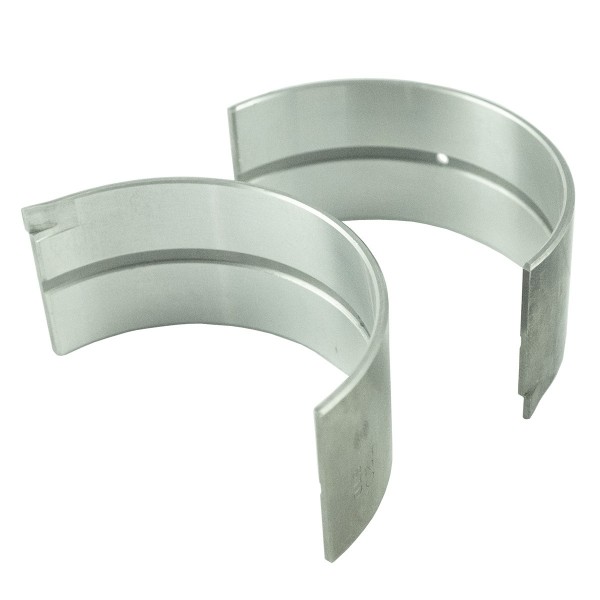

Connecting rod bearings / Kubota M9000 / Kubota V3300 / STDANDARD

Standard size connecting rod bearings , width 24.80 mm , thickness 1.40 mm and outer diameter after assembly approximately 57 mm, for Japanese tractors and mini tractors of the Kubota M9 series with a Kubota V3300 engine and others .

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. The bearings are two separable, semicircular elements that, when installed, create a circle. The bearings also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Dimensions :

• Width: 24.80 mm,
• Thickness: 1.40mm,
• Diameter: 57 mm.

Tractor models :

• Kubota M9000,

Engine models :

• Kubota V3300,

Magazine : M01:A24:S03, D52 S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
