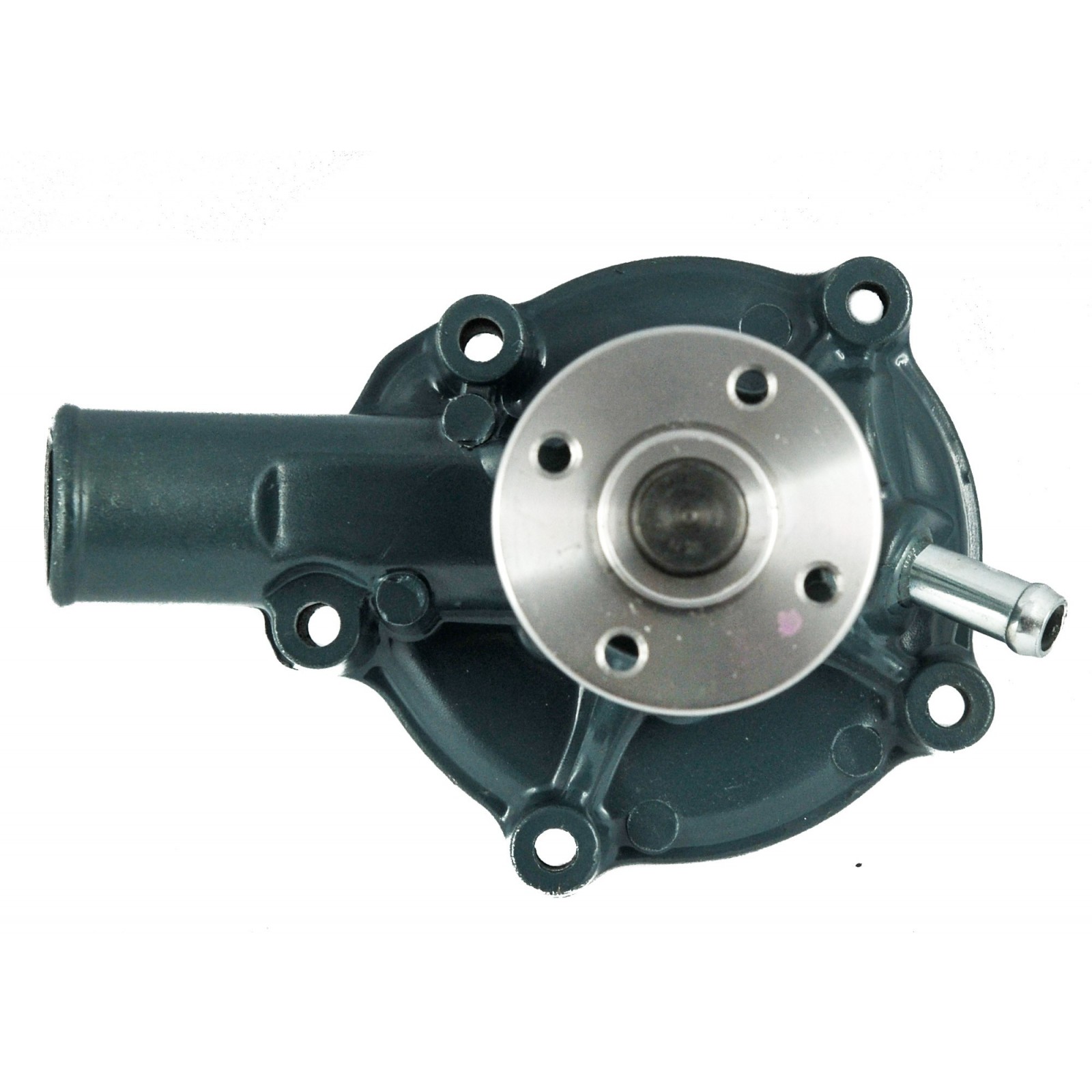

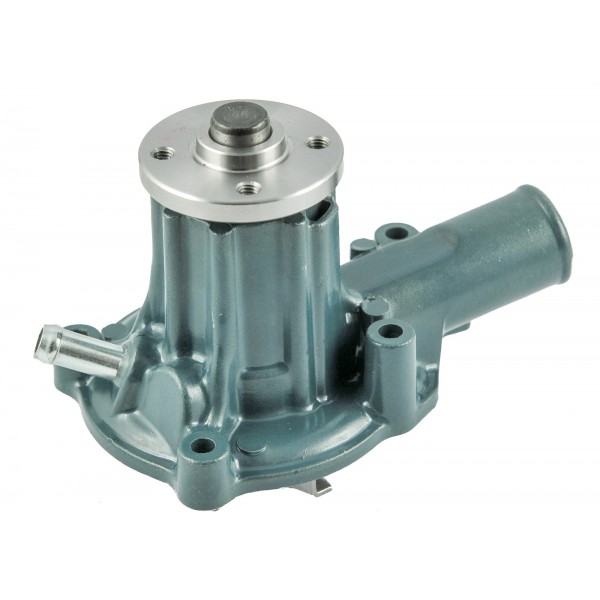

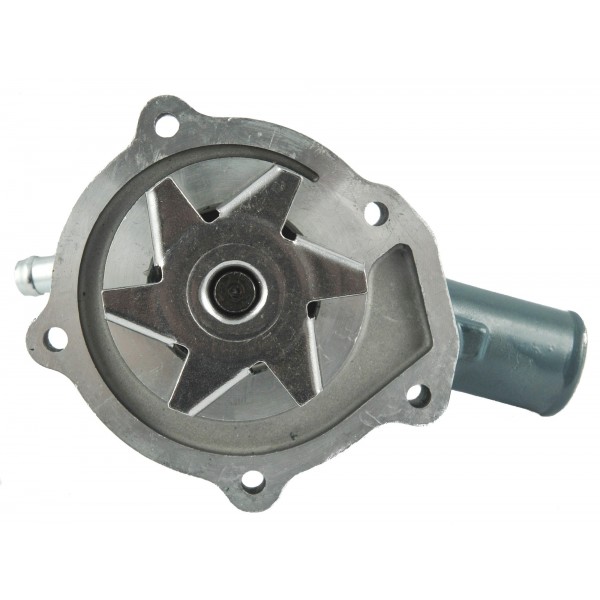

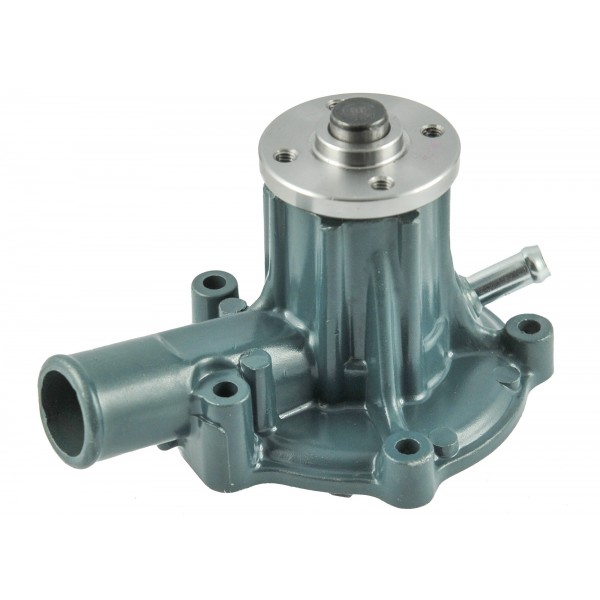

Water pump - Kubota D1105 / V1505 / V1305
Do you have any questions?
Water pump - Kubota D1105 / V1505 / V1305
The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be pumped back into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator while the engine is running.
Dimensions:
- Mounting hole spacing: 50/50/65/65/60 mm.
- Rotor diameter 69 mm.
- External dimensions: 150 x 100 mm.
- Hole diameter: 7.30/23.30 mm.
Comparative numbers:
- 16241-73034
Warehouse: (M01:B11)
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
- Kubota V1505
Kubota D1105
- Kubota B3200HSDWO
- Kubota F2400
- Kubota F2560
- Kubota F3060
- Kubota ZD28
Kubota A-19
Kubota A-195
Kubota Aste A-195
Kubota Aste A19
Kubota B92
Kubota B2210D HST
Kubota B2350
Kubota B2401
Kubota B2410 HSD
Kubota B2410 HSDB
Kubota B2410 HSE
Kubota B2410D
Kubota B2420
Kubota B2441
Kubota B2530
Kubota B2530 HSD
Kubota B2601
Kubota B2601 HSD
Kubota B2620
Kubota B2620 HSD
Kubota B2630
Kubota B2630 HSD
Kubota B2710
Kubota B2710 HSD
Kubota B2910
Kubota B2910 HSD
Kubota B3000
Kubota B3030
Kubota B3030 HSD
Kubota B3200
Kubota B3300
Kubota B3300SU
Kubota B7610
Kubota B7800
Kubota B7800 HSD
Kubota Bb260
Kubota F2560
Kubota F3560
Kubota F3680
Kubota GB20
Kubota GB200
Kubota GT-5
Kubota GT-8
Kubota GT-30
Kubota KB20
Kubota KB21X
Kubota KB205
Kubota LX3310
Kubota R310
Kubota ST30
Kubota X20
