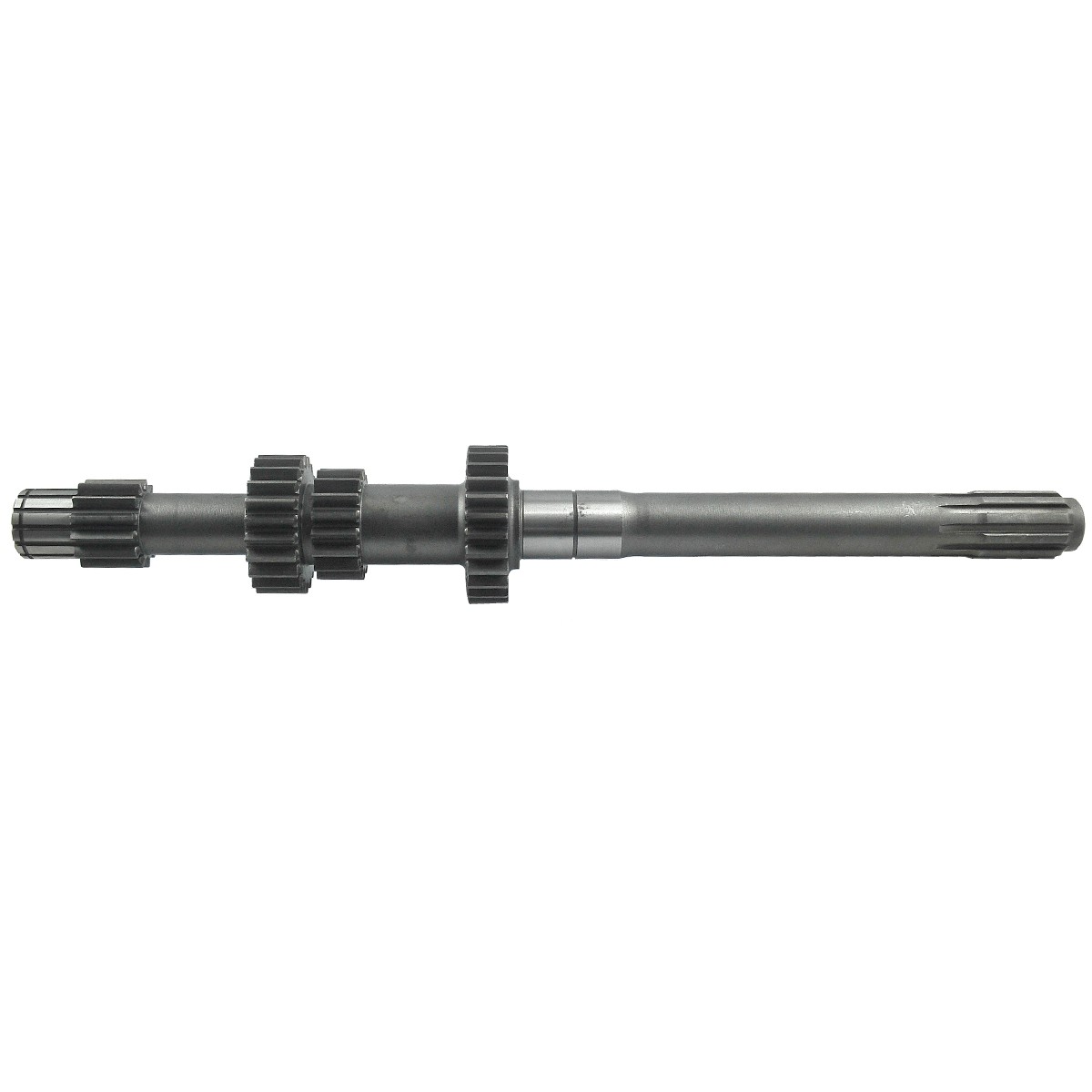

Gearbox shaft / 383 mm / 13T / 22T / 17T / 26T / 10T Kubota L2000 / 6-18-102-04

13T / 22T / 17T / 26T / 10T gearbox center shaft with a total length of 383 mm for Kubota tractors of the Kubota L2000 series and others.

The drive shaft is one of the most precisely manufactured components in the drive system and is always made from a single piece of steel, because the shaft contains equally precisely manufactured bearings, gears and sprockets that drive the tractor.

Dimensions :

• total length: 383 mm,
• shaft diameter: 22.50 / 27.80 / 22.50 mm,
• 13T sprocket diameter: 25 mm (measured between cutter teeth), 31 mm (measured together with teeth),
• 22T sprocket diameter: 40 mm (measured between cutter teeth), 50 mm (measured together with teeth),
• 17T sprocket diameter: 31 mm (measured between cutter teeth), 39 mm (measured together with teeth),
• 26T sprocket diameter: 47 mm (measured between cutter teeth), 56 mm (measured together with teeth),
• 10T sprocket diameter: 19.30 (measured between cutter teeth), 25 (measured together with teeth),
• original part numbers: 34200-21517,
• comparison numbers: %C3% B3w-13t22t17t26t10t-kubota-l2000-34200-21517-5-18-111-04.html?srsltid=AfmBOorgYjjbZHFc-vt78fRl74BcAsWKjDEo2ToxnOcMaKxKLXCWwLTQ">5-18-111-04 ,
• part numbers: 6-18-102-04.

Engine models :

Kubota :

• Kubota L2000.

Warehouse :
K18:F41

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
