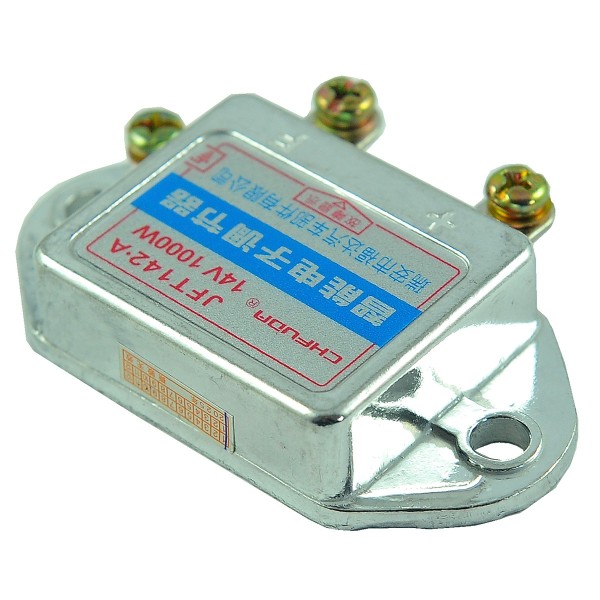

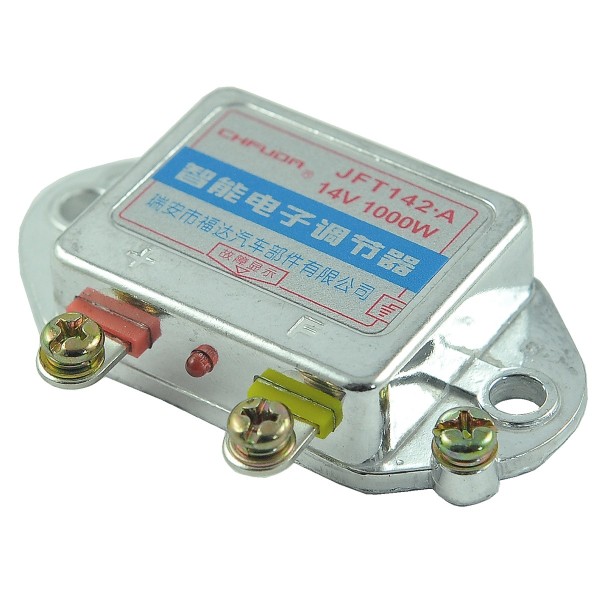

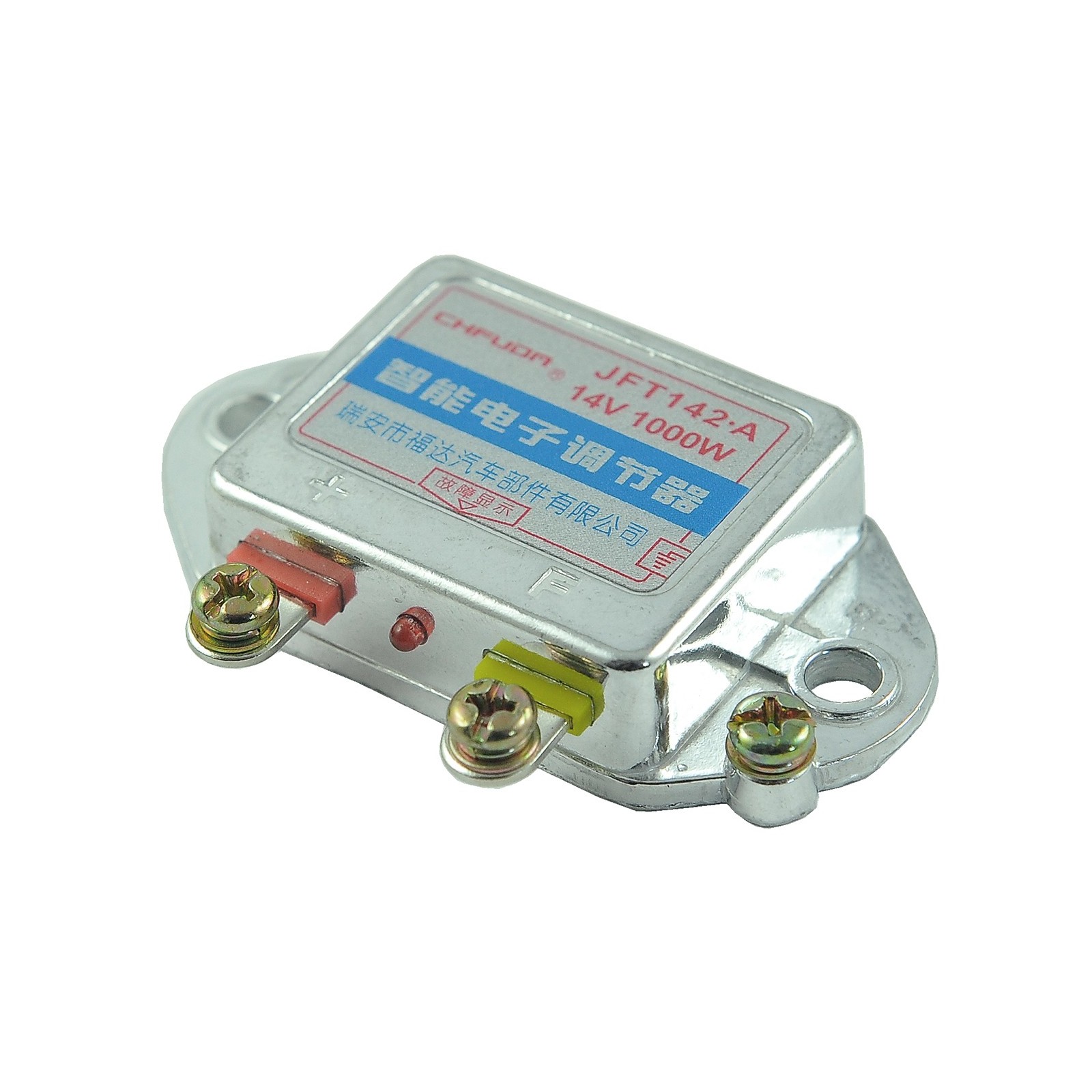

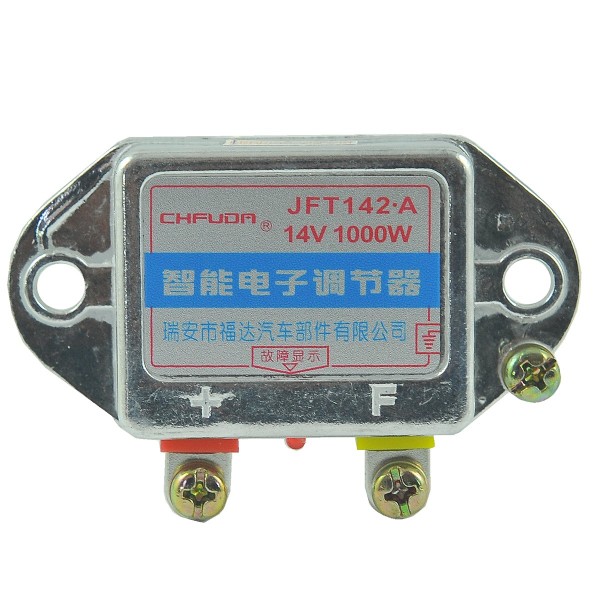

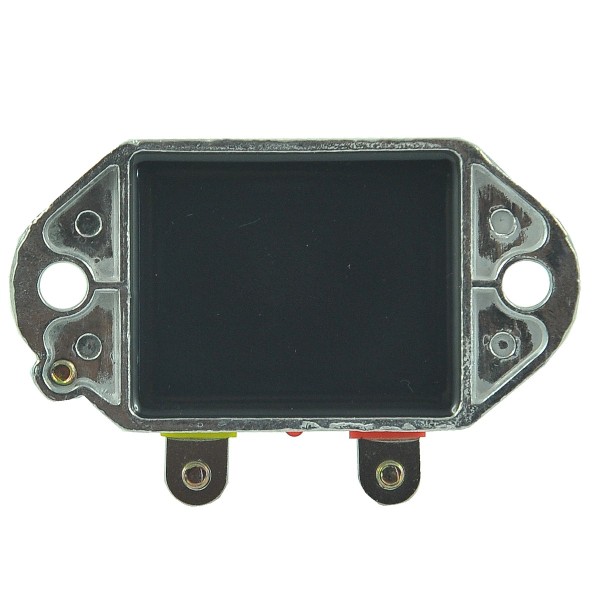

Voltage regulator / 14V / 28V / 1000W / DWC-22 4FARMER / JFT142-A

Voltage regulator for the DWC-22 4FARMER wood chipper, tractors, construction machinery and others.

A voltage regulator, also known as a stabilizer, is an electronic circuit responsible for keeping constant the voltage produced by the alternator, regardless of voltage fluctuations caused by loads on the electrical system while the tractor is working.

Dimensions:

• length: 80 mm,
• width: 40 mm,
• height: 16 mm,
• mounting bolt hole spacing: 65 mm,
• number of pins: 3 pcs
• voltage: 14V / 28V
• power: 1000W,
• original part numbers: ,
• part numbers: JFT142-A.

Machine models:

4FARMER:

• DWC-22 4FARMER.

The first signs of a faulty voltage regulator are the "charging" warning light coming on, headlight bulbs shining brighter, or bulbs burning out after a short period of use. Another sign can be weakly lit indicators on the dashboard. A badly working voltage regulator can lead to overcharging of the battery, which can be recognized by the smell of sulphur around the battery, or to a loss of electrical power while driving.

Warehouse:
K18:E08

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
