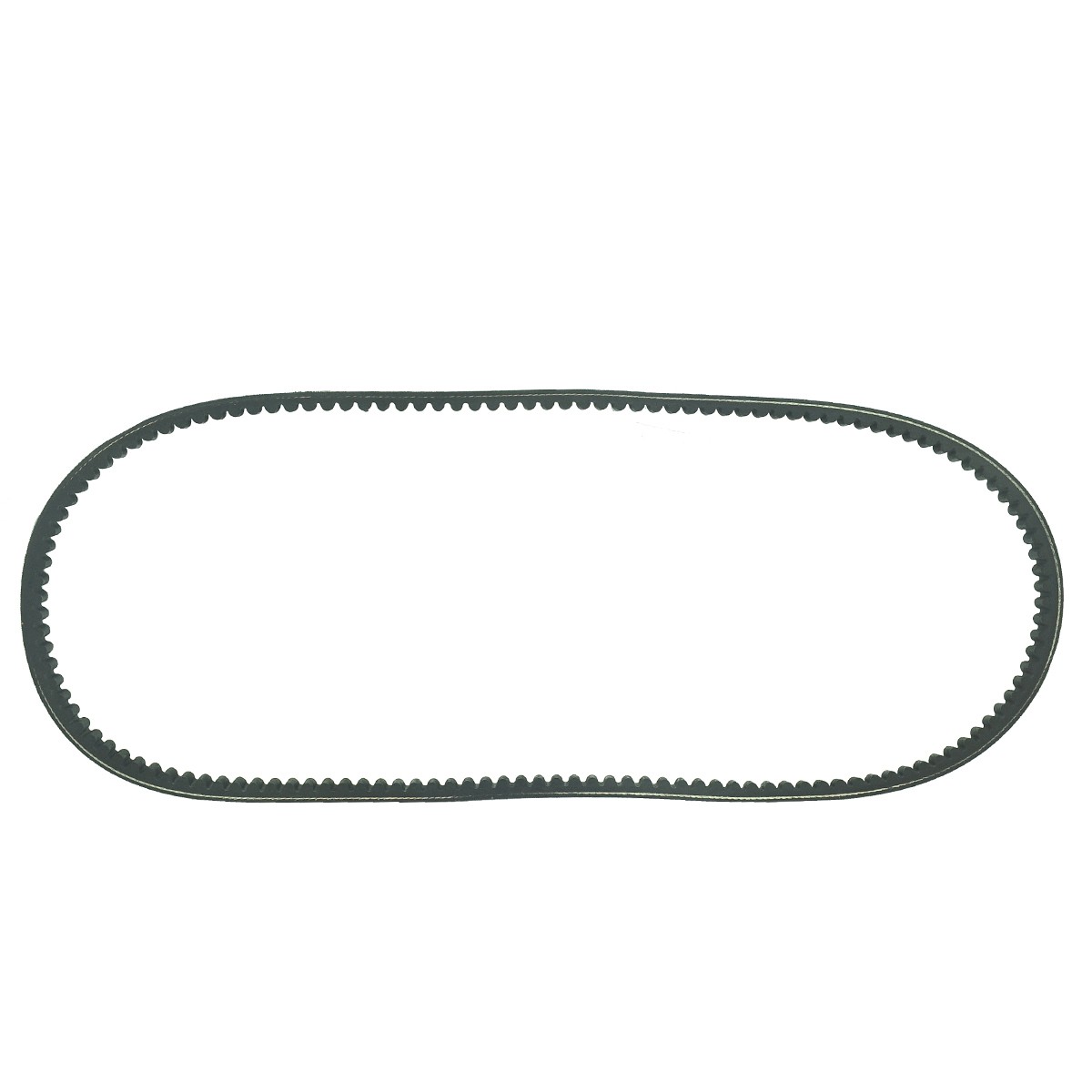

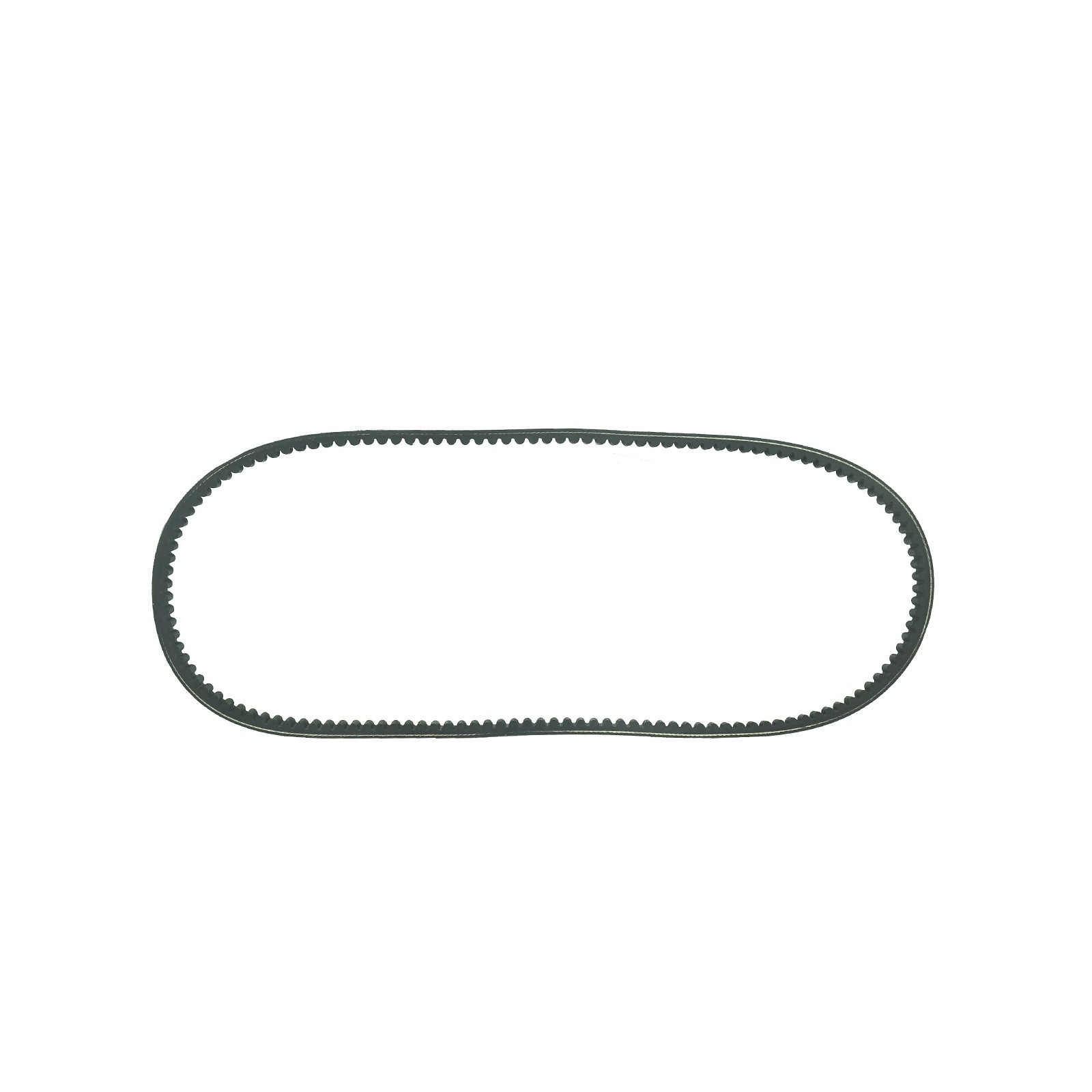

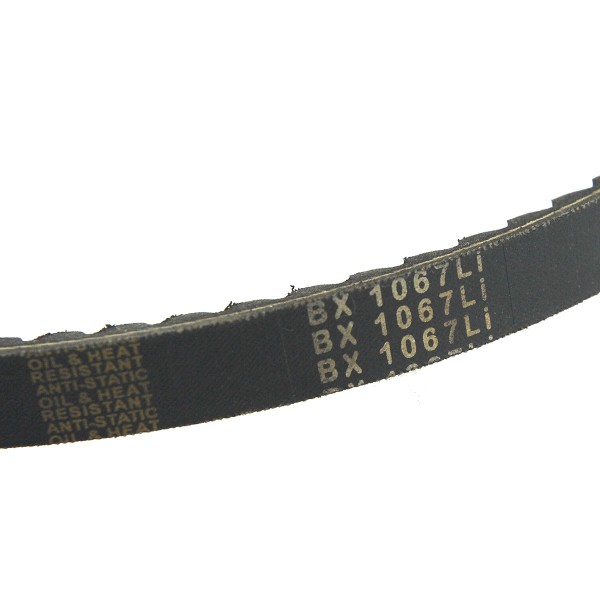

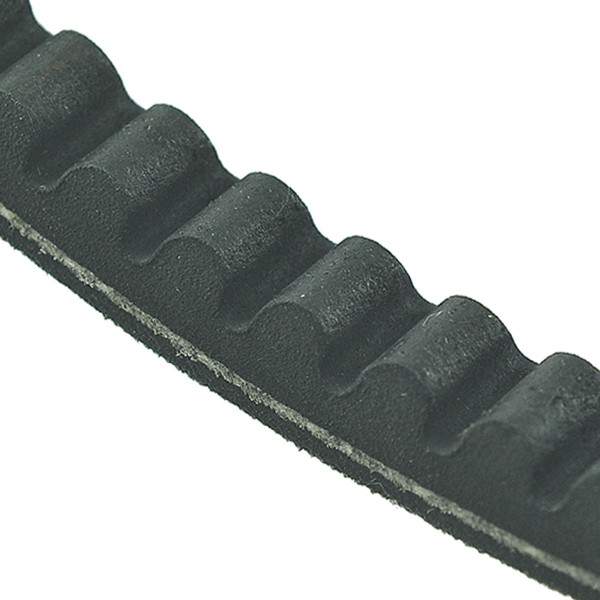

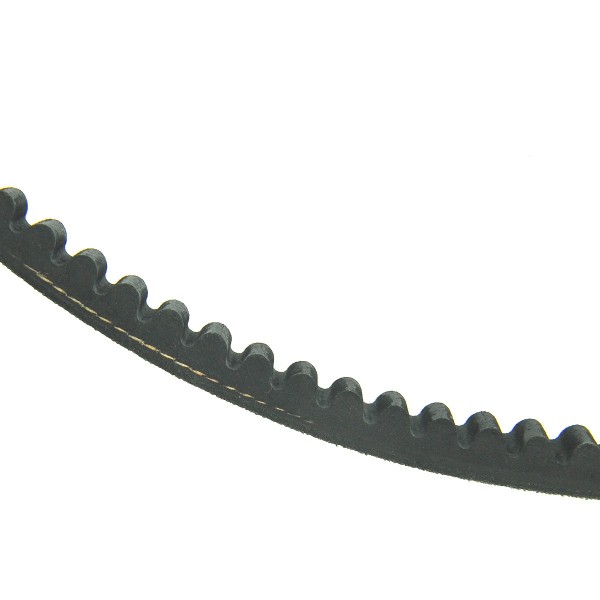

Belt for BX1067Li 4FARMER chipper

Drive belt with an internal length (Li) of 1067 mm , a width of 17 mm and a height of 12 mm.

A standard V-belt is designated by two length values: Ld and Li. Li is the inside length, and Ld is the so-called pitch length. According to the ISO standard, it can be roughly called the outside length, but it is the length measured at the strongest structural point of the belt. V-belt designations are usually capital letters of the alphabet indicating the belt cross-section (mm) Z, A, B, C, D, and length. The simplest classification of belts available on the market is narrow-section, classic, narrow-section toothed, and classic toothed.

V-belt length Li, Ld or La?

• Li - internal length,
• Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
• La - external length.

Dimensions :

• internal length (Li): 1067 mm,
• pitch length (Lp): -,
• width: 17 mm,
• height: 12 mm.

A V-belt is a component used to transmit power from an engine or transmission to an accessory or machine. V-belts are most often used to drive an alternator, coolant pump, or compressor, and in agriculture, belts are used in agricultural machinery and implements operating at high speeds. V-belts are the most frequently worn-out parts of agricultural machinery due to their material and damage resulting from overloading during operation. A worn V-belt should be replaced as soon as possible to prevent accidents or damage to the machine. An incorrectly installed V-belt or incorrectly adjusted tensioner, or excessive or insufficient V-belt tension, can cause premature wear. The first signs of V-belt wear (e.g., belt stretching) include a loss of machine power or unusual noise during operation.
