Available
Condition
New
Production
OEM
Parts
Cutting system
Drive
Length (mm)
1930 (Li)
Height (mm)
10
Width (mm)
17
wishlist

V-belt / BX1930Li / 4FARMER FM180/FMK180

FM180/BX1930Li
zł59.00
Tax included PL 23%

47,97 netto

  • Dostępność (750 Quantity): stock
wishlist

Do you have any questions?

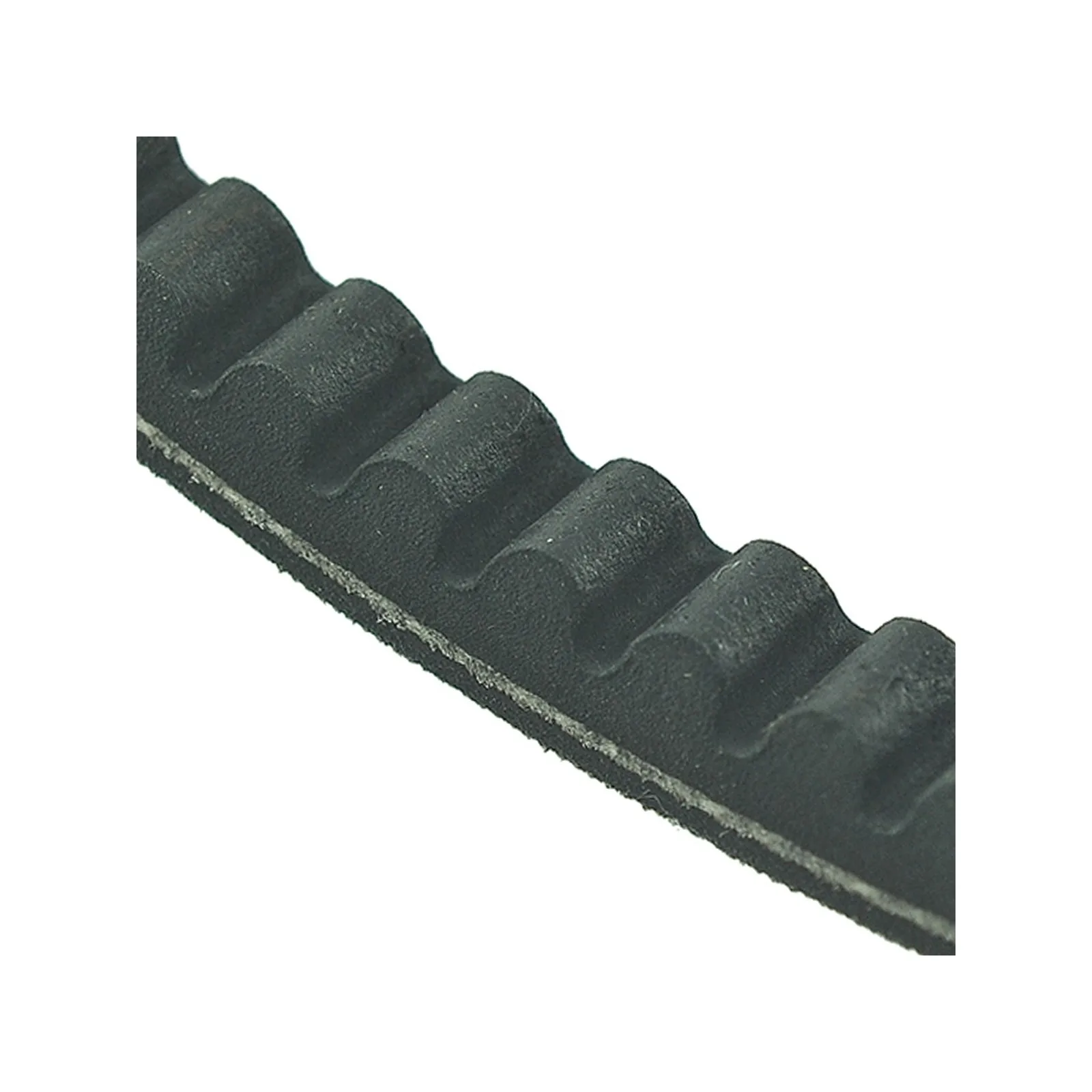

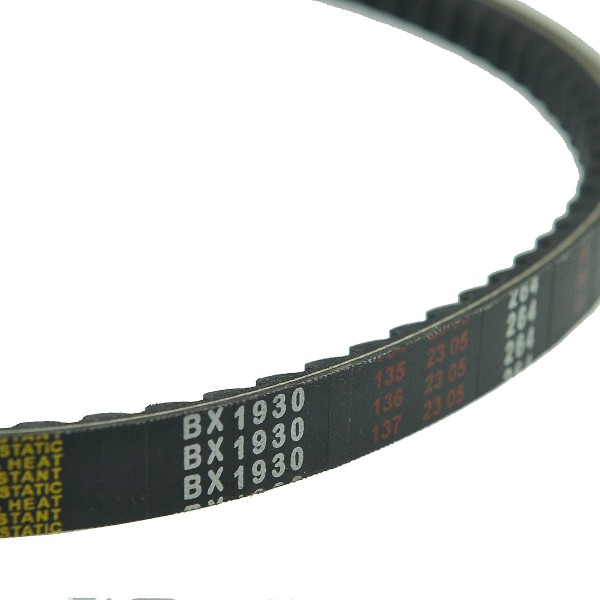

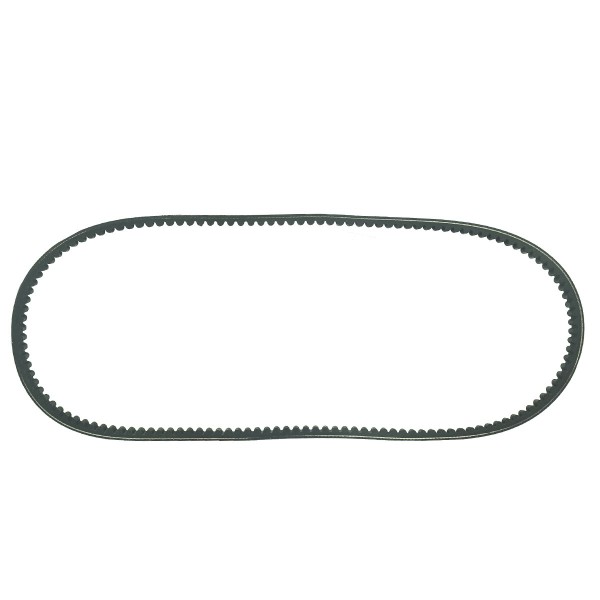

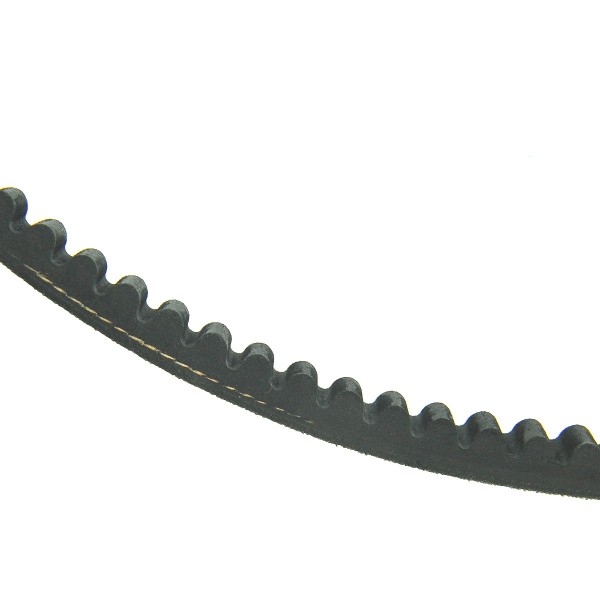

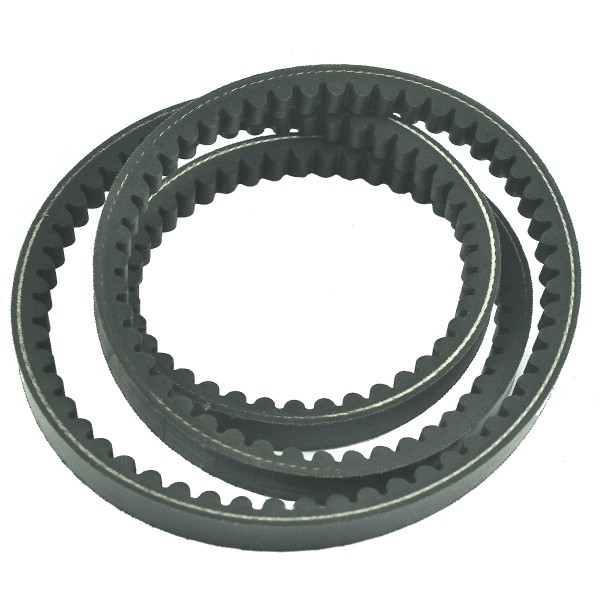

V-belt / BX1930Li / 4FARMER FM180/FMK180

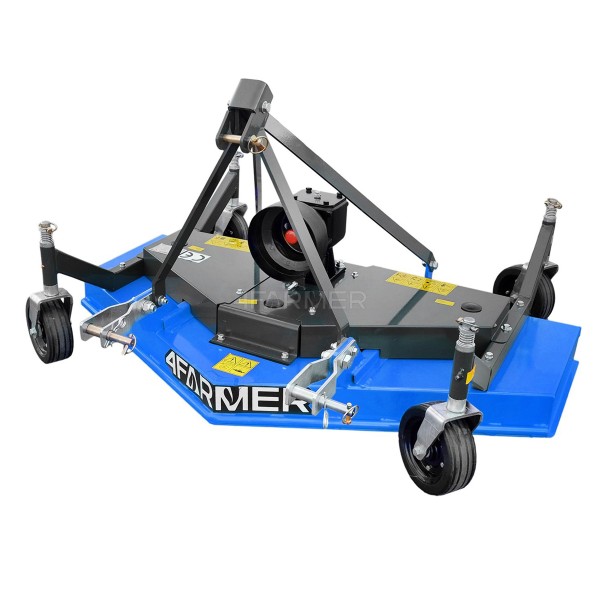

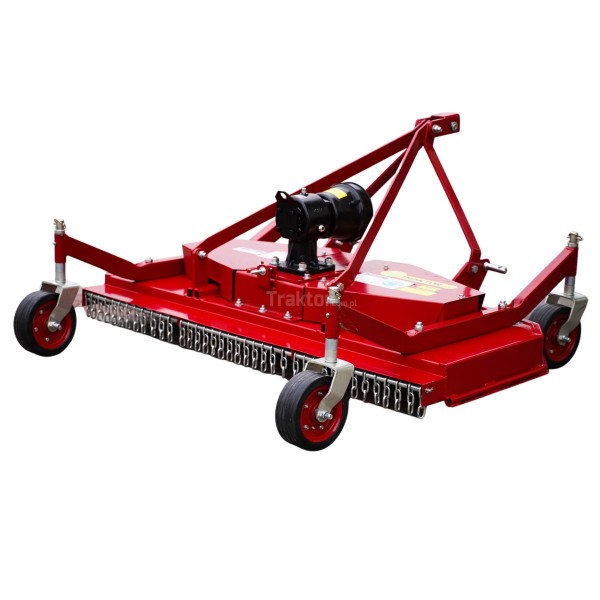

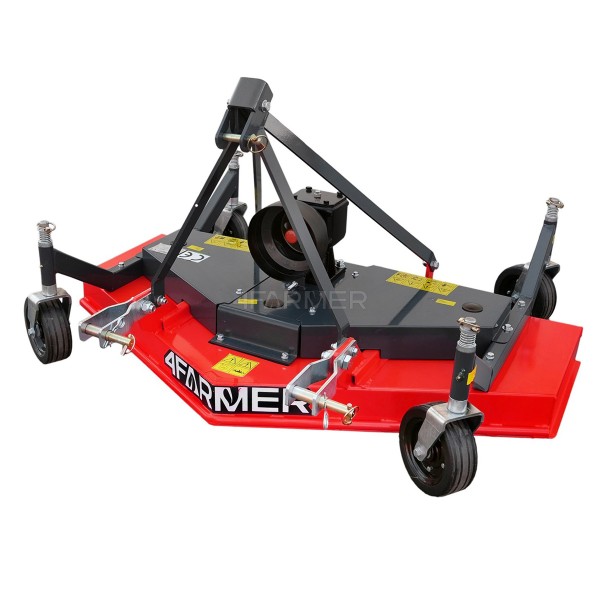

Drive belt with an internal length (Li) 1930 mm , width 17 mm and height 10 mm for the 4FARMER mower of the FM 180 4FARMER PRO series, FM 180 4FARMER STD , FMK180 4FARMER ( BLUE , ORANGE , RED ).

A standard V-belt is marked with two length values Ld and Li. The length Li is the internal length, and the length Ld is the so-called Pitch length, according to the ISO standard, it can be called the external length, but it is the length measured at the strongest structural point of the belt. The designation of the V-belt is usually a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and length. The simplest division of belts that are on sale is narrow-profile, classic, narrow-profile toothed and classic toothed.

V-belt length Li, Ld or La?

  • Li - internal length,
  • Ld /Lp - pitch length (measured at the height of 3/4 of the wedge section, ISO dimension),
  • La - outer length.

Dimensions :

  • internal length (Li): 1930 mm,
  • width: 17mm,
  • height: 10mm.

Mower models :

4FARMER :

The V-belt is an element that is used to transfer the drive from the engine or transmission to the equipment or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural equipment and equipment that are subjected to high rotational speeds. V-belts are the most frequently wearing parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. Replace a worn V-belt with a new one as soon as possible to prevent an accident or damage to the machine. Incorrectly installed V-belt or incorrectly set tensioner, too little or too much tension on the V-belt can cause faster wear. The first signs of wear of the V-belt (e.g. stretching of the belt) is a decrease in machine power or an unnatural sound during operation.

Warehouse :
M01:K01

Specification

Magazyn: K04
Condition
New
Production
OEM
Parts
Cutting system
Drive
Length (mm)
1930 (Li)
Height (mm)
10
Width (mm)
17

4FARMER

The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.

The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.

Wide offer of 4FARMER:

The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .

The most important advantages of the 4FARMER brand?

  • Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
  • Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
  • Professional support and access to spare parts.

4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
