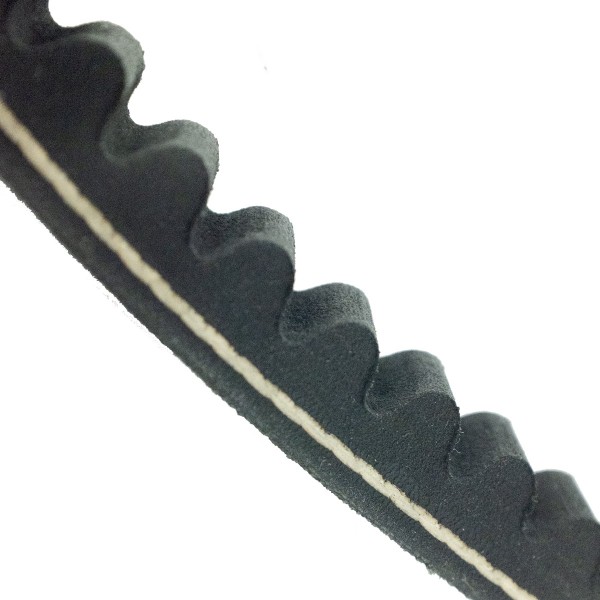

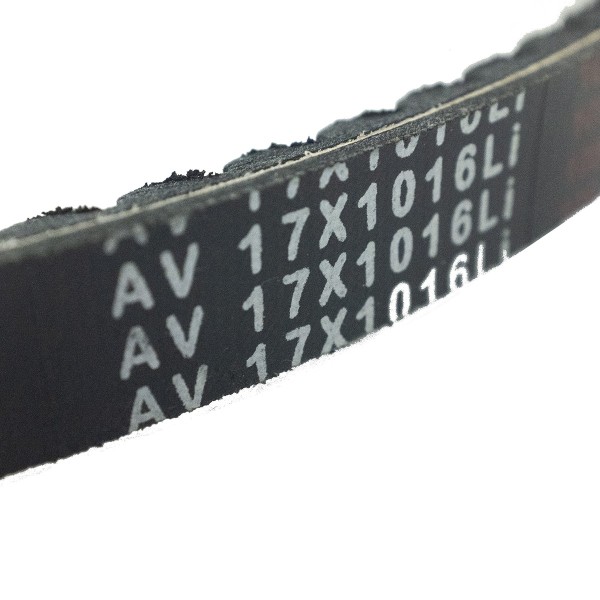

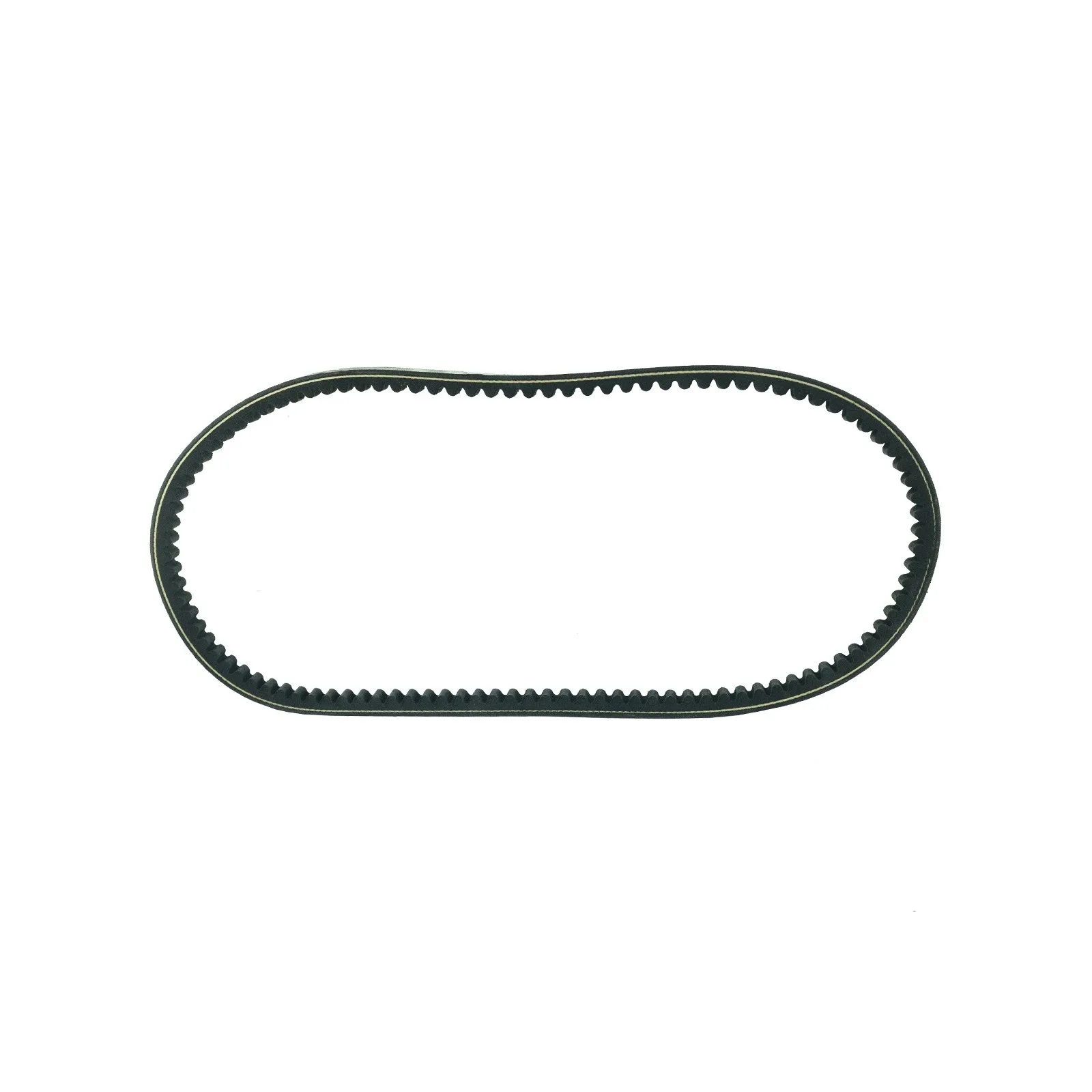

V-belt 17 x 1016 mm, AV 1016Li, AV 1056Ld for EFGCN / EFGCN-H / 4FARMER flail mower

V-belt with teeth, toothed , 1016 / 1056 mm long, 17 mm wide and 12 mm thick, for 4FARMER flail mowers, type EFGCN and EFGCN-H and others .

A V-belt is an element that is used to transfer power from the engine or transmission to the accessory or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and accessories operating at high rotational speeds. V-belts are the most frequently worn parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. A poorly installed V-belt or incorrectly set tensioner , too little or too much tension on the V-belt may result in faster wear. The first signs of V-belt wear (e.g. belt stretching) are a loss of machine power or an unnatural sound when the device is operating.

Dimensions :

• Width: 17 / 10 mm,
• Length: internal 1016 mm, external 1056 mm,
• Thickness: 12 mm.

Lawn mower models :

• EFGCN 105 flail mower ,
• EFGCN 115 flail mower ,
• EFGCN 125 flail mower ,
• EFGCN 135 flail mower ,
• EFGCN 145 flail mower ,
• EFGCN 155 flail mower ,
• EFGCN 165 flail mower ,
• EFGCN 175 flail mower ,
• Flail mower with hydraulic shift EFGCN-H 105 ,
• Flail mower with hydraulic shift EFGCN-H 115 ,
• Flail mower with hydraulic shift EFGCN-H 125 ,
• Flail mower with hydraulic shift EFGCN-H 135 ,
• Flail mower with hydraulic shift EFGCN-H 145 ,
• Flail mower with hydraulic shift EFGCN-H 155 ,
• Flail mower with hydraulic shift EFGCN-H 165 ,
• Flail mower with hydraulic shift EFGCN-H 175,

The V-belt fits the above-mentioned 4FARMER mowers (and other brands and manufacturers) sold by our company in the current calendar year. Older mower models or newer ones may have different belt sizes.
