To order
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Iseki TU135
- Iseki TX1300
- Iseki TX1500
Iseki TU1500
Iseki TX145
Iseki TX155
Iseki TX1000
Iseki TX1210
Iseki TX1410
Iseki TX1610
Iseki TX2140
Iseki TX2160
Number of teeth (pcs/T-teeth)
16T / 21T / 22T
Outer diameter (mm)
35 / 45.50 (16T)
35.50 / 39 (22T)
46.50 / 57.50 (21T)
Inner Diameter (mm)
27
Go to full specification >

Shaft / 22T / 21T / 16T / Iseki TU135 / TU1500 / TX145 / TX155 / TX1000 / TX1210 / ΤΧ1300 / TX1410 / ΤΧ1500 / TX1510 / TX1610

42008
8720769787623
zł859.00
Tax included PL 23% Dostępny na zamówienie

698,37 netto

  • To order

Do you have any questions?

Shaft / 22T / 21T / 16T / Iseki TU135 / TU1500 / TX145 / TX155 / TX1000 / TX1210 / ΤΧ1300 / TX1410 / ΤΧ1500 / TX1510 / TX1610

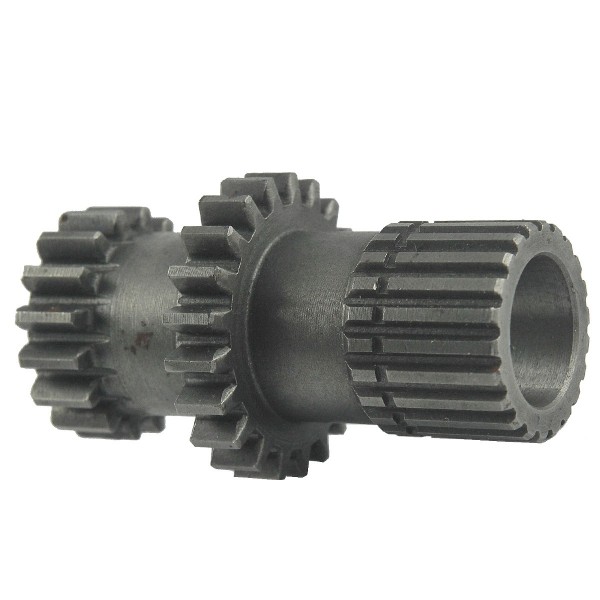

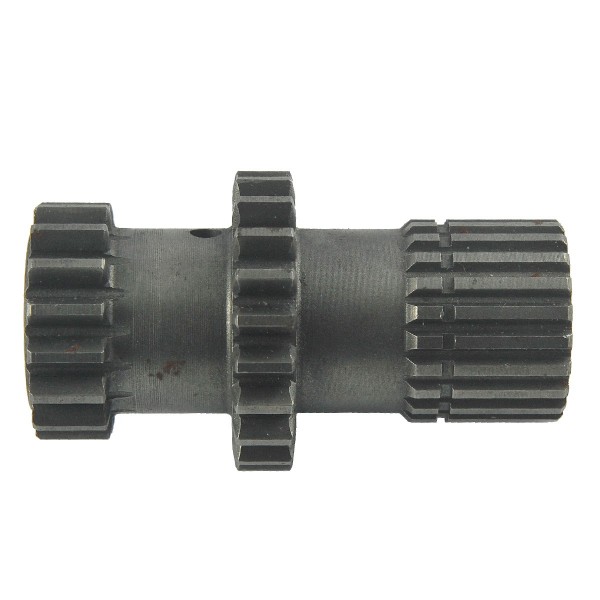

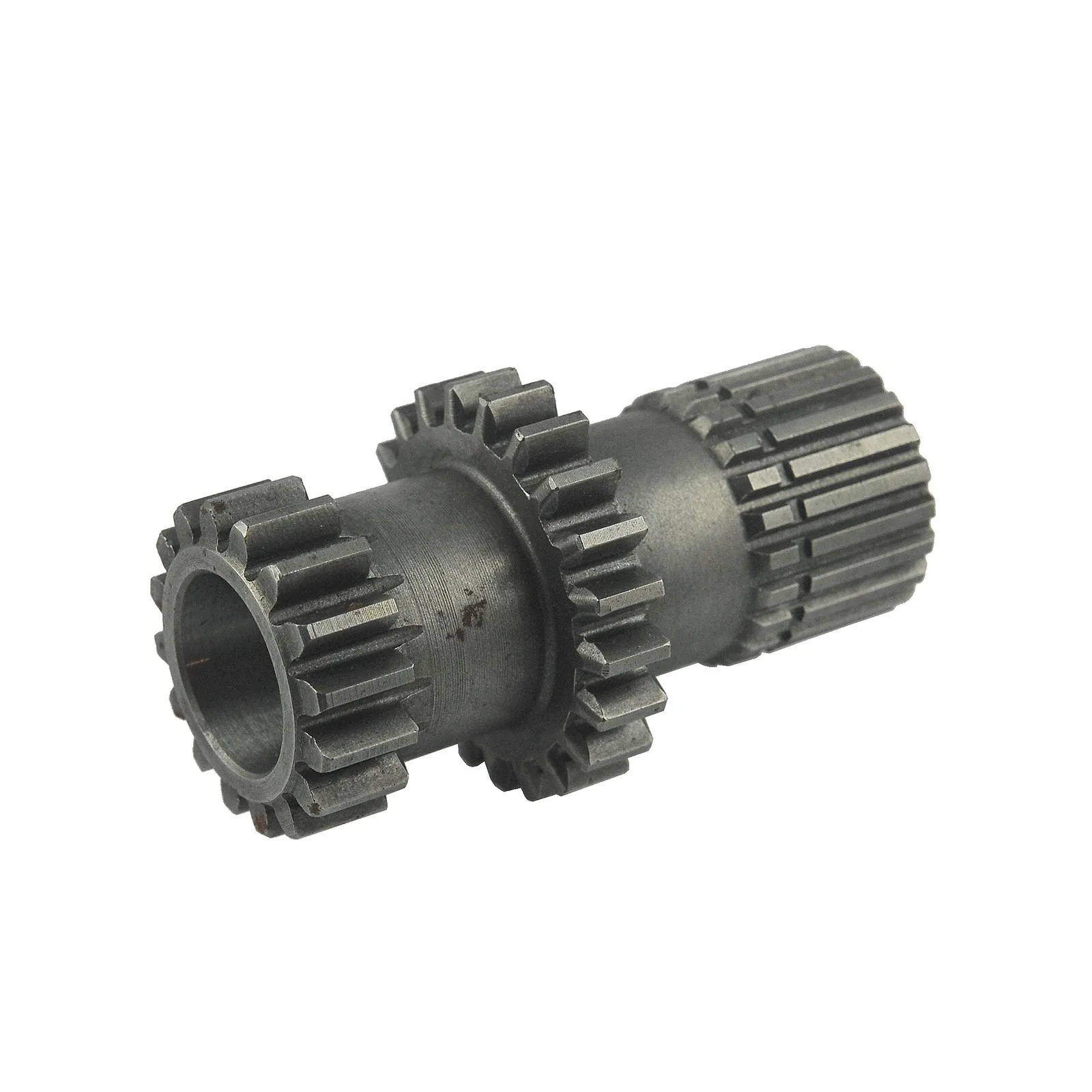

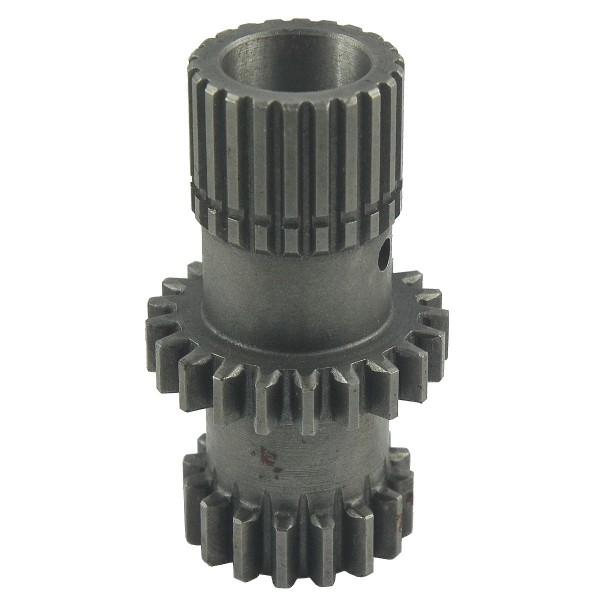

22T / 21T / 16T gearbox sprocket for PTO/PTO shaft speed drive with a total length of 102 mm for Iseki tractors of the Iseki TU135, Iseki TU1500, Iseki TX145, Iseki TX155, Iseki TX1000, Iseki TX1210, Iseki ΤΧ1300, Iseki TX1410, Iseki ΤΧ1500, Iseki TX1610, Iseki TX2140, Iseki TX2160 series and others.

Dimensions :

  • total length: 102 mm,
  • inner diameter: 27 mm,
  • outer diameter (22T): 35.50 mm (measured between cutter teeth), 39 mm (measured together with cutter),
  • outer diameter (21T): 46.50 mm (measured between cutter teeth), 57.50 mm (measured together with cutter),
  • outer diameter (16T): 35 mm (measured between cutter teeth), 45.50 mm (measured together with cutter),
  • number of teeth: 16T / 21T / 22T,
  • working length of the cutter (22T): 22 mm,
  • sprocket width (21T): 12 mm,
  • sprocket width (16T): 14 mm,
  • original part numbers: 1427-203-0040-0, 1427-203-001-0,1434-203-001-10, 1491-203-0010-0,
  • part numbers: 42008.

Tractor models :

Iseki :

  • Iseki TU135,
  • Iseki TU1500,
  • Iseki TX145,
  • Iseki TX155,
  • Iseki TX1000,
  • Iseki TX1210,
  • Iseki ΤΧ1300,
  • Iseki TX1410,
  • Iseki ΤΧ1500,
  • Iseki TX1610,
  • Iseki TX2140,
  • Iseki TX2160,

Warehouse :
M01:B37:S03

Specification

Magazyn: M01:B37:S03
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Iseki TU135
- Iseki TX1300
- Iseki TX1500
Iseki TU1500
Iseki TX145
Iseki TX155
Iseki TX1000
Iseki TX1210
Iseki TX1410
Iseki TX1610
Iseki TX2140
Iseki TX2160
Number of teeth (pcs/T-teeth)
16T / 21T / 22T
Outer diameter (mm)
35 / 45.50 (16T)
35.50 / 39 (22T)
46.50 / 57.50 (21T)
Inner Diameter (mm)
27
Overall length (mm)
102
Cutter(s) length (mm)
22
Rack width (mm)
12 (21T)
14 (22T)
Original Part Number (OEM)
1427-203-001-0
1427-203-0040-0
1434-203- 001-10
1491-203-0010-0
Part number
42002
