Product description

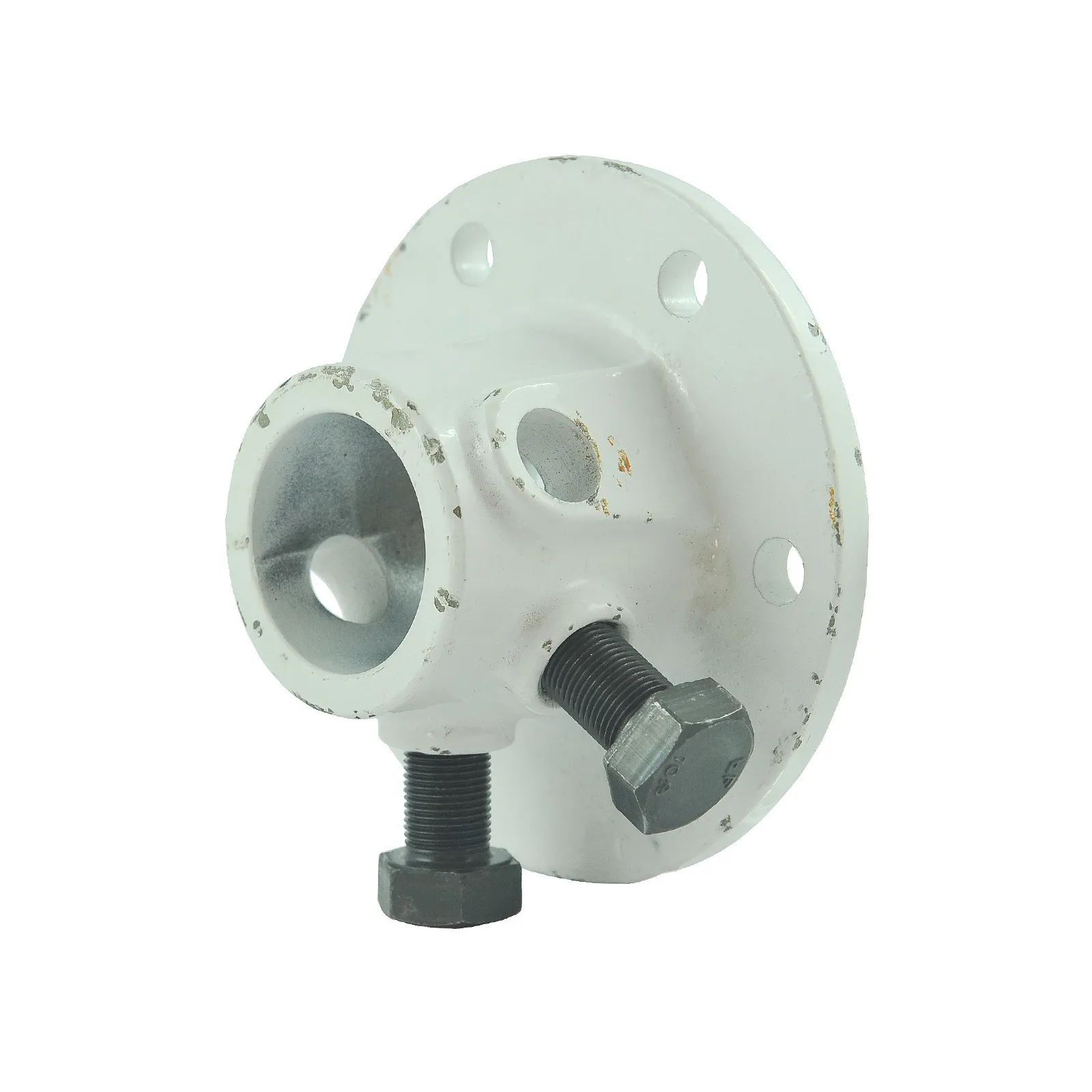

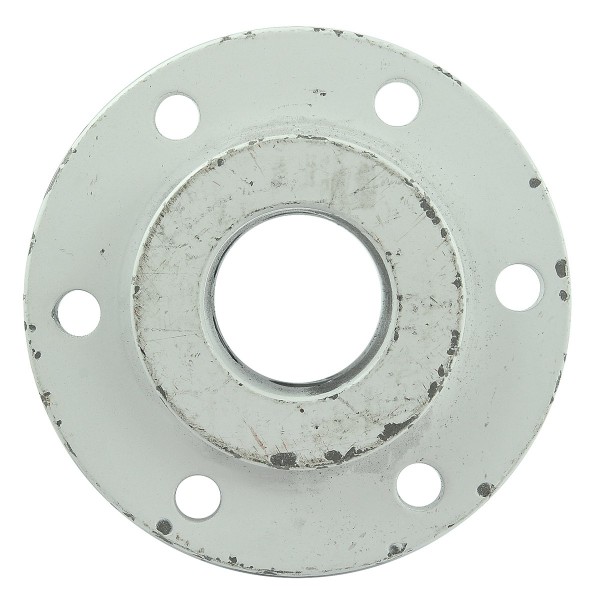

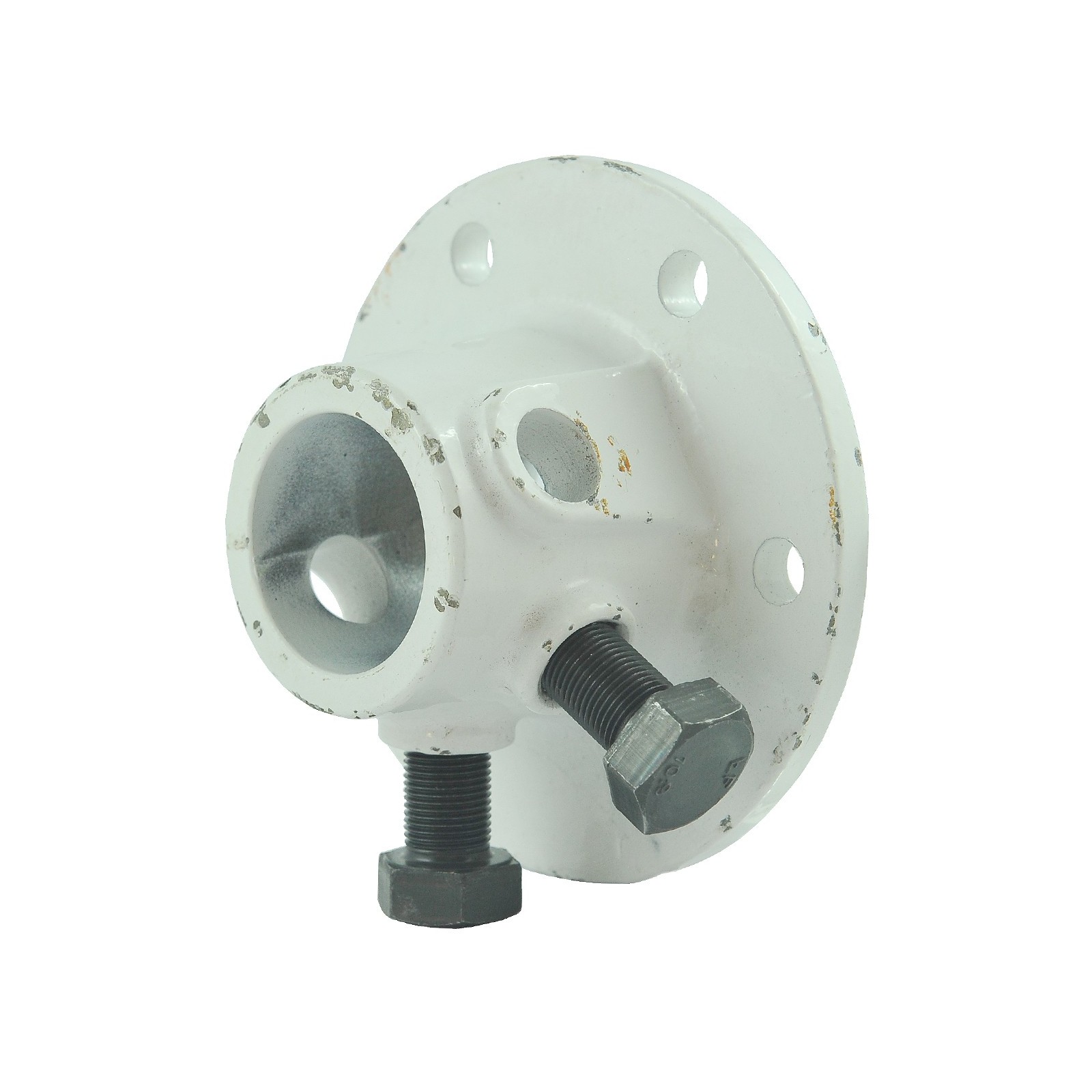

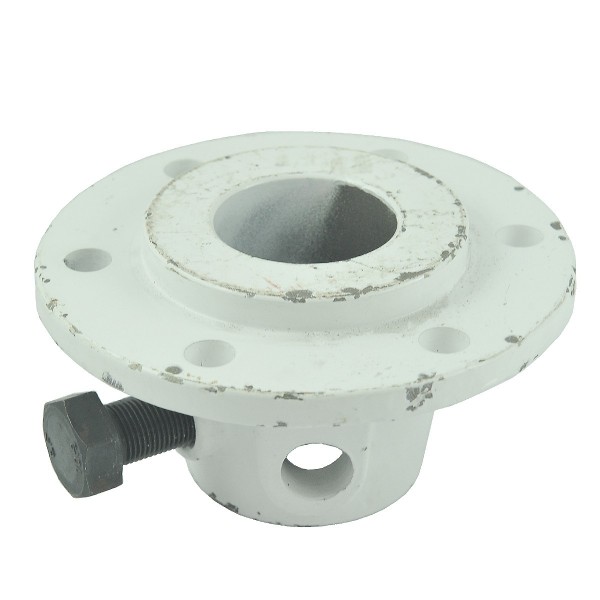

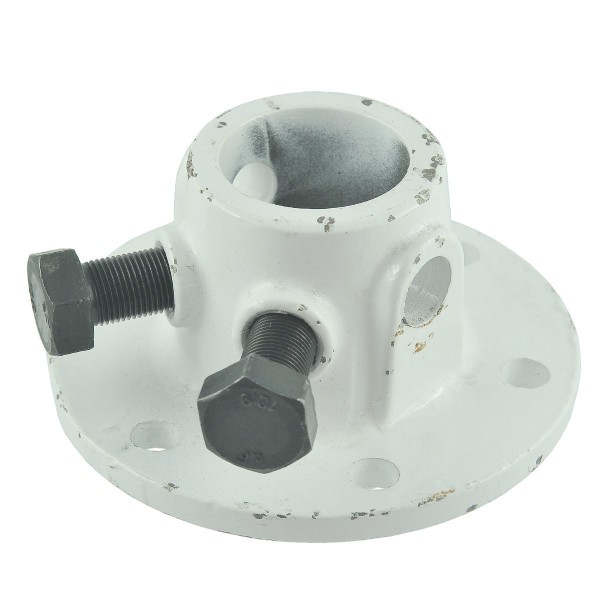

Rear wheel hub with an outer diameter of 69 / 150 mm , inner diameter of 50 mm (measured between the cutter teeth) and a height of 80 mm for Iseki tractors of the Iseki TX145, Iseki TX155, Iseki iTX1000, Iseki TX1210, Iseki TX1300, Iseki TX1410, Iseki TX1500, Iseki TX1510 series and others.
The hub is an element of the tractor's running gear to which the wheel is bolted. The hub is placed in the so-called reduction gear and allows the wheel to rotate freely and is responsible for maintaining the wheel in the correct position. The hub in tractors of simple construction is mounted directly on the transmission, drive shaft.
Dimensions :
- height: 80 mm,
- outer diameter: 69 / 150 mm,
- number of holes for mounting screws: 6 pcs.
- inner diameter: 50 mm,
- mounting screw hole spacing: 120 mm (measured diagonally), 60 mm (measured from each other),
- diameter of mounting screw holes: 12.90 mm,
- original part numbers: 1427-317-0010-0,
- part numbers: 40001.
Tractor models :
Iseki :
- Iseki TX145,
- Iseki TX155,
- Iseki TX1000,
- Iseki TX1210,
- Iseki TX1300,
- Iseki TX1410,
- Iseki TX1500,
- Iseki TX1510.
The first signs of wheel hub wear are problems with maintaining the right direction of travel, sometimes combined with loud noise coming from the wheel area, especially noticeable when braking and accelerating the tractor. An extremely worn wheel hub can lead to blockage or even separation of the wheel from the tractor.
Warehouse :
M01:M12
Specifications
Related products
Reviews of Wheel hub /..Reviews of Wheel hub / 60 x 120 mm / Iseki TX145 / TX155 / TX1000 / TX1210 / TX1300 / TX1410 / TX1500 / TX1510
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
