Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Kubota L2808
Kubota L3408
Cone Height(mm)
27
44
Height (mm)
77
Overall length (mm)
107
Go to full specification >

Rod End / 77 x 107 mm / Left / Kubota L2808 / L3408 / 6-23-133-02

6-23-133-02
zł70.00
Tax included PL 23%

56,91 netto

  • Dostępność (14 Quantity): stock

Do you have any questions?

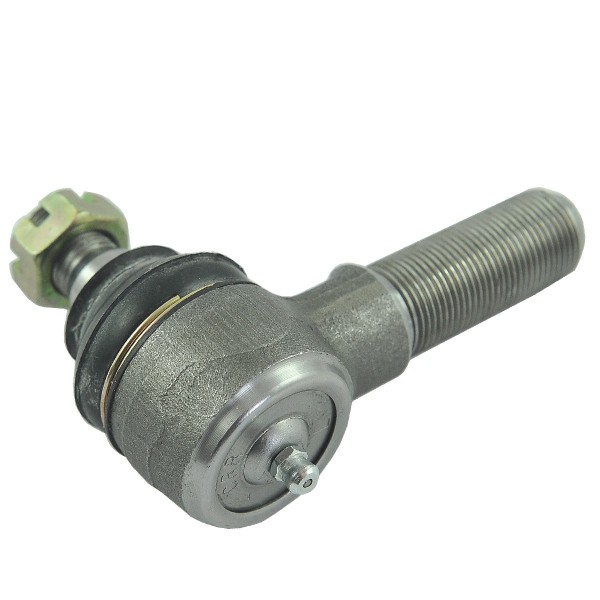

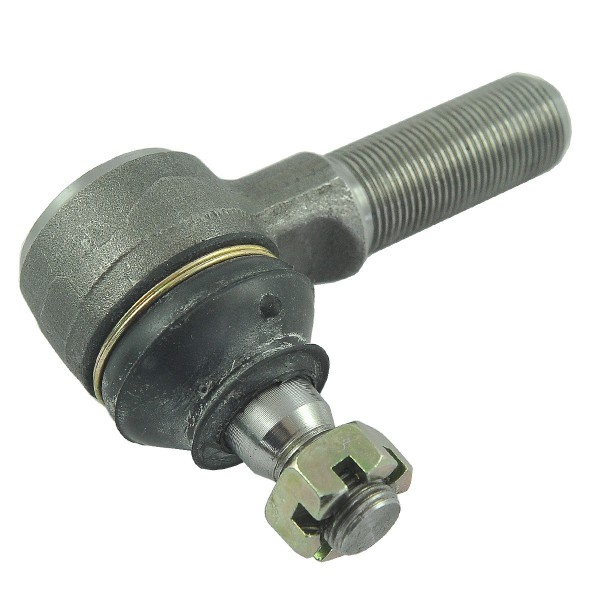

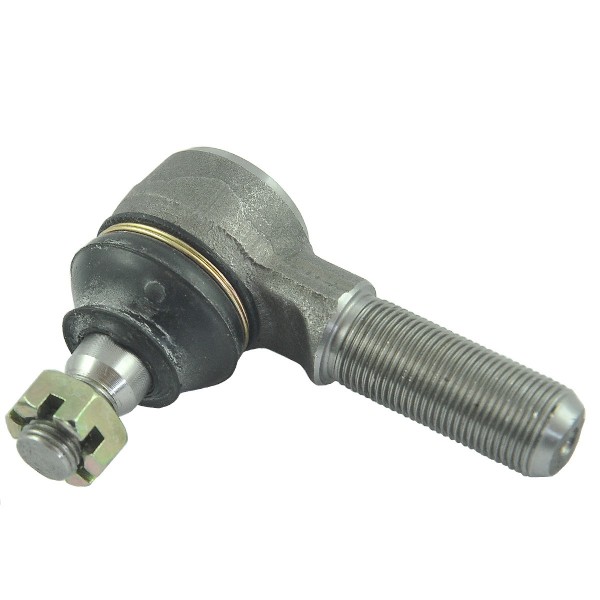

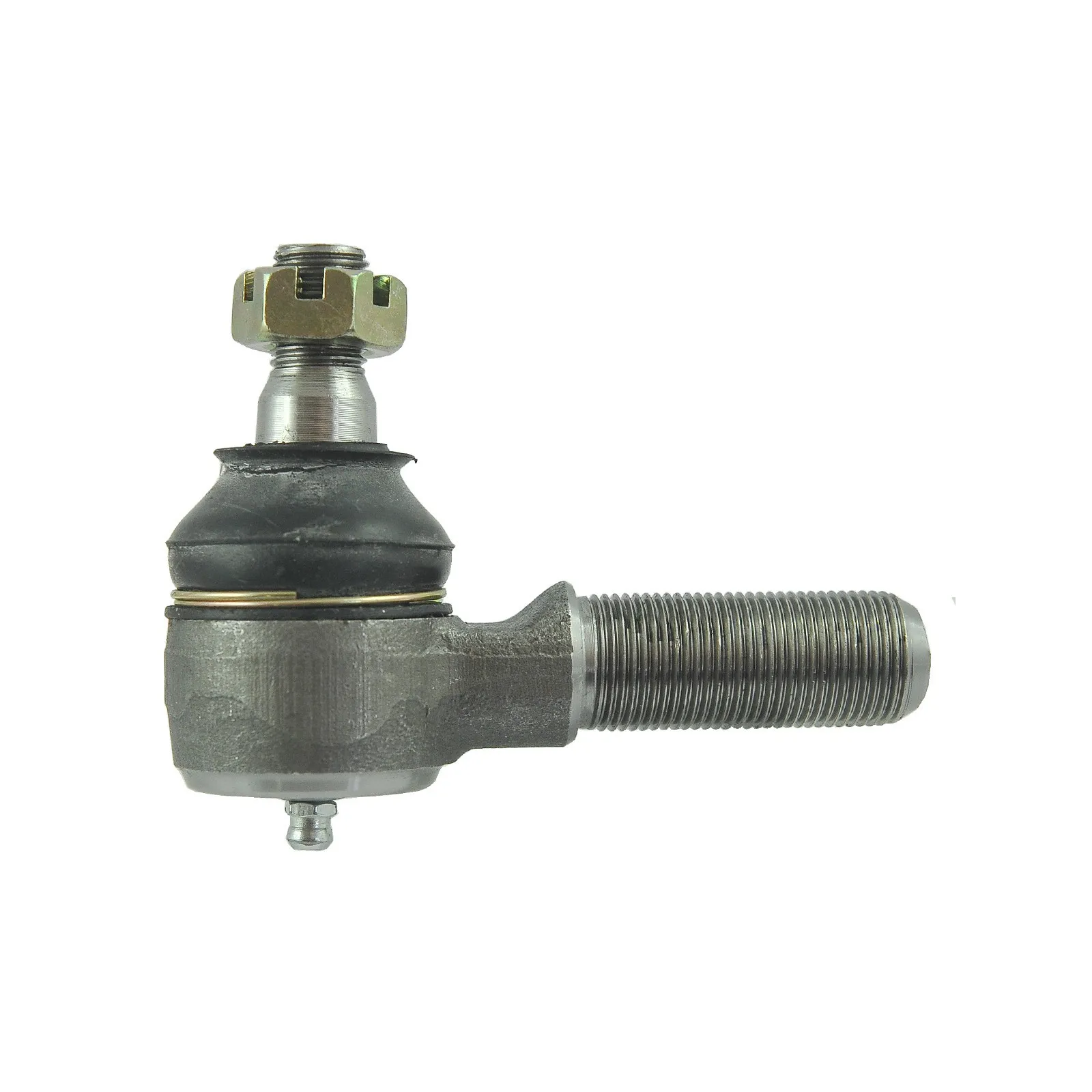

Rod End / 77 x 107 mm / Left / Kubota L2808 / L3408 / 6-23-133-02

LH rod end (rod %C5% BCki-steering-/2703-dr %C4% 85 %C5% BCek-steering-540-mm-kubota-l3408-5-23-101-76.html">5-23-101-76 ) with a total length of 107 mm and a height of 77 mm for tractors Kubota brands Kubota L2808, Kubota L3408 and other series

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

Dimensions :

  • total length: 107 mm,
  • head diameter: 41 mm,
  • thread length: 17 / 47 mm,

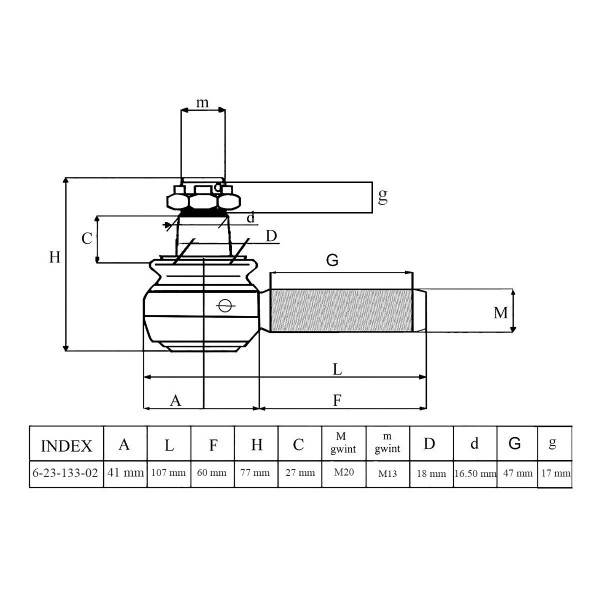

  • head height (see drawing): 77 mm,
  • cone height: 44 / 27 mm,
  • cone diameter (see drawing): 16.50 / 18 mm,
  • thread: M13 x 1.5 / M20 x 1.50,
  • original part numbers: 32580-44770,
  • comparison numbers: 5-23-101-15,
  • part numbers: 6-23-133-02.

Tractor models :

  • Kubota L2808,
  • Kubota L3408.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine: K18:E18

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:T12
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Kubota L2808
Kubota L3408
Cone Height(mm)
27
44
Height (mm)
77
Overall length (mm)
107
Thread(s) length (mm)
17
47
Head diameter (mm)
41
Cone diameter (mm)
16.50
18.00
Thread
M14 x 1.5
M20 x 1.50
Type
Left
Original Part Number (OEM)
32580-44770
Part number
6-23-111-02
