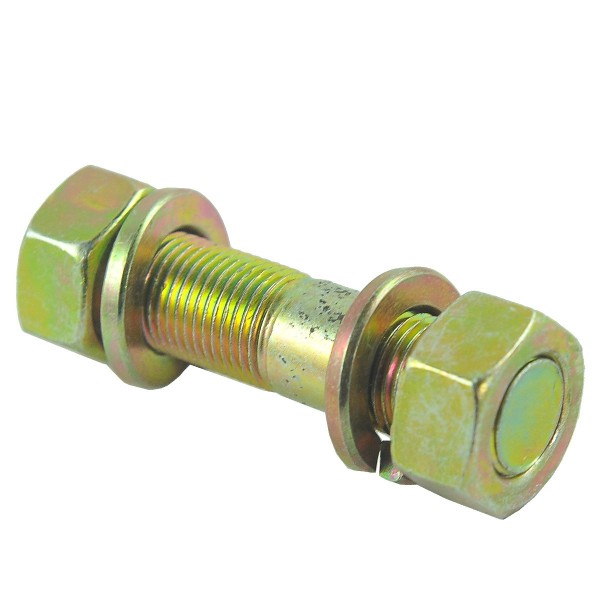

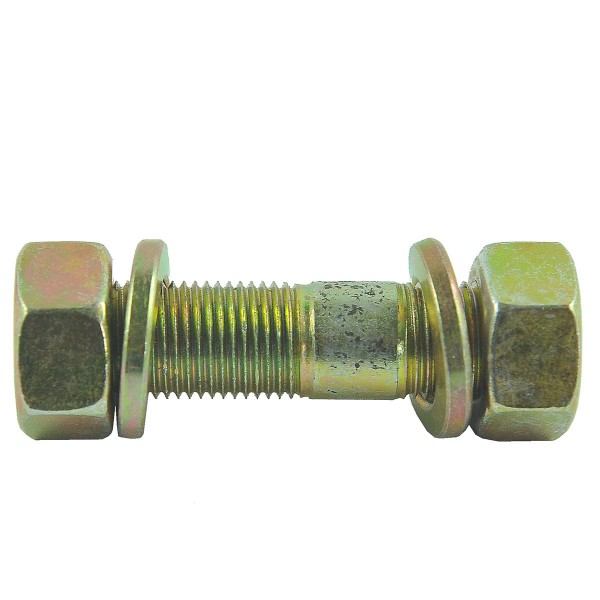

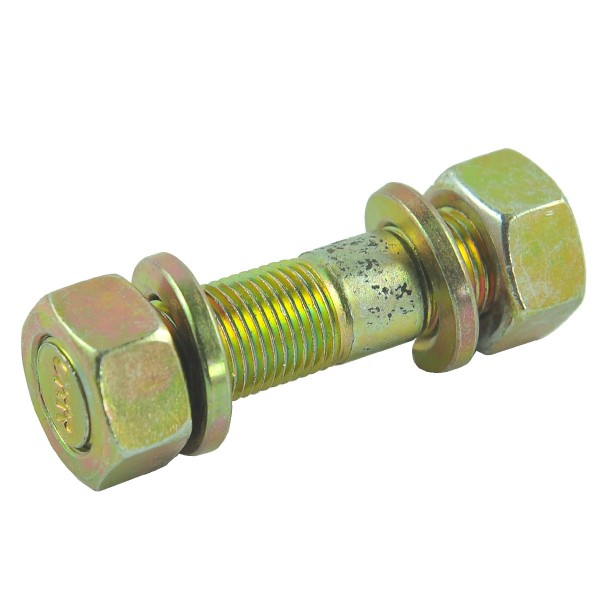

Bolt / M16 x 1.5 / Kubota L3408

M16 stud with a 1.5 pitch thread, thread length 22/35 mm and total length 73 mm for Kubota tractors and mini tractors of the Kubota L3408 series and others for:

• rear wheel,
• rear axle,
• rear axle,
• rear wheel hub.

The proper selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision, i.e., A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength in relation to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• length: 73 mm,
• thread: M16 x 1.5,
• thread length: 22 / 35 mm,
• key size: 24,
• part numbers: 5-13-104-06,

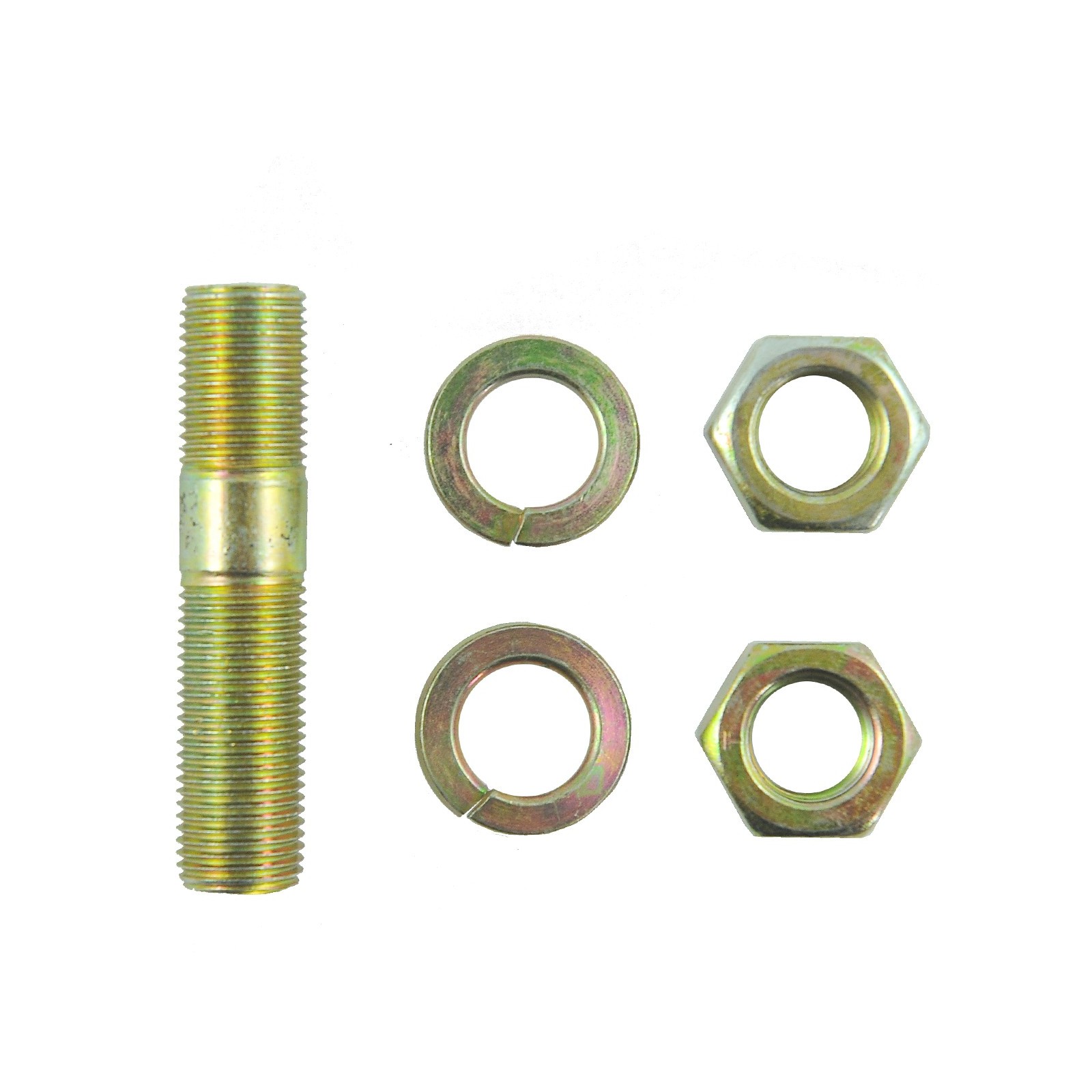

• set includes: pin, two washers and two nuts.

Tractor models :

Kubota :

• Kubota L3408.

Magazine : M01:A21:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
