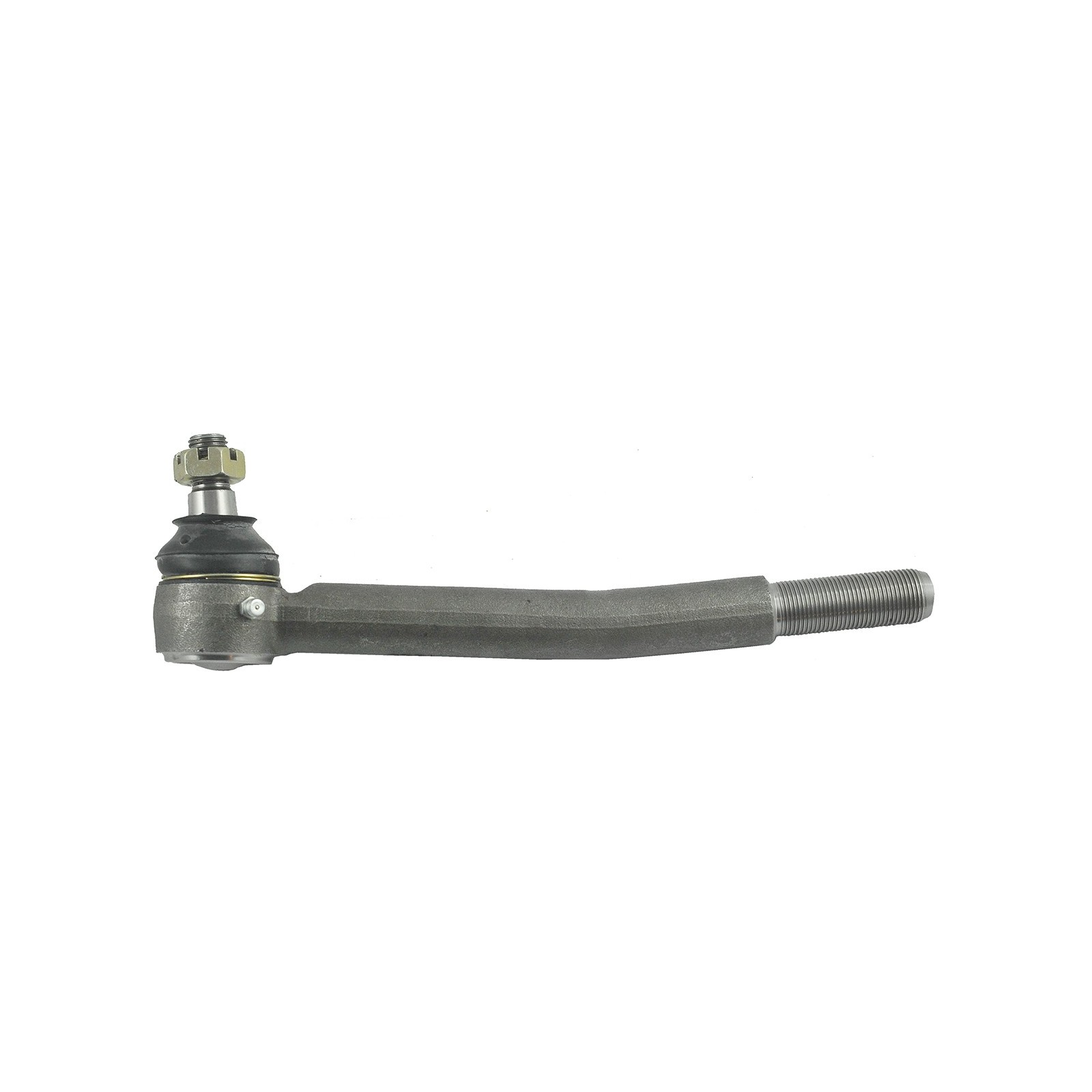

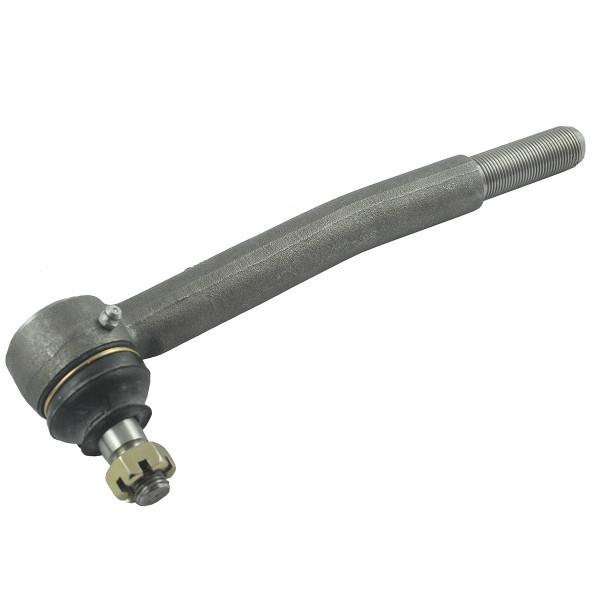

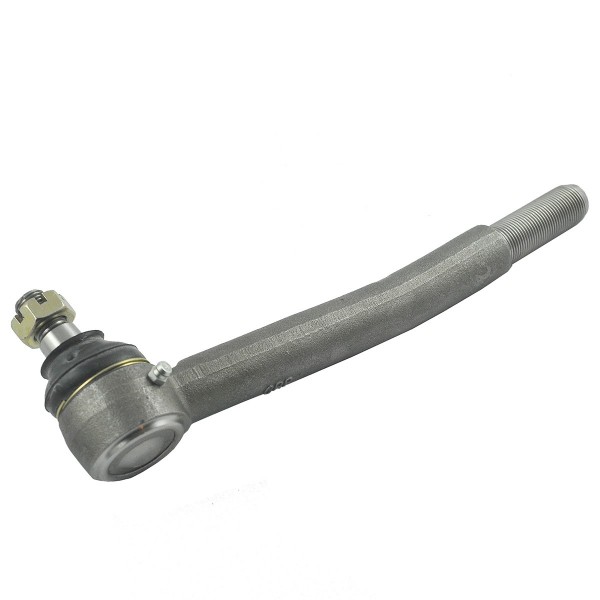

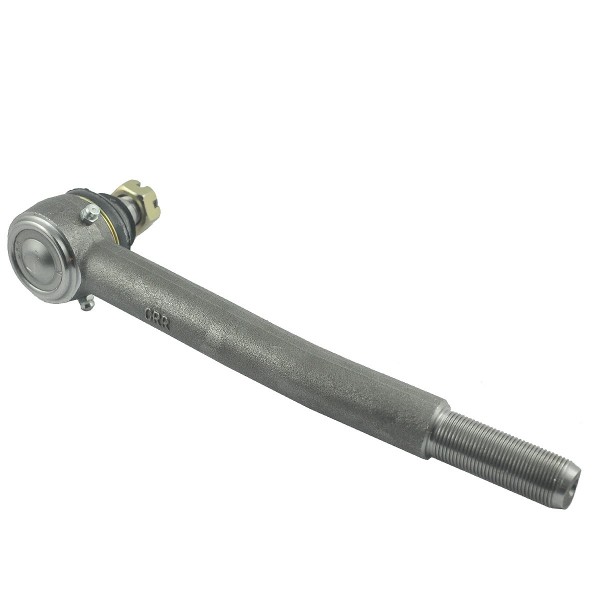

Tie Rod End / 80 x 270 mm / Left / Kubota L3008 / L3608 / L4018 / 5-23-101-60

Steering rod with a total length of 270 mm and a height of 80 mm for tractors Kubota brands Kubota L3008, Kubota L3608, Kubota L4018 and other series

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs replacing are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

(shaft connector 5-15-249-06, 32570-44720, complete left set 5-23-101-61, left end 5-23-101-57, TC422-13742, right side set 5-23-101-62, TC422-13740)

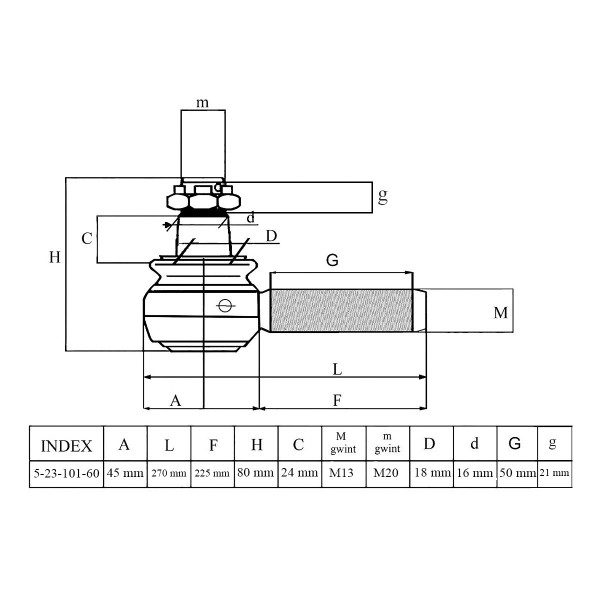

Dimensions :

• total length: 270 mm,
• head diameter: 45 mm,
• thread length: 21 / 50 mm,
• head height (see drawing): 80 mm,
• cone height: 45 / 24 mm,
• cone diameter (see drawing): 18 / 16 mm,
• thread: M13 x 1.50 / M20 x 1.50,
• original part numbers: -,
• comparison numbers: 6-23-133-11,
• part numbers: 5-23-101-60

Tractor models :

• Kubota L3008,
• Kubota L3608,
• Kubota L4018.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine: K18:E18

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
