Three-point linkage ISEKI KUBOTA / Cat I/Cat I / 16 x 50 x 600 mm / M27 x 400 mm

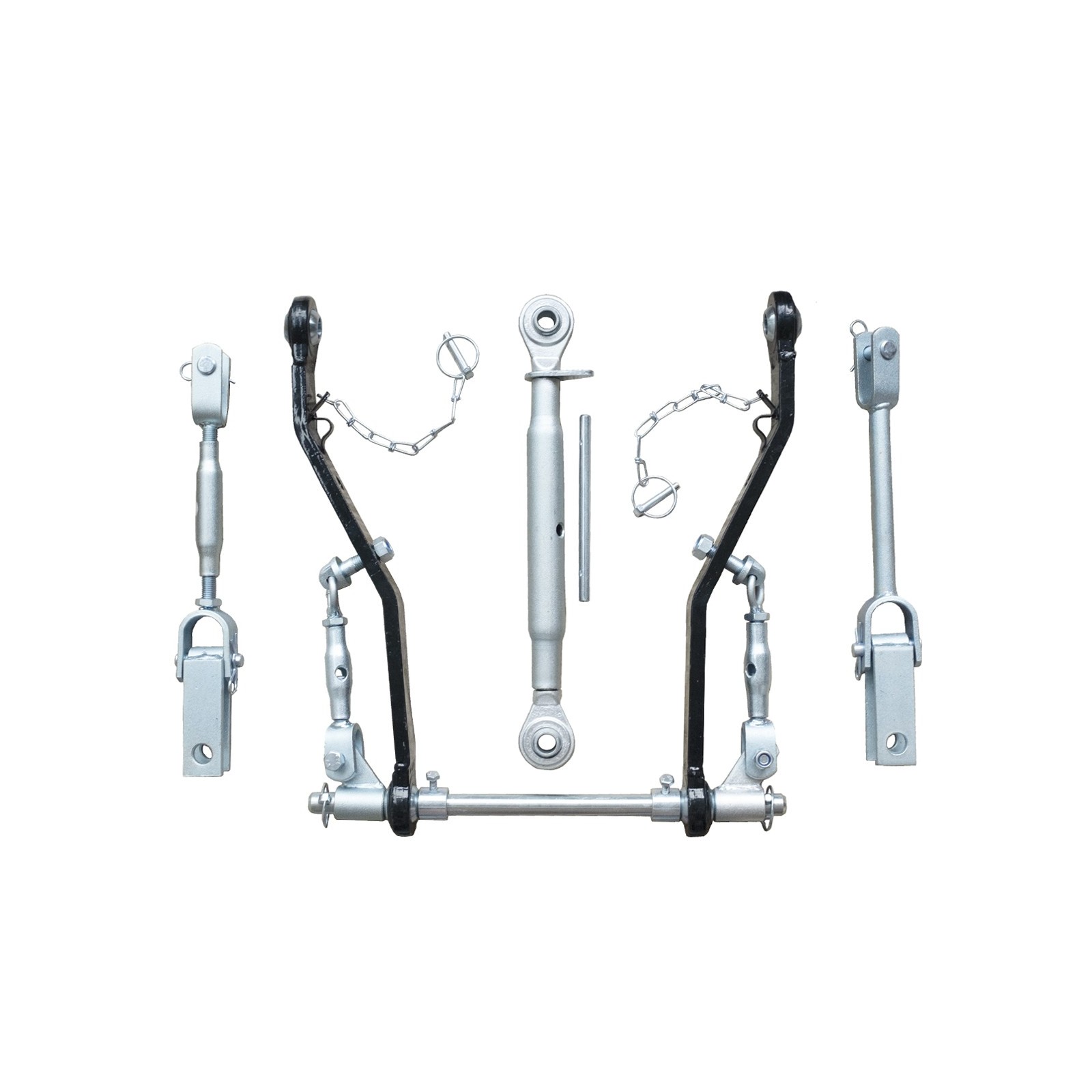

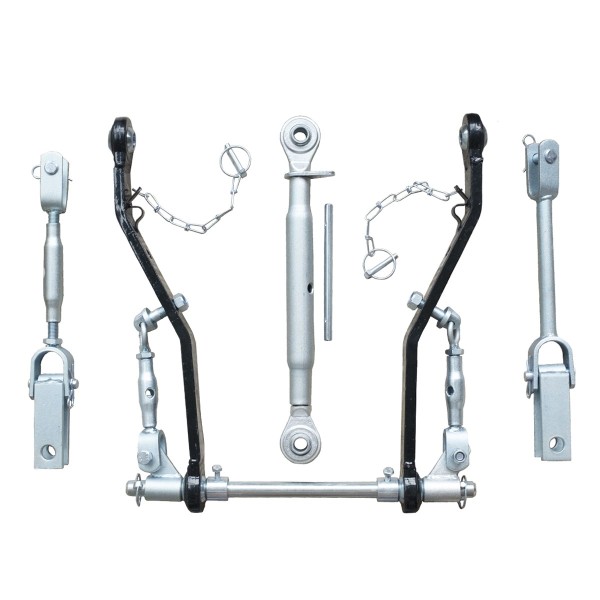

The TUZ Cat I suspension set is dedicated to Iseki and Kubota tractors and mines and consists of :

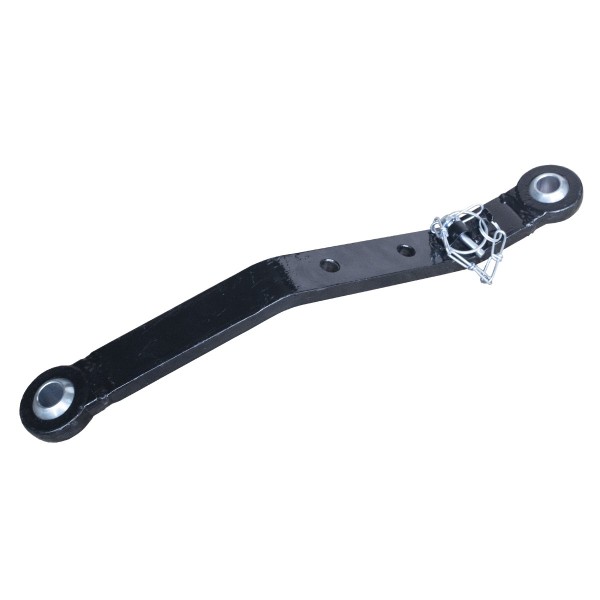

• lower arms x 2 (lases),
• upper connector (turnbuckle),
• hangers (connecting the lower arms of the lift with the upper ones, the so-called lifting arms) x 2,
• chains pulling lower arms x 2,
• lower arm mounting bracket.

The lower arms of the TUZ most often have a ball end, but in modern systems manufacturers use more universal hook ends. The three-point suspension system of the TUZ can be used both at the rear and at the front of the tractor. The TUZ suspensions differ in the length of the lower arms, the diameter of the ball holes and the length of the hangers and before buying, you should carefully measure the distance from the lower arm mounting pins to the appropriate distance behind the tractor tire.

Dimensions :

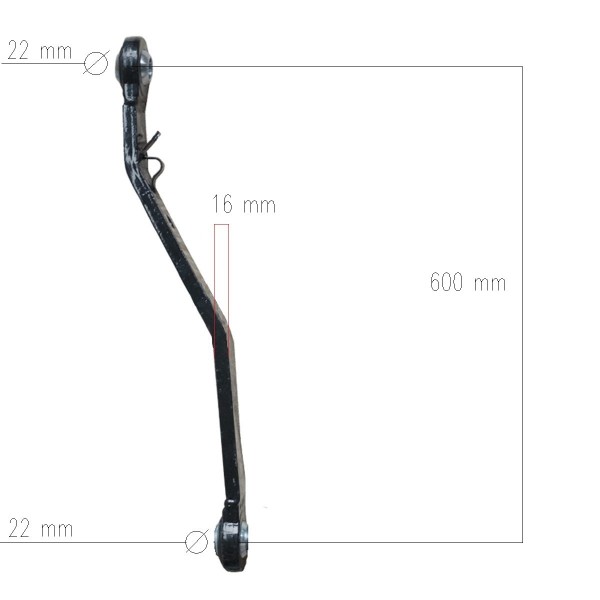

• working length of arms (lases) from center to center of pin holes: 600 mm,

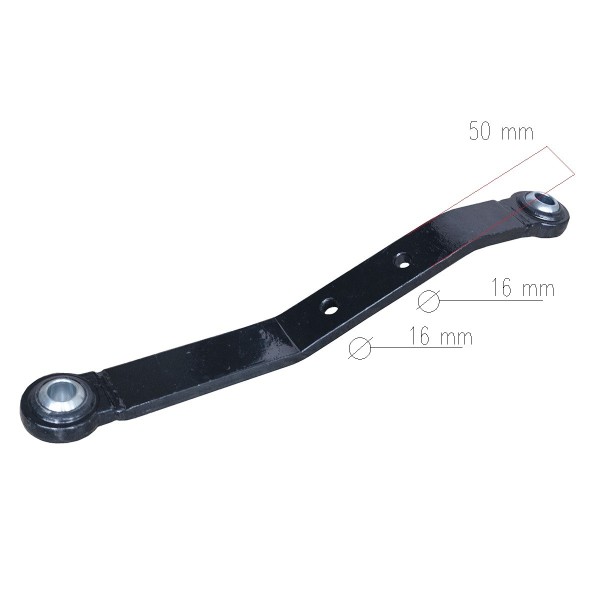

• shoulder width (lash): 50 mm
• thickness of arms (laser): 16 mm,
• diameter of ball end holes: 22 mm,
• diameter of holes for guy chain mounting screws: 16 mm

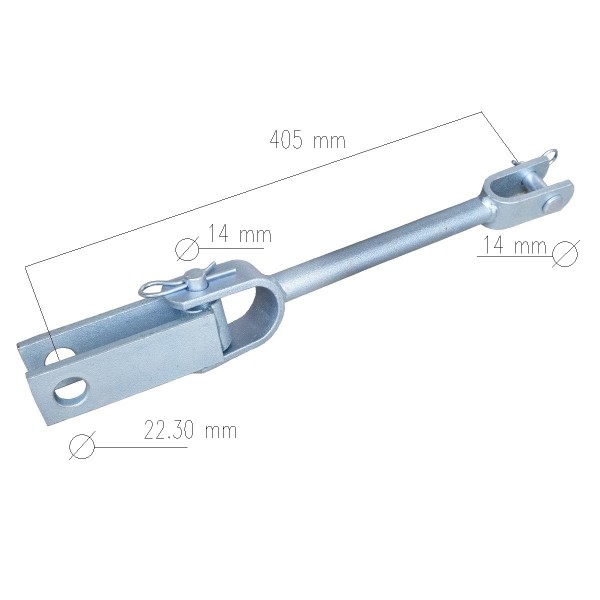

• hanger pin diameter: 14 mm,
• diameter of holes for hanger pin: 22.30 mm,

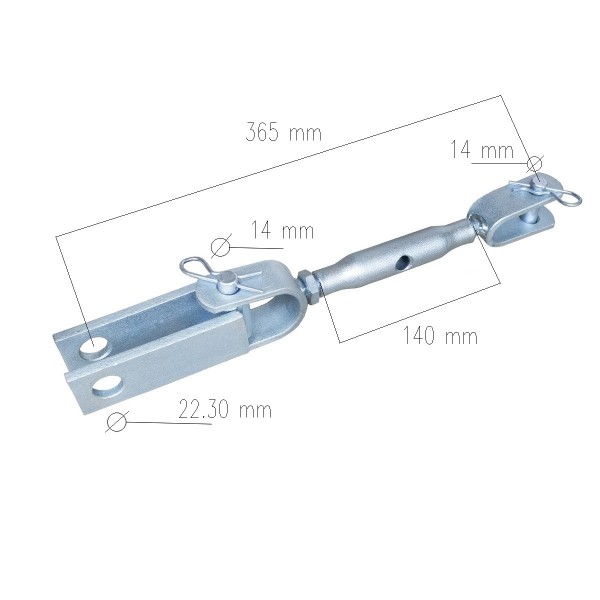

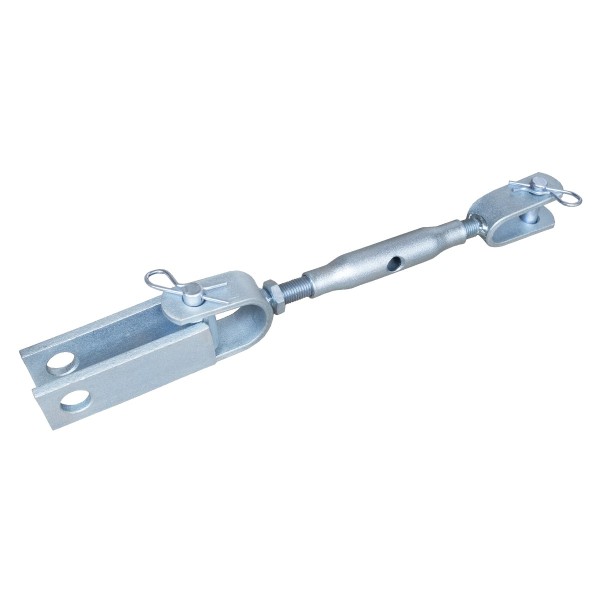

• working length of the adjustable hanger: minimum 365 mm with maximally tightened threads, 140 mm middle element of the hanger,

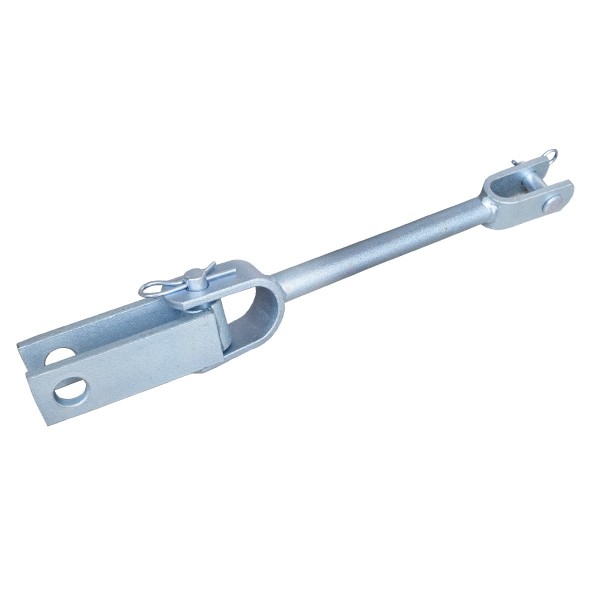

• working length of the hanger without adjustment 405 mm,

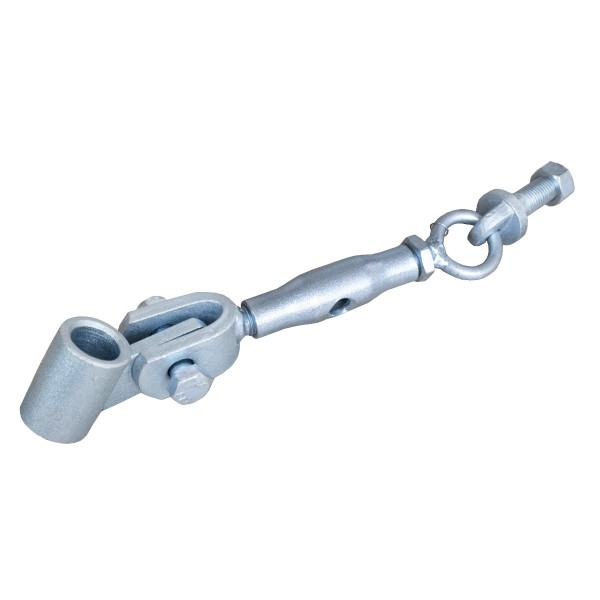

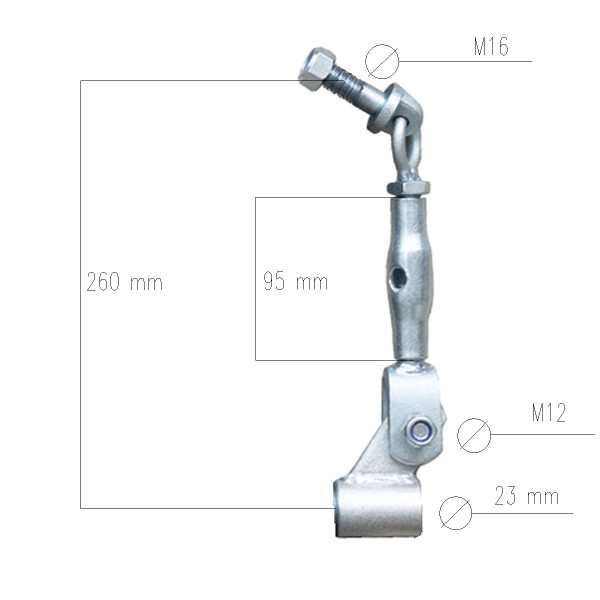

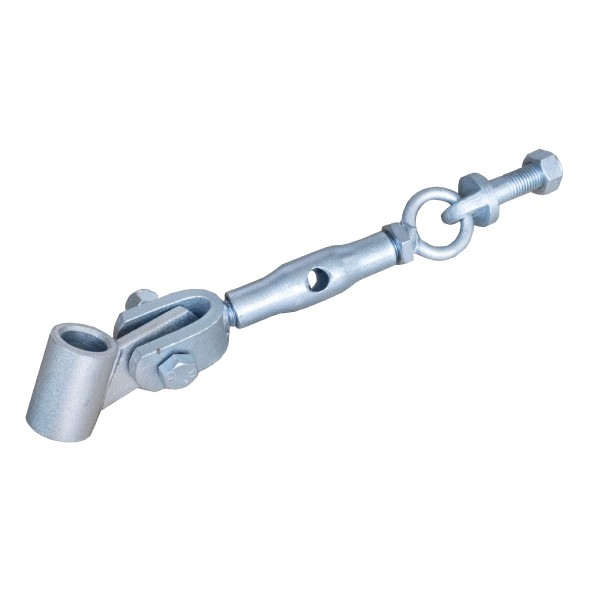

• working length of tension chains: minimum 260 mm from centre to centre of holes with the screw tightened to the maximum, 95 mm middle element,
• diameter of the hole for the lower bracket of the tension chains (sleeve): 23 mm,
• thread of tension chain screws: M12 / M16,

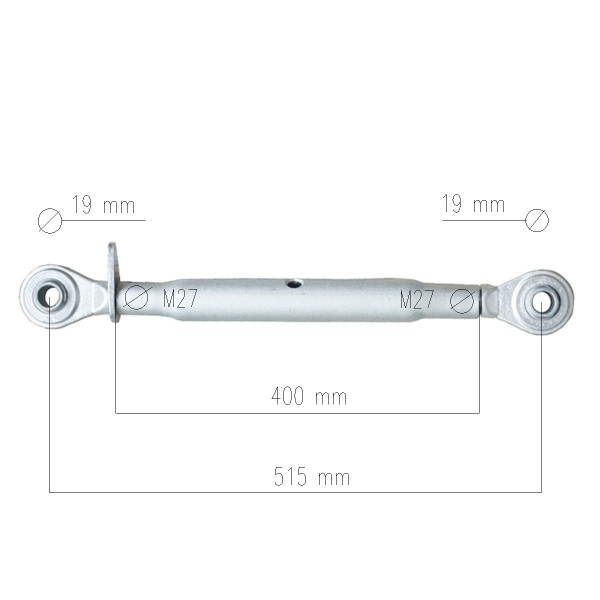

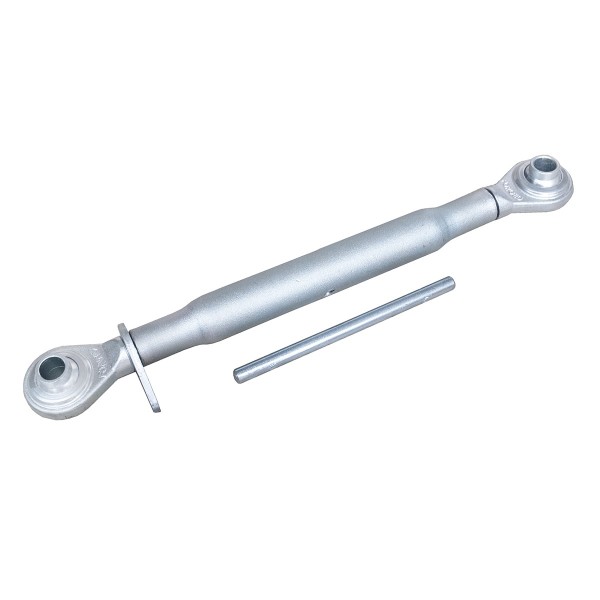

• turnbuckle length: 400 mm (middle element), minimum 515 mm from center to center of pin holes with the turnbuckle fully tightened,
• diameter of the turnbuckle ball holes: 19 mm,
• turnbuckle thread: M27,

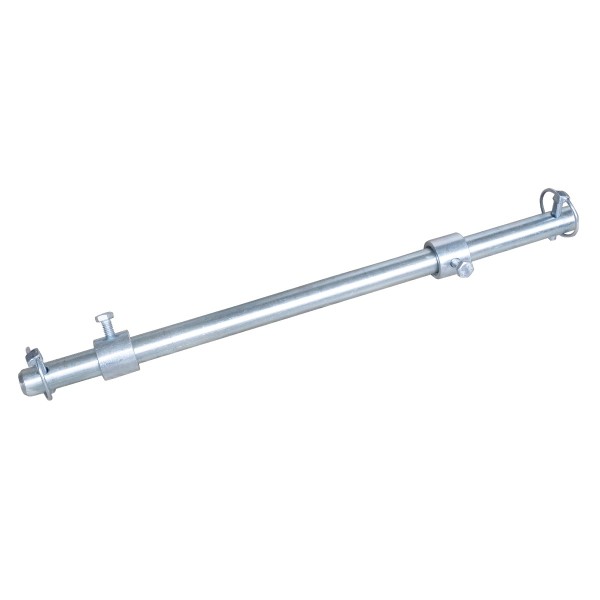

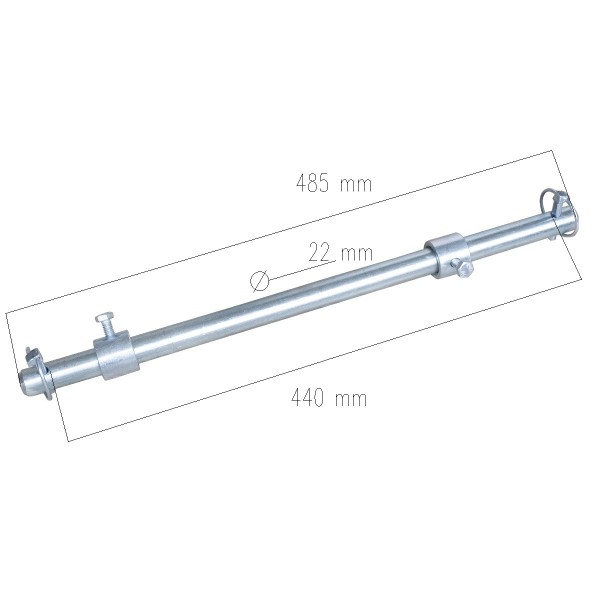

• total length of the lower bracket: 485 mm,
• working length of the lower bracket: 430 mm,
• bottom bracket diameter: 22 mm,

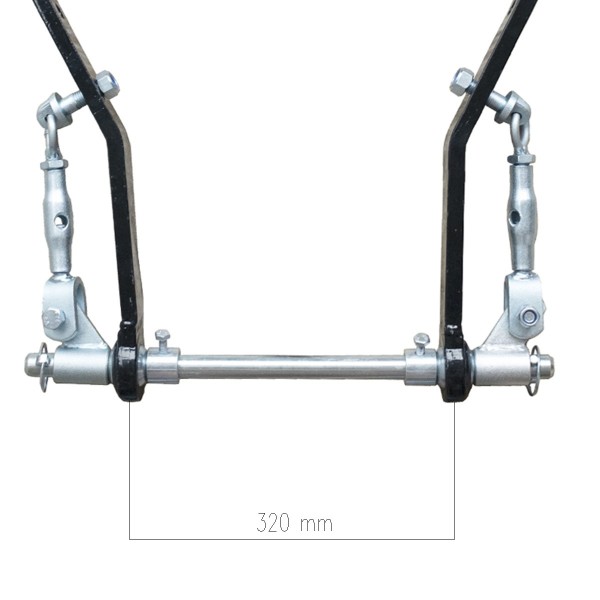

• maximum arm spacing (lower bracket): 320 mm,
• weight: 21 kg.

The TUZ Cat I category means that the diameter of the holes for the pins and pins is in the range of 19 to 22 mm. The dedicated hitch beam for the slings is a 510 mm hitch beam .
