What is a 3-point linkage Cat I?
The TUZ is a connection between a tractor and an agricultural machine and is a special arrangement of elements, thanks to which it is possible to lift, transport and set the appropriate position in relation to the ground and the tractor, agricultural machines and devices. Hydraulically controlled three-point suspension system (abbreviated TUZ) as the name suggests, is a connection of an agricultural machine with a tractor at three points, i.e. on two hydraulically lifted beams connected to blades with a so-called tie rod (right left side) and a centrally located connector, a so-called turnbuckle. What is the TUZ of a tractor used for?:
- for lifting and transporting agricultural machines and equipment,
- to determine the appropriate working depth or height of an agricultural machine or device,
- for transporting machines and equipment,
- to stabilize machines and equipment during transport.
How does a tractor’s three-point linkage work?
The hydraulically operated rear linkage consists of a cylinder, pump, safety valve and hydraulic distributor. The operation of the linkage system is directly responsible for the hydraulic oil flowing through the system under pressure, controlled and operated by the cylinder and hydraulic distributor. The hydraulic cylinder (single or double-acting) is responsible for lifting the system (and lowering the double-acting cylinder), the hydraulic pump for generating the appropriate pressure in the system, the safety valve is a fuse that reduces the pressure in the system after exceeding the maximum possible lifting capacity, and the hydraulic distributor is a device controlling the flow of oil in the system. The operation of the linkage lift is directly responsible for the hydraulic oil flowing through the system under pressure, controlled and operated by the cylinder and hydraulic distributor.

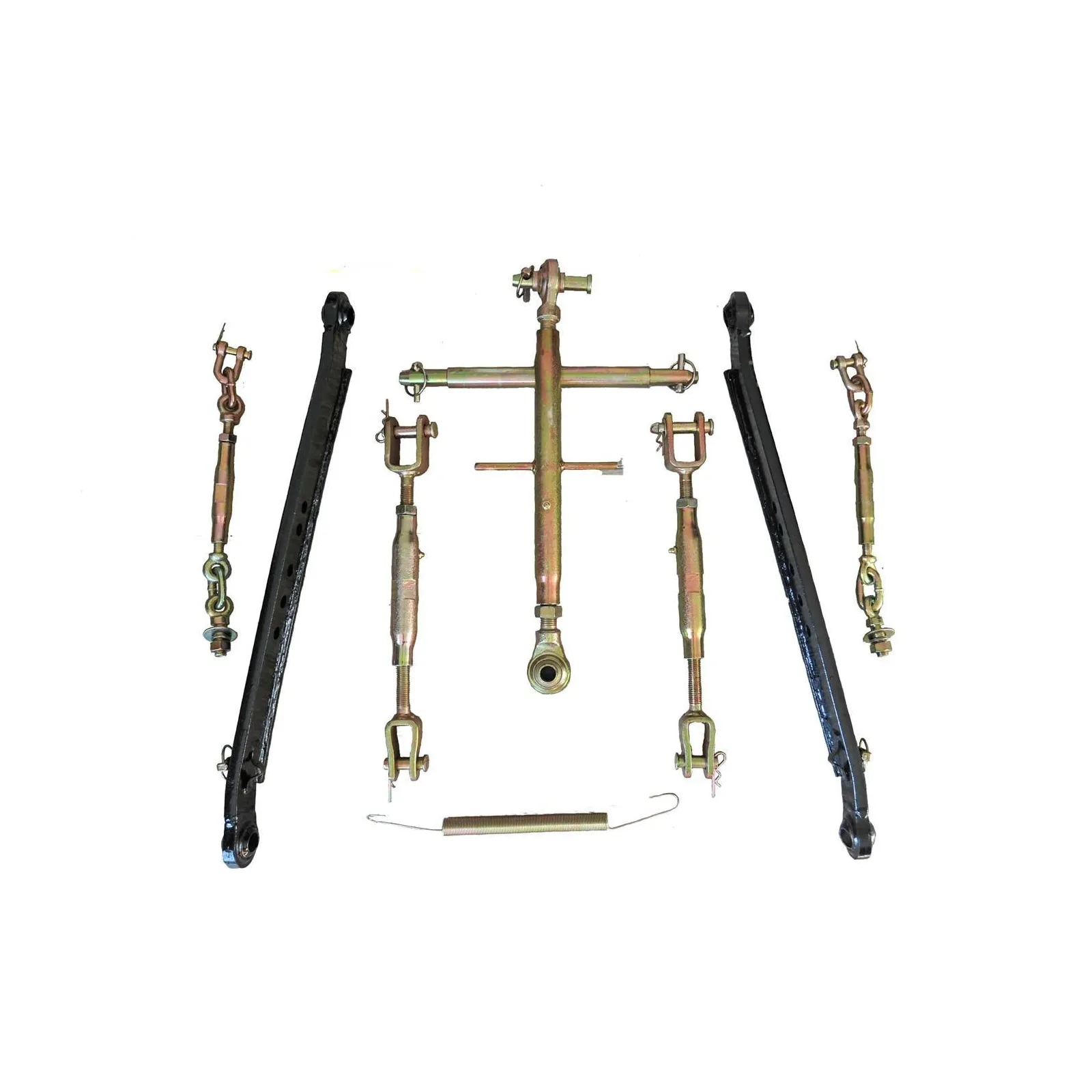

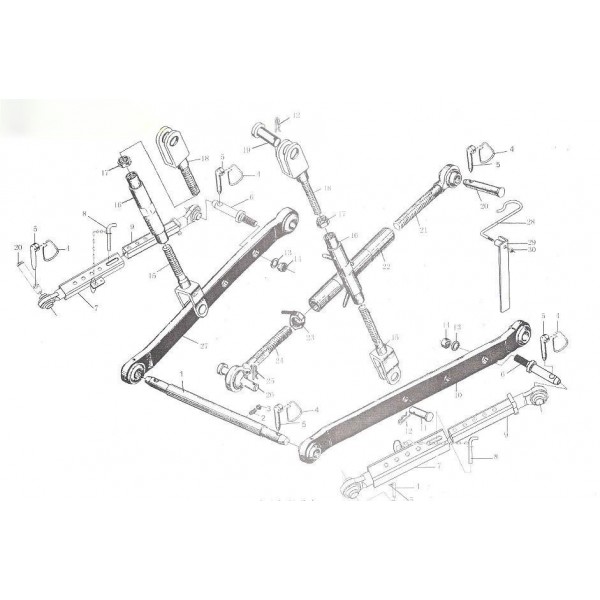

Three-point linkage - TUZ cat. 1. Universal kit for use in all types of small tractors such as Yanmar, Kubota, Mitsubishi, Iseki, Hinomoto, TZ 4K, etc.
Set with adjustable arm opening (lash).
Dimensions:
- Arms 780mm
- Diameter of holes in ball joints 22.5 mm.
- Diameter of holes in lower arms - 22.5 mm.
- Diameter of holes in the top link (turnbuckle) - 19.5 mm.
- Diameter of holes in elements attached to lift arms - 16.5 mm.
- Arm length: 780 mm (total length), 715 mm (from pin centre to pin centre).
Specification
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
