Three-point linkage / Cat 1 / L

What is a 3-point linkage Cat I?

The TUZ is a connection between a tractor and an agricultural machine and is a special arrangement of elements, thanks to which it is possible to lift, transport and set the appropriate position in relation to the ground and the tractor, agricultural machines and devices. Hydraulically controlled three-point suspension system (abbreviated TUZ) as the name suggests, is a connection of an agricultural machine with a tractor at three points, i.e. on two hydraulically lifted beams connected to blades with a so-called tie rod (right left side) and a centrally located connector, a so-called turnbuckle. What is the TUZ of a tractor used for?:

• for lifting and transporting agricultural machines and equipment,
• to determine the appropriate working depth or height of an agricultural machine or device,
• for transporting machines and equipment,
• to stabilize machines and equipment during transport.

How does a tractor's three-point linkage work?

The hydraulically operated rear linkage consists of a cylinder, pump, safety valve and hydraulic distributor. The operation of the linkage system is directly responsible for the hydraulic oil flowing through the system under pressure, controlled and operated by the cylinder and hydraulic distributor. The hydraulic cylinder (single or double-acting) is responsible for lifting the system (and lowering the double-acting cylinder), the hydraulic pump for generating the appropriate pressure in the system, the safety valve is a fuse that reduces the pressure in the system after exceeding the maximum possible lifting capacity, and the hydraulic distributor is a device controlling the flow of oil in the system. The operation of the linkage lift is directly responsible for the hydraulic oil flowing through the system under pressure, controlled and operated by the cylinder and hydraulic distributor.

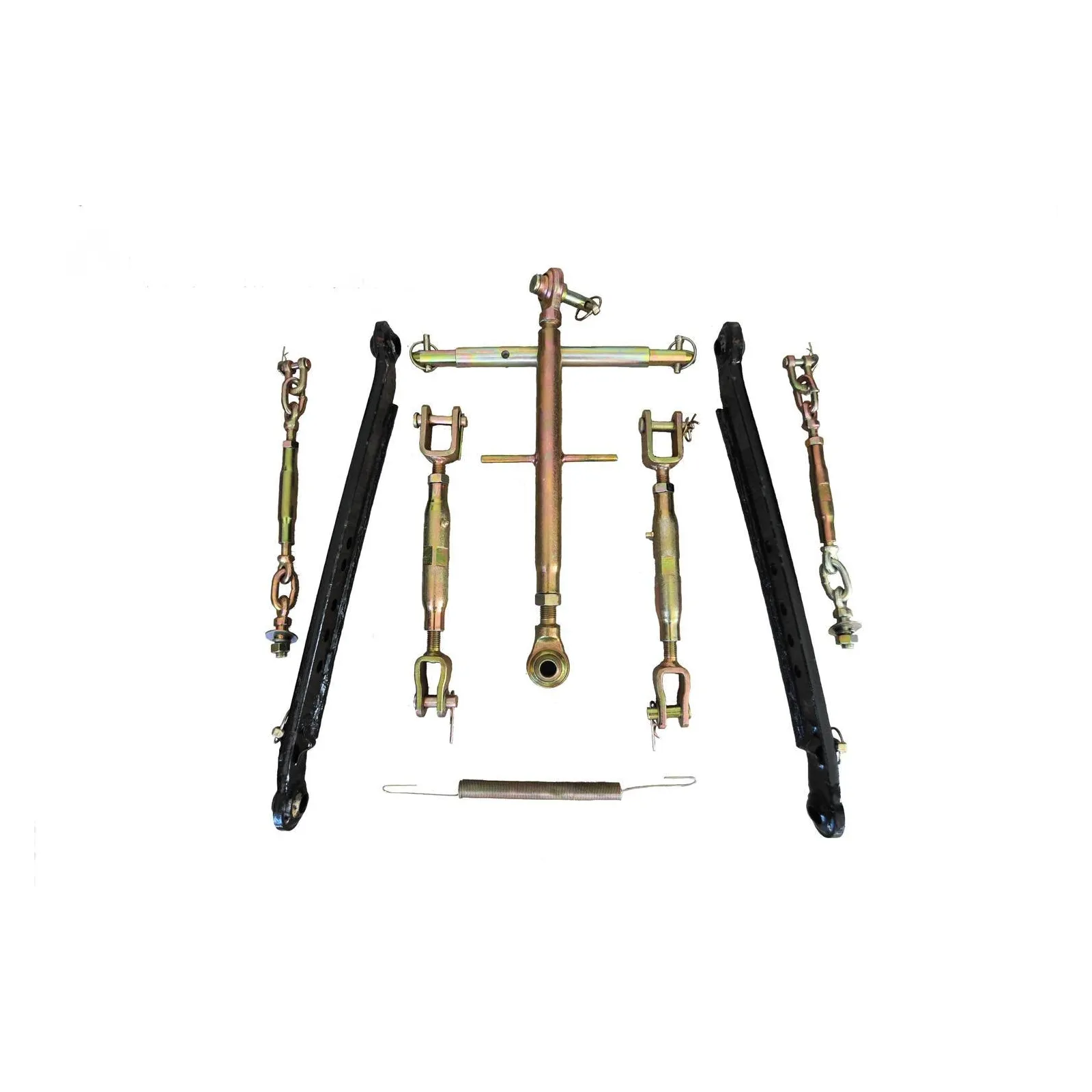

Three-point linkage - TUZ cat. 1. - Universal kit for use in all types of small tractors such as Yanmar, Kubota, Mitsubishi, Iseki, Hinomoto, TZ 4K, etc.
Set with chain adjustment of the arm opening (lash).

Dimensions:

• Arms 680mm
• Diameter of holes in ball joints 22.5mm
• Diameters of holes in lower arms - 22.5 mm
• Diameter of holes in the top connector (turnbuckle) - 19.5 mm
• Diameter of holes in elements attached to the lift arms - 16.5 mm

Arms (lases):

• Length approx. 580 mm from centre to centre of pin holes. (can be made shorter - additional charge 40 PLN).
