Rubber cover for PTO/PTO lever /LS MT3.50 /LS MT3.60/LS PLUS70/LS PLUS80/LS PLUS90 /A1869071/MT40007467/40007467

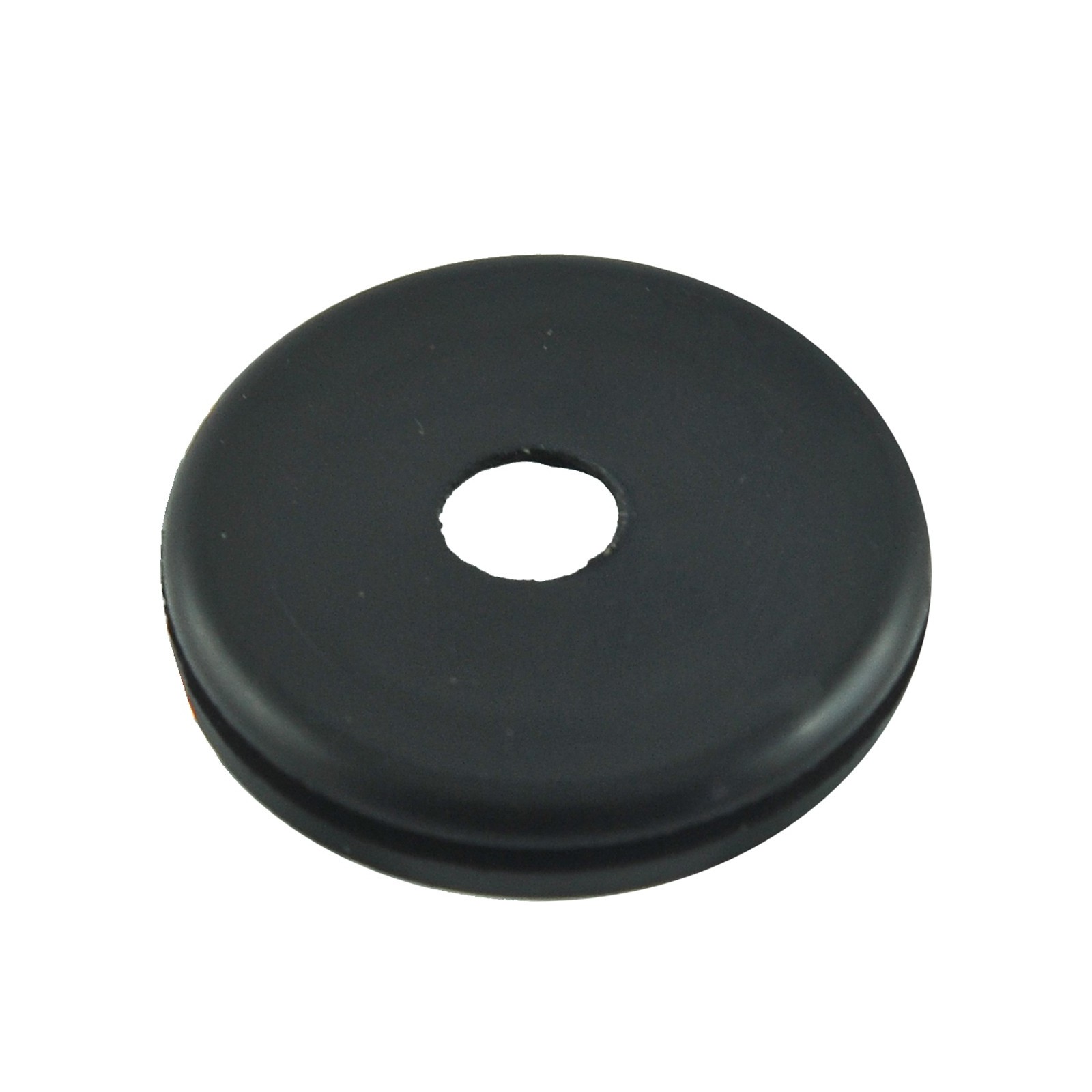

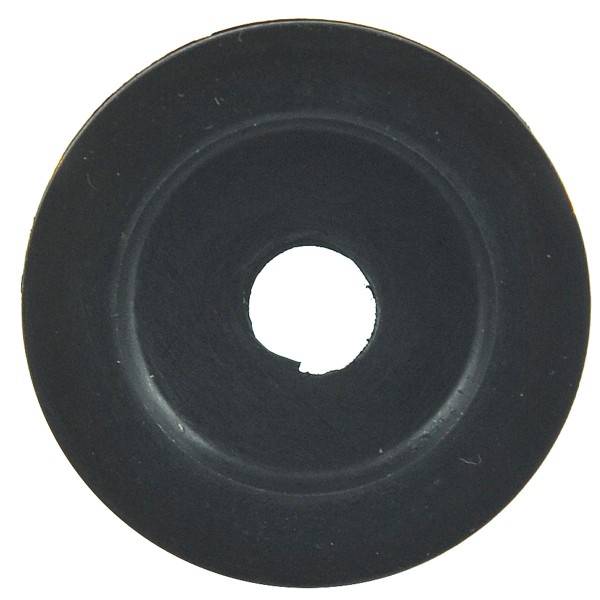

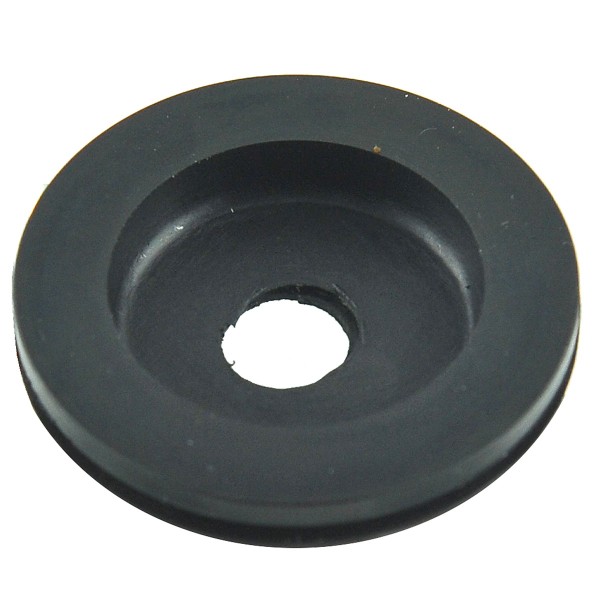

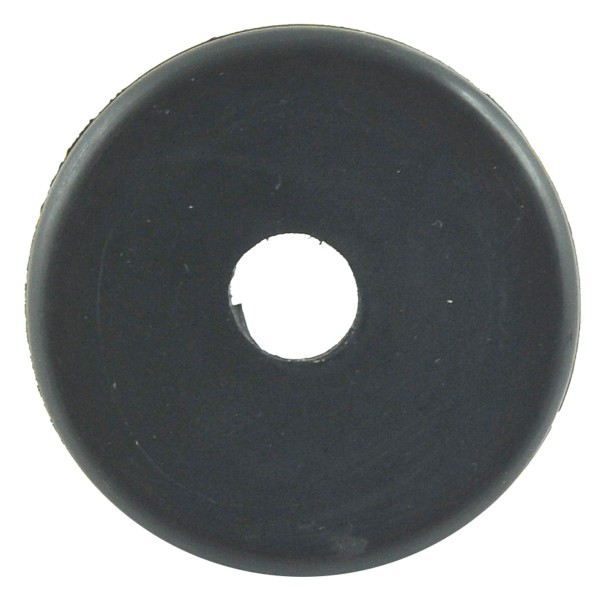

Rubber seal for the PTO/PTO speed change lever with an internal diameter of 11.30 mm , an external diameter of 47 mm and a height of 8 mm for LS Tractor tractors of the LS MT3.50, LS MT3.60 , LS PLUS70, LS PLUS80, LS PLUS90, New Holland BOOMER series 41, New Holland BOOMER 47 and others.

A rubber cover , colloquially known as a " prochownik ", is most often a rubber cone (or pipe shape), narrowed at the ends on one or both sides with a groove for easier installation, e.g. of a tourniquet. We use this type of covers not only for gear shift levers and rod ends, but also these types of covers are used inside machine systems, sealing parts assemblies, e.g. half axles or various types of shafts, which are not subject to rotational speeds during operation. The main task of the "powder collector" is to protect the mechanical assembly against dirt getting inside and to prevent the lubricant, which is present in many moving parts of the tractor, from being washed out .

Dimensions :

• outer diameter: 47 mm,
• inner diameter: 11.30 mm,
• height: 8 mm,
• part numbers: A1869071, MT40007467, 40007467.

Tractor models :

LS Tractor :

• LS MT3.50,
• LS MT3.60,
• LS PLUS70,
• LSPLUS80,
• LS PLUS90.

NewHolland :

• New Holland BOOMER 41,
• New Holland BOOMER 47.


Damaged mechanical seals (abrasions, tears caused by damaged rubber) must be replaced as soon as possible to avoid contamination of the interior of the system, which may result in damage or seizure of the mechanical unit.
