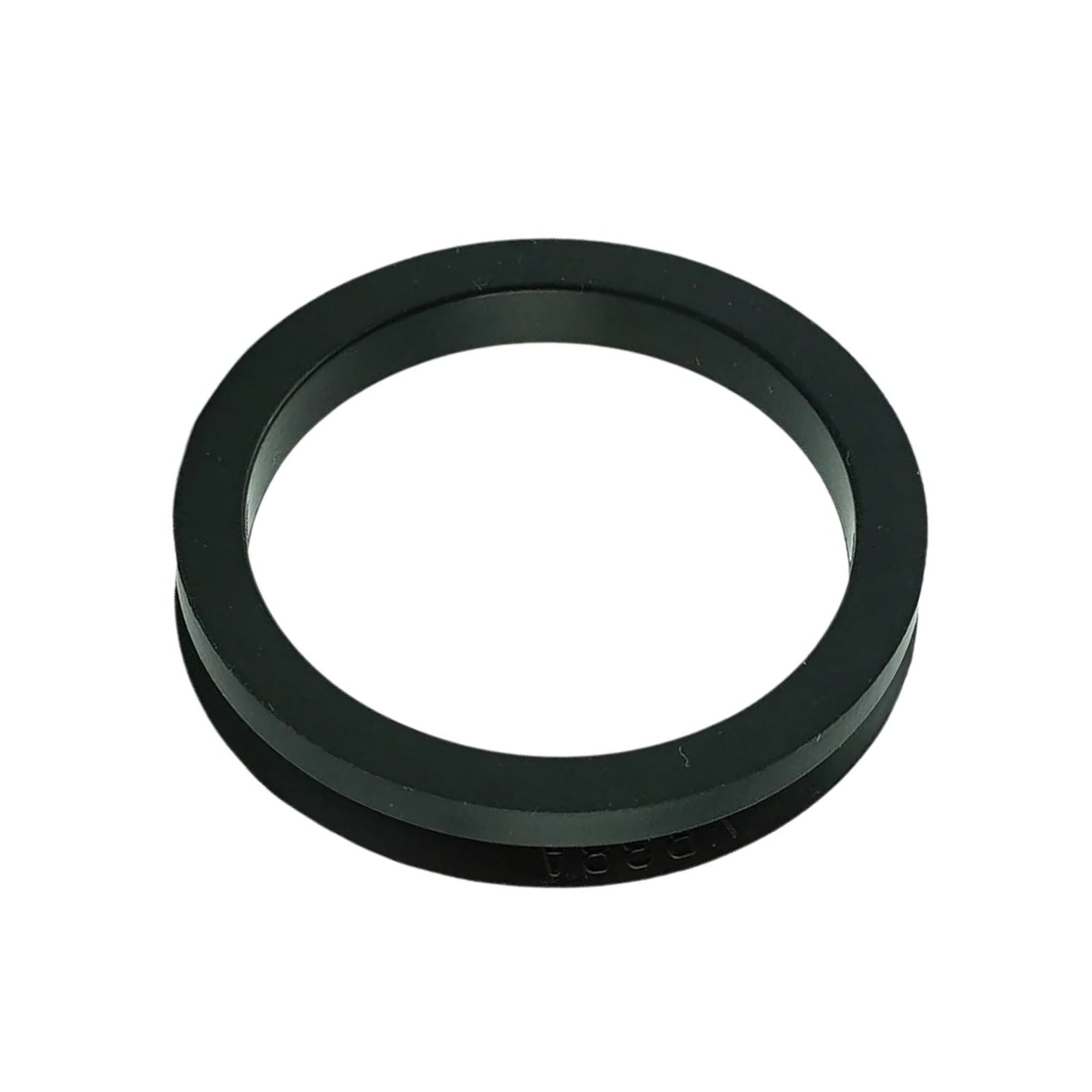

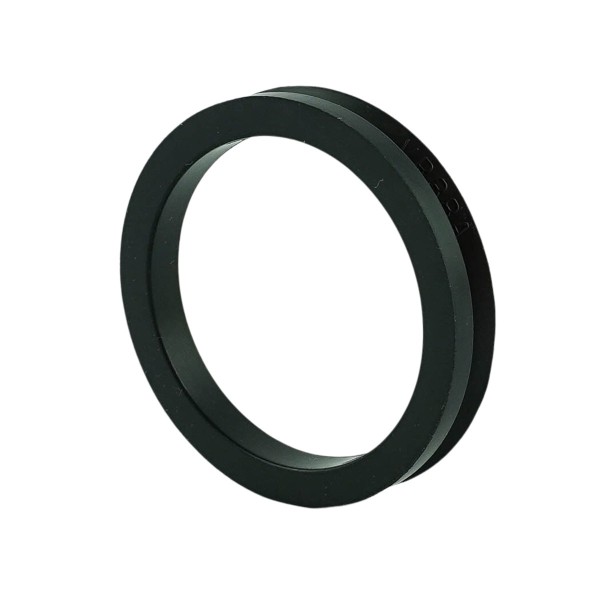

Seal / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / A0653232 / nr 40012824

Rubber seal, dust boot, rubber gasket for the PTO shaft, dimensions 42 x 37 x 7.50 mm, for tractors of the LS Tractor brand, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others. The rubber boot, commonly called a "dust boot", is usually a rubber cone (or tube shape), tapered at one or both ends, with a groove to make it easier to fit, e.g., a hose clamp. We use this type of boot not only on gear levers and tie-rod ends, but also inside machine systems, sealing groups of parts, e.g., half-axles or various shafts that are not subjected to rotational speeds during operation. The main task of the "dust boot" is to protect the mechanical assembly against the ingress of contaminants and to prevent the lubricant, found in many moving assemblies of the tractor, from being washed out.

Dimensions:

• inner diameter: 37 mm,
• outer diameter: 42 mm,
• height: 7.50 mm,
• cross-reference numbers: A0653232.

Tractor models:

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

Warehouse: L01:HB235

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
