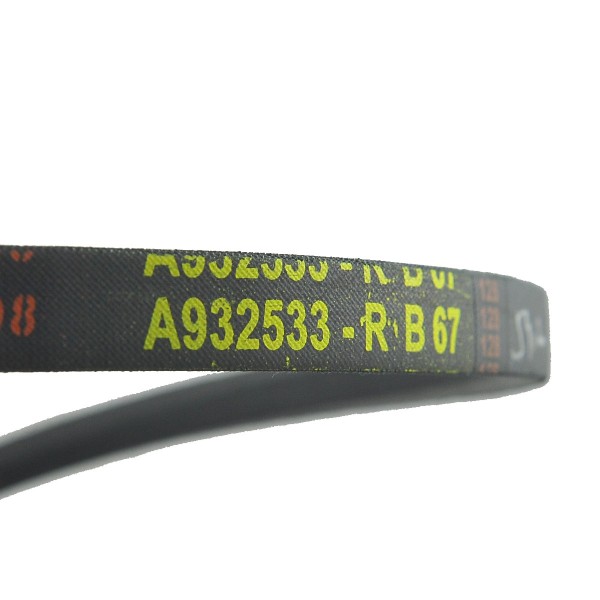

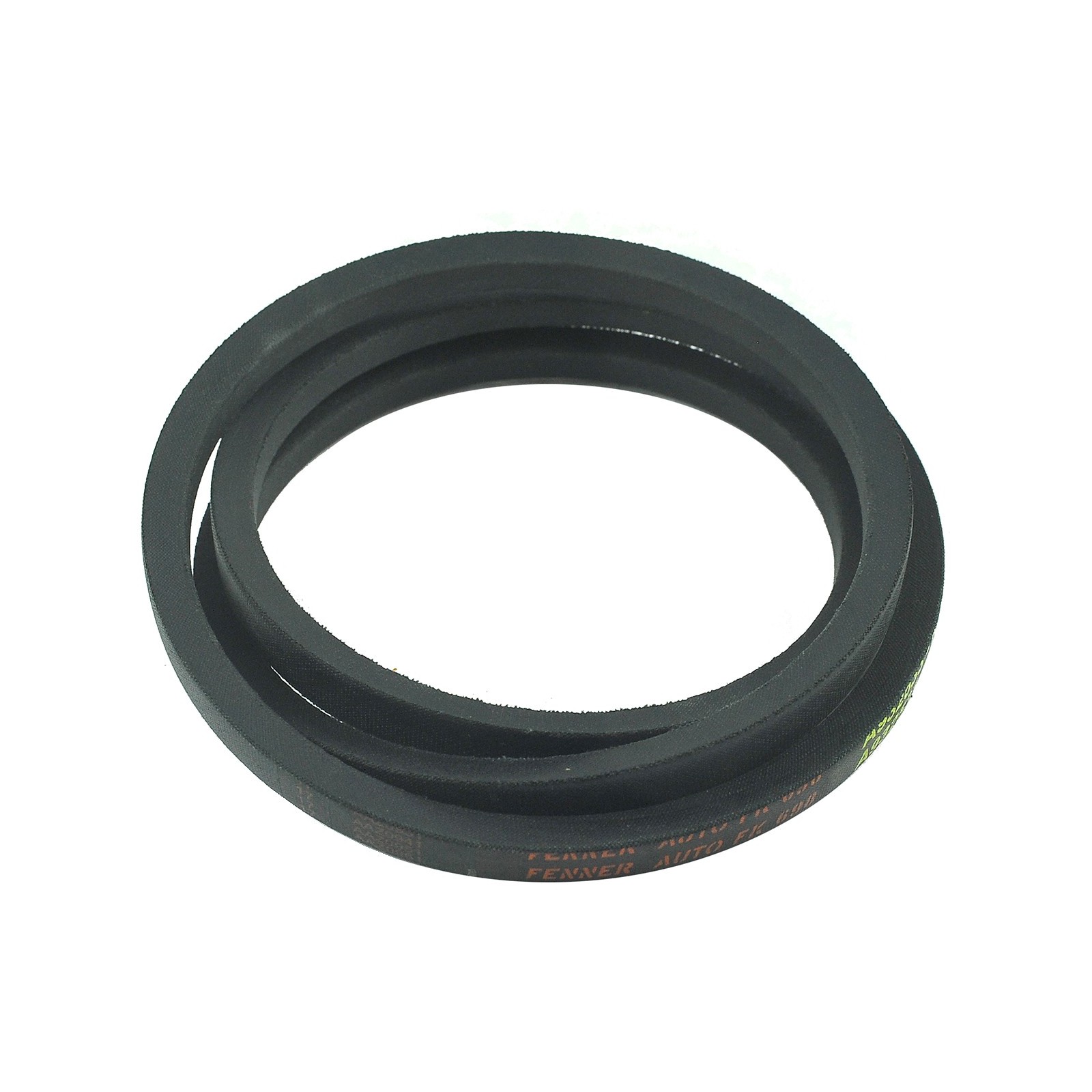

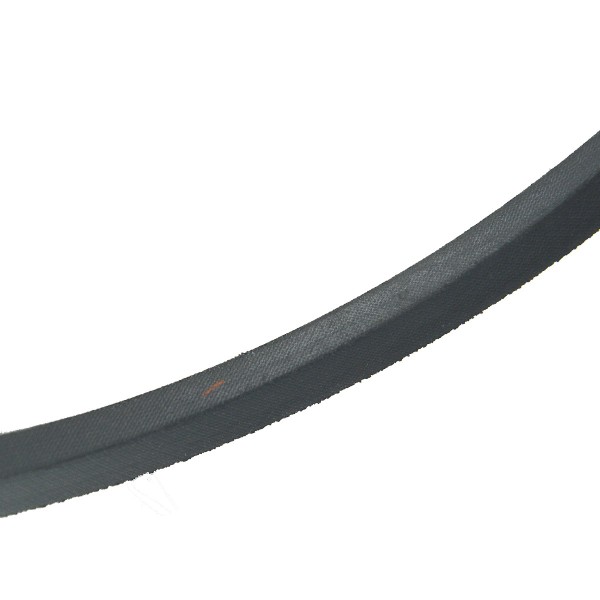

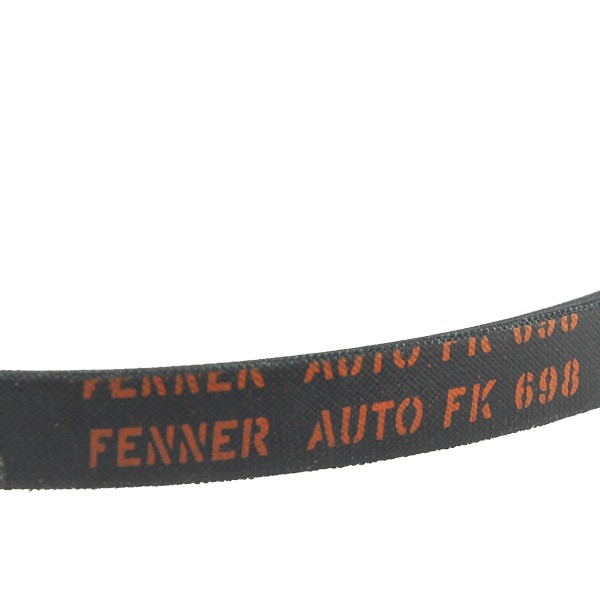

V-belt / B67-VWH / 17 x 1740Ld / 17 x 1700Li / VST Mitsubishi Shakti 135 - DI ULTRA / A932533-R

B 67 V- belt for a single-axle "boar" type tractor VST Mitsubishi Shakti 135 - DI ULTRA , Shrachi 13HP and others.

A standard V-belt is marked with two length values : Ld and Li . The length Li is the internal length and the length Ld is the so-called pitch length, according to the ISO standard, in simple terms it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet indicating the cross-section of the belt (mm) Z, A, B, C, D and length. The simplest division of belts available on the market are narrow-profile belts, classic belts, narrow-profile toothed belts and classic toothed belts.

V-belt length Li, Ld or La?

• Li - internal length,
• Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
• La - external length.

Dimensions :

• nominal length (Ld): 1740 mm,
• internal length (Li): 1700 mm,
• width: 17 mm.
• height: 11 mm,
• comparison numbers: ACA11C01190, ACA11C01190A0,
• part numbers: A932533-R.

Machine models:

VST:

• VST Mitsubishi Shakti 135 - DI ULTRA ,
• Shrachi 13HP,
• Virat 13HP.

A V-belt is an element that is used to transfer power from the engine or transmission to the accessory or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture , belts are used in agricultural devices and accessories operating at high rotational speeds. V-belts are the most frequently worn parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine.
