Condition
New
Production
OEM
Parts
Steering system
Tractor models
VST MT180
VST MT224
VST MT270,
Cone Height(mm)
20
35
Length (mm)
95
Height (mm)
67
Go to full specification >

Steering rod / 67 x 800 mm / VST MT180 / MT224 / MT270

18060500612
zł360.00
Tax included PL 23% Dostępny na zamówienie

292,68 netto

  • To order

Do you have any questions?

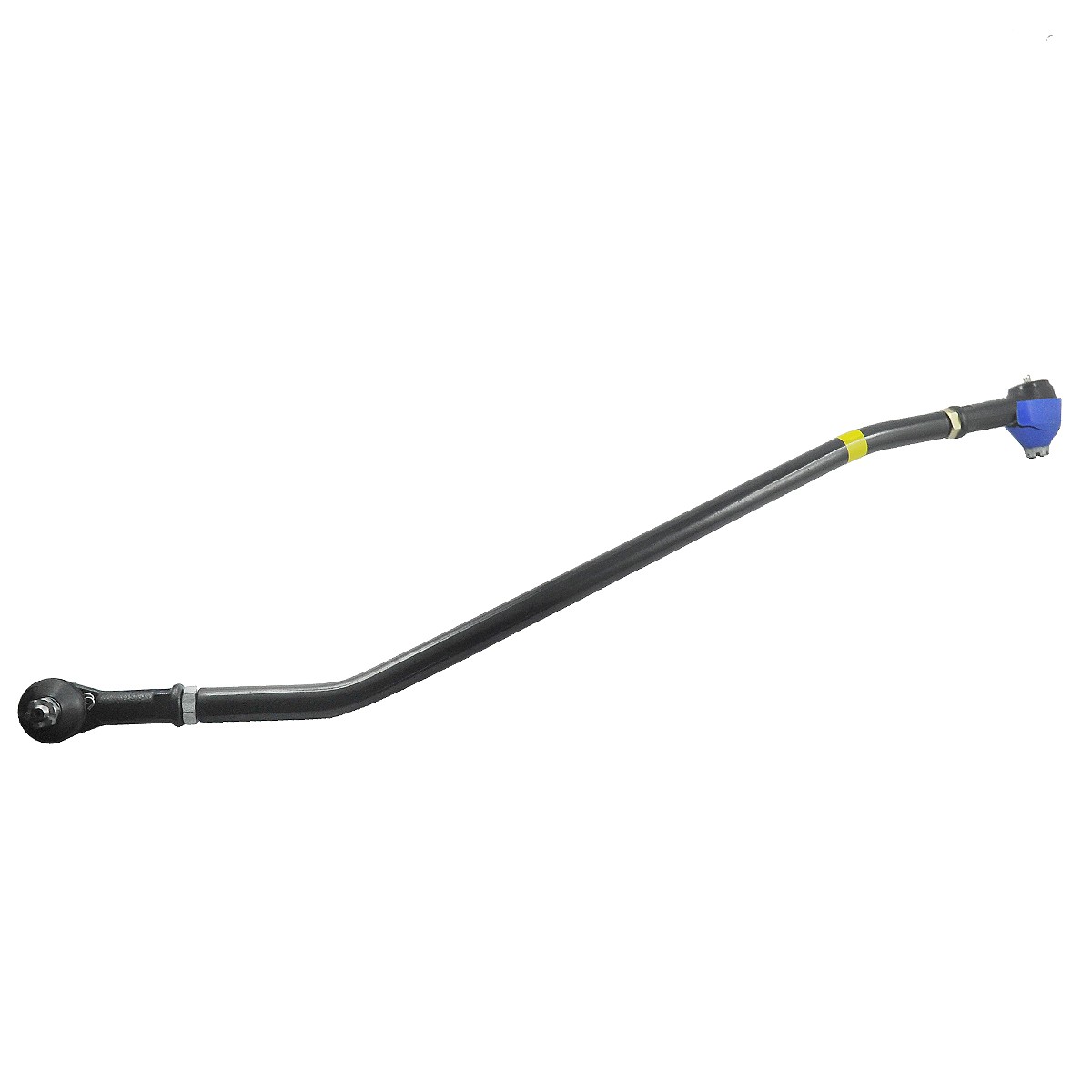

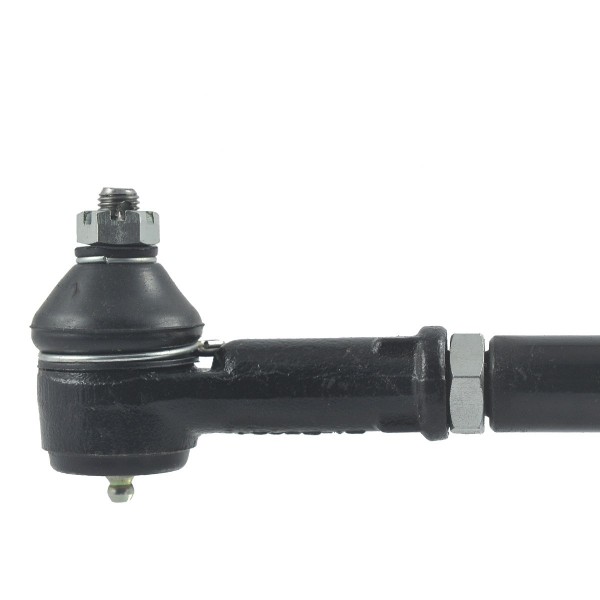

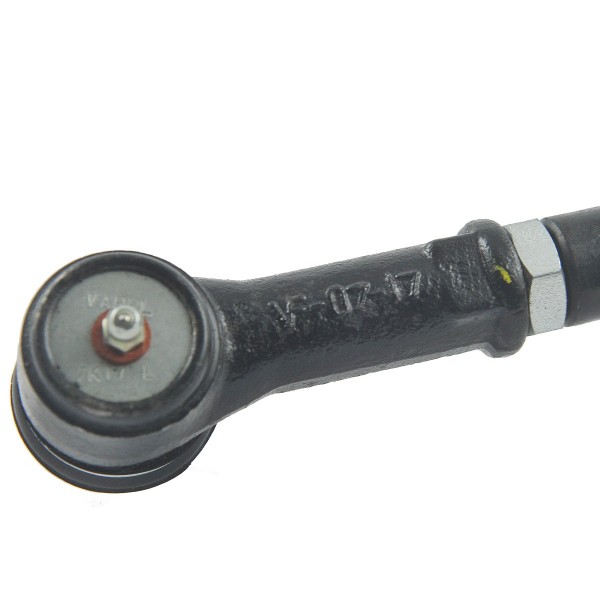

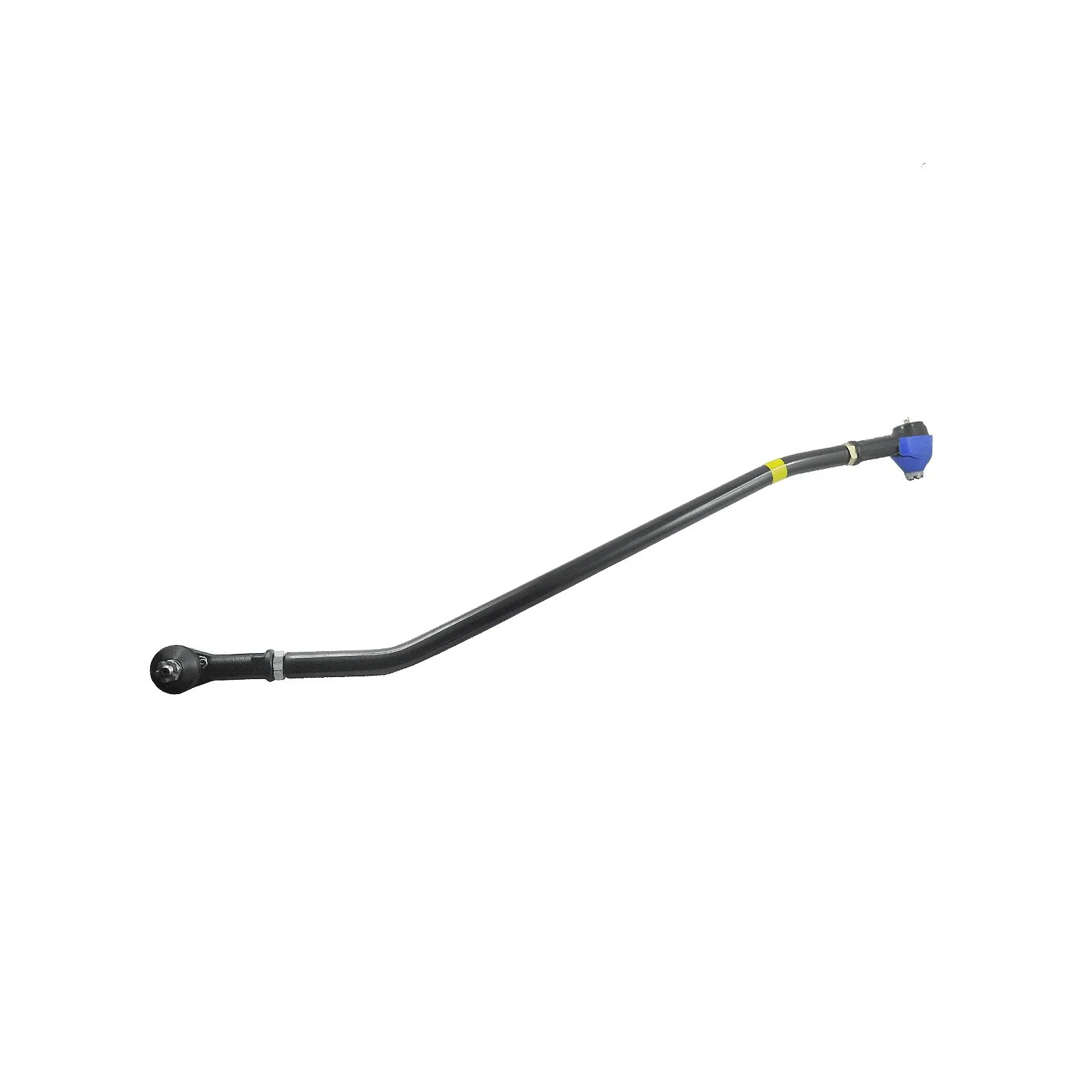

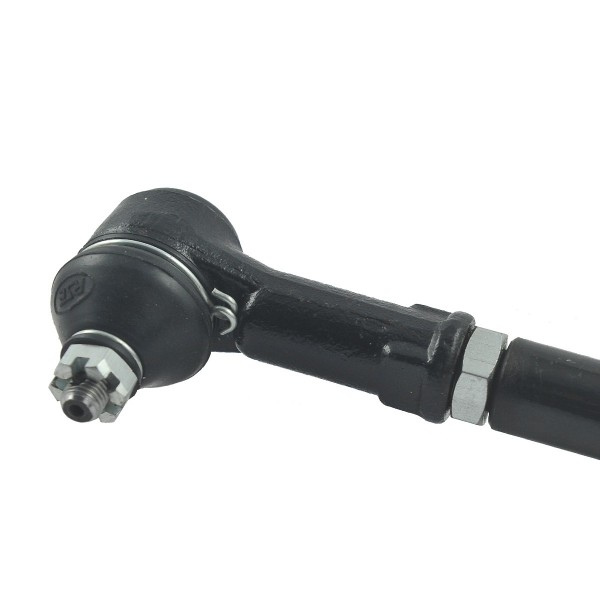

Steering rod / 67 x 800 mm / VST MT180 / MT224 / MT270

Rod end, rod with ends with a total length of 80 mm for tractors VST L series and other brands

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

Dimensions :

  • total length: 800 mm,
  • tip length: 95 mm,
  • height: 67 mm,
  • head diameter: 36 mm,
  • thread length: 15 mm,
  • head height (see drawing): 67 mm,
  • cone height: 35 / 20 mm,
  • cone diameter (see drawing): 12 / 11 mm,
  • thread: M10 x 1.25,
  • part numbers: 18060500612.

Tractor models :

  • VST MT180,
  • VST MT224,
  • VST MT270.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine: M01:C53

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:E54
Condition
New
Production
OEM
Parts
Steering system
Tractor models
VST MT180
VST MT224
VST MT270,
Cone Height(mm)
20
35
Length (mm)
95
Height (mm)
67
Overall length (mm)
800
Thread(s) length (mm)
15
Head diameter (mm)
36
Cone diameter (mm)
11.00
12.00
Thread
M10z1,25
Part number
18060500612

VST

VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.

In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.

VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).

Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
