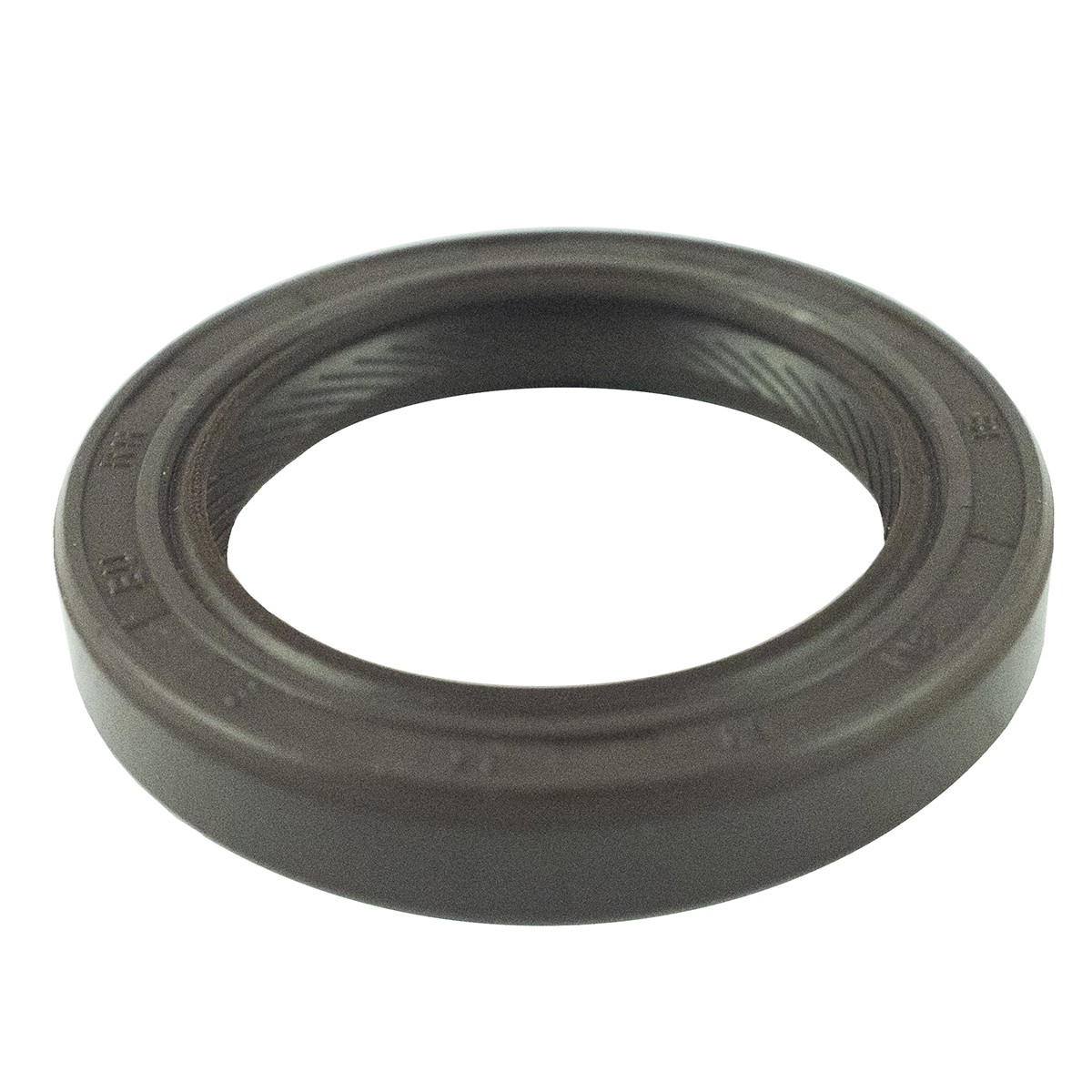

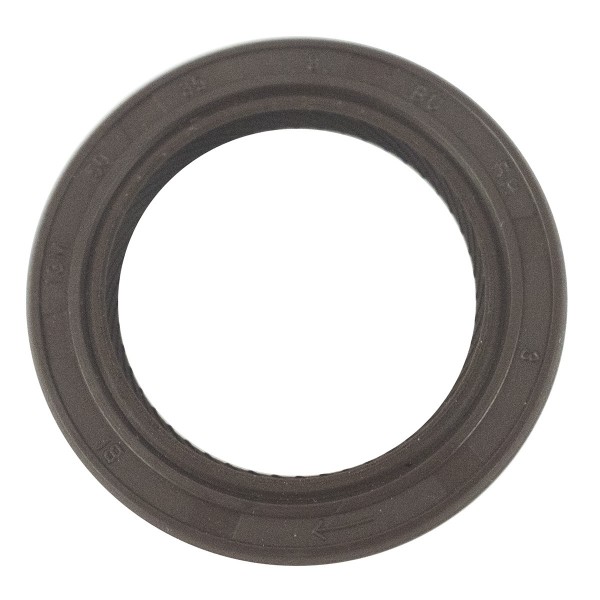

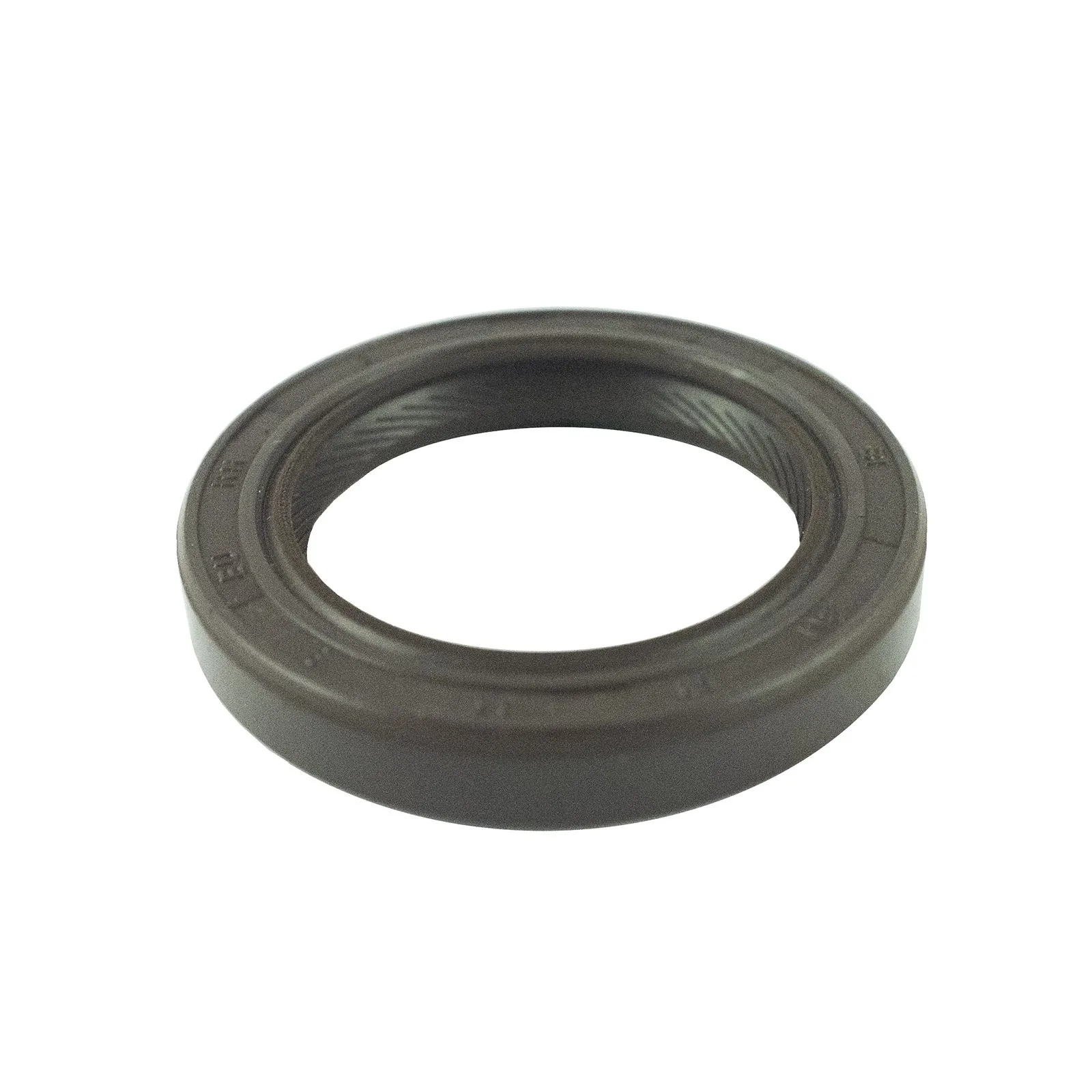

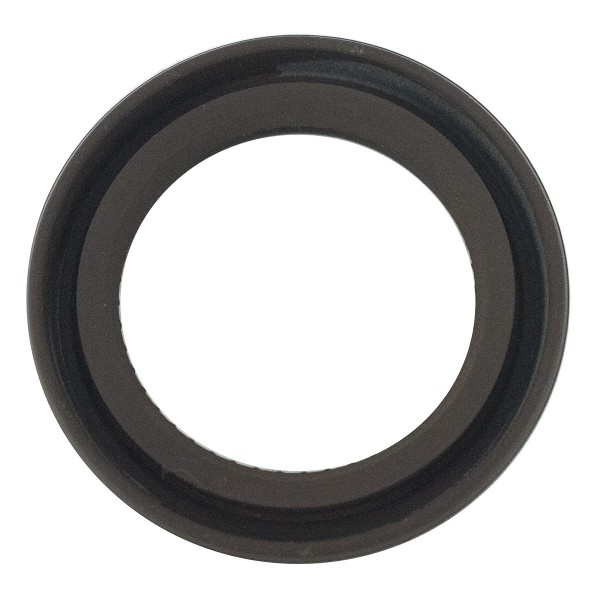

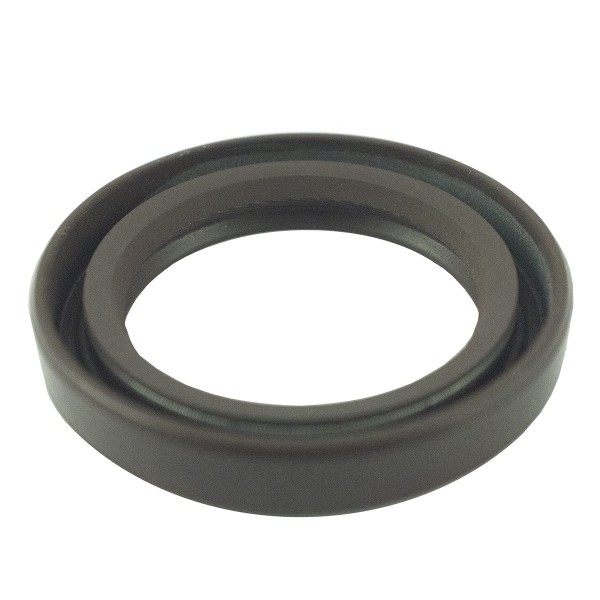

Right rotary seal / VST MT180 / MT224

Engine seal , internal rotary simmerring with dimensions of 35 x 50 x 8 mm for tractors and mini tractors of the VST brand, MT series and others. The seal is a rubber ring (also called a simmering, Simmer ring, after the name of the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. The simmer is used to seal rotating elements of the system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover). Seals prevent leaks of oil or lubricant and prevent contaminants from entering the system.

Dimensions :

• outer diameter: 50 mm,
• inner diameter: 35 mm,
• height: 8 mm,
• rotation direction: right,
• size: 50 x 35 x 8, 50 - 35 - 8. 35 x 50 x 8, 35 - 50 - 8,
• reference numbers: BCA01C00270A0, K9413390 ALT, 18010100430.

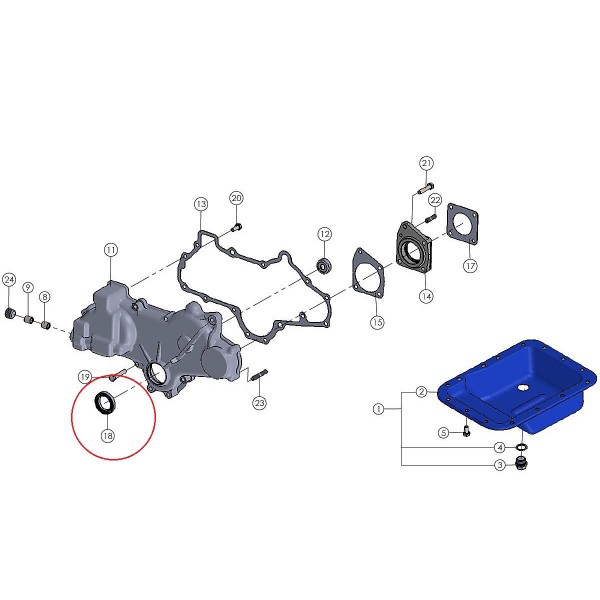

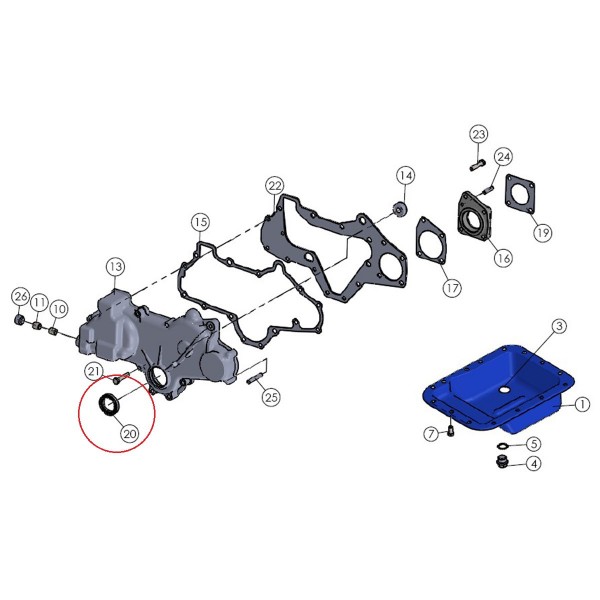

NUMBER 18 AND 20 MARKED IN RED ON THE GRAPHIC.

Tractor models :

• VSTMT180,
• VSTMT224.

Magazine : M01:B35:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
