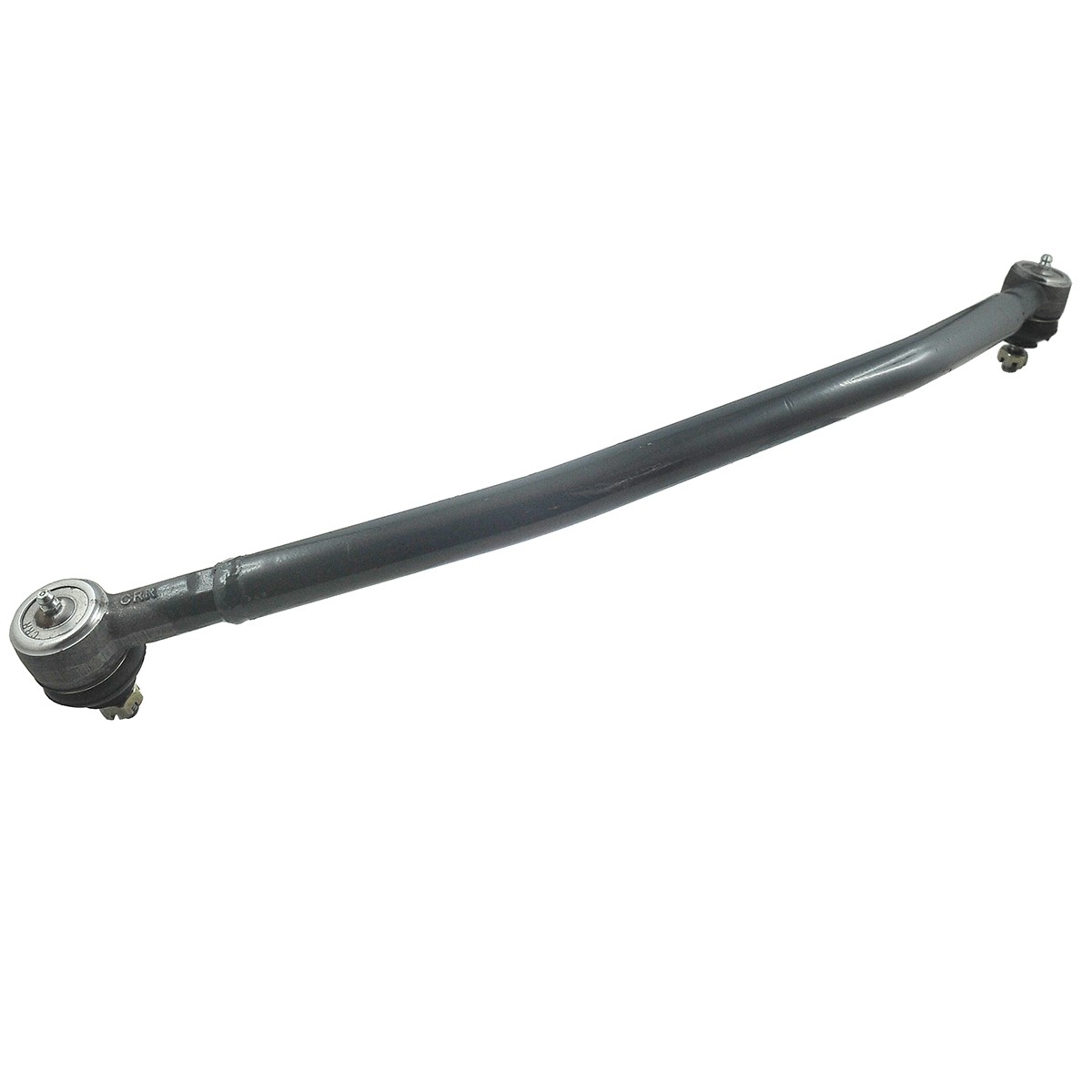

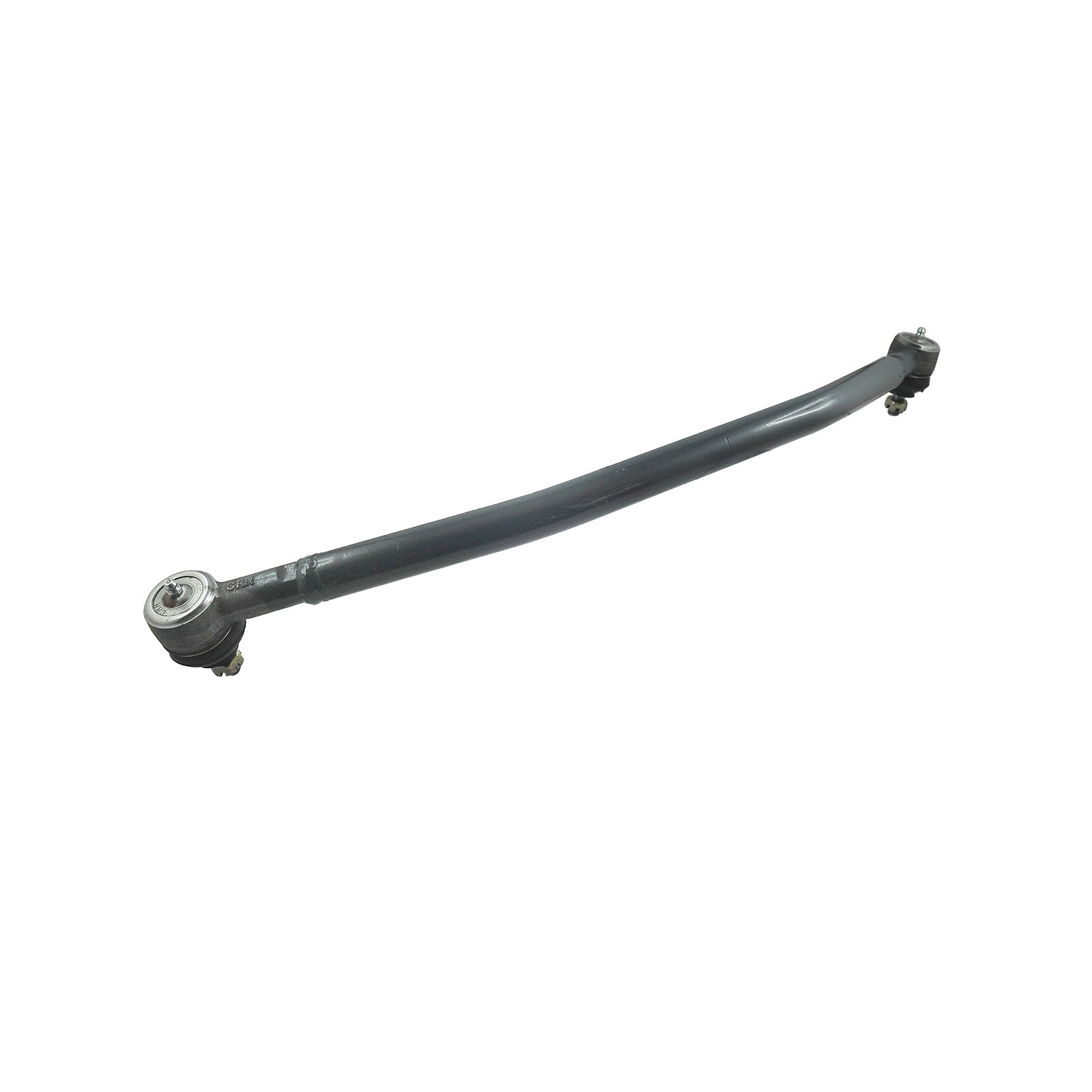

Steering rod / 40 x 560 mm / Kubota B2320 / B2401 / B2410 / B2420 / B7500 / B2620 / B7510

Steering rod thread RH (rod LH %C5% BCek-kierowniczy-505-mm-rh-kubota-b2320-b2401-b2420-b2440-b7500-b7510-5-23-101-91.html">5-23-101-92 , 6C526-57710, end %C3% B3wka-dr %C4% 85 %C5% BCka-85-x-70-mm-m10-kubota-b-kubota-b2420.html">6-23-133-20 ) with a total length of 610 mm and a height of 70 mm for Kubota tractors of the Kubota B2320, Kubota B2401, Kubota B2410 series, Kubota B2420, Kubota B2620, Kubota B7500, Kubota B7510 and others

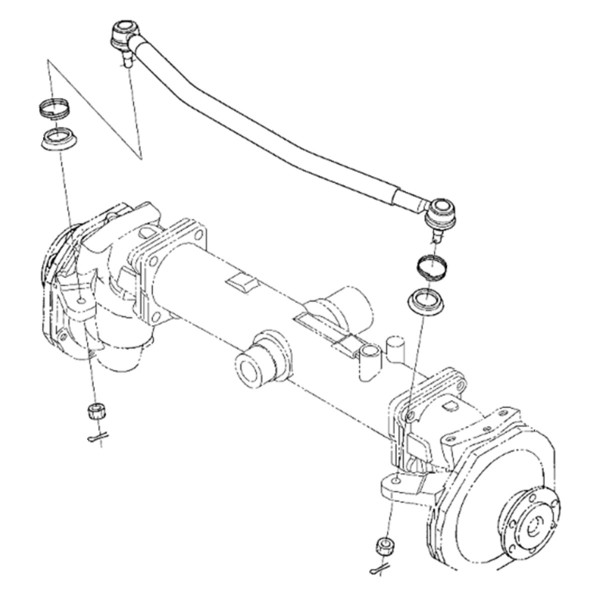

The tie rod and its ends are a component of the steering system that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

Dimensions :

• total length: 610 mm (measured with rod heads and screws tightened to the maximum),
• working length: 560 mm (measured from center to center of the cones with the screws tightened to their maximum),
• original part numbers: 6C300-56420,
• reference numbers: 6A320-56422, 6C120-56420,
• part numbers: 5-23-101-90.

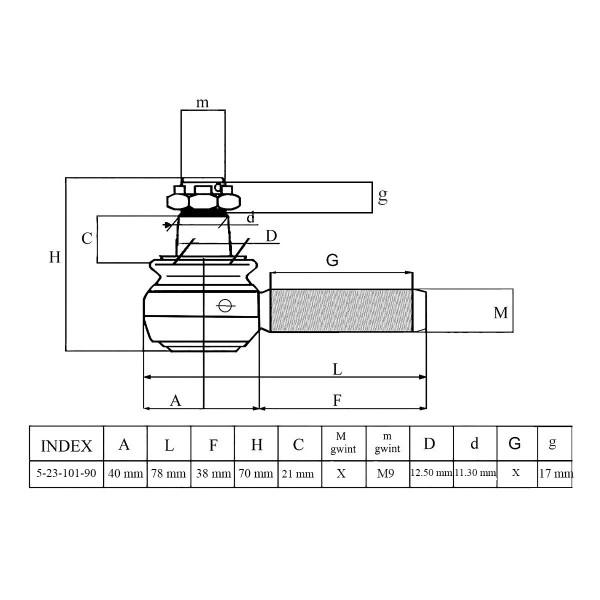

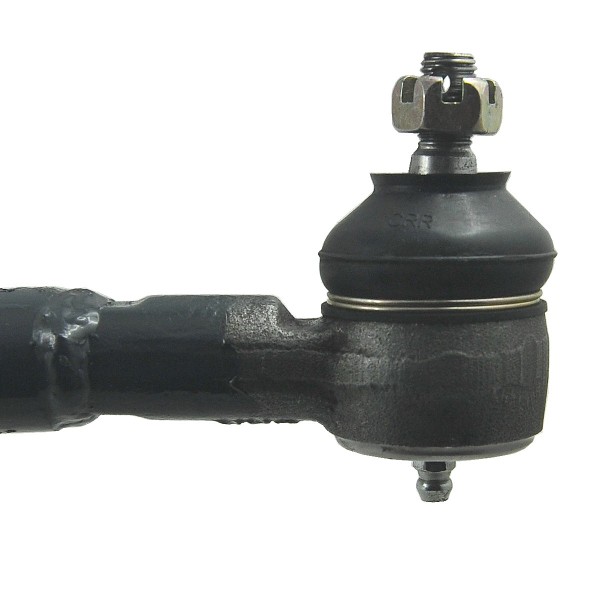

Tip dimensions :

• length: 78 mm (measured to the weld),
• head diameter: 40 mm,
• thread length: 17 mm,
• head height (see drawing): 70 mm,
• cone height: 21 / 38 mm,
• cone diameter (see drawing): 11.30 / 12.50 mm,
• thread: M9 x 1.25 (RH),
• original part numbers: -,
• comparative numbers: -,
• part numbers: %C3% B3wka-dr %C4% 85 %C5% BCka-85-x-70-mm-m10-kubota-b-kubota-b2420.html">6-23-133-20 .

Tractor models :

• Kubota B2320,
• Kubota B2401,
• Kubota B2410,
• Kubota B2420,
• Kubota B2620,
• Kubota B7500,
• Kubota B7510.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : K18:B14

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
