zł55.00
To order
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota M6040
Pin hole diameter (pins/mm)
18
Thread
M10 x 1.75
M18
M18
Original Part Number (OEM)
3A275-91100
TUZ arm stabilizer / Cat I / 400-480 mm / Kubota M6040 / 5-08-120-07
5-08-120-07
Do you have any questions?

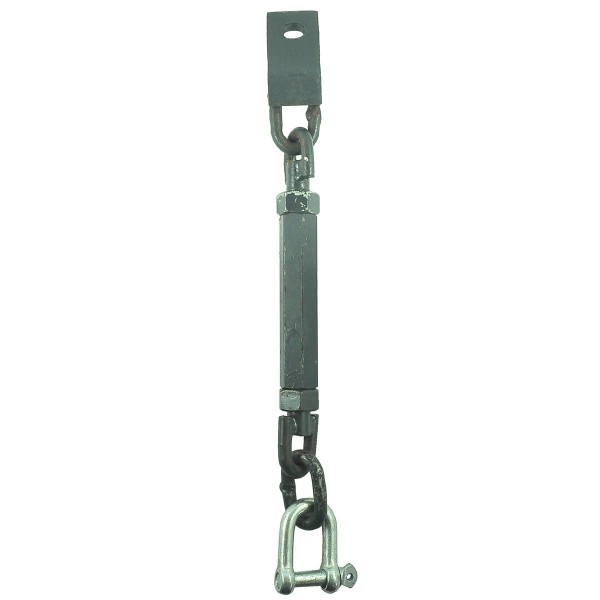

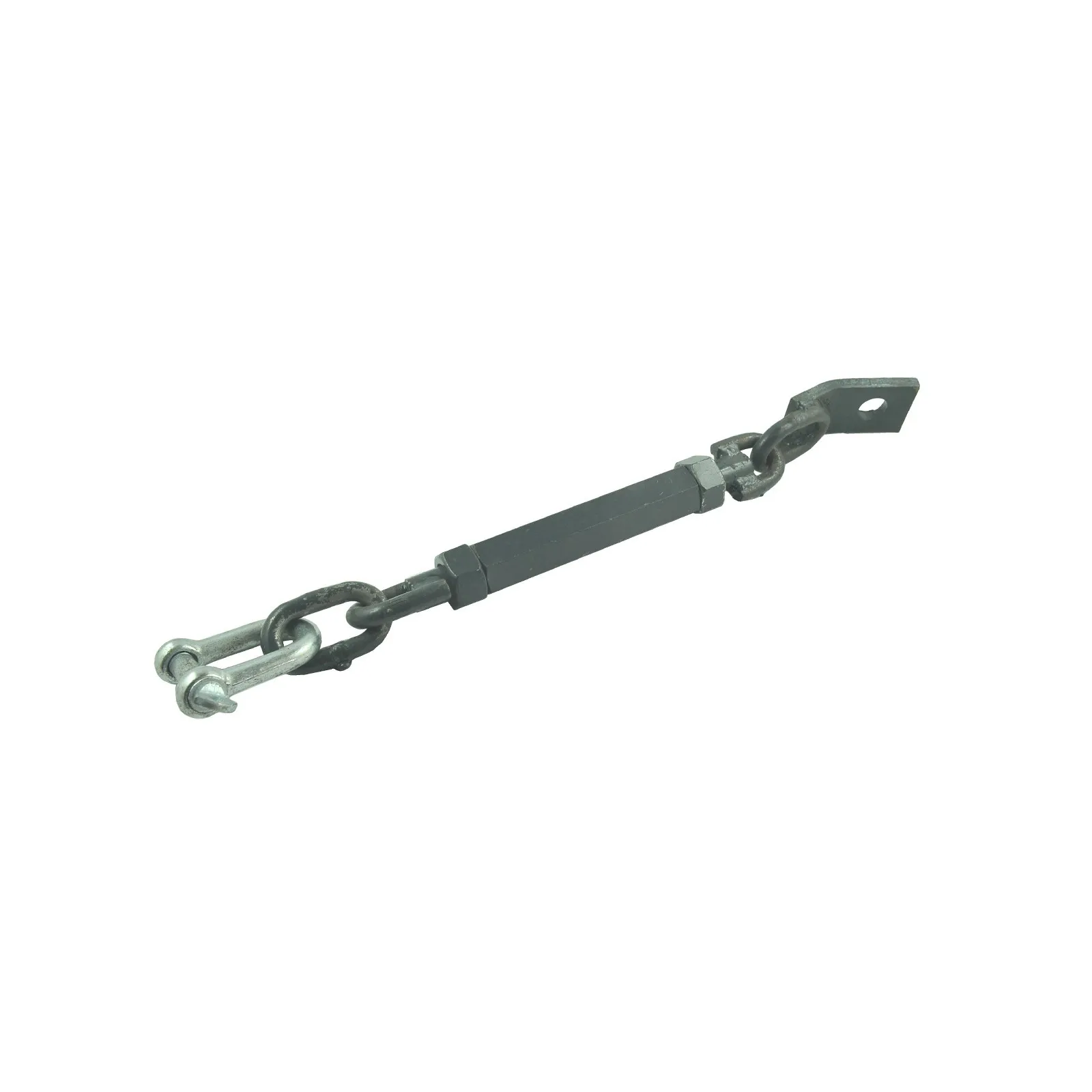

TUZ arm stabilizer / Cat I / 400-480 mm / Kubota M6040 / 5-08-120-07
Lower arm stabilizer (link) of the three-point linkage suspension system of the first category (CAT I).

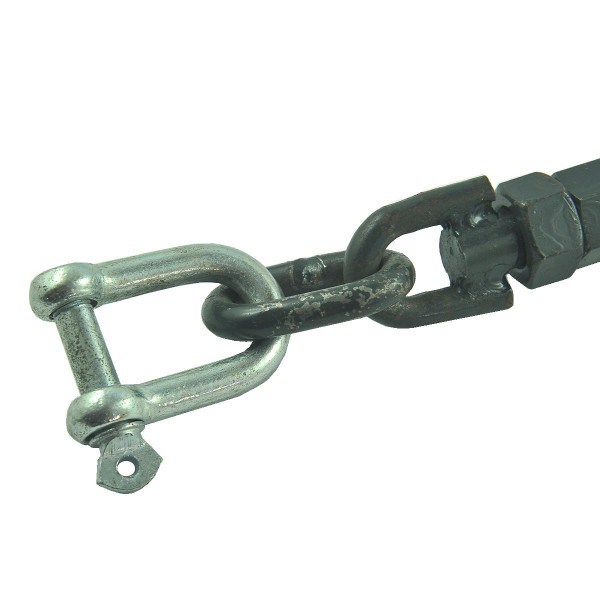

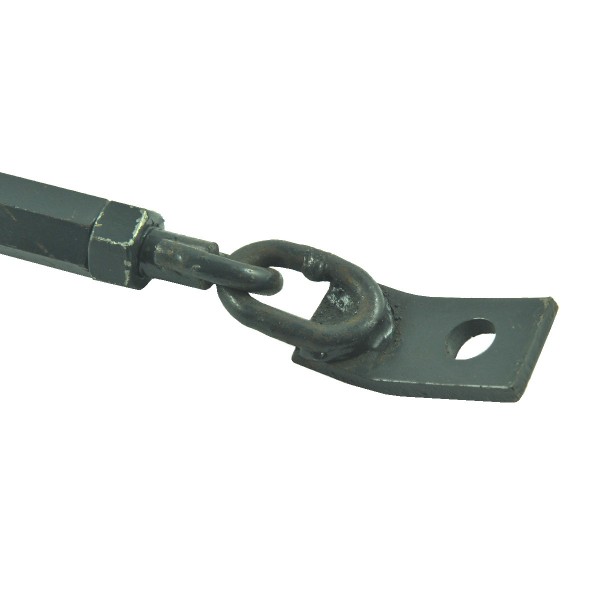

The TUZ pull is an adjustable pull element that stabilizes the lower arms (levers) of the three-point rear linkage system in the tractor. The side stabilizer is an element whose main task is to determine the appropriate position of the TUZ arm and to prevent the arms from banging against the rear wheels of the tractor. The TUZ arm stabilizer is terminated with a sleeve end on one side and a threaded pin on the other side.

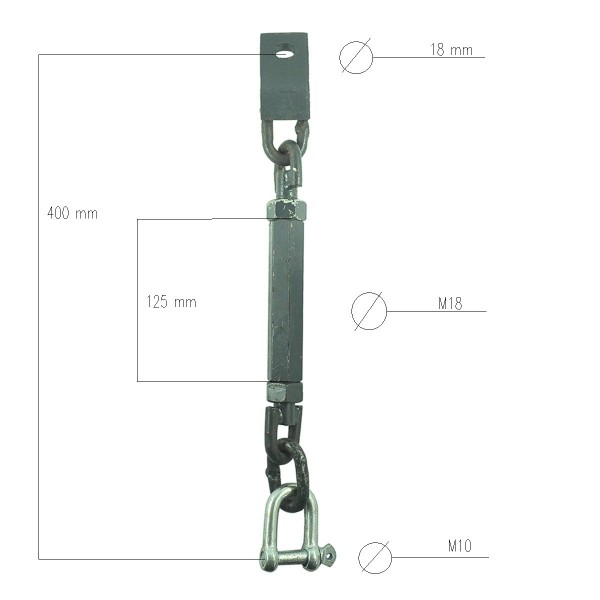

Dimensions :
- working length: minimum 400 mm, maximum 480 mm,
- diameter of pin holes (shackles): 18 mm,
- shackle pin thread: M10 x 1.75,
- adjustment thread: M18,
- original part numbers: 3A275-91100,
- part numbers: 5-08-120-07.
Tractor models :
Kubota :
- Kubota M6040.
Universal stabilizer for the lower three-point linkage arm for the right and left sides of the tractor.
Warehouse :
M01:A16:S03
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:A16:S03
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota M6040
Pin hole diameter (pins/mm)
18
Thread
M10 x 1.75
M18
M18
Original Part Number (OEM)
3A275-91100
Part number
5-08-120-07
Category
1
Minimum working length (mm)
400
Maximum working length (mm)
480
