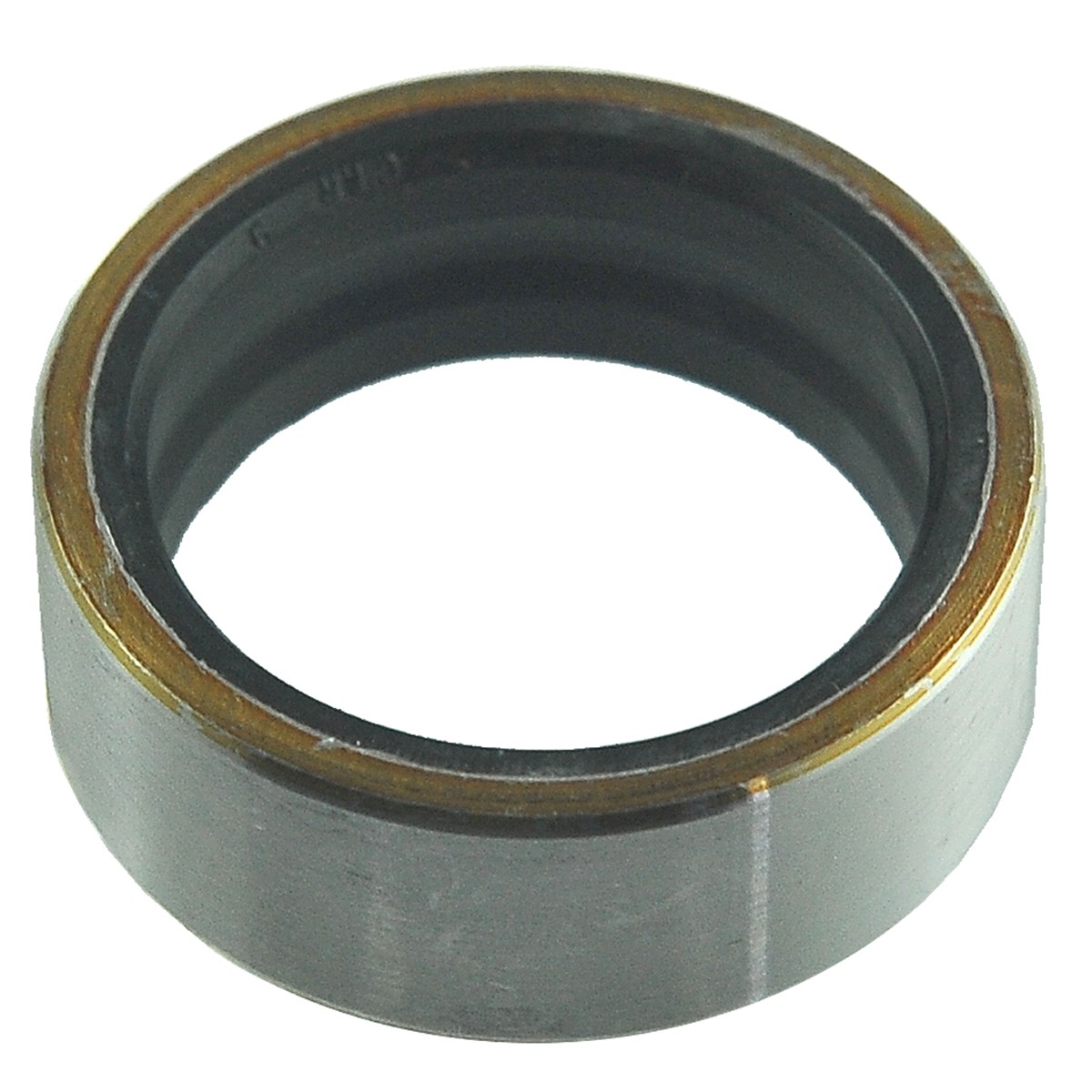

Sealing sleeve / 30 x 38 x 14 mm / Kubota M4500 / M8030 / M9540 / 5-15-104-03

Sliding bushing for drive shaft, 4x4 shaft and others () with an inner diameter of 30 mm , outer diameter of 38 mm and height of 14 mm for Kubota tractors of the Kubota M4500, Kubota M4500, Kubota M4900, Kubota M5030, Kubota M6030, Kubota M6040 , Kubota M7030, Kubota M7040, Kubota M8030, Kubota M9540 series and others.

A sleeve, a support sleeve with a seal is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have very high abrasion resistance and are capable of carrying heavy loads. A sliding bearing (bearing), as this engine element is sometimes called, often has an internal groove or hole to facilitate access of the lubricant to the contact surfaces.

Dimensions :

• outer diameter: 38 mm,
• inner diameter: 30 mm,
• height: 14 mm,
• original part numbers: 36340-41300,
• comparison numbers: 36280-41270,
• part numbers: 5-15-104-03.

Tractor models :

Kubota :

• Kubota M4500,
• Kubota M4900,
• Kubota M5030,
• Kubota M6030,
• Kubota M6040,
• Kubota M7030,
• Kubota M7040,
• Kubota M8030,
• Kubota M9540.

The first signs of wear of sliding bearings are a steady knocking sound during idle operation. The direct influence on the service life of the bushing is lubrication, proper pressure of the lubrication system and the use of oil with the right viscosity or too infrequent oil changes,

Warehouse :
K18:B01:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
