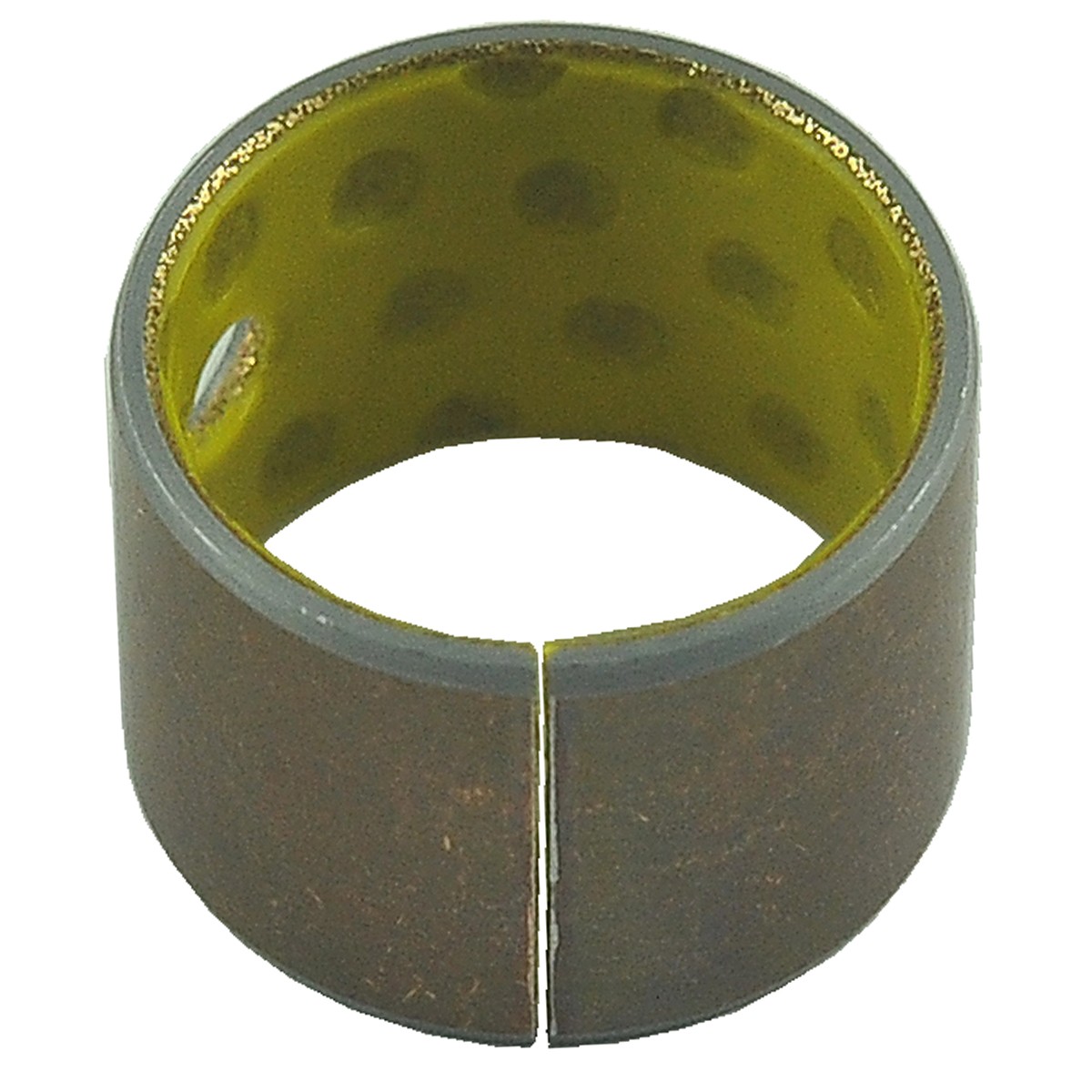

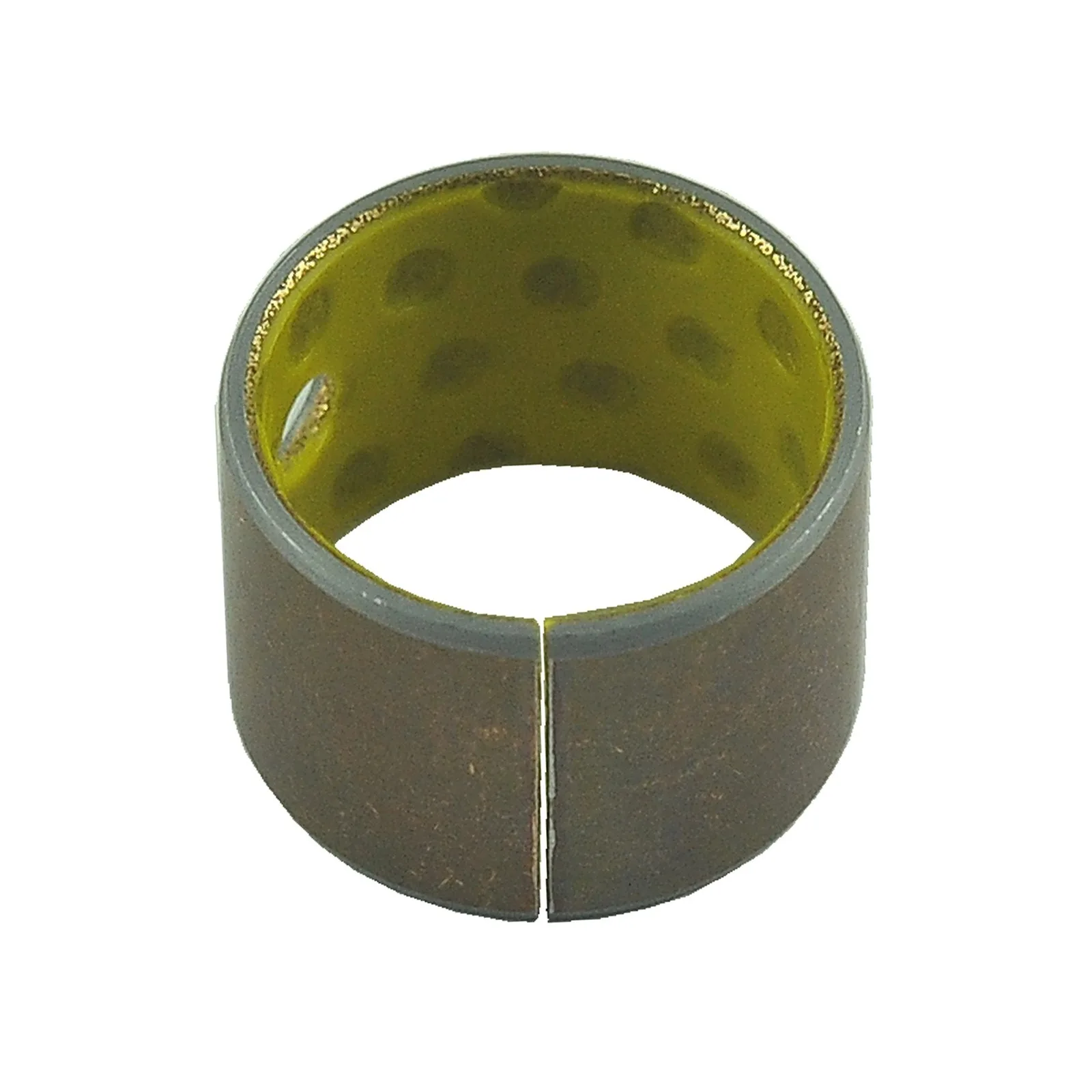

Jack bushing / 18 x 22 x 15 mm / Kubota B1550 / B1750 / B2150 / 67156-18230

Gear shift shaft bushing measuring 18 x 22 x 15 mm for Kubota tractors of the Kubota B1550, Kubota B1750, Kubota B2150 series and others.

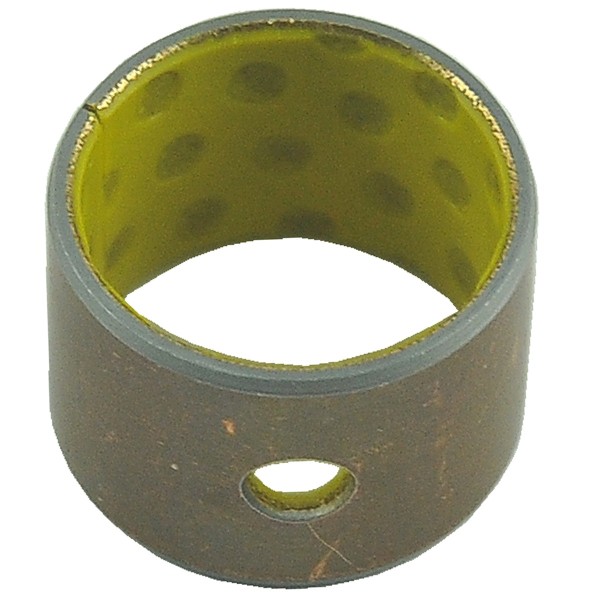

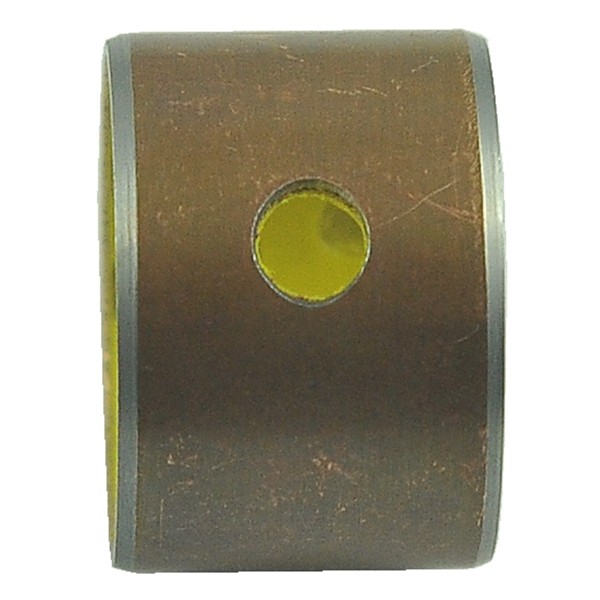

Support sleeve , sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have very high abrasion resistance and are able to carry heavy loads. A sliding bearing, as this element is sometimes called, often has an internal groove or hole to facilitate access of the lubricant to the contact surfaces.

Dimensions :

• outer diameter: 18 mm,
• inner diameter: 22 mm,
• height: 15 mm,

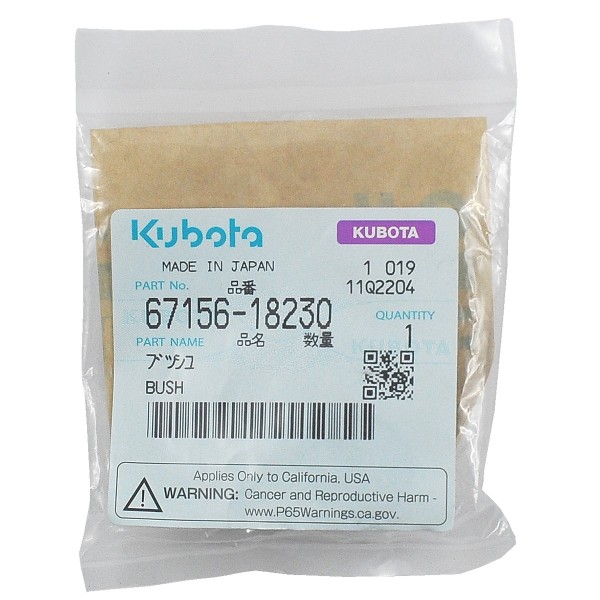

• part numbers: 67156-18230.

Tractor models :

Kubota :

• Kubota B1550,
• Kubota B1750,
• Kubota B2150.

The first signs of wear of sliding bushes are a steady knocking sound during operation. The direct impact on the service life of the bushes is the proper pressure of the lubrication system and the use of oil with the right viscosity or too infrequent oil changes.

Warehouse :
K18:B18:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
