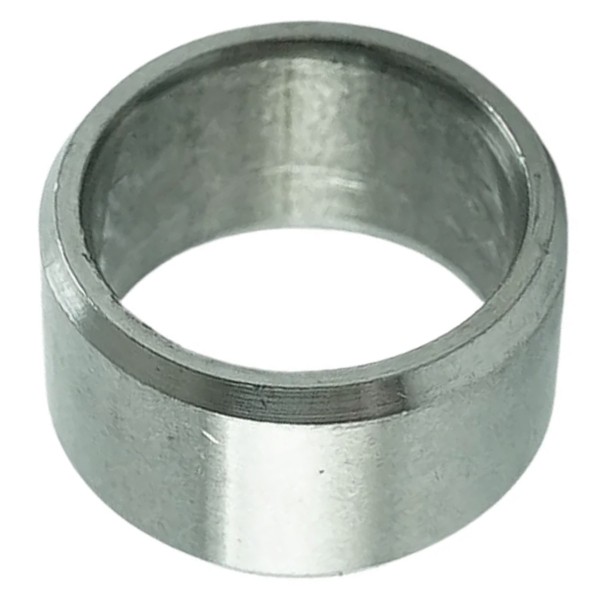

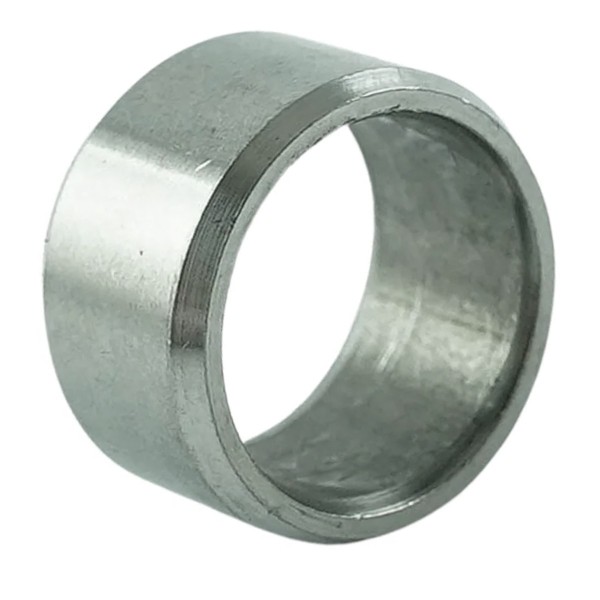

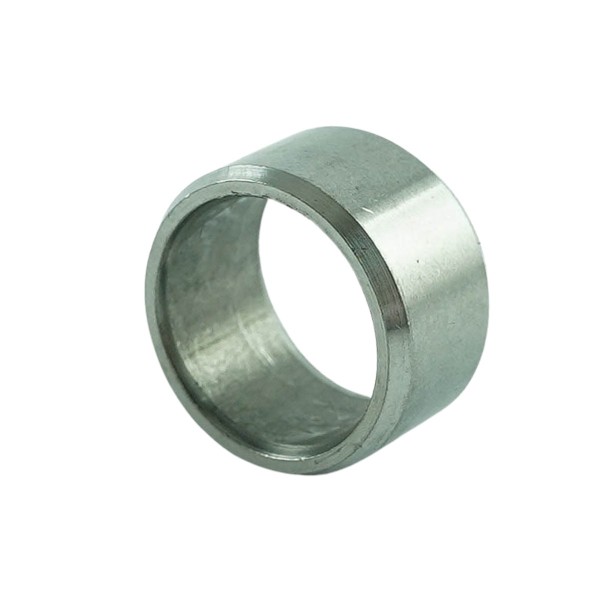

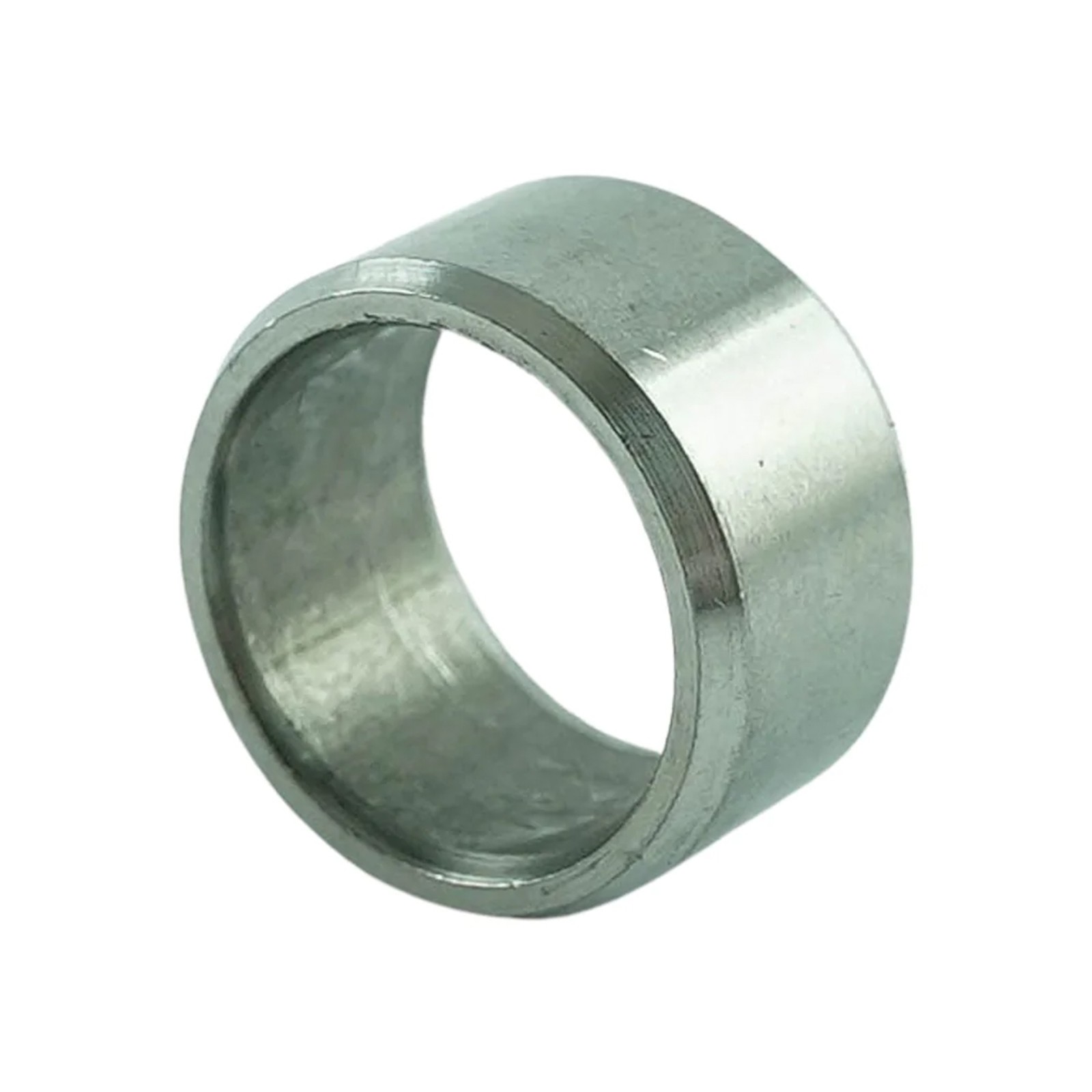

Sliding bush / LS XJ25 / LS Tractor / MS471110 / no. 40225231

Connecting rod locating sleeve with an internal diameter of 12.50 mm , external diameter of 15.80 mm and height of 8.80 mm for LS Tractor brand tractors LS XJ 25 series and others. Support sleeve , sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have very high abrasion resistance and are able to carry heavy loads. The sliding bearing, as this element is sometimes called, often has an internal groove or hole to facilitate access of the lubricant to the contact surfaces.

Dimensions :

• outer diameter: 15.80 mm,
• inner diameter: 12.50 mm,
• height: 8.80 mm,
• part numbers: MS471110, 40225231.

Tractor models :

LS Tractor :

• LS XJ25,

The first signs of wear of sliding bushes are a steady knocking sound during operation. The direct influence on the service life of the bushes is the appropriate pressure of the lubrication system and the use of oil with the right viscosity, too infrequent oil changes or lack of lubrication.

Magazine : L01:B151

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
