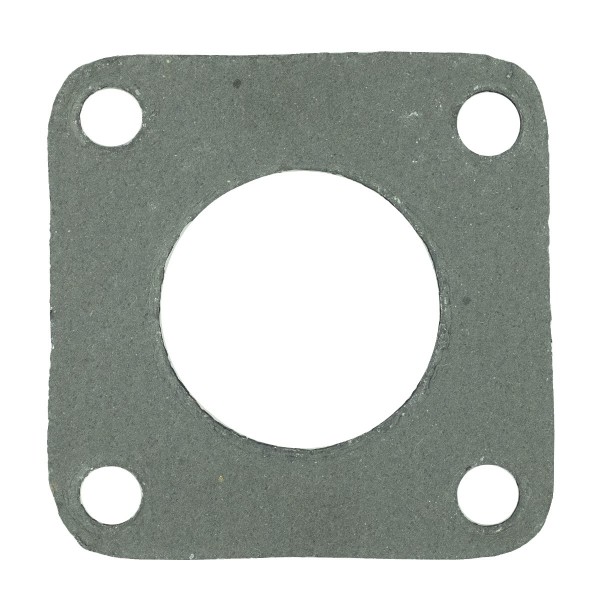

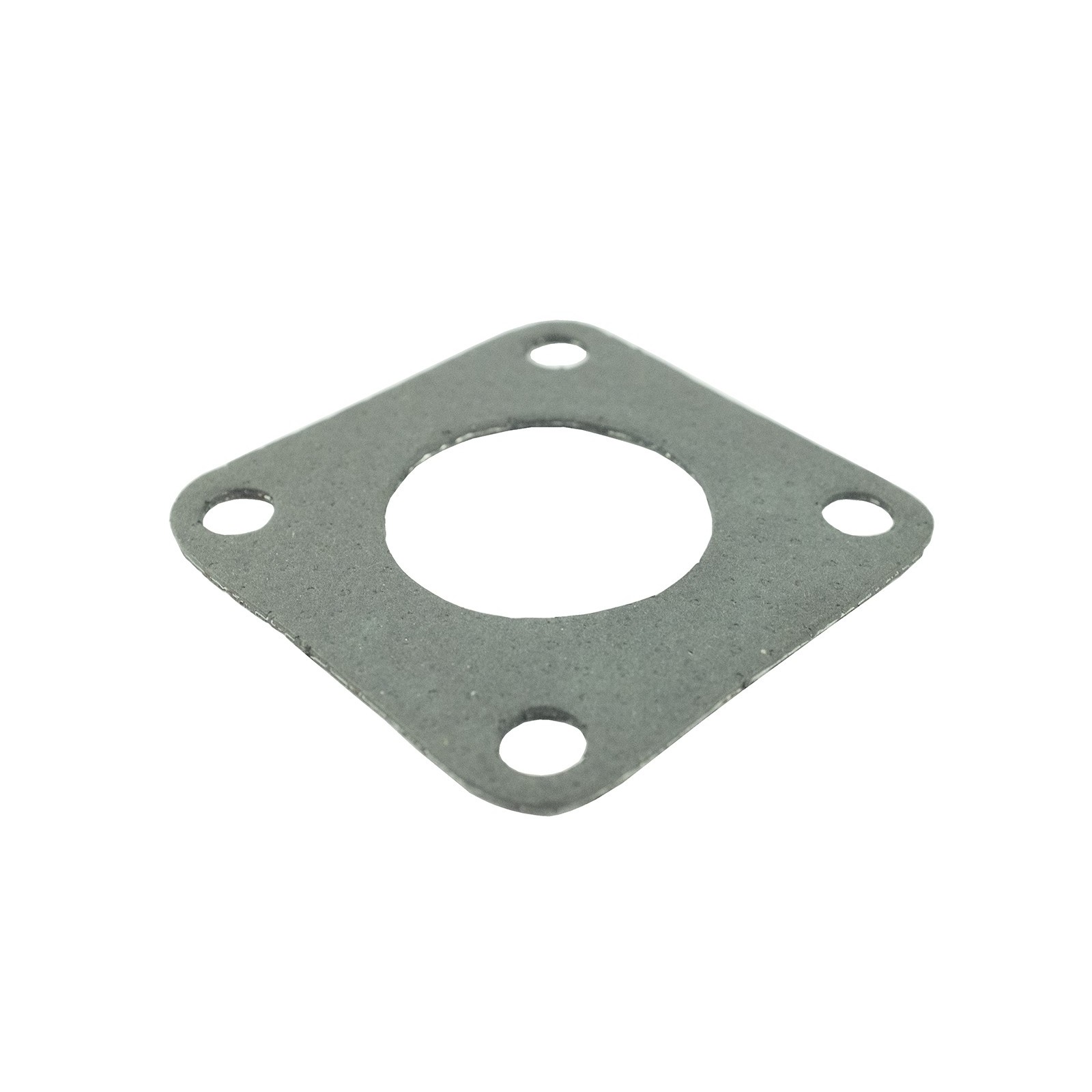

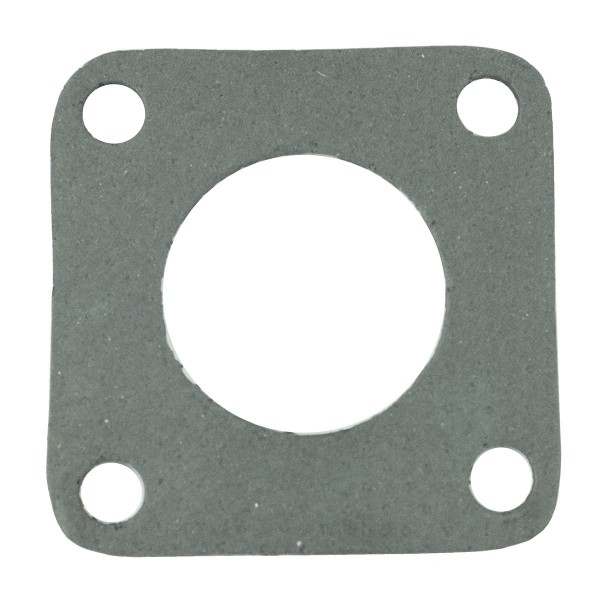

Exhaust manifold gasket / Ø 43 / Kubota L3408 / L4508

Exhaust manifold gasket with dimensions 77 x 77 mm , central hole diameter 43 mm and thickness 1.30 mm for Japanese mini tractors and tractors of the Kubota L series and others. The exhaust manifold gasket is designed to seal the space between the engine head and the manifold that discharges exhaust gases from the cylinders. The first symptoms of gasket damage are an increased noise level, which may disappear after the engine warms up, and a greasy coating visible to the naked eye on the engine near the damaged gasket.

Dimensions :

• length: 77 mm,
• width: 77 mm,
• thickness: 1.30 mm,
• central hole diameter: 43 mm,
• diameter of mounting screw holes: 9.40 mm,
• mounting screw hole spacing: 81.50 mm (measured diagonally), 57.50 mm (measured apart),
• reference numbers: T0070-16420, 15471-12230.

Tractor models :

• Kubota L3408,
• Kubota L4508.

Warehouse : K18 B18 S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
