Exhaust manifold gasket / LS i28 / LS i36 / LS R28i / LS 36i / 31A3201200 / no. 40109246

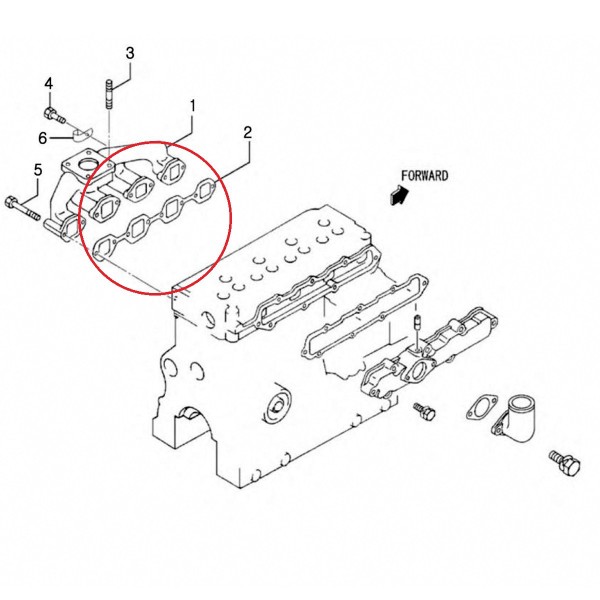

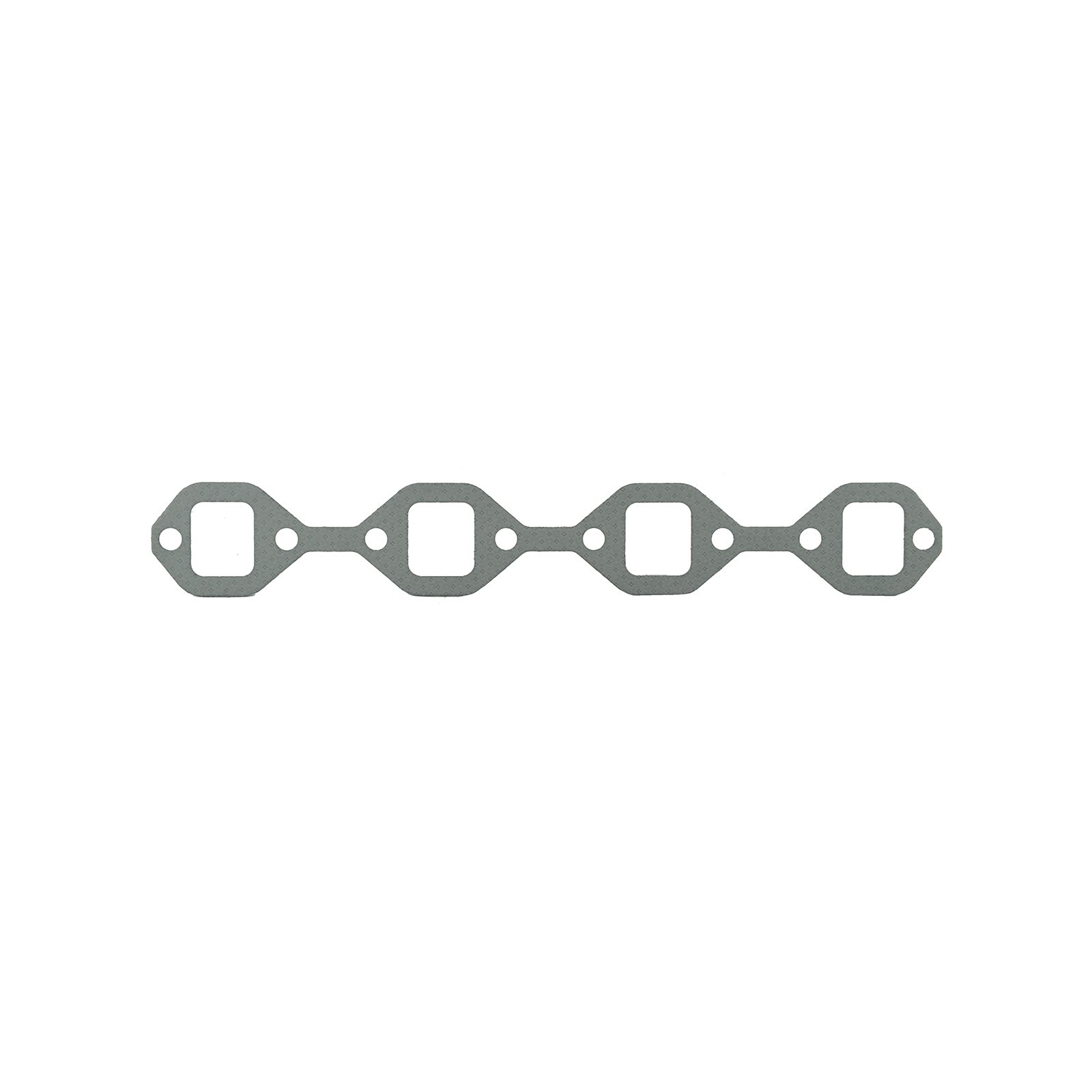

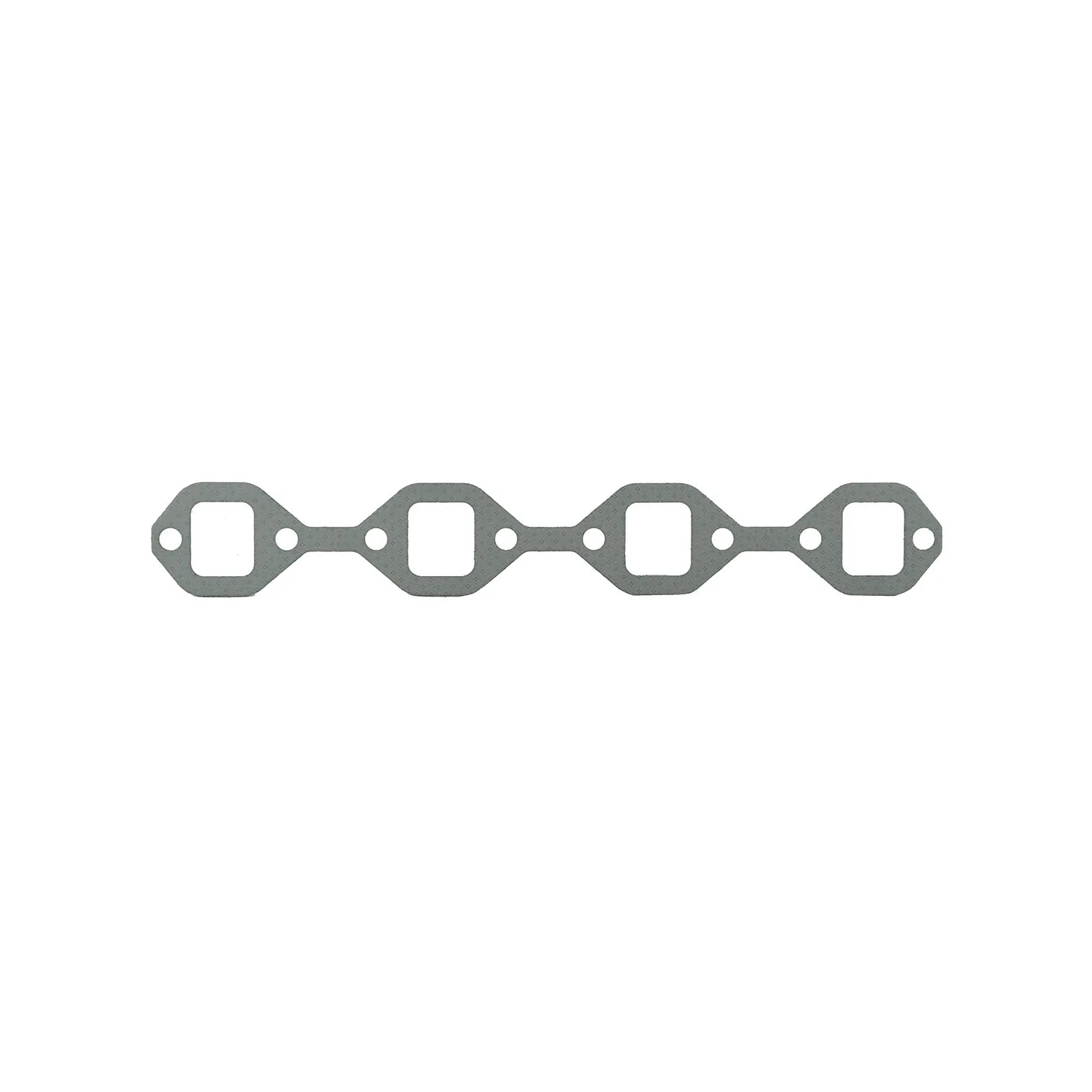

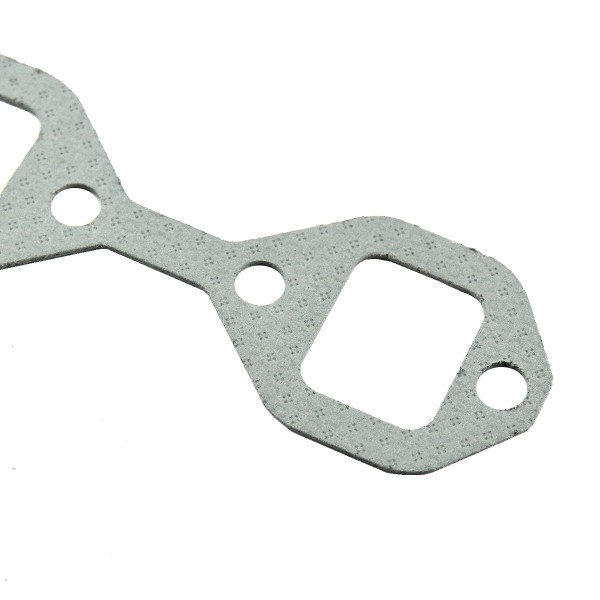

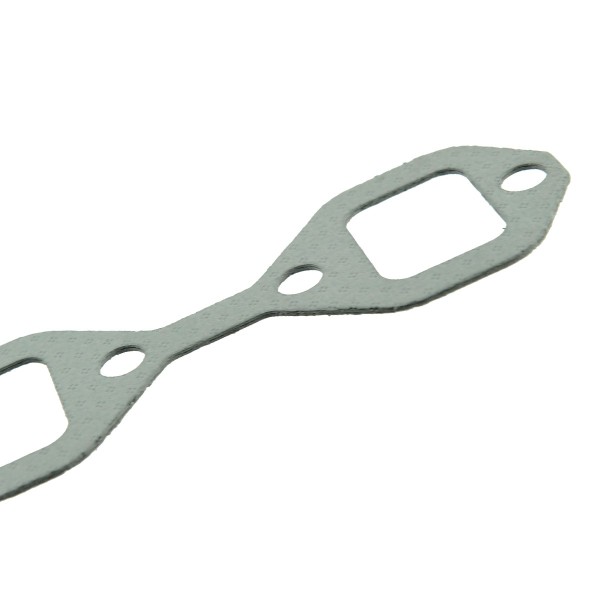

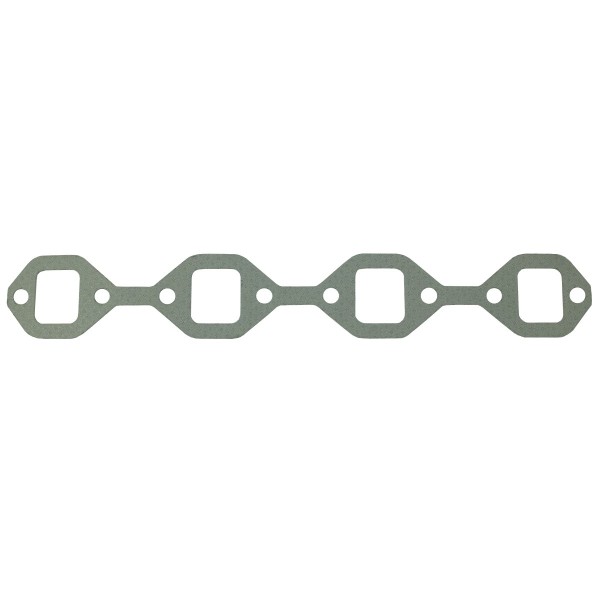

Manifold gasket measuring 322 x 46 mm for LS Tractor series LS i28, LS i36, LS R28i, LS 36i and others. The exhaust manifold gasket is designed to seal the space between the engine head and the manifold that discharges exhaust gases from the cylinders. Its task is to ensure a tight connection between the engine head and the exhaust manifold, which translates into effective exhaust gas discharge and optimal engine operation. Precise dimensions and solid workmanship guarantee durability and reliability in difficult operating conditions.

Dimensions :

• length: 322 mm,
• width: 46 mm,
• thickness: 1.30 mm,
• hole dimensions: 27 x 30 mm,
• diameter of mounting screw holes: 8.90 mm,
• mounting screw hole spacing: 46 / 35 / 46 / 35 / 46 / 35 / 46 mm,
• reference numbers: 31A3201200, 40109246.

Tractor models :

LS Tractor :

• LS i28,
• LS i36,
• LS R28i,
• LS36i.

Engine models :

Mitsubishi :

• Mitsubishi S4L.

The first symptoms of gasket damage include increased noise, which may disappear after the engine warms up, and a greasy coating visible to the naked eye on the engine near the damaged gasket.

Magazine: L01:M25 S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
