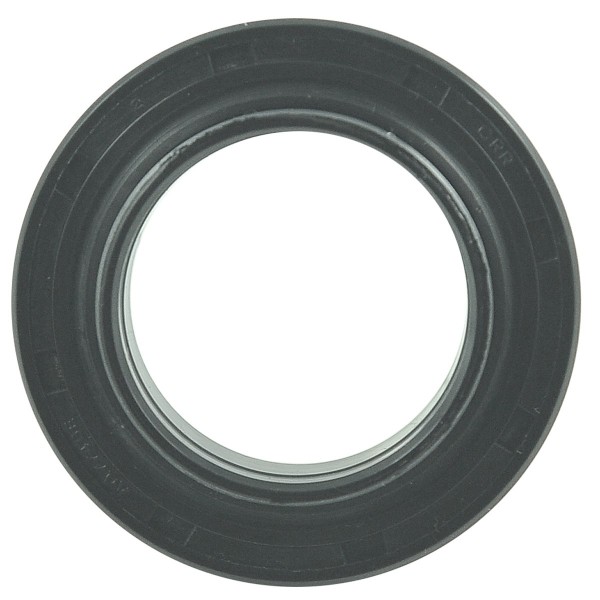

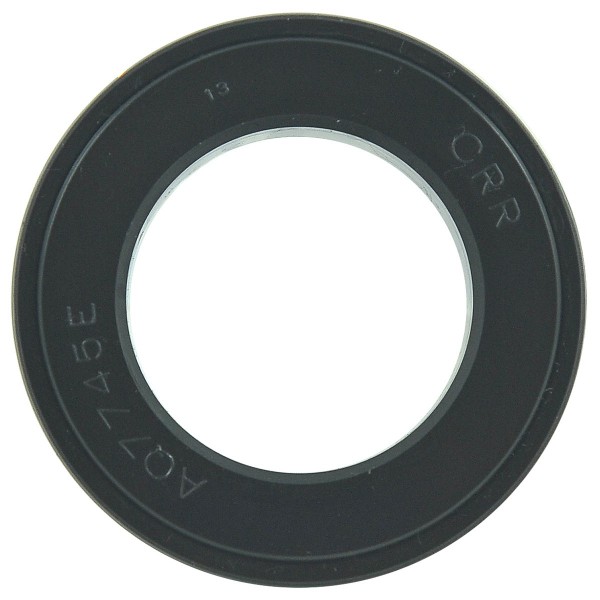

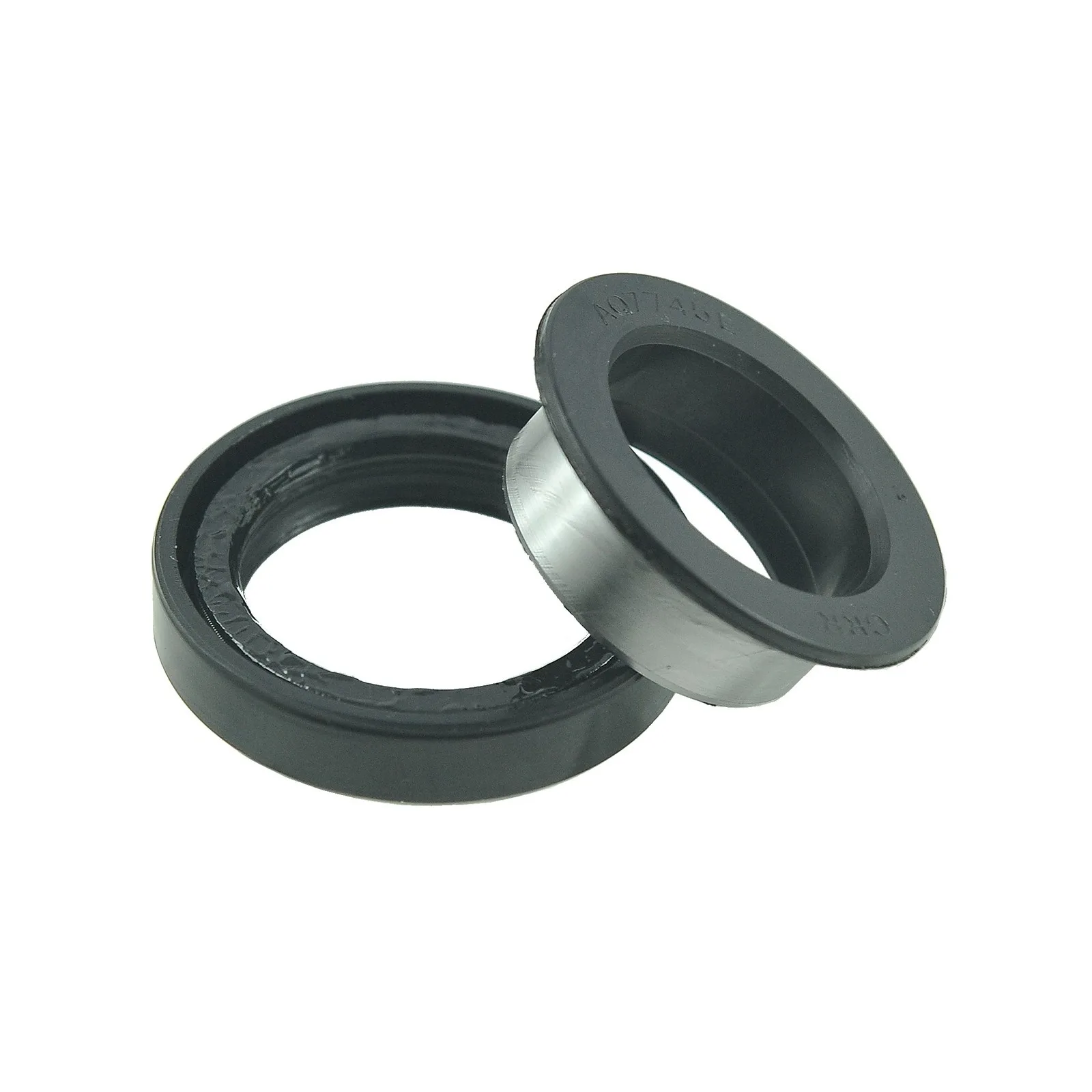

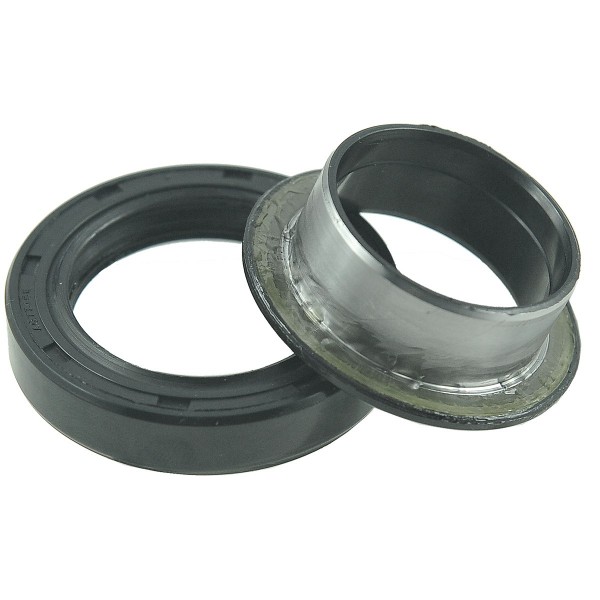

Cassette seal 35 x 58 x 11/17 mm / Kubota M4800 / M4900 / M5640 / M5660 / M5700 / M6800 / M7040 / M8200 / M9000

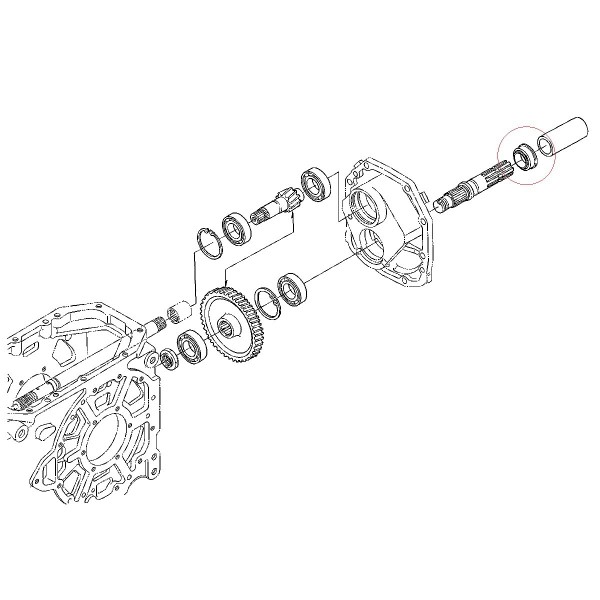

PTO/PTO shaft cassette seal (shaft 3A111-80140) with an inner diameter of 35 mm , outer diameter of 58 mm and a height of 11 / 17 mm for Kubota brand Kubota M4800, Kubota M4900, Kubota M5640 , Kubota M5660, Kubota M5700, Kubota M6800, Kubota M7040, Kubota M8200, Kubota M9000 series and others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 35 mm (sleeve), 40 mm (seal),
• outer diameter: 58 mm (seal), 40 (sleeve),
• height: 11 / 17 mm,
• original part numbers: 3A111-80290,
• comparison numbers: -,
• part numbers: AQ7745E, 5-08-204-08.

Tractor models:

• Kubota M4800,
• Kubota M4900,
• Kubota M5640,
• Kubota M5660,
• Kubota M5700,
• Kubota M6800,
• Kubota M7040,
• Kubota M8200,
• Kubota M9000.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse:
M01:A42
