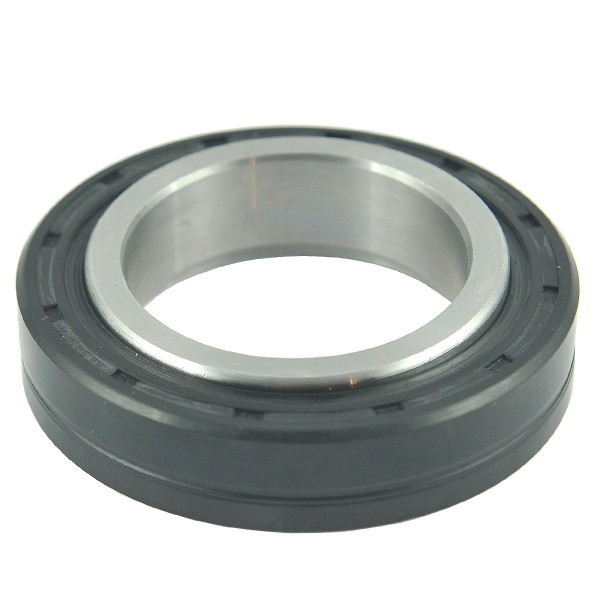

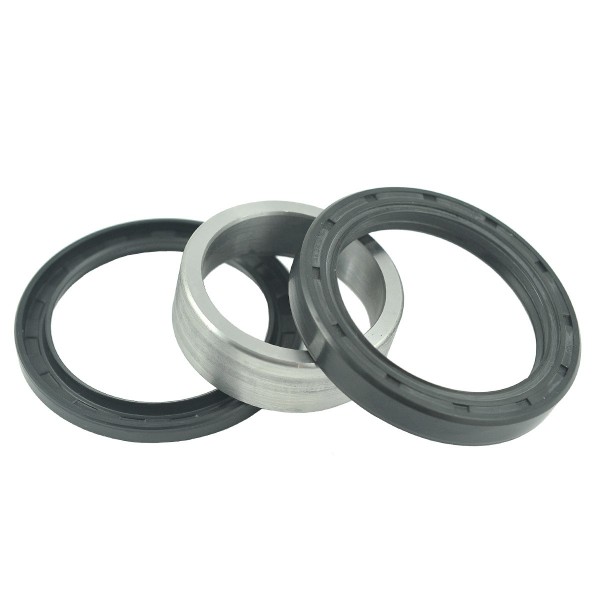

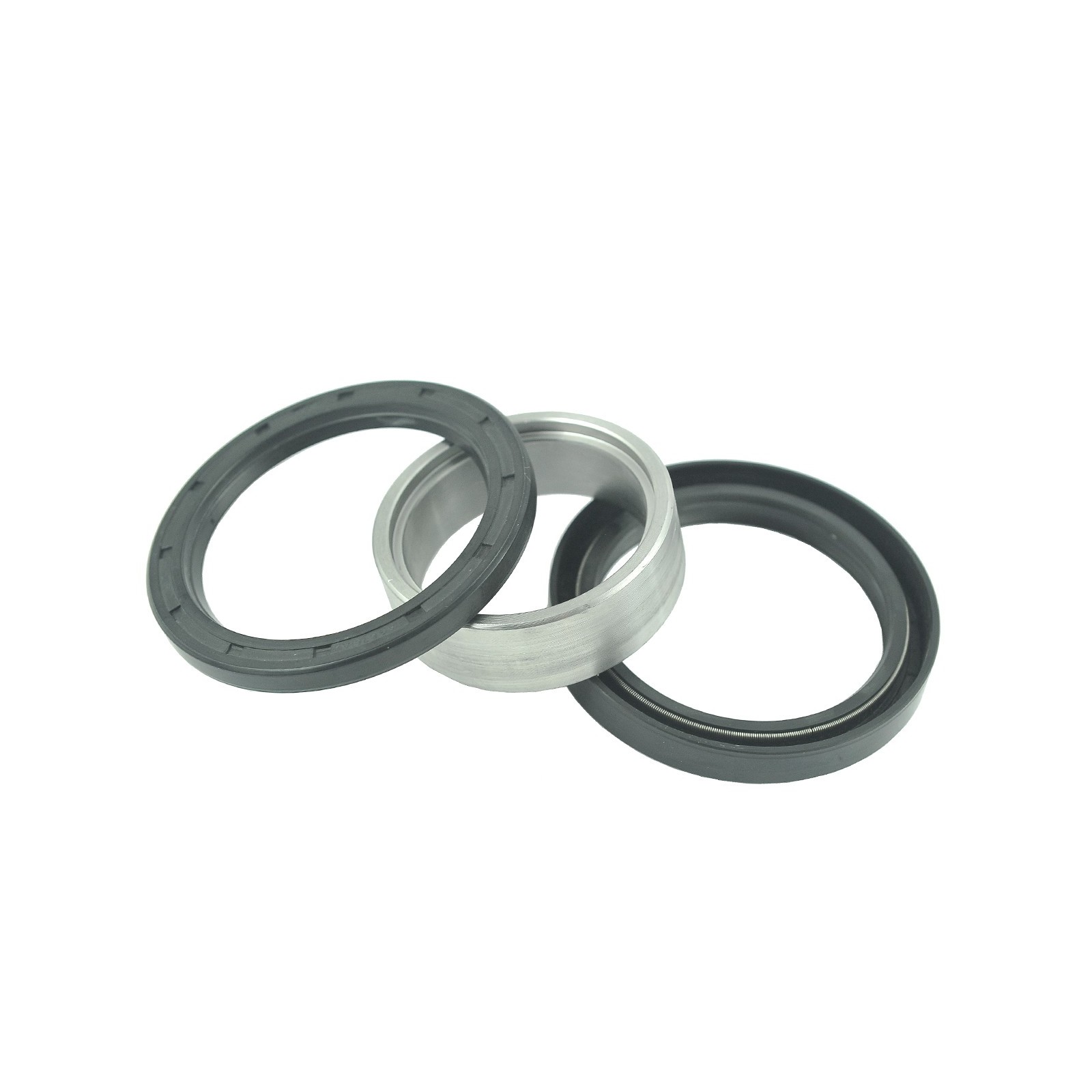

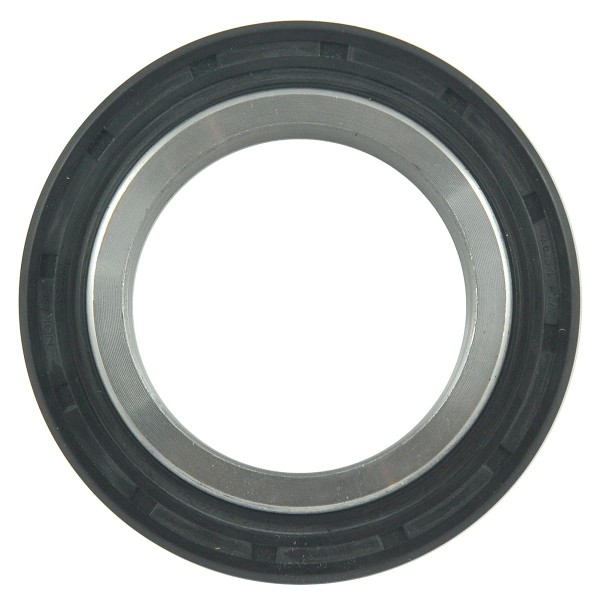

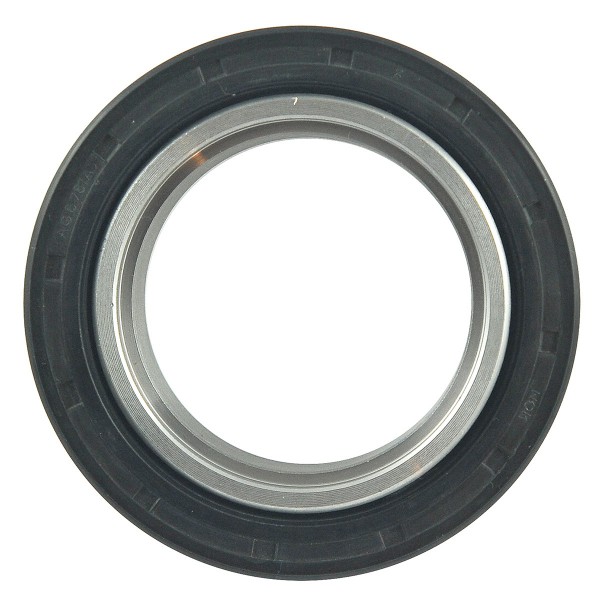

Sealant / 55 x 90 x 19/23 mm / Iseki TL2100 / TL2300 / TL2500 / TL2700 / TE4270 / TE4350

Front axle drive shaft cassette seal with an inner diameter of 55 mm , outer diameter of 90 mm and height of 19/23 mm for Iseki tractors of the Iseki TE4270, Iseki TE4350, Iseki TL2100, Iseki TL2300, Iseki TL2500, Iseki TL2700 series and others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 55 mm (sleeve), 68 mm (seal),
• outer diameter: 90 mm.
• height: 19 / 23 mm,
• part numbers: AE3459A, AG6761A, 9-08-102-09.

Tractor models :

Iseki :

• Iseki TE4270,
• Iseki TE4350,
• Iseki TL2100,
• Iseki TL2300,
• Iseki TL2500,
• Iseki TL2700.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
