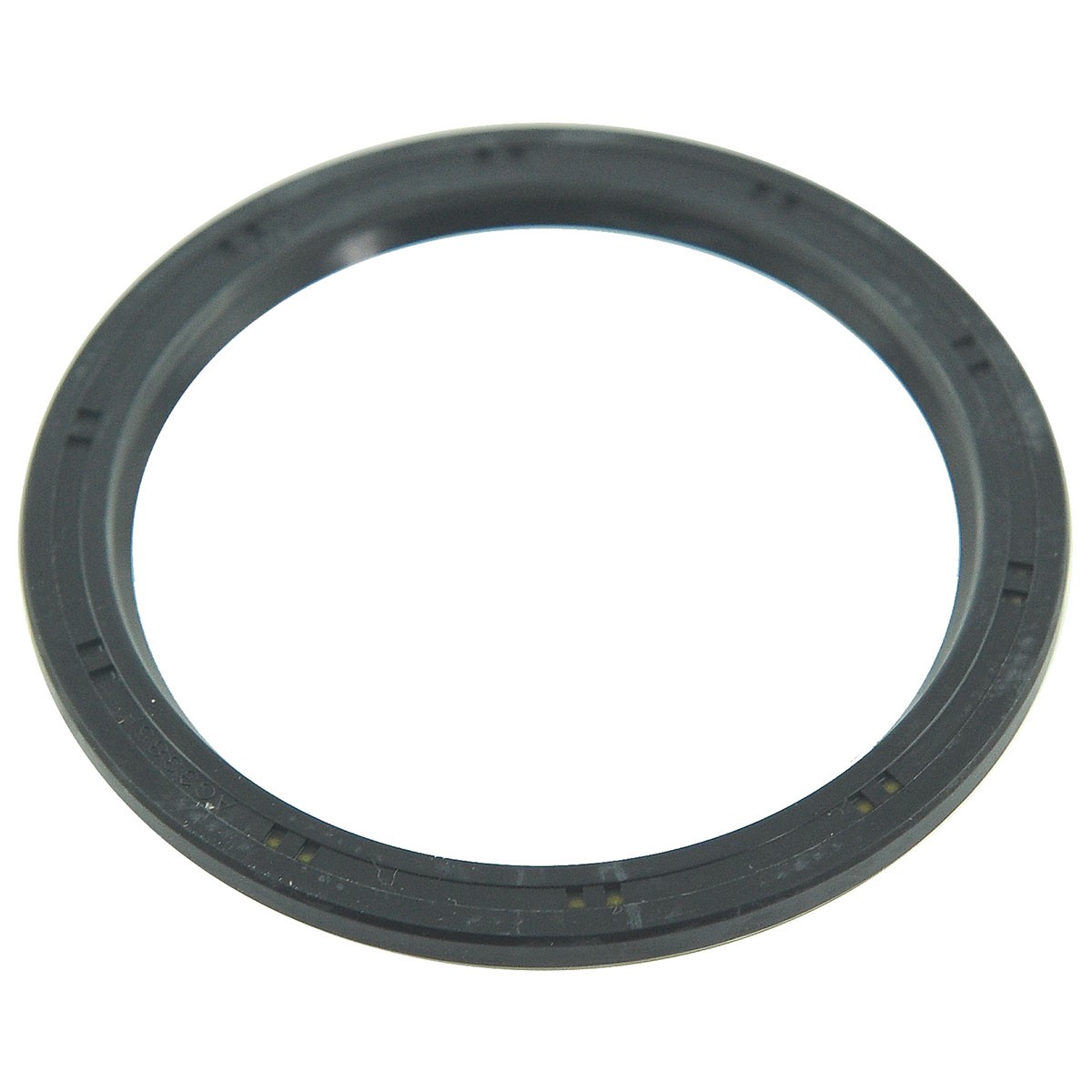

Seal / 65 x 80 x 5 mm / Kubota M7030 / M7580 / M8200 / M9000 / M9580 / 5-08-109-21

Front axle reduction gear seal (sleeve 6-14-110-03, 35533-43350) oil seal with an inner diameter of 65 mm , an outer diameter of 80 mm and a height of 5 mm for Kubota tractors of the Kubota M7030, Kubota M7580, Kubota M8200, Kubota M9000, Kubota M9580 series and others.

A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, most often oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

Dimensions :

• outer diameter. 80 mm,
• inner diameter: 65 mm,
• height: 5mm,
• original part numbers: W9501-83241,
• comparison numbers: 33750-43350,
• part numbers: AG3385F, 5-08-109-21.

Tractor models:

Kubota:

• Kubota M7030,
• Kubota M7580,
• Kubota M8200,
• Kubota M9000,
• Kubota M9580.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse:
K18:F08.S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
