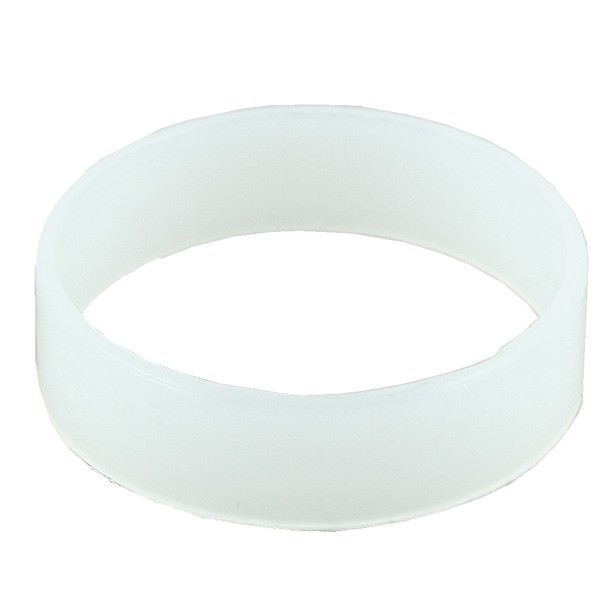

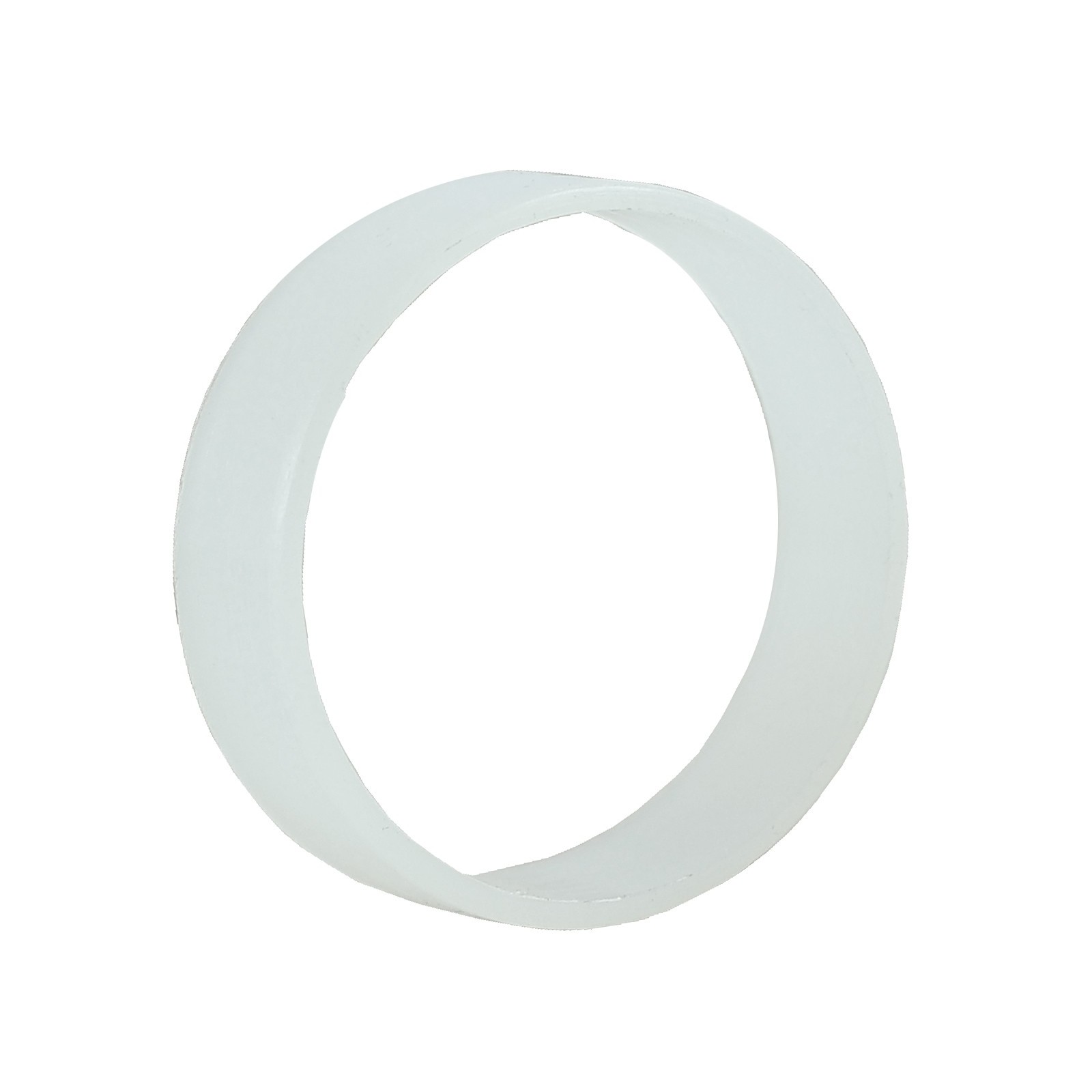

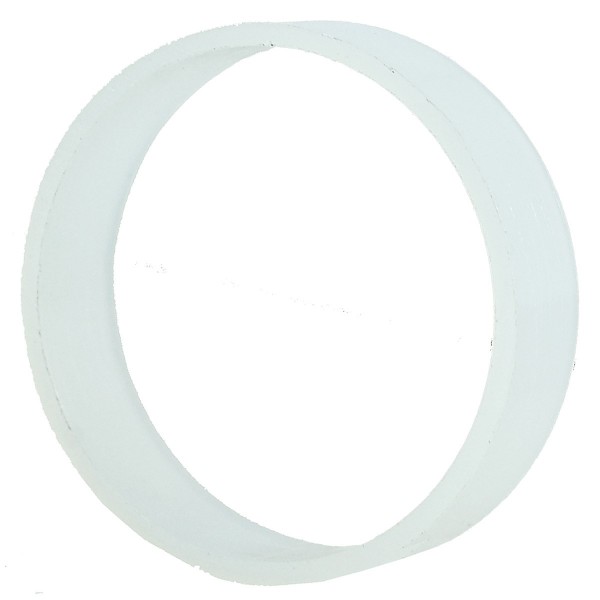

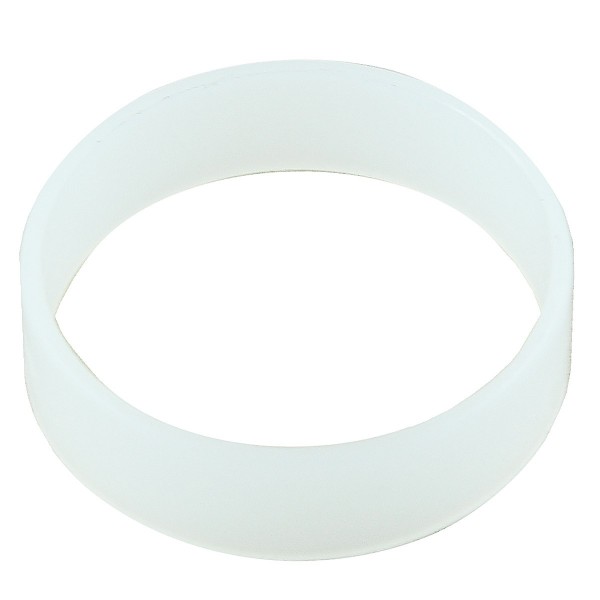

Stop ring / 46 x 49 x 11 mm / Kubota M7040 / 32590-37480 / 5-14-105-08

Three-point linkage lift shaft stop ring (second O-ring 5-27-100-21 , 04816-06400, spare ring 5-14-105-08 , 32590-37480, TC620-37430 shaft, lift arm 5-02-113-05 , TC222-34610) with an internal diameter of 46 mm , an external diameter of 49 mm and a height of 11 mm for Kubota K series tractors , ubota M7040 and others.

A retaining ring is a rigid ring, usually made of plastic, that protects O-ring seals against damage caused by the high pressure and temperature inside the hydraulic system during operation. Back -up-ring is a ring whose main task is to prevent the O-ring from being pressed into the gap between the sealed surfaces and protects the sealant against shape changes that may occur when high pressure and temperature are applied to the seal. If the pressure acts on the O-ring from two directions, we use a resistance ring on both sides of the O-Ring seal.

Dimensions:

• inner diameter: 46 mm,
• outer diameter: 49 mm,
• height: 11 mm,
• original part numbers: 32590-37480,
• part numbers: 5-14-105-08.

Tractor models :

Kubota :

• Kubota M7040.

Warehouse :
M01:B43:S01
