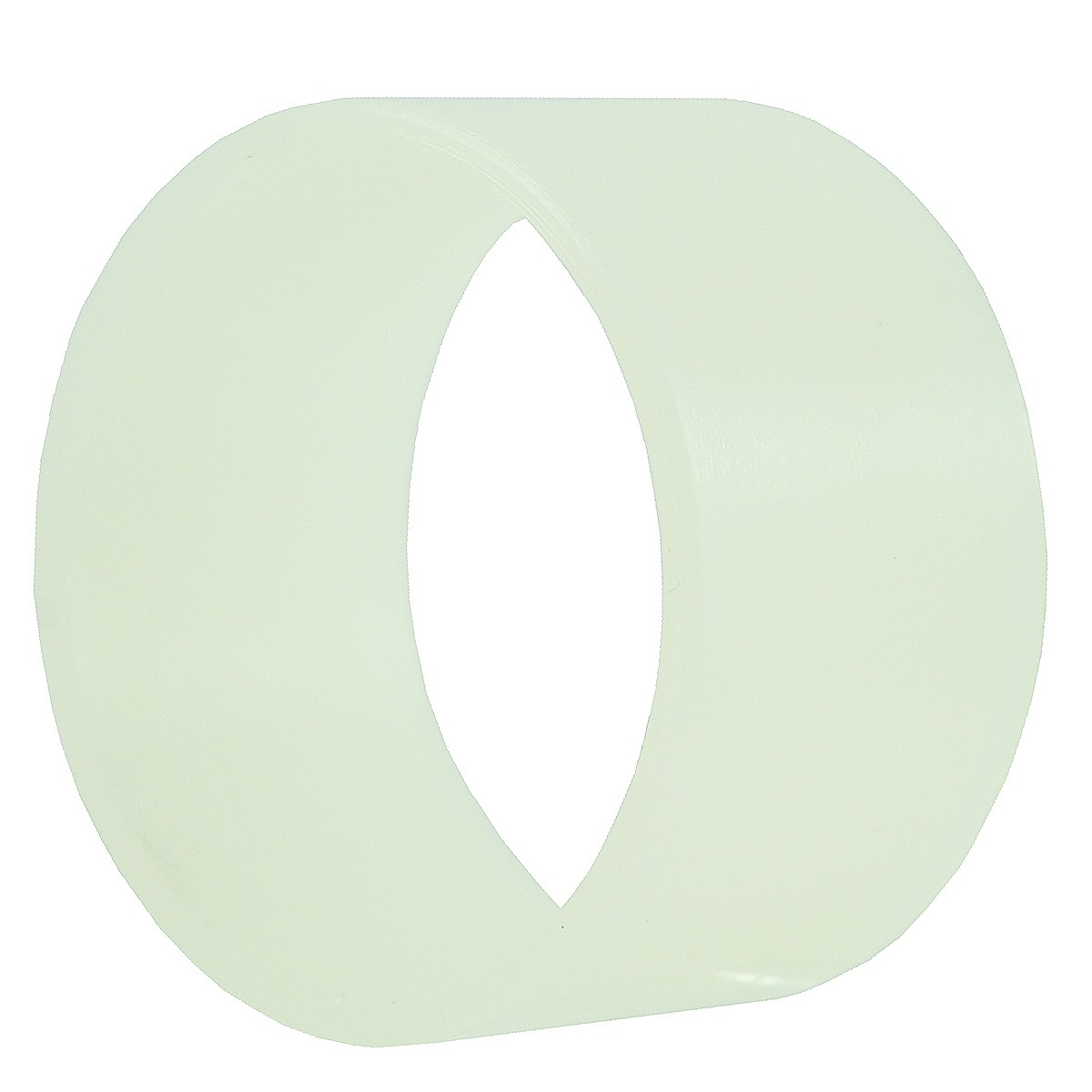

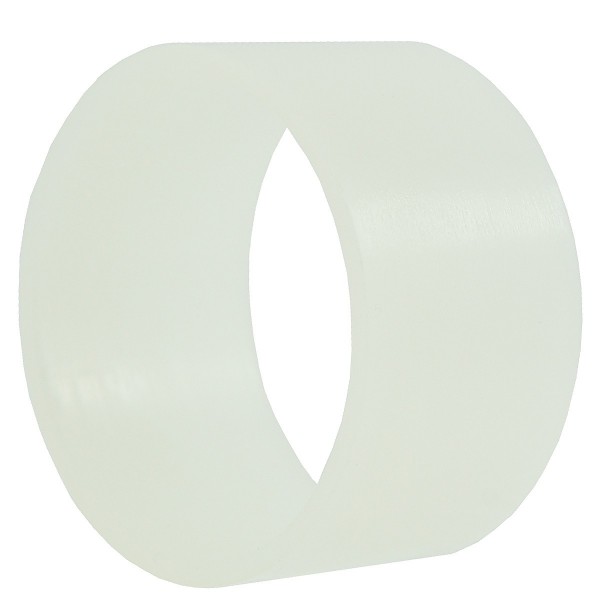

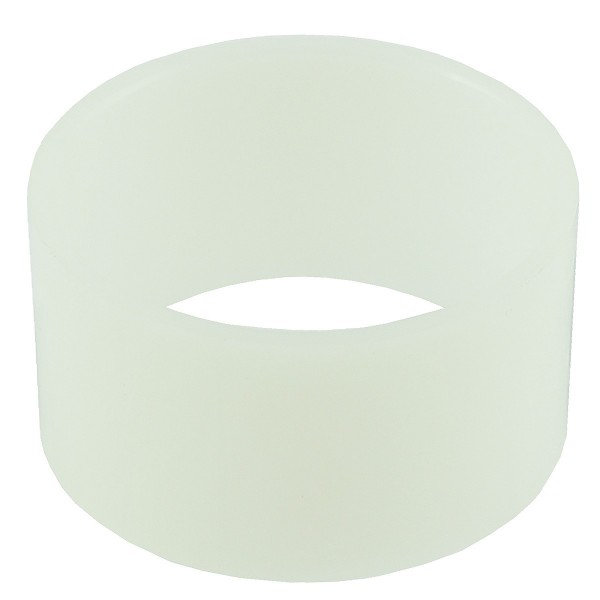

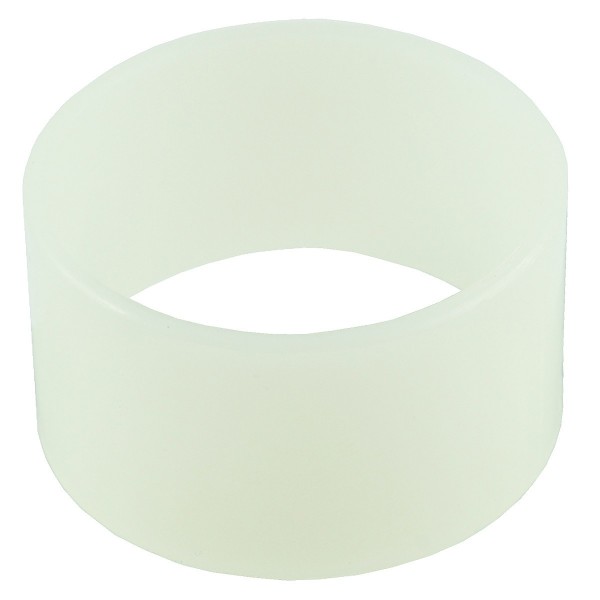

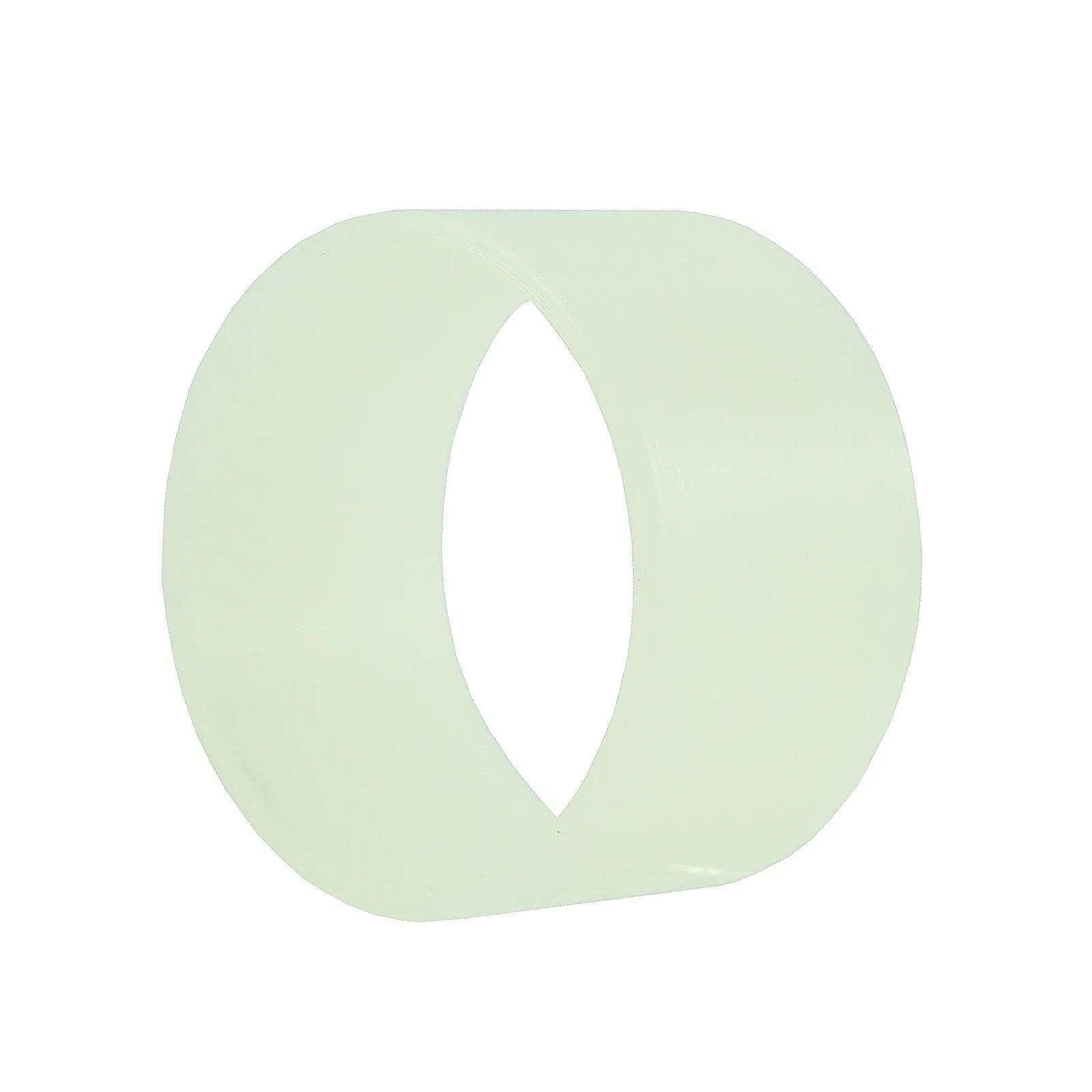

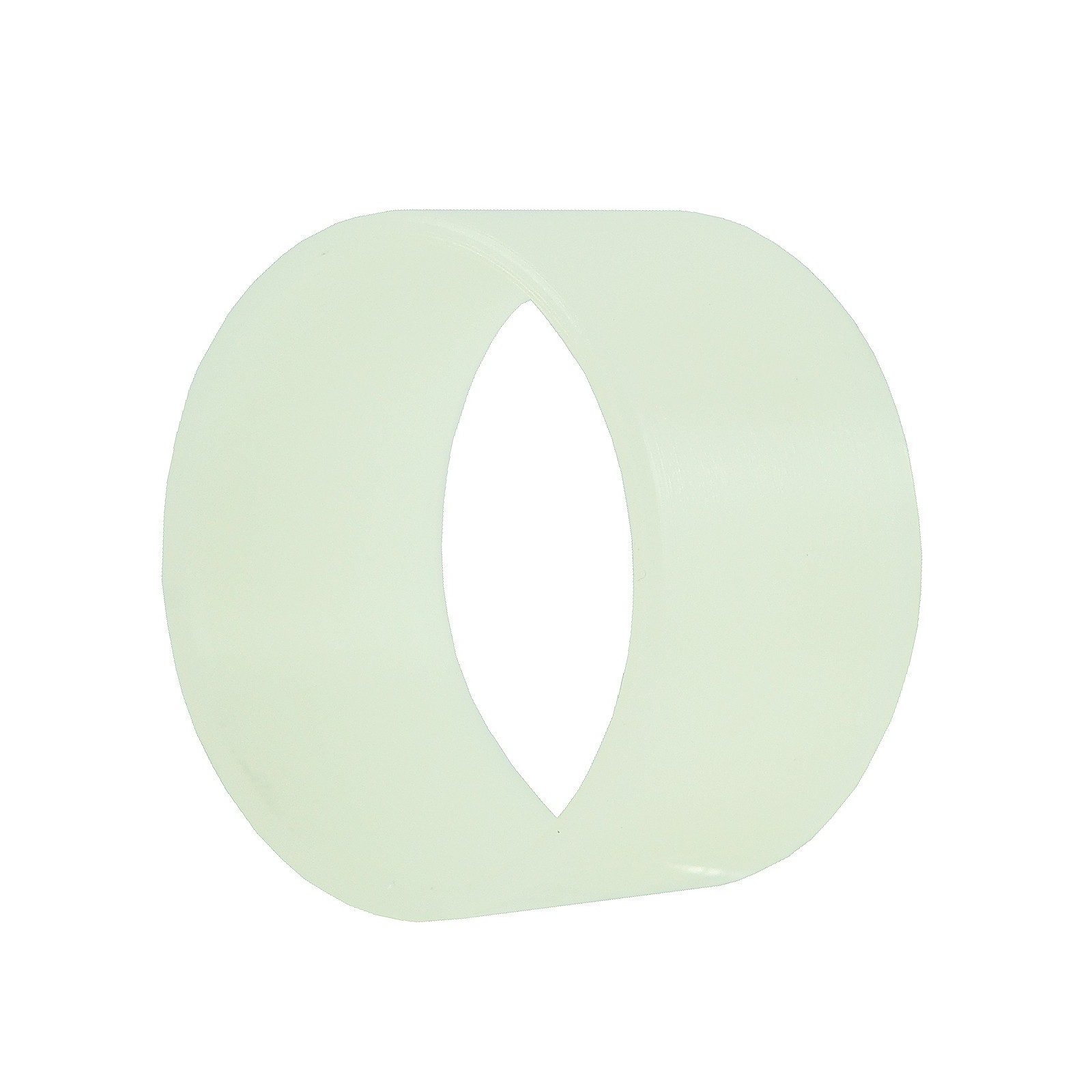

Thrust ring / 50 x 54 x 23 mm / Kubota L2600 / 5-14-105-04

This O-ring has an inner diameter of 50 mm, an outer diameter of 54 mm , and a height of 23 mm for Kubota tractors, Kubota L2600 series, and others. A back-up ring is a rigid ring, usually made of plastic, that protects O-rings from damage caused by the high pressure and temperature inside the hydraulic system during operation. A back -up ring is a ring whose primary function is to prevent the O-ring from being forced into the gap between the sealing surfaces and to protect the seal from deformation, which can occur when the seal is subjected to high pressure and temperature. When pressure acts on the O-ring from two directions, a back-up ring is used on both sides of the O-ring.

Dimensions :

• inner diameter: 50 mm,
• outer diameter: 54 mm,
• height: 23 mm,
• part numbers: 5-14-105-04.

Tractor models :

• Kubota L2600.

Magazine : K18:A22:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
