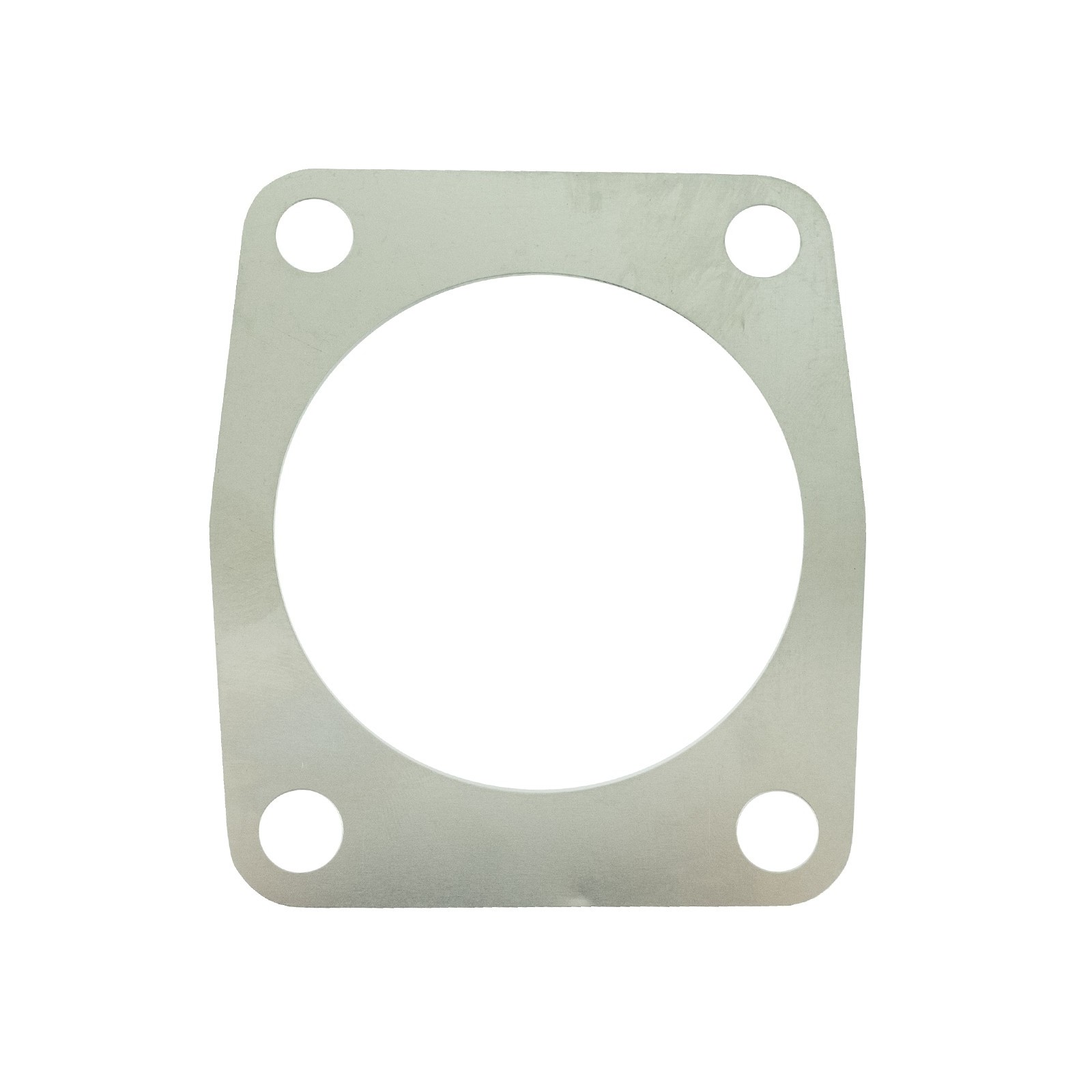

Spacer 80.50 x 0.20 mm / LS MT3.50 / LS MT3.60 / TRG970 / 3A1970101 / 40012001

Spacer with dimensions of 100 x 114 x 0.20 mm and a hole diameter of 80.50 mm for LS Tractors of the LS MT3.50, LS MT3.60 series and others for:

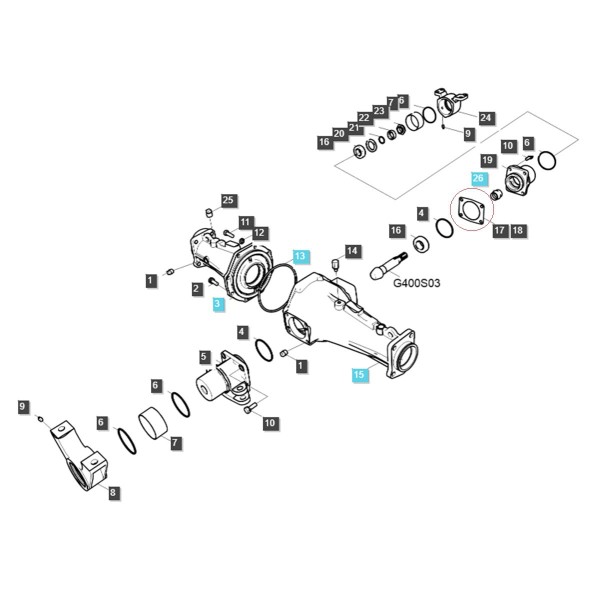

• front axle.

The washer is the basic element that occurs in all screw connections, and their main task is to separate the nut from the connected element. Another function is to prevent self-loosening of screws in threaded connections. In addition, copper washers can act as sealing and are used due to the plasticity of the metal, high anti-corrosion properties. We divide the washers into three groups:

• ordinary (protective, increasing the pressure surface of the screw),
• securing against unscrewing (spring),
• leveling, spacing, copper (for leveling when the joined elements are not perfectly smooth),
• special sealing.

Dimensions :

• dimensions: 100 x 144 mm,
• hole diameter: 80.50mm,
• thickness: 0.20mm,
• spacing of holes for mounting bolts: 69 / 92 mm (measured from each other), 115 mm (measured diagonally),
• diameter of holes for mounting screws: 12 mm,
• part number: 40012001, 3A1970101.

Tractor models :

LS Tractor :

• LS MT3.50,
• LS MT3.60,

Warehouse :
L01:B214
