Spacer 80.50 x 0.07 mm / LS MT3.50 / LS MT3.60 / TRG970 / 3A1970100 / 40012000

Product code: 40012000
Brand LS Tractor
View other model
1 person purchased this product
zł8.36 netto
zł10.28
Includes VAT 23%

Lowest price from 30 days: zł10.28

Delivery options

Loading delivery options...

No delivery options available for this product.

Error loading delivery options. Please try again.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

Available
21 pieces
Delivery See details Leasing & financing for businesses See details

Product description

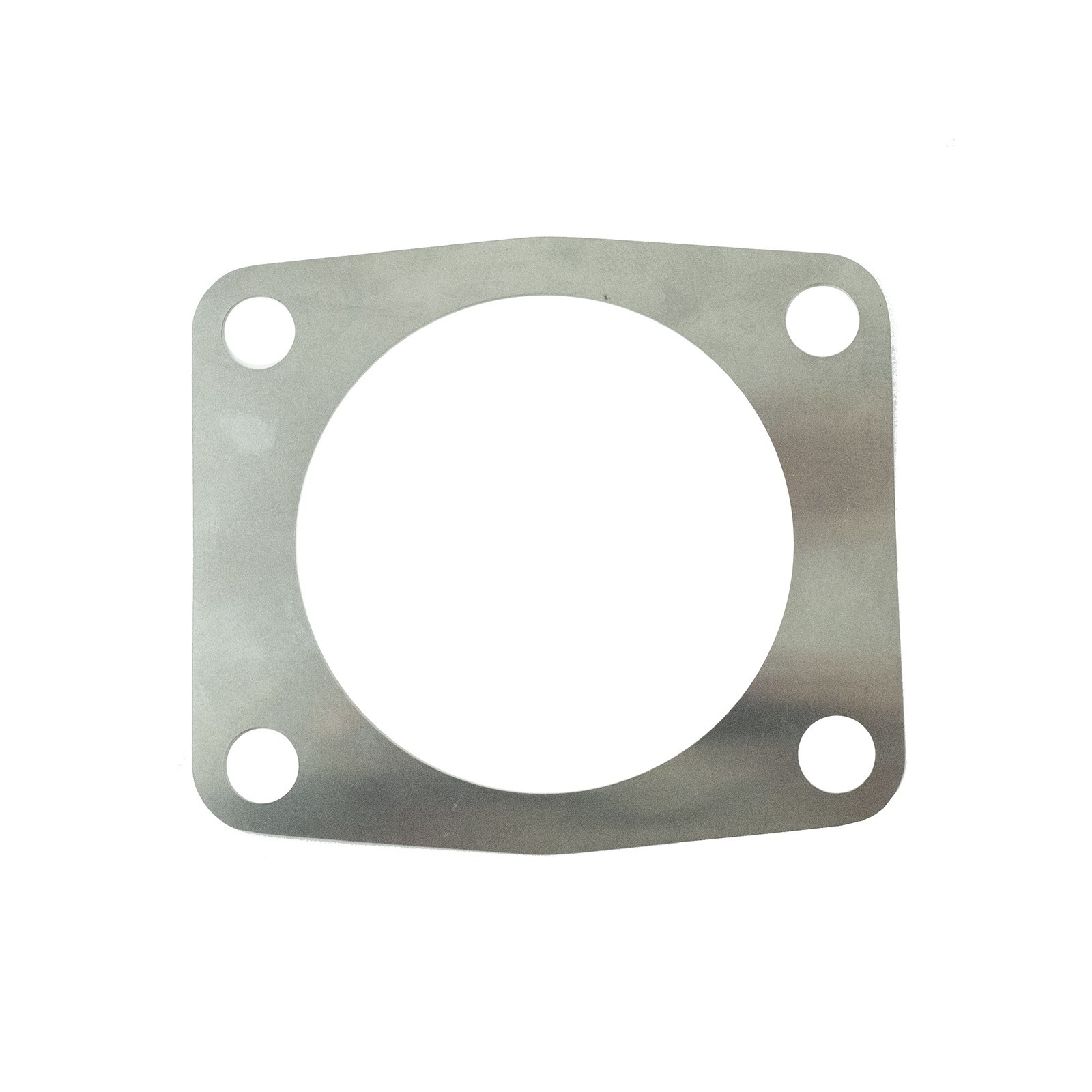

Metal spacer gasket for the front axle for the right and left side, dimensions 99 x 114 mm and thickness 0.07 mm for LS Tractors of the LS MT3.50, LS MT3.60 series and others.

Metal gasket is a very thin gasket and is present in all parts of the engine, transmission and front and rear axles. The main task of the metal gasket is to minimize the play, to set the right position between the elements and to align the surfaces adjacent to each other, seemingly perfectly smooth, and to seal the system.

Dimensions :

  • dimensions: 100 x 114 mm,
  • thickness: 0.07mm,
  • hole diameter: 80.50mm,
  • spacing of holes for mounting bolts: 69 / 92 mm (measured from each other), 115 mm (measured diagonally),
  • diameter of holes for mounting screws: 12 mm,
  • comparative numbers: 3A1970100.

Tractor models :

LS Tractor :

  • LS MT3.50,
  • LS MT3.60.

Warehouse :
L01:B214

Specifications

Condition
New
Bolt hole spacing (mm)
69 / 92 mm (mierzone od siebie), 115 mm (mierzone po przekątnej)
Bolt hole spacing (mm)
69 / 92 mm (mierzone od siebie), 115 mm (mierzone po przekątnej)
Parts
Chassis
Thickness (mm)
0.07
Dimensions (mm)
100 x 114
Tractor models
LS MT3.50, LS MT3.60
Comparison numbers
3A1970100
Hole diameter (mm)
80.50
Mounting bolt(s) hole diameter (mm)
12
Production
OEM

Podobne produkty

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
