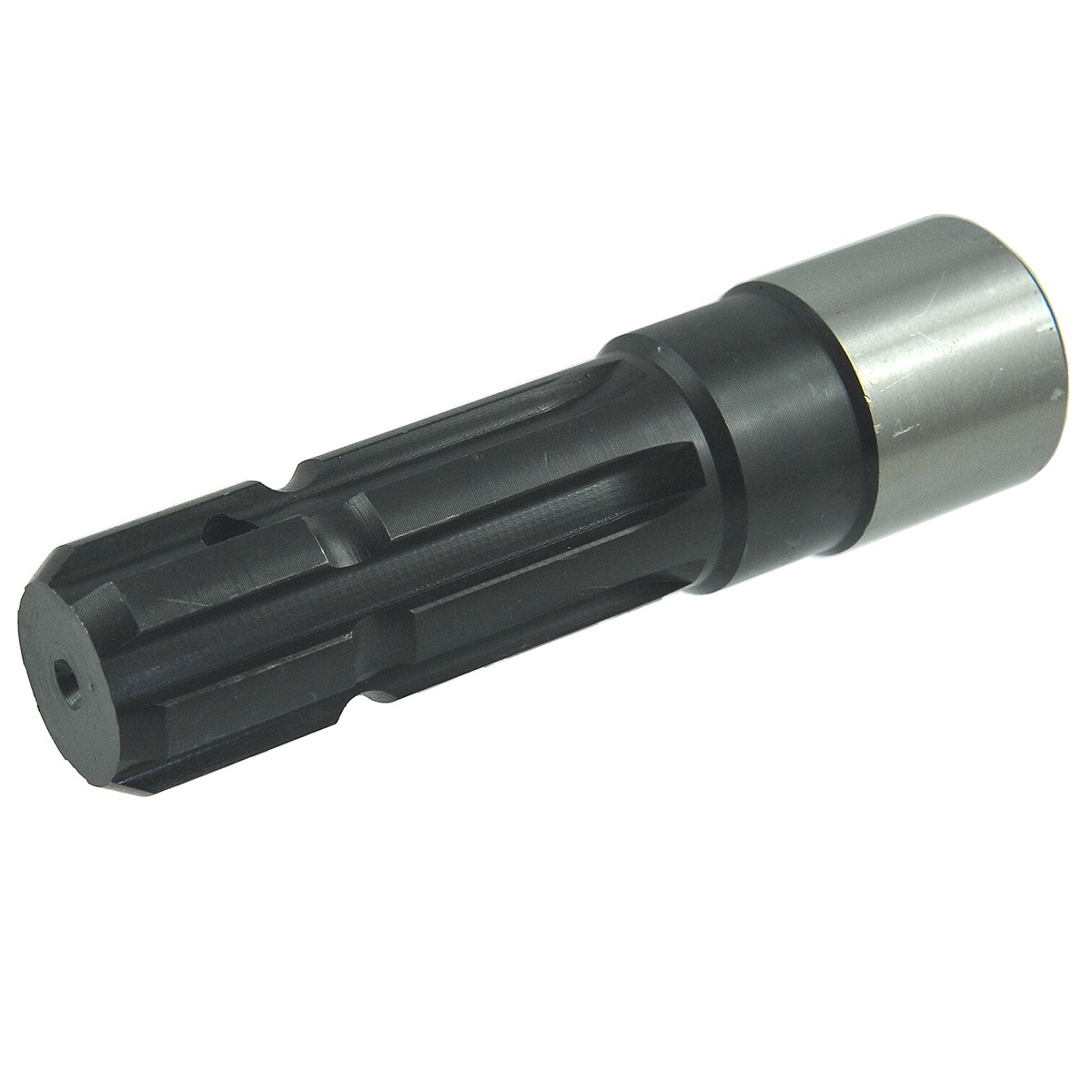

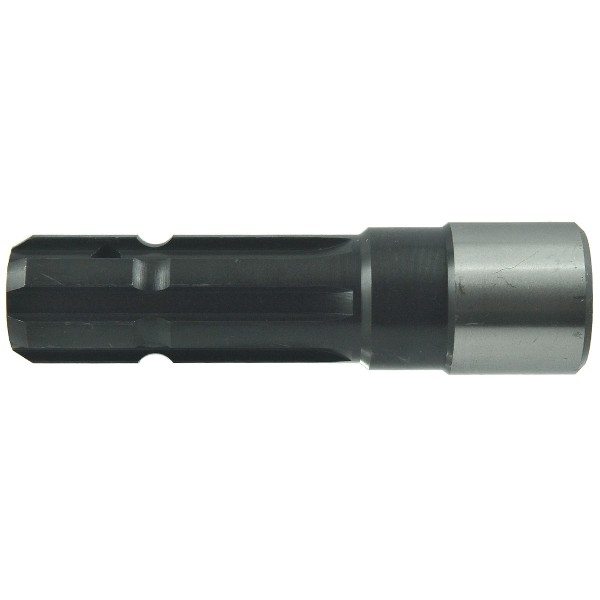

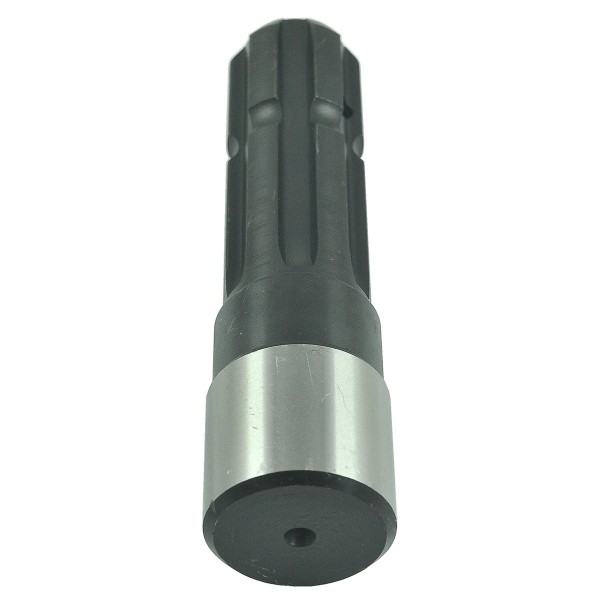

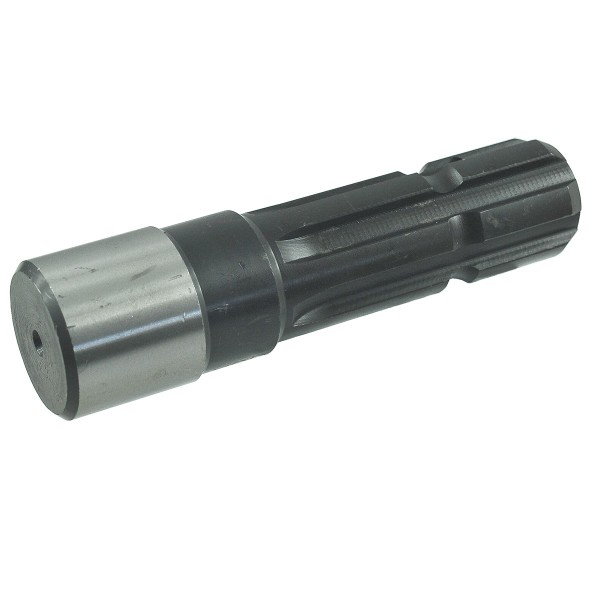

PTO shaft / 152 mm / 6T / Kubota L1500 / L2000 / 6-01-108-01

PTO / PTO output shaft (repair kit to be welded on) 152 mm long and with 6T teeth for Kubota tractors of the Kubota L1500, Kubota L2000 series and others.

Output shaft PTO/PTO (from English power take off) element for mechanical transmission of rotational power and engine torque. The tractor power take-off shaft comes out of the transmission, hydraulic box of the tractor and is used to drive additional equipment that does not have its own drive. An intermediate shaft, also commonly called a PTO shaft, is used to connect additional equipment to the output shaft. The power take-off is most often a splined shaft that can also be mounted at the front of the tractor.

Dimensions :

• total length: 152 mm,
• working length of the cutter: 90 mm,
• cutter diameter: 27.50 mm (measured between cutter teeth), 35 mm (measured together with the cutter),
• number of teeth: 6T,
• original part numbers: 34160-25312, 34160-43200,
• comparison numbers: S.71941, %C5% 82ek-wom-pto-540-mm-6t-24t-kubota-l1500-l2000-34160-25312-s71941-5-01-207-02.html">5-01-207-02 , %C5% 82ek-wom-pto-kubota-152-mm-6t-5-01-026-01.html">5-01-026-01 ,
• part numbers: 6-01-108-01.

Tractor models :

Kubota :

• Kubota L1500,
• Kubota L2000.

Warehouse :
K18:F33:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
