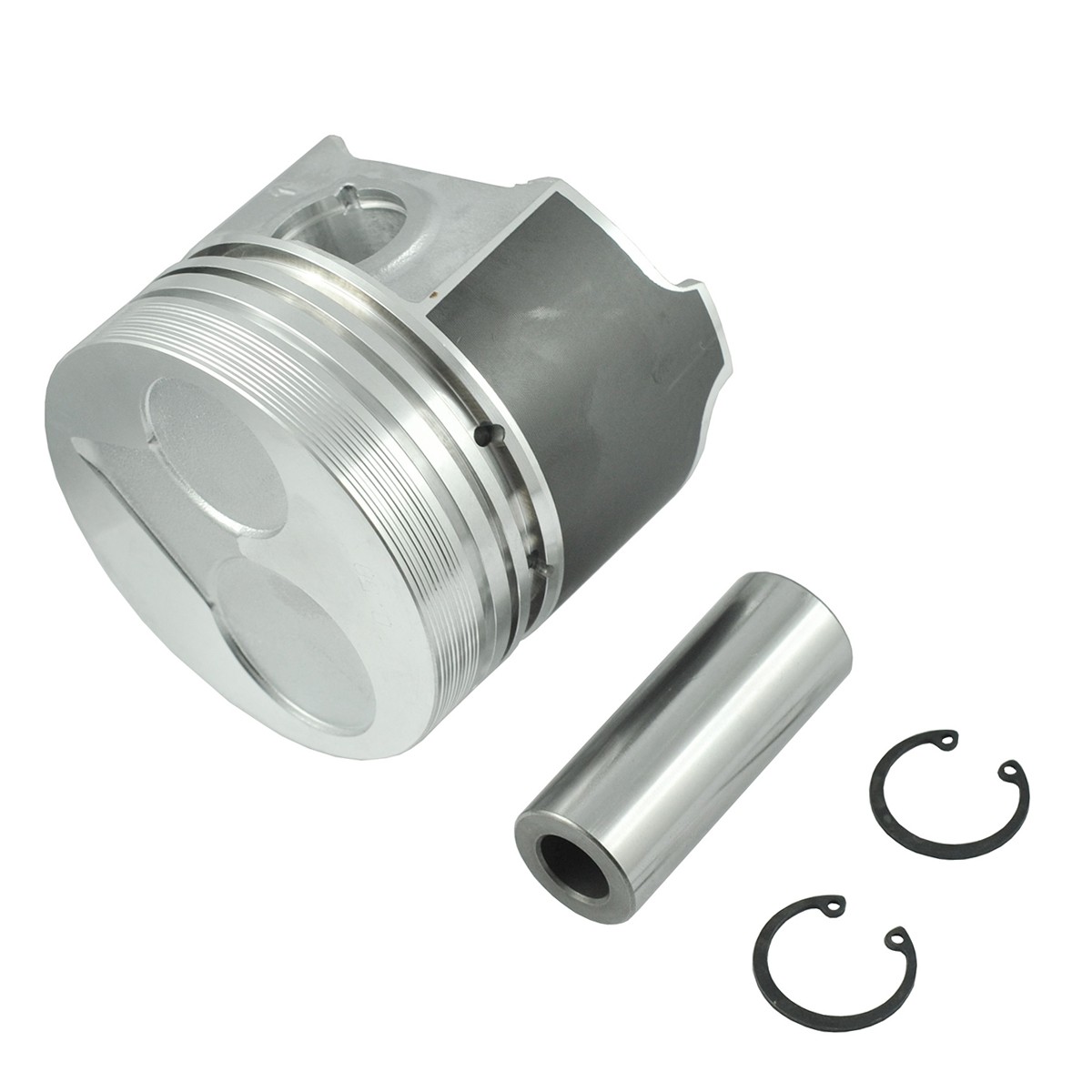

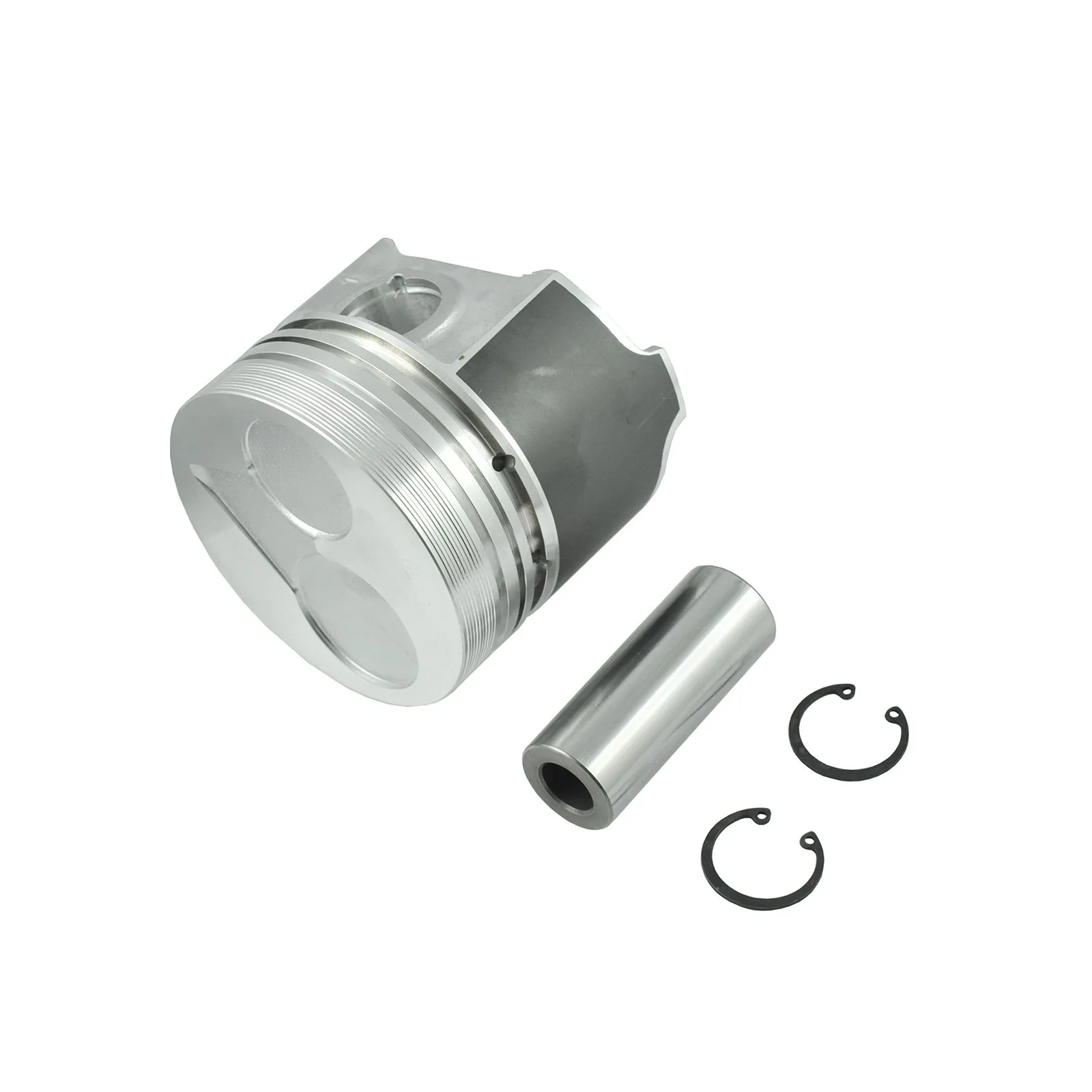

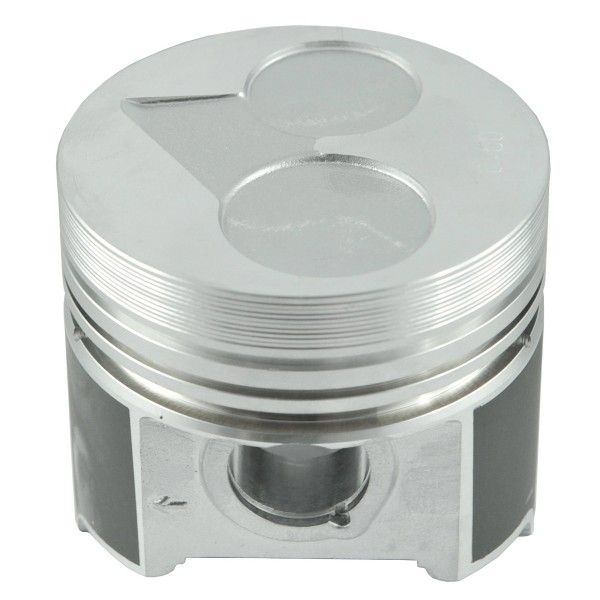

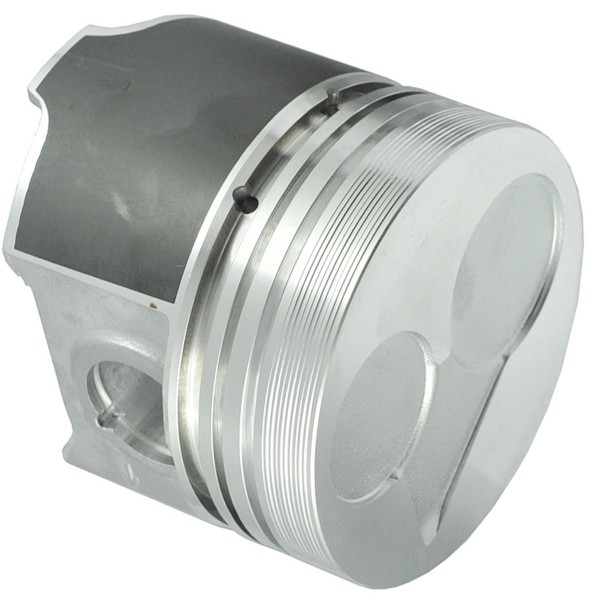

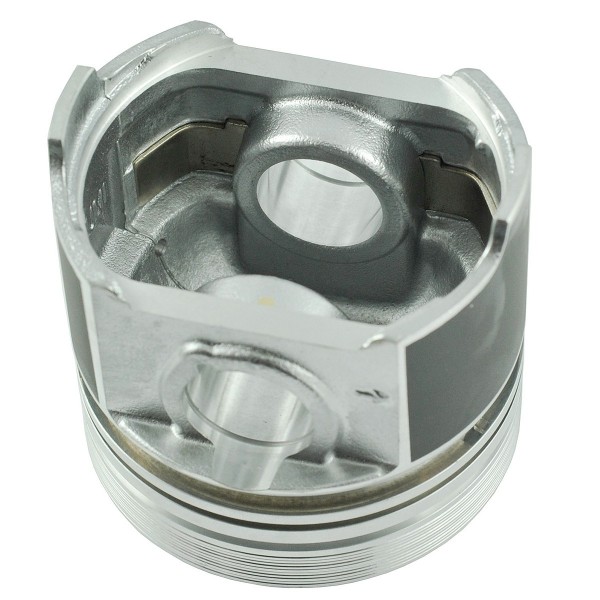

Engine Piston / 87mm / STD / Kubota V2203

Engine piston (rings %C5% 82oka-87-mm-kubota-v2203-225.html">V2203 (87) with an outer diameter of 87 mm and a total height of 80 mm for Kubota tractors of the Kubota GL series with Kubota V2203 engines and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, i.e. further to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are ring channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is the so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 87 mm.
• height: 65 / 80 mm.
• pin diameter: 25 mm.
• pin hole diameter: 25 mm.
• distance from end of pin hole to lower edge of piston: 10.20 mm.
• Distance from edge of pin hole to top of piston: 31.50 mm.
• width of ring grooves from top of piston: 2.00 / 2.00 / 5 mm.
• original part numbers: H1640-21100, 16247-21110,
• reference numbers: 1Α041-21112, 1A091-21113, 6-23-100-02.

Engine models :

Kubota :

• Kubota V2203.

Magazine : M01:A53

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
