zł289.00
To order
Condition
New
Production
Substitute
Engine model
Height (mm)
55
71
71
Diameter (mm)
82
Width (mm)
2.00
4.00
4.00
Hole diameter (mm)
23.10
Engine Piston / 82mm / Yanmar 3TNE82A
E82A
Do you have any questions?
Engine Piston / 82mm / Yanmar 3TNE82A

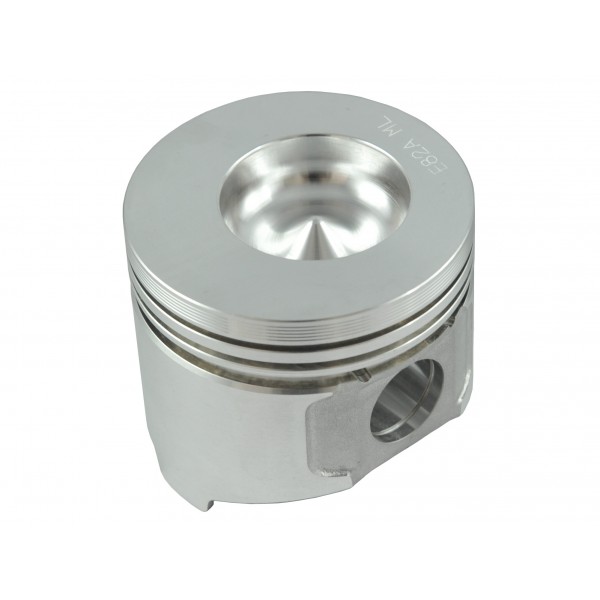

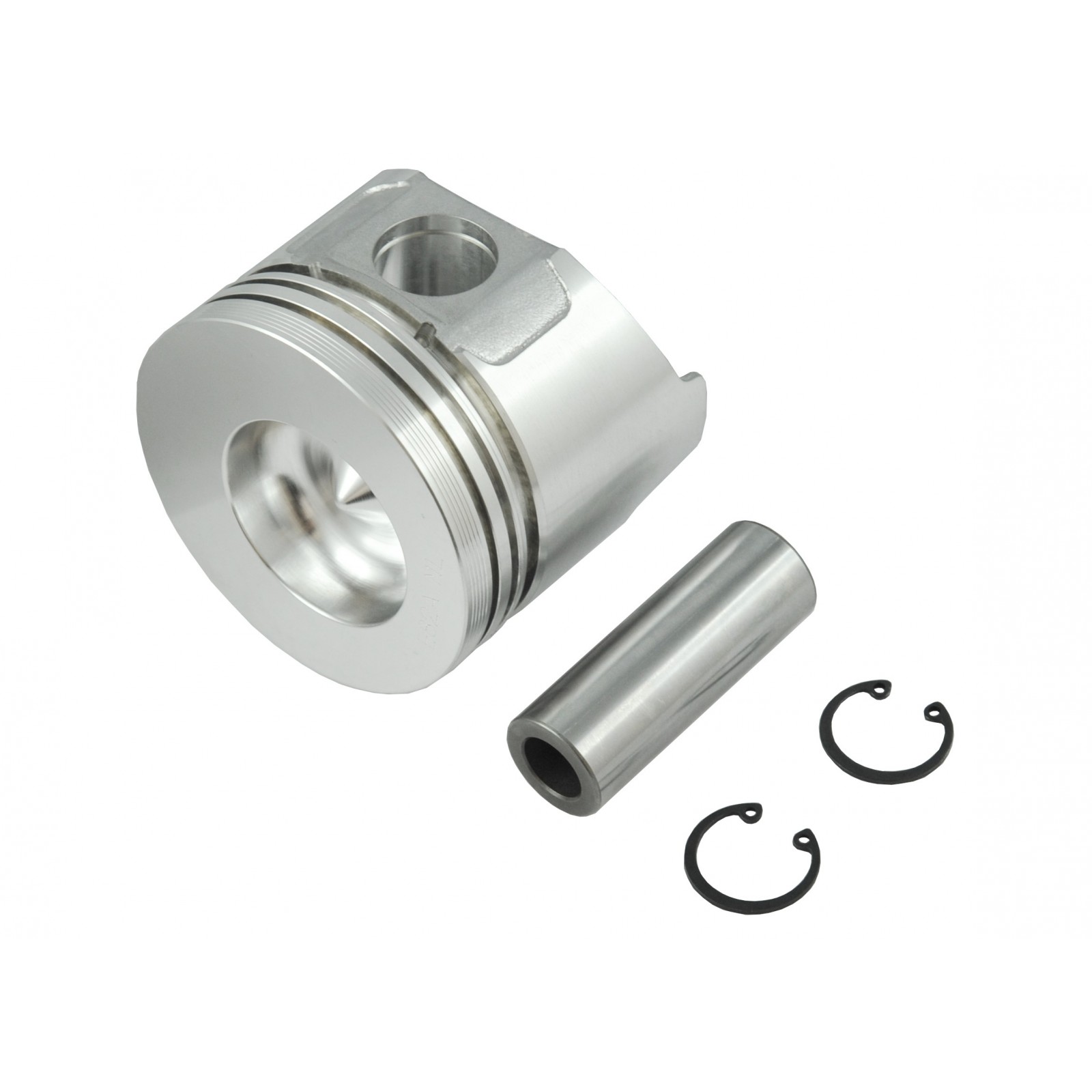

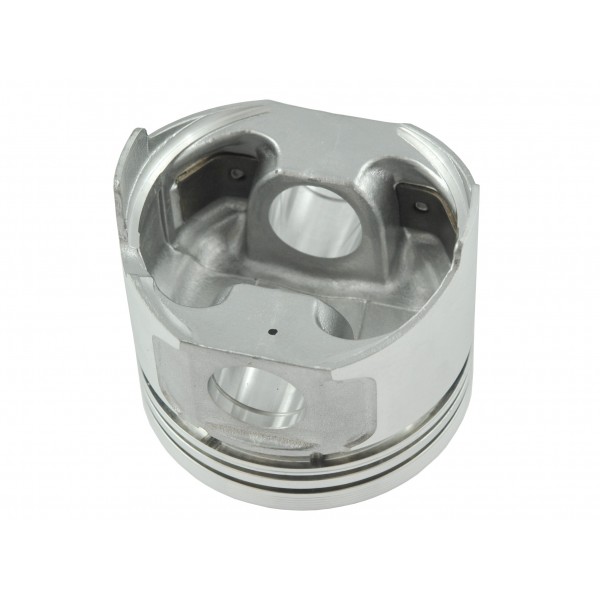

Engine piston is a high-quality replacement for Yanmar 3TNE82A series engines. The set includes an 82 mm diameter piston, a pin and two snap rings, which provides a complete and ready-to-install unit. The product is made of durable materials, which guarantees long life and reliability in difficult operating conditions.
Dimensions:
- Diameter: 82 mm.
- Height: 55 / 71 mm.
- Pin diameter: 23 mm.
- Pin hole diameter: 23.10 mm.
- Distance from end of pin hole to edge of piston: 4.50 mm.
- Distance from edge of pin hole to top of piston: 27.70 mm.
- Ring groove width from top of piston: 2 / 2 / 4 mm.
- Index: E82A.
Engine model:
- Yanmar 3TNE82A.
Magazine: M01: A54
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01: A54
Condition
New
Production
Substitute
Engine model
Height (mm)
55
71
71
Diameter (mm)
82
Width (mm)
2.00
4.00
4.00
Hole diameter (mm)
23.10
Pin diameter (a) (mm)
23
