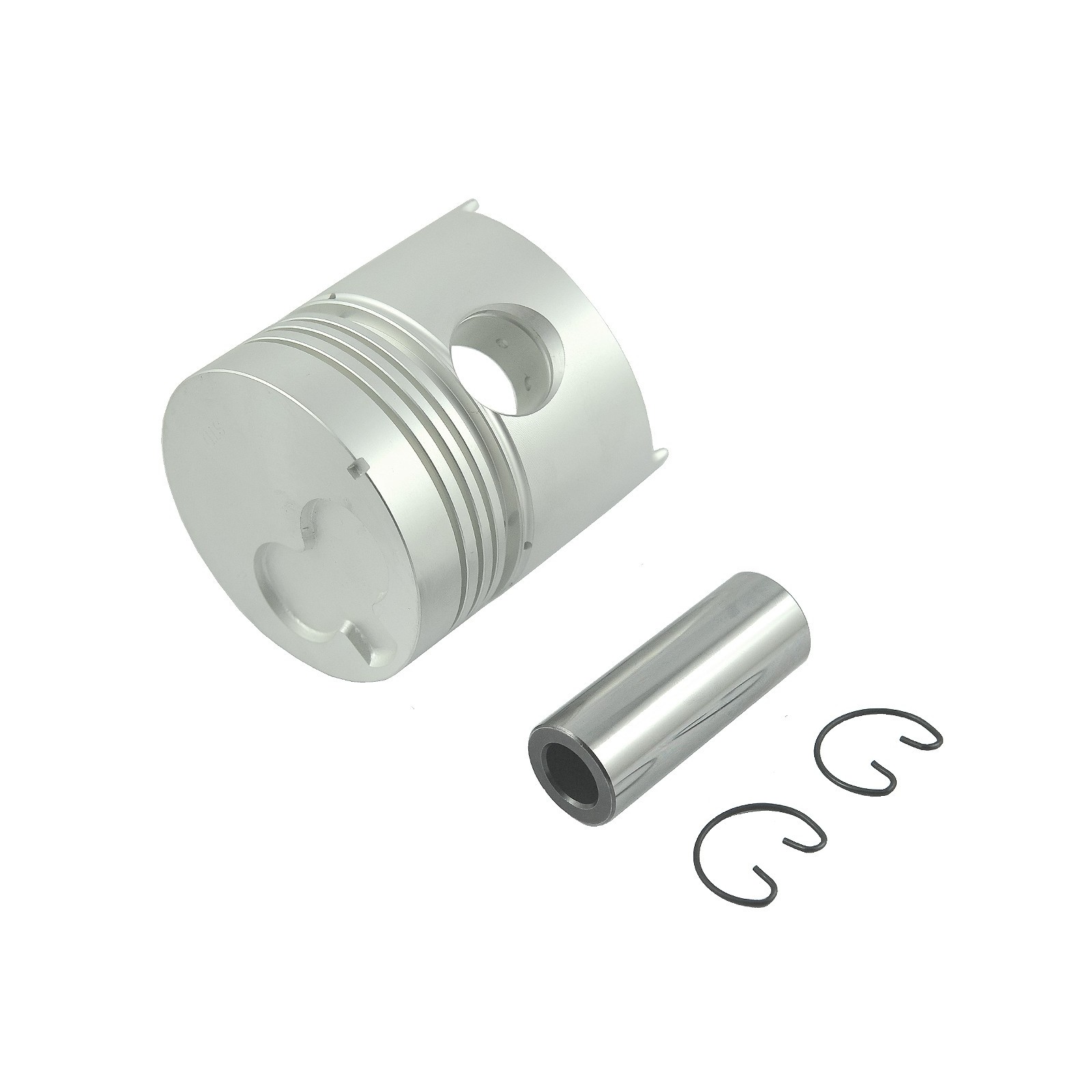

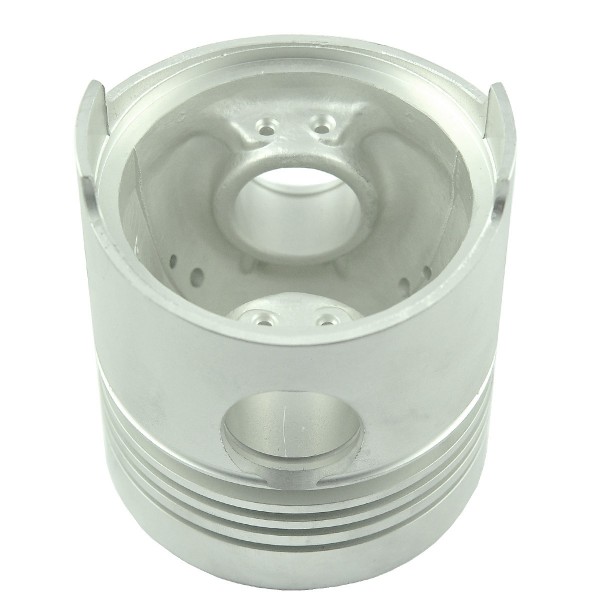

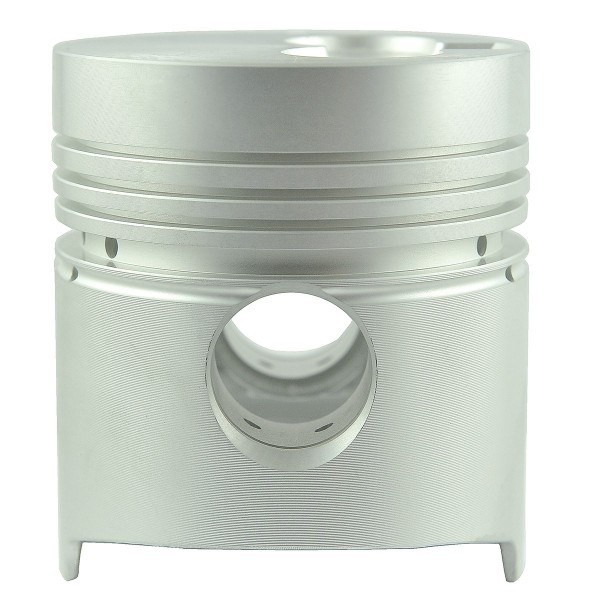

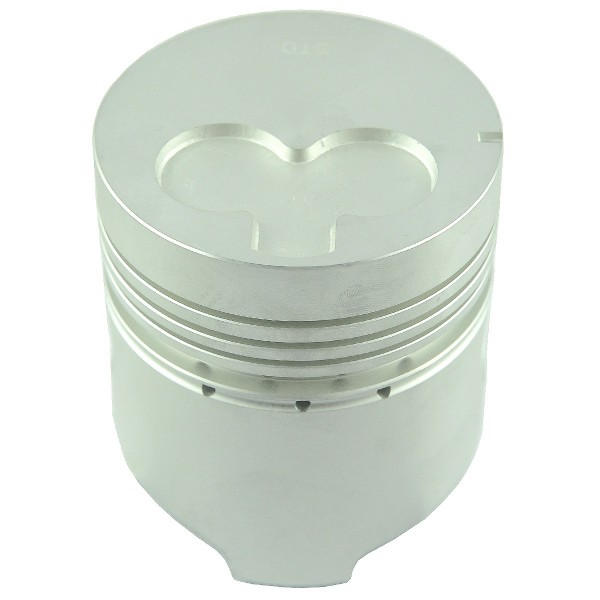

Engine piston / Ø 86 mm / STD / Iseki 2ΑΑ1 / Iseki TS1610 / TS1910 / TS2202 / TS2205

Engine piston (rings 9-99-101-02, 5681-218-1010-0, 5691-212-1010-0) with an outer diameter of 86 mm (STD) and an overall height of 95 mm for Iseki tractors of the Iseki TS1610, Iseki TS1910, Iseki TS2202, Iseki TS2205 series with Iseki 2ΑΑ1 engines and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion into the crankshaft, and thus into engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for seating the piston rings, and inside is a hub for connection to the connecting rod. At the top is the so-called the bottom, which may have a different shape depending on the engine type. Due to operating in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 86 mm,
• height: 81 / 95 mm,
• pin hole diameter: 27 mm,
• pin diameter: 26.90 mm,
• pin length: 72 mm,
• valve seat depth: 3.50 mm,
• distance from the end of the pin hole to the lower edge of the piston: 16.30 mm.
• distance from the edge of the pin hole to the top edge of the piston: 38 mm.
• width of ring grooves (rings 9-99-101-02) from the top of the piston: 2 / 2 / 2 / 5 mm.
• original part number: 5681-211-1056-1,
• comparative numbers: -,
• part number: 9-98-100-06.

Engine models :

Iseki :

• Iseki 2ΑΑ1.

Tractor models :

Iseki :

• Iseki TS1610,
• Iseki TS1910,
• Iseki TS2202,
• Iseki TS2205.

Magazine : K18:F24

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
