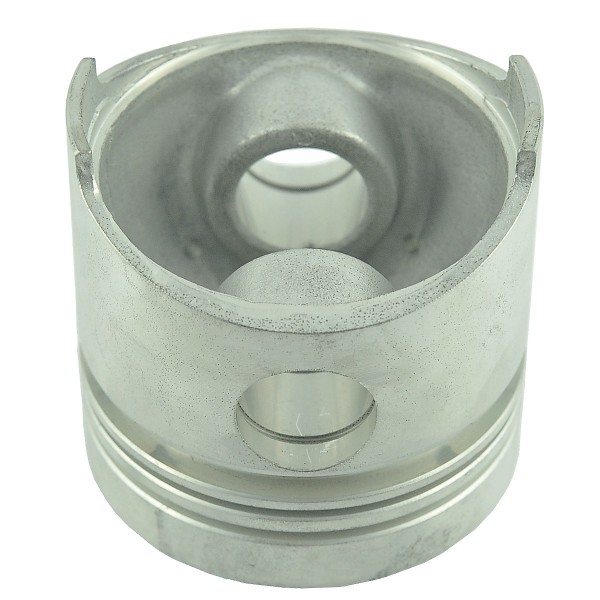

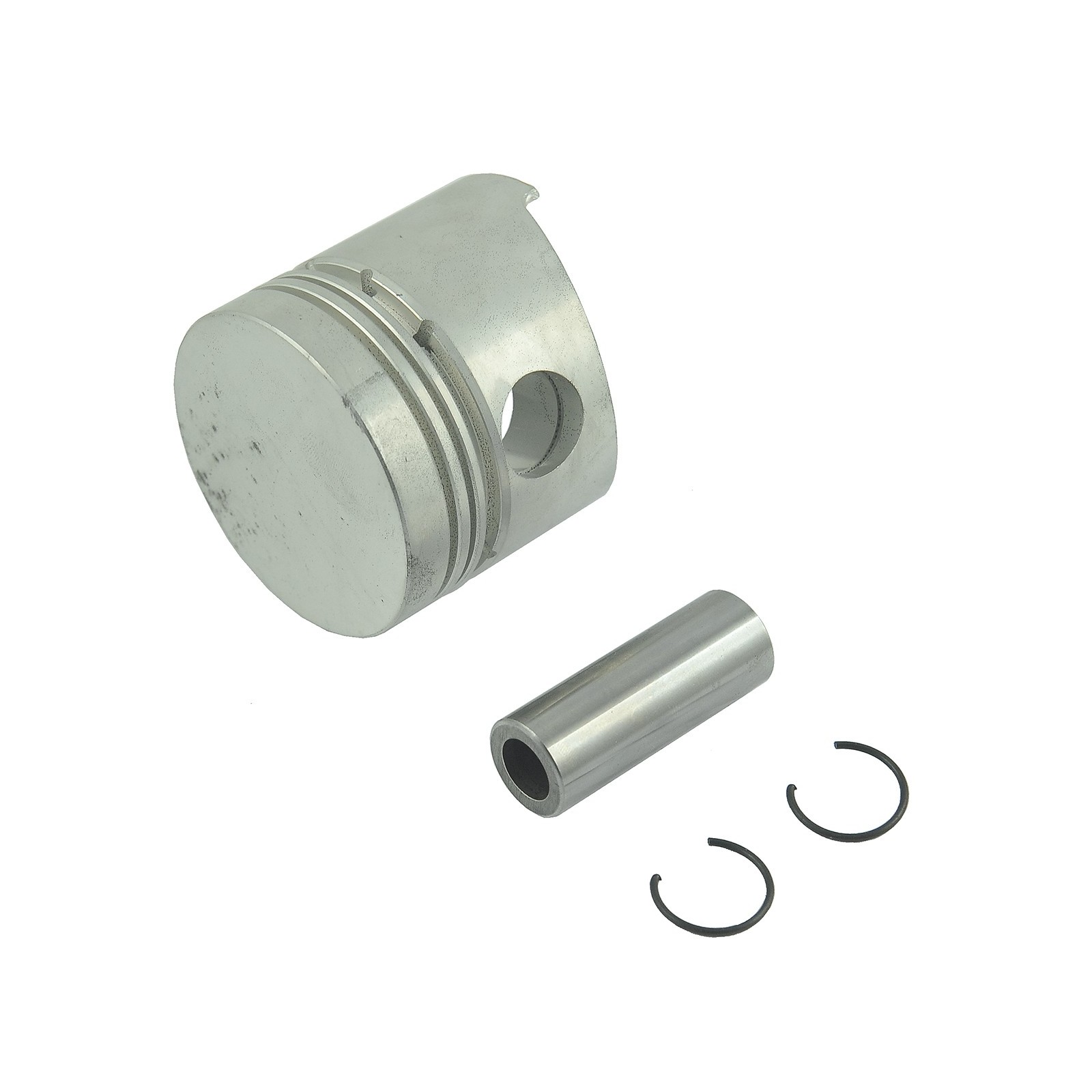

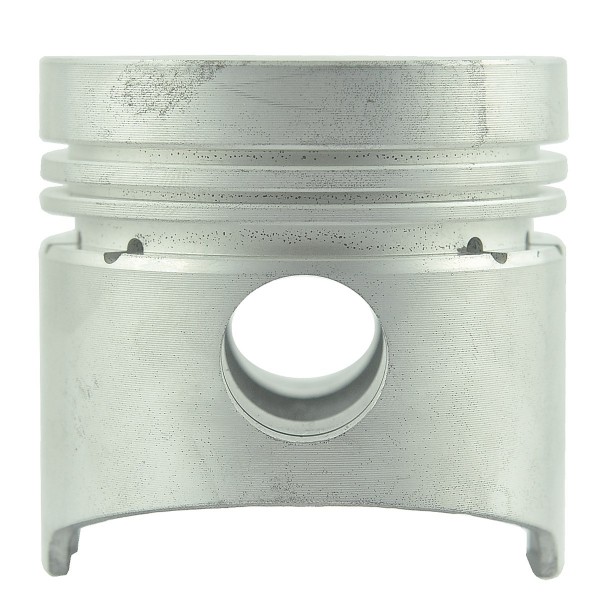

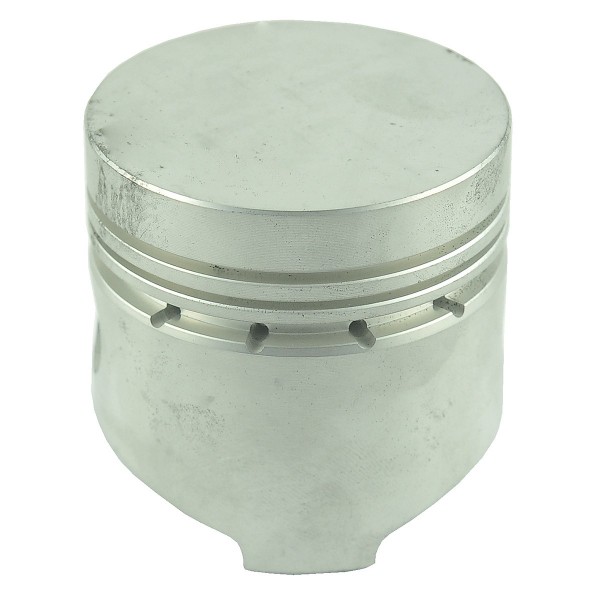

Engine piston / Ø 68 mm / Kubota B5100 / B5200 / B7100 / Kubota D750 / Z500

Engine piston (rings 6-26-100-63, 15271-21050, 16106801-00, S.67709) with an outer diameter of 68 mm and an overall height of 65.50 mm for Kubota tractors of the Kubota B5100, Kubota B5200, and Kubota B7100 series with Kubota D750, Kubota Z500 , and other engines. The engine piston is a moving element responsible for converting gas and the energy generated during combustion into the crankshaft, and thus into engine power. The piston is connected to the crankshaft by a connecting rod with pin connections. At the top of the piston are annular channels for seating the piston rings, and inside is a hub for connecting to the connecting rod. At the top is the so-called crown, which may have a different shape depending on the engine type. Due to their operation in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 68 mm,
• height: 53.50 / 65.50 mm,
• pin hole diameter: 20 mm.
• pin diameter: 19.90 mm.
• pin length: 54 mm.
• distance from the end of the pin hole to the lower edge of the piston: 8 mm,
• distance from the edge of the pin hole to the top edge of the piston: 25 mm,
• width of ring grooves (6-26-100-63,15271-21050, 16106801-00, S.67709) from the top of the piston: 2.00 / 1.50 / 4.00 mm.
• original part number: 15261-21110, 15261-21111,
• part number: 6-23-100-09.

Tractor models :

Kubota :

• Kubota B5100,
• Kubota B5200,
• Kubota B7100.

Engine models :

Kubota :

• Kubota D750,
• Kubota Z500.

Magazine : K18:F25

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
