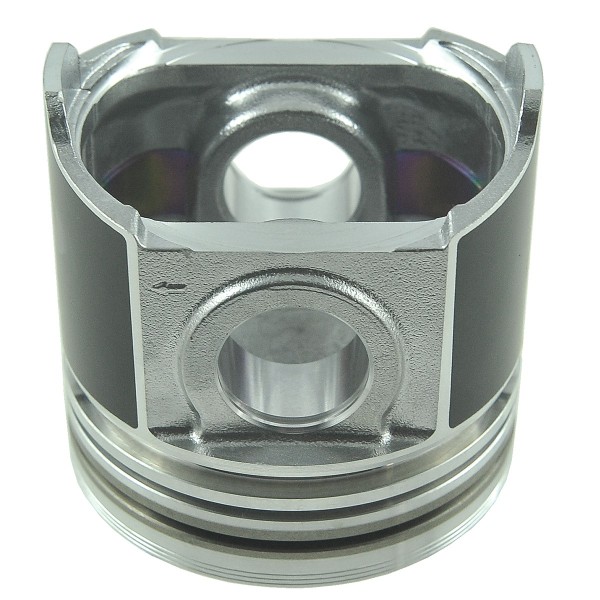

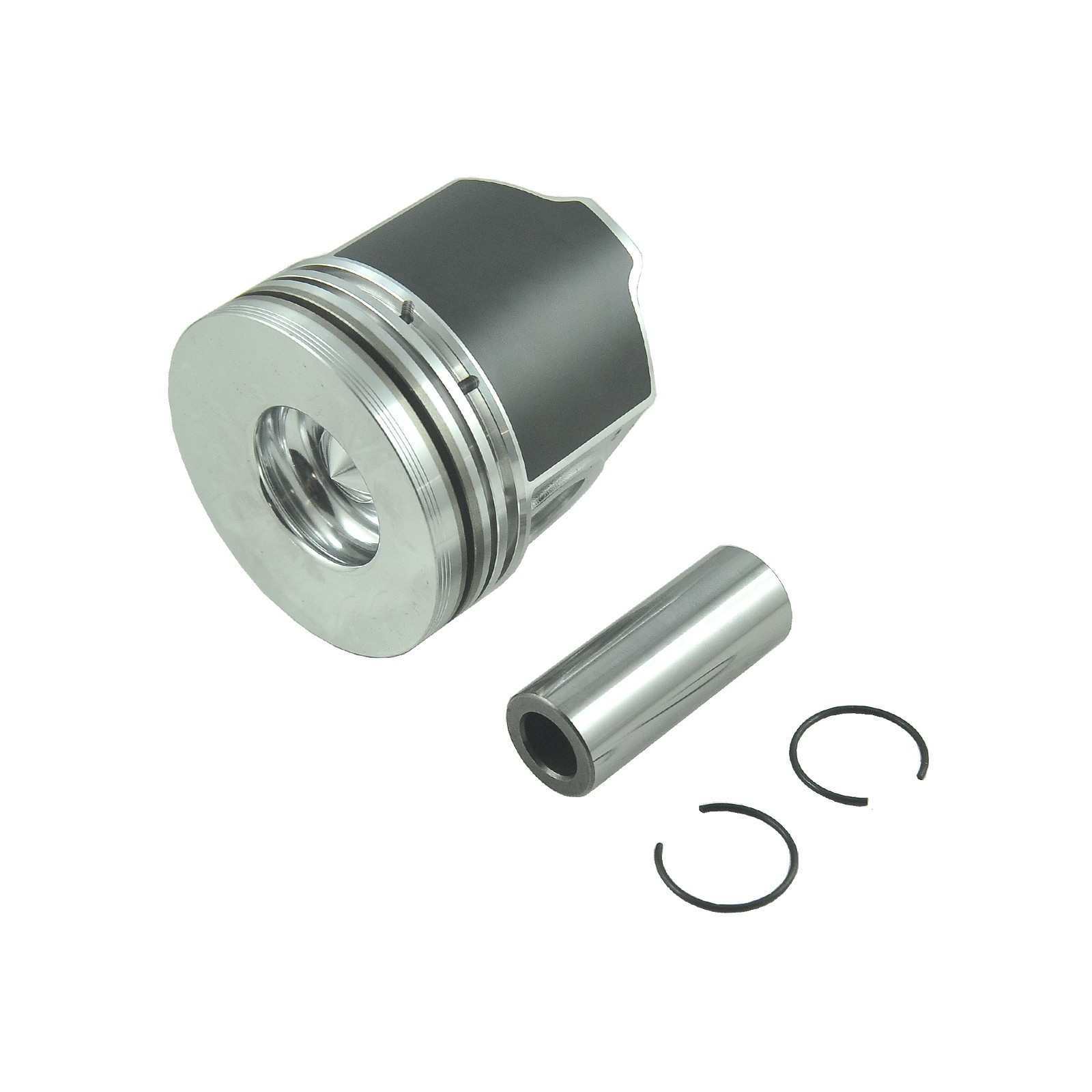

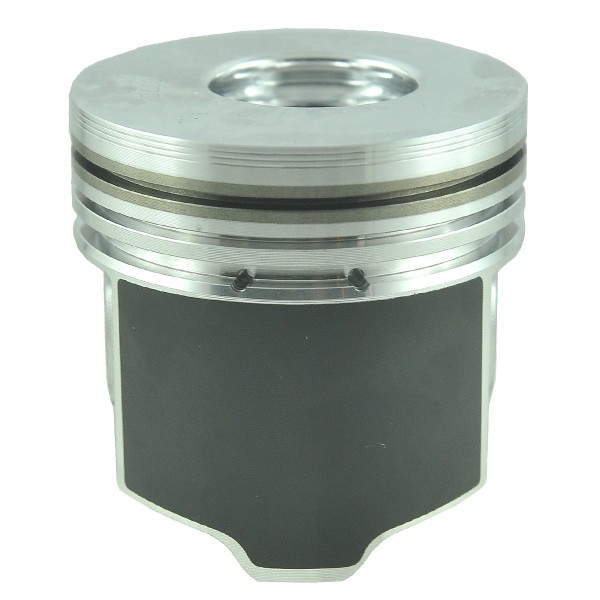

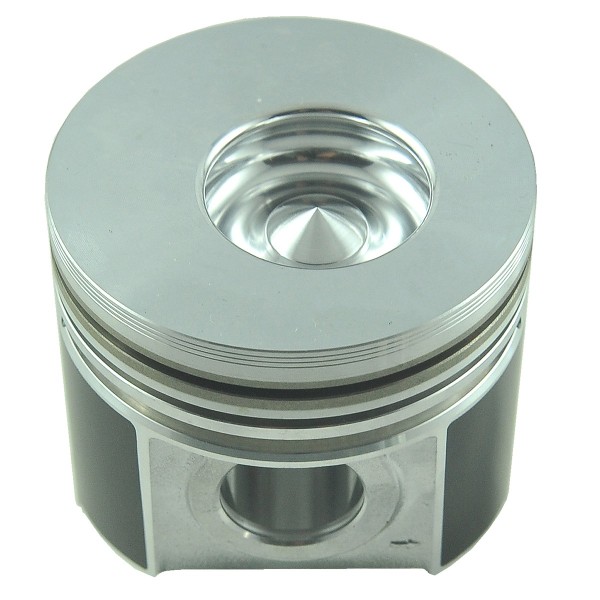

Engine Piston, 83mm, 1G363-2111, Kubota D1503 DI, STD
search
2 osoby oglądają ten produkt
  • Engine Piston, 83mm, 1G363-2111, Kubota D1503 DI, STD
  • Engine Piston, 83mm, 1G363-2111, Kubota D1503 DI, STD
  • Engine Piston, 83mm, 1G363-2111, Kubota D1503 DI, STD
  • Engine Piston, 83mm, 1G363-2111, Kubota D1503 DI, STD

Engine piston / Ø 83 mm / STD / Kubota D1503 DI

Product code: 1G363-2111 / 246060529 / STD
Brand 4FARMER
Country of production 4FARMER
View other model
zł249.00
Includes VAT 23%

Lowest price from 30 days: zł249.00

Product description

Engine piston, with an outer diameter of 83 mm (STD + 0.50) and a total height of 66 / 80 mm for Kubota tractors with Kubota D1503DI engines and others, is a high-quality replacement, ideal for professional repairs and regeneration of drive units. Made with precision, it ensures reliability and long service life. Thanks to an exact match to the original specification, it guarantees optimal engine operation and minimizes fuel consumption and exhaust emissions.

Dimensions :

  • outside diameter: 83
  • height: 66 / 80 mm,
  • pin hole diameter: 25 mm,
  • pin diameter: 24.95 mm,
  • pin length: 64 mm,
  • valve seat depth: 16 mm,
  • Distance from end of pin hole to bottom edge of piston: 10.50 mm.
  • Distance from edge of pin hole to top of piston: 31.20 mm.
  • width of ring grooves from top of piston: 2.00 / 2.00 / 4.00 mm.
  • original part number: 1G363-2111,
  • part numbers: -.

Engine models :

Kubota :

  • Kubota D1503DI.

Magazine : K18:A23:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Engine model
Kubota D1503 DI

Reviews of Engine..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
