Piston, engine, 83.50 mm, STD, Kubota D1503, 1G770-2110
search
3 osoby oglądają ten produkt
  • Piston, engine, 83.50 mm, STD, Kubota D1503, 1G770-2110
  • Piston, engine, 83.50 mm, STD, Kubota D1503, 1G770-2110
  • Piston, engine, 83.50 mm, STD, Kubota D1503, 1G770-2110
  • Piston, engine, 83.50 mm, STD, Kubota D1503, 1G770-2110

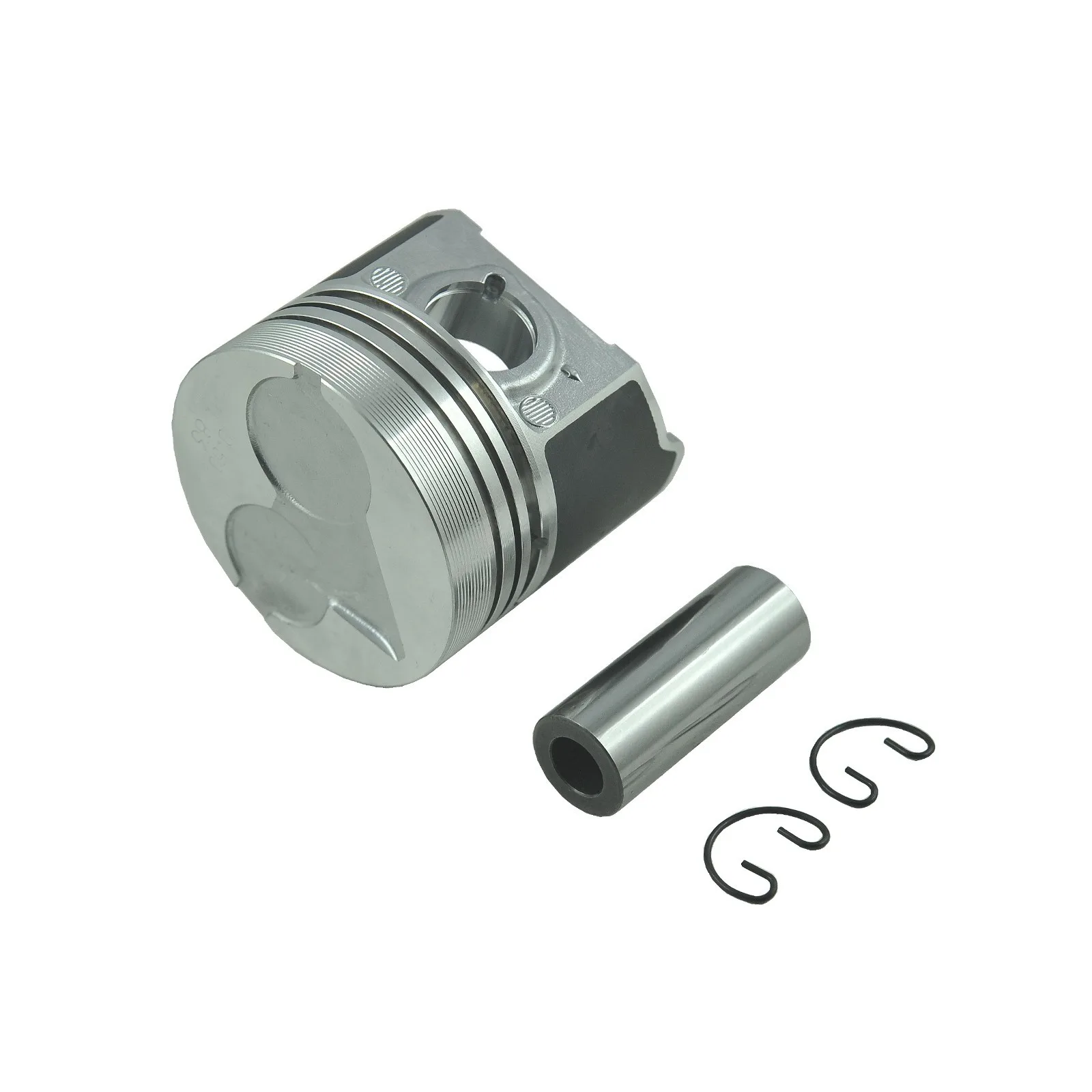

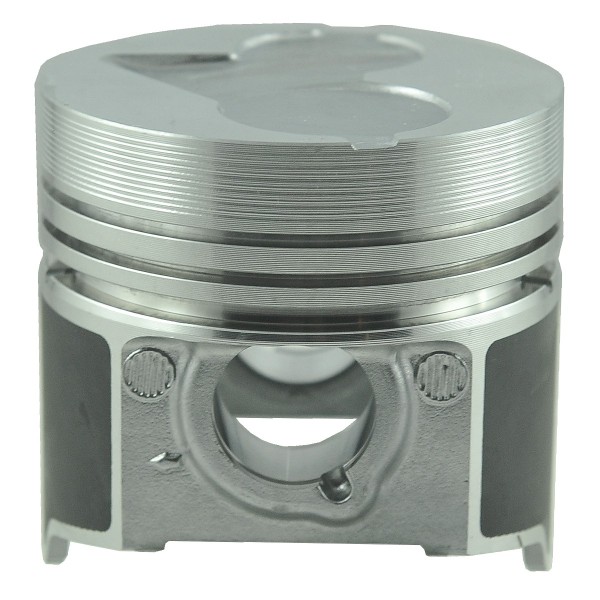

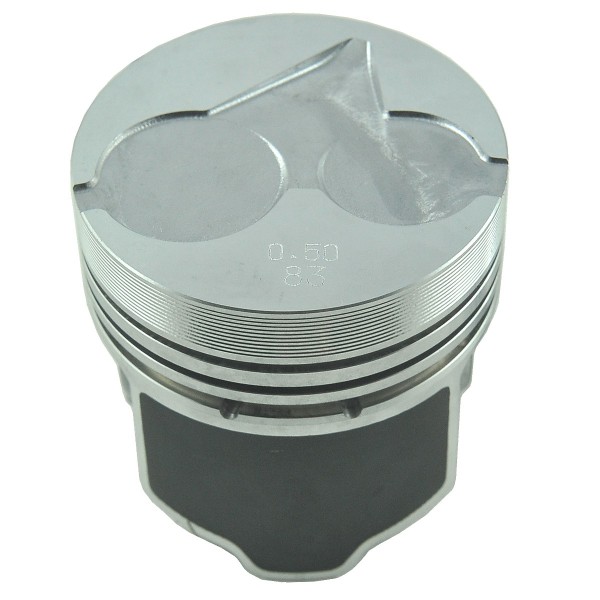

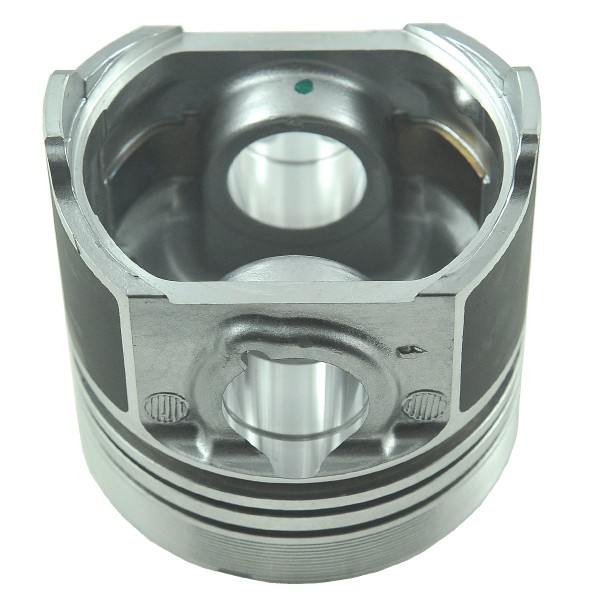

Engine piston / Ø 83.50 mm / STD + 0.50 / Kubota D1503 / Kubota V2003

Product code: D1503_83.50/T / 1G770-2110
Brand 4FARMER
View other model
zł202.44 netto
zł249.00
Includes VAT 23%

Lowest price from 30 days: zł249.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
5 pieces
Delivery See details Leasing & financing for businesses See details

Product description

Engine piston, with an outer diameter of 83.50 mm (STD) and a total height of 66 / 80 mm for Kubota tractors with Kubota D1503, Kubota V2003 and other engines. Ideal for major overhauls, ensures optimal fit and reliability of the drive unit. Made of high-quality materials, it guarantees durability and resistance to thermal and mechanical loads. The product is compatible with original Kubota components.

Dimensions :

  • outer diameter: 83 mm,
  • height: 66 / 80 mm,
  • pin hole diameter: 25 mm,
  • pin diameter: 24.95 mm,
  • pin length: 64 mm,
  • valve seat depth: 1.00 / 1.75 mm,
  • Distance from end of pin hole to bottom edge of piston: 10.50 mm.
  • Distance from edge of pin hole to top of piston: 31 mm.
  • width of ring grooves () from top of piston: 2.00 / 2.00 / 4.00 mm.
  • original part number: 1G770-2110.

Engine models :

Kubota :

  • Kubota D1503,
  • Kubota V2003.

Magazine : K18:A23:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
