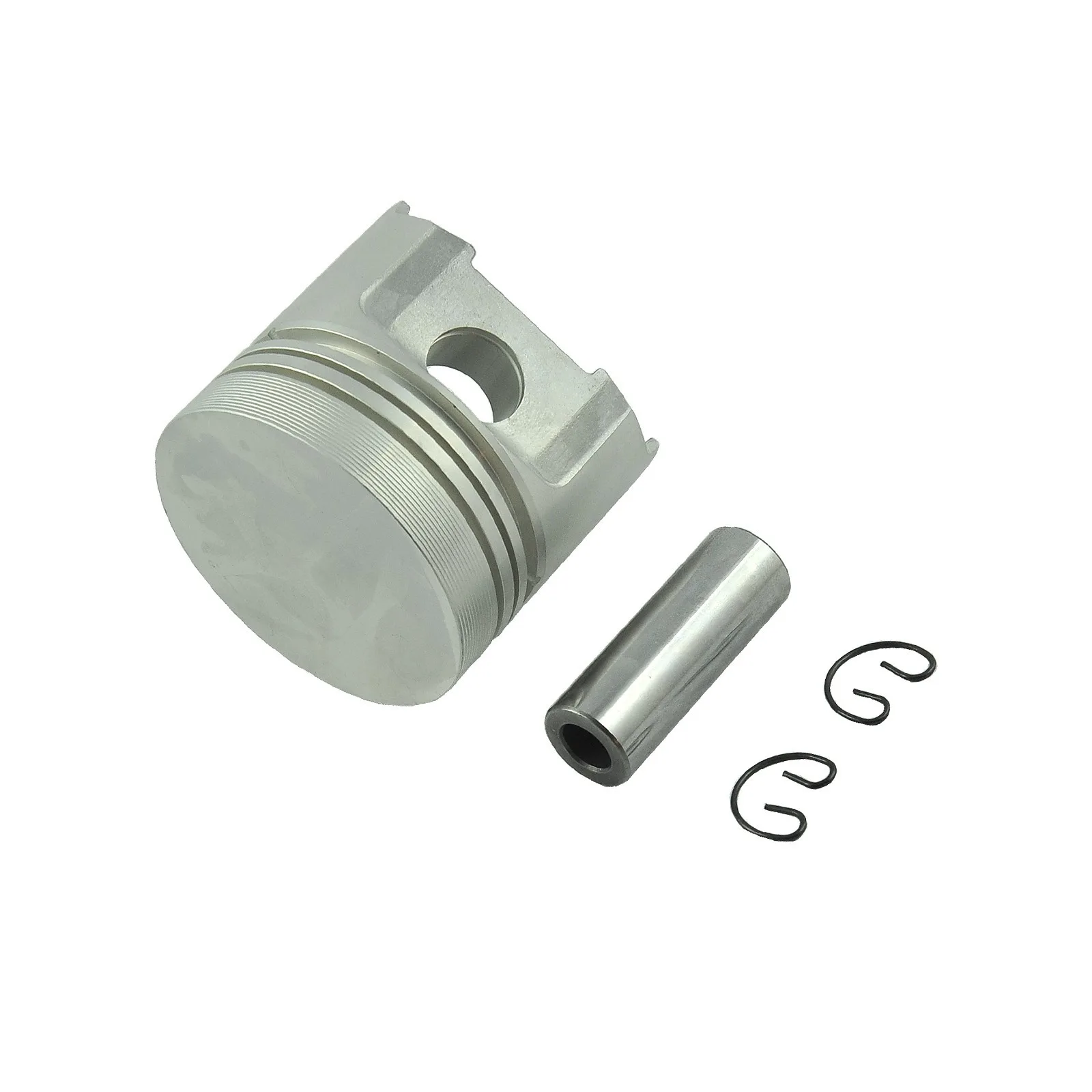

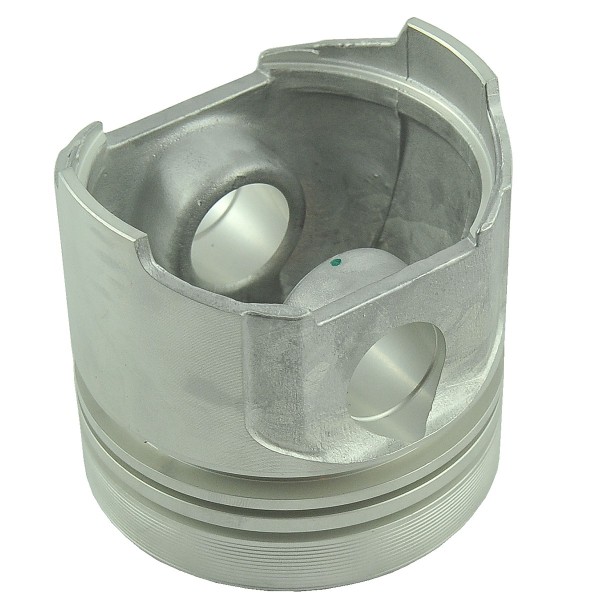

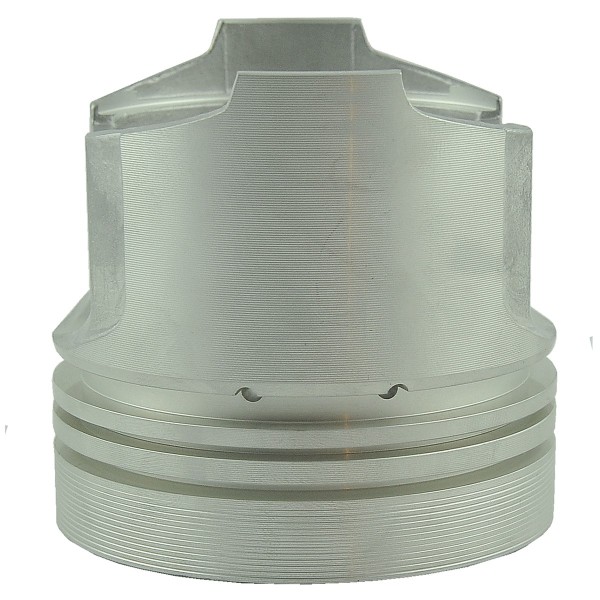

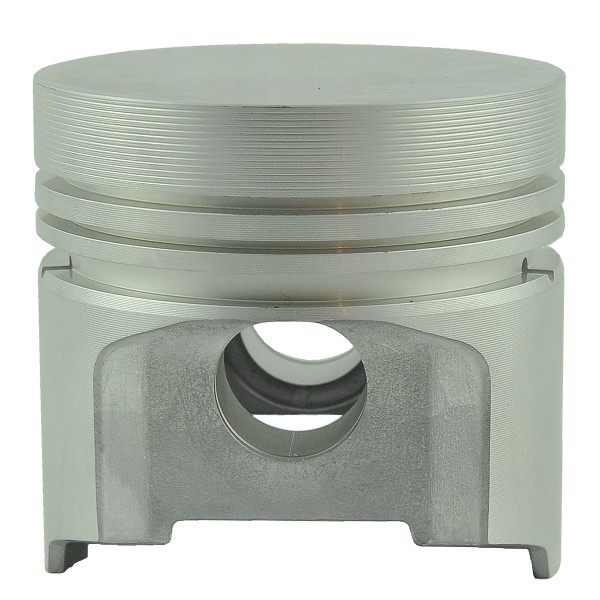

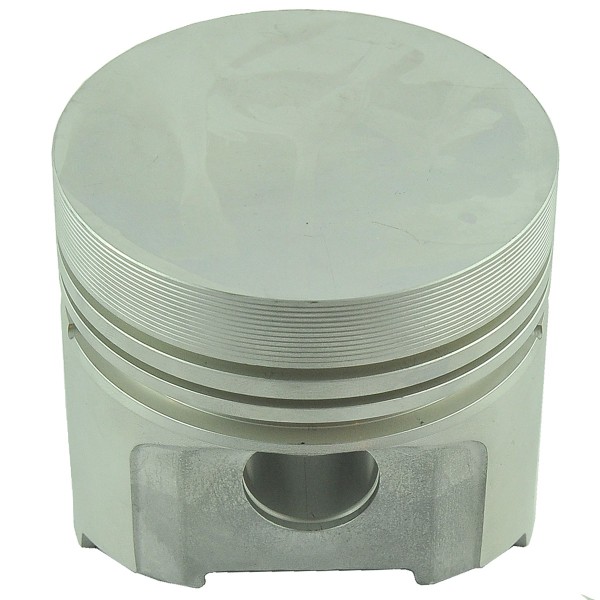

Engine piston / Kubota D1402 / V1902 / 83 mm

Engine piston with an external diameter of 83 mm and a total height of 80 mm for Kubota tractors with Kubota D1402, Kubota V1902 and other engines. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and then to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 83 mm,
• height: 64 / 80 mm.
• pin hole diameter: 22.90 mm,
• pin diameter: 22.80 mm,
• pin length: 63.70 mm,
• Distance from end of pin hole to bottom edge of piston: 9.10 mm.
• Distance from edge of pin hole to top of piston: 32.25 mm.
• width of ring grooves from top of piston: 2.50 / 2.00 / 5.00 mm.
• original part number: 19274-21110.

Engine model :

Kubota :

• Kubota D1402,
• Kubota V1902.

Magazine : M01:A53

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
