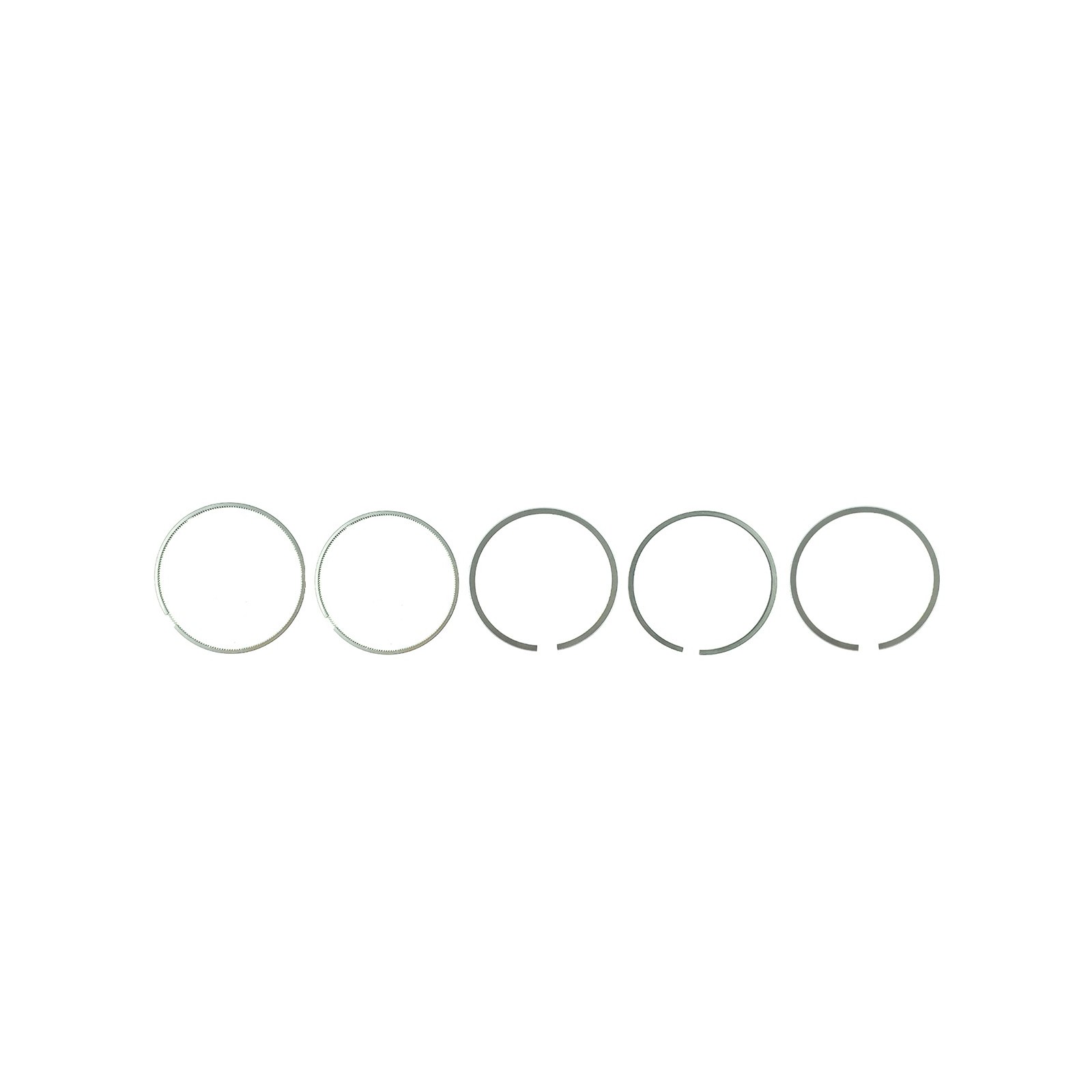

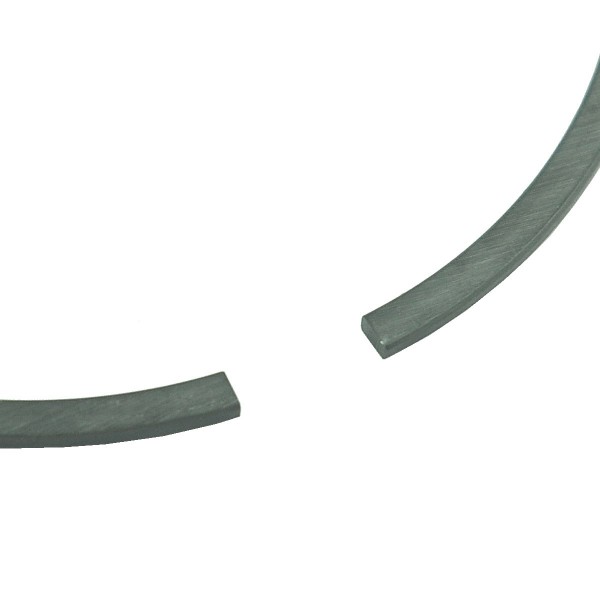

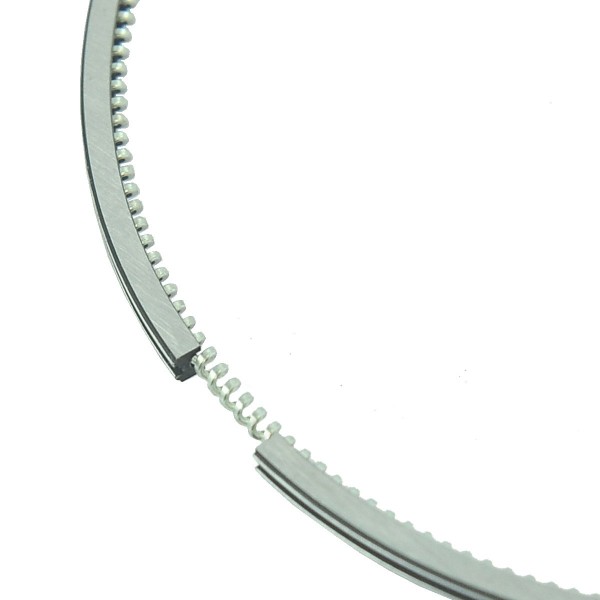

Piston rings / 90 mm / Kubota DS1500 / Z1300 / Kubota L240 / L260 / L280

Engine piston rings (piston 5-23-203-04) with a diameter of 90 mm (STD) and a thickness of 2.00 x 2.00 x 2.00 x 4.50 x 4.50 mm for Kubota tractors of the following series:   Kubota L240, Kubota L260, KubotaL280 with Kubota DS1500, Kubota Z1300 and other engines.

Piston rings seal the space between the piston walls and the cylinder walls. During the combustion of the fuel mixture in the engine chamber, chemical energy is exchanged for mechanical energy, which is why we care about the tightness of these two elements. The second important role played by piston rings in the engine is to scrape excess oil from the cylinder walls during the piston's movement, thus ensuring proper lubrication. In combustion engines, we distinguish three basic types of rings:

• sealing rings,
• scraper rings,
• compression-scraper rings.

When replacing the rings, special attention should be paid to the order in which they are placed on the piston. The rings are installed in the correct order, the scraper ring is installed first, the sealing ring second and the oil ring is installed third.

Dimensions :

• diameter: 90 mm,
• thickness: 2.00 x 2.00 x 2.00 x 4.50 x 4.50 mm,
• size: nominal / standard,
• the set contains 5 pcs.
• set of rings for 1 piston,
• comparison numbers: ,
• original part numbers: -,
• part numbers: 6-26-100-06.

Engine models :

Kubota :

• Kubota DS1500,
• Kubota Z1300.

Tractor models :

Kubota :

• Kubota L240,
• Kubota L260,
• Kubota L280.

First signs of wear of piston rings:

• higher fuel consumption,
• loss of engine oil,
• power loss,
• black smoke from the exhaust pipe of a hot engine,
• uneven engine operation at idle speed,
• unnatural, easily audible sound from the engine area,
• power loss,
• problems with starting the engine,

All symptoms should be consulted with a professional service for proper diagnosis and checking the engine for the need to replace the rings or repair the engine.

Magazine : M01:A23:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
