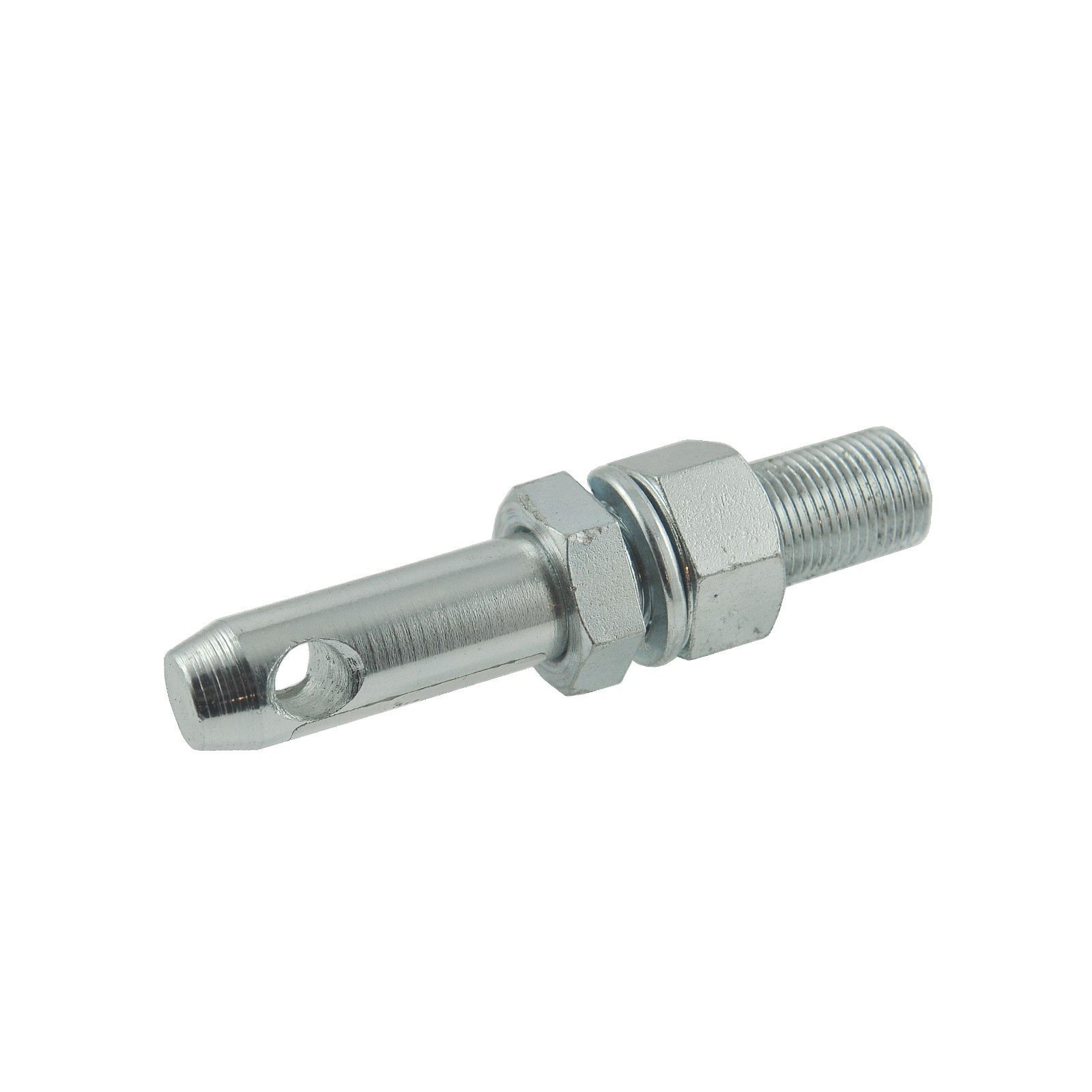

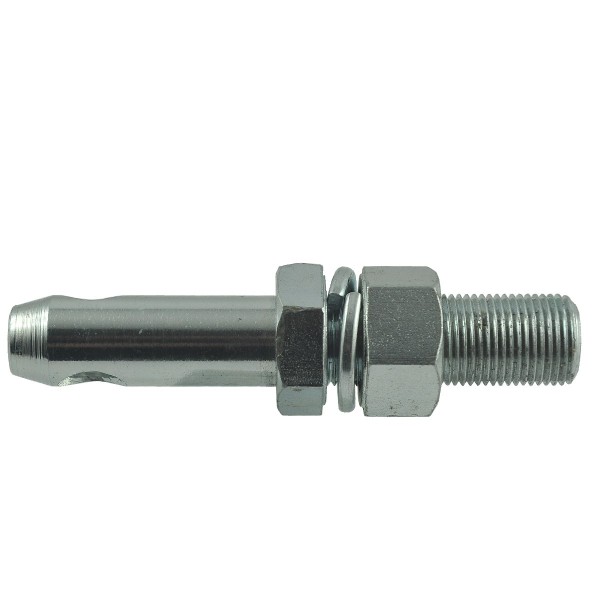

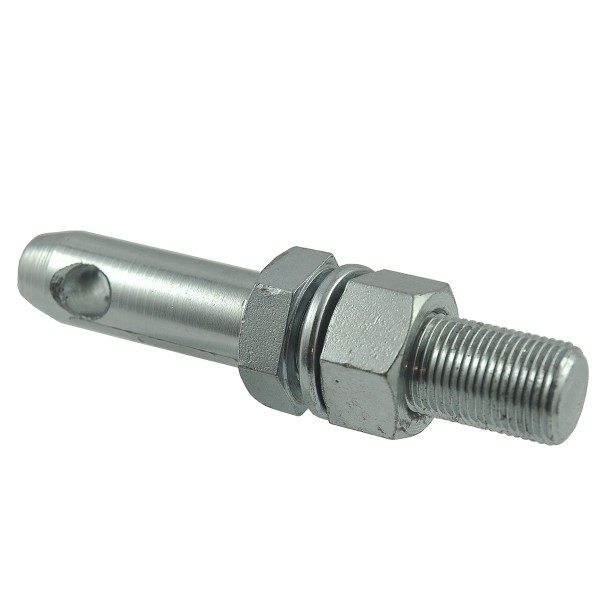

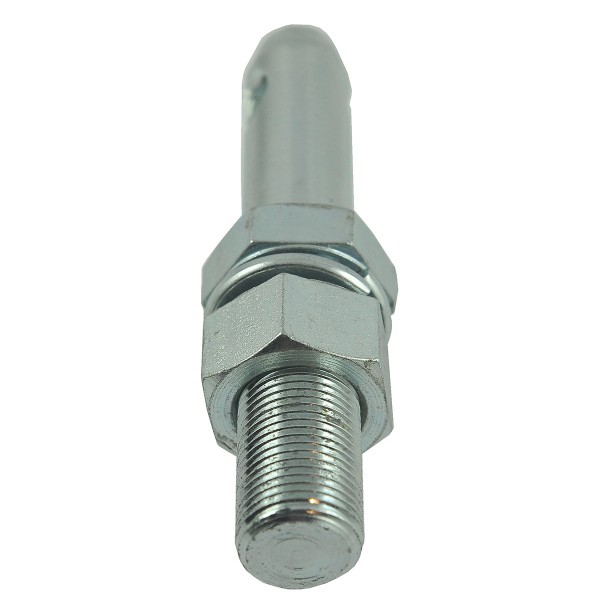

Threaded pin / 22 x 135 mm / 7/8 UNF / M22 x 1.75 / CAT I / S.900211
Do you have any questions?
Threaded pin / 22 x 135 mm / 7/8 UNF / M22 x 1.75 / CAT I / S.900211
CAT I pin with 7/8 UNF thread (M22 x 1.75) with a total length of 135 mm and a diameter of 22 mm for tractors, agricultural machines and others.
A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:
- without a head,
- nasal,
- with cylindrical head,
- with threaded pin,
- and others.
Dimensions :
- diameter: 22 mm,
- total length: 135 mm,
- working length: 40 mm,
- thread length: 70 mm,
- part numbers: S.900211.
Warehouse :
M01:A05
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
