Pin with grease nipple / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG630 / A1630519 / No. 40009475

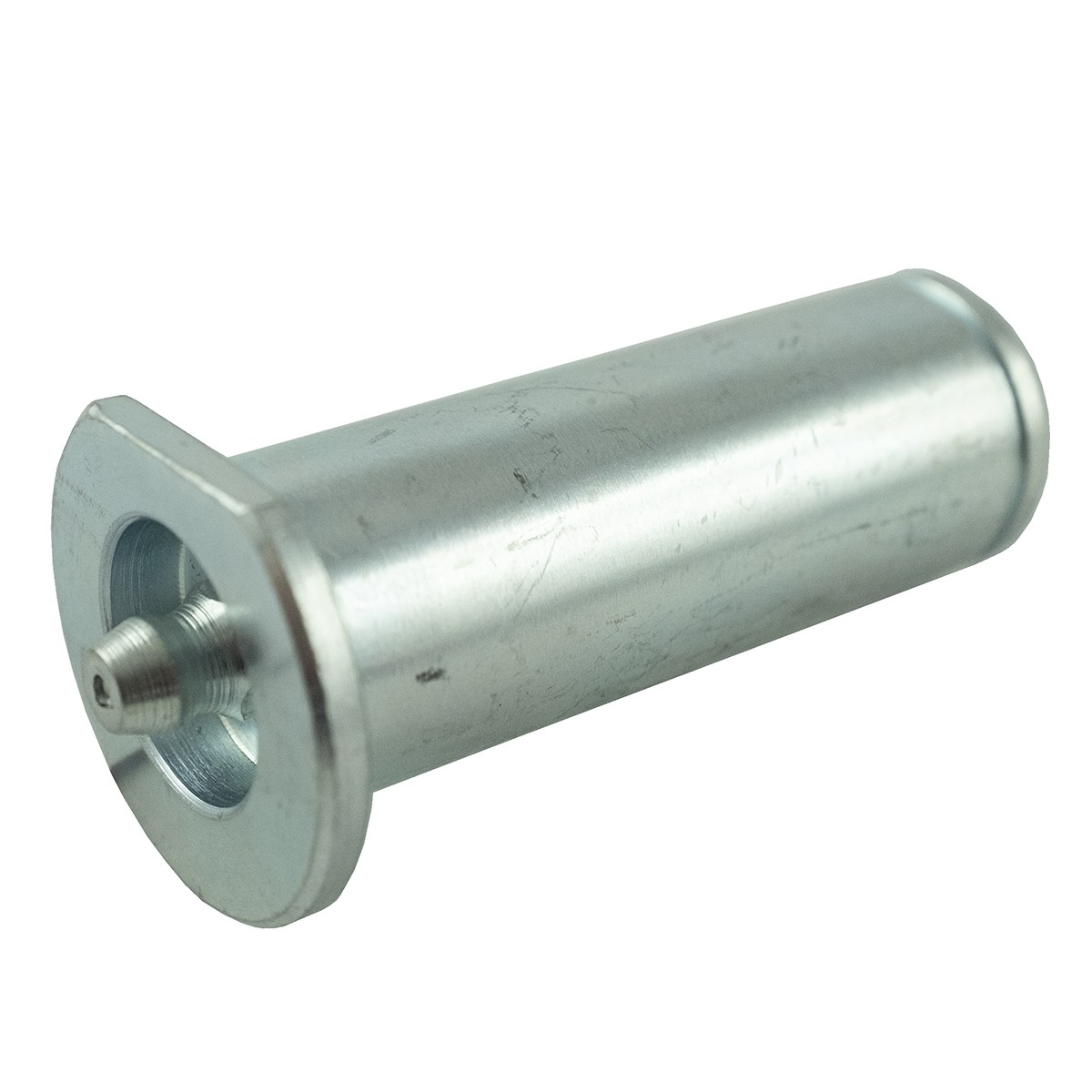

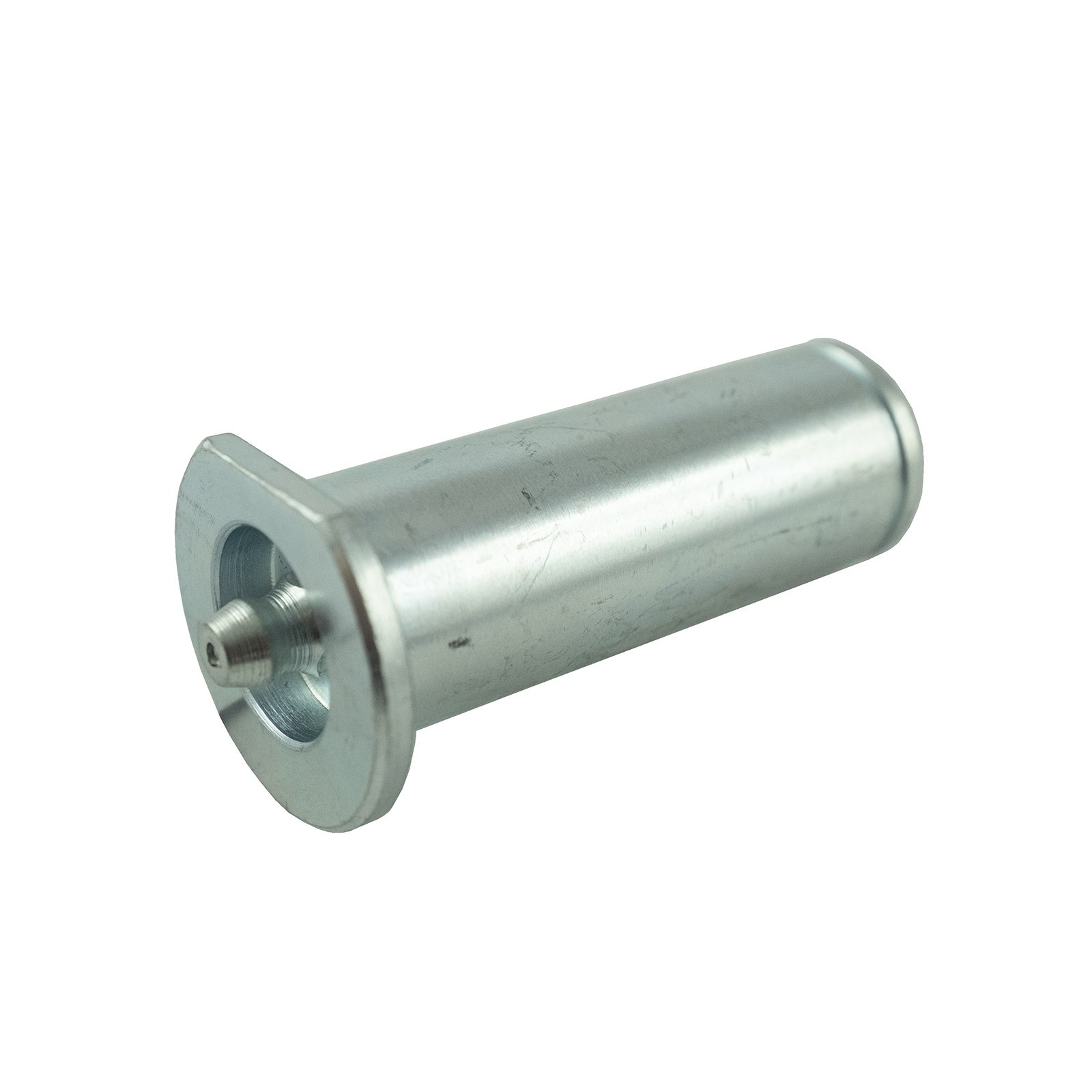

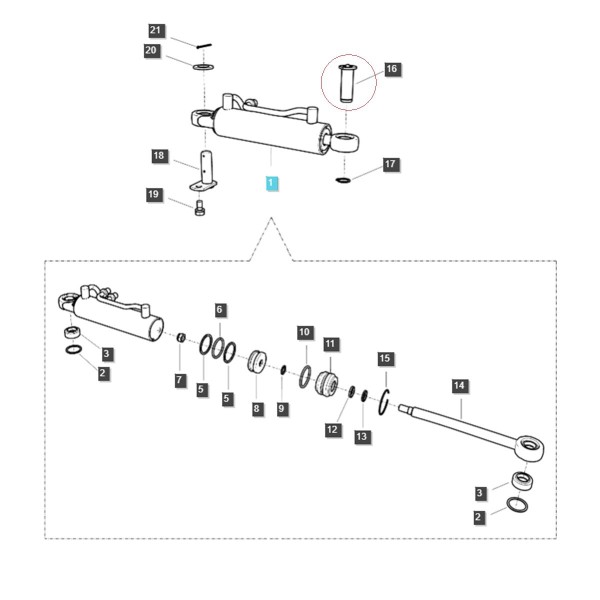

Power steering cylinder hitch pin with grease nipple. Pin with a total length of 59 mm , working length of 55 mm , and diameter of 19.80 mm for LS Tractor LS MT3.35, LS MT3.40, LS MT3.40, LS MT3.50, LS MT3.60 series tractors and others.

A pin is one of the most common ways to connect (not rigidly) components, accessories, or sets of parts. A pin connection is usually a cylinder made of a hard, damage- and temperature-resistant material. Depending on the application, it can be loosely or tightly fitted to a second element, such as a shackle, a U-bolt, or a mounting plate. It is most often secured with a pin inserted into the pin hole or a locking nut. There are several types of pins; here are the most common:

• headless,
• nasal,
• with cylindrical head,
• with threaded pin.

Dimensions :

• diameter: 19.80 mm,
• flange diameter: 29.80 mm,
• total length: 59 mm,
• working length: 55 mm,
• reference numbers: A1630519.

Tractor models :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

Magazine : L01:M26:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
