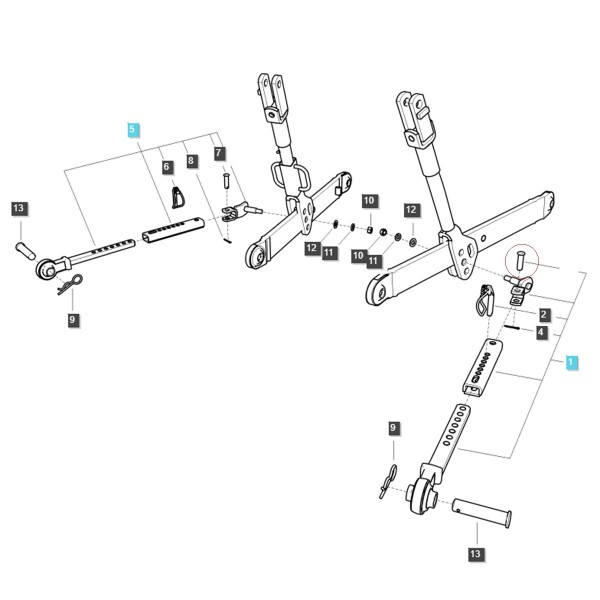

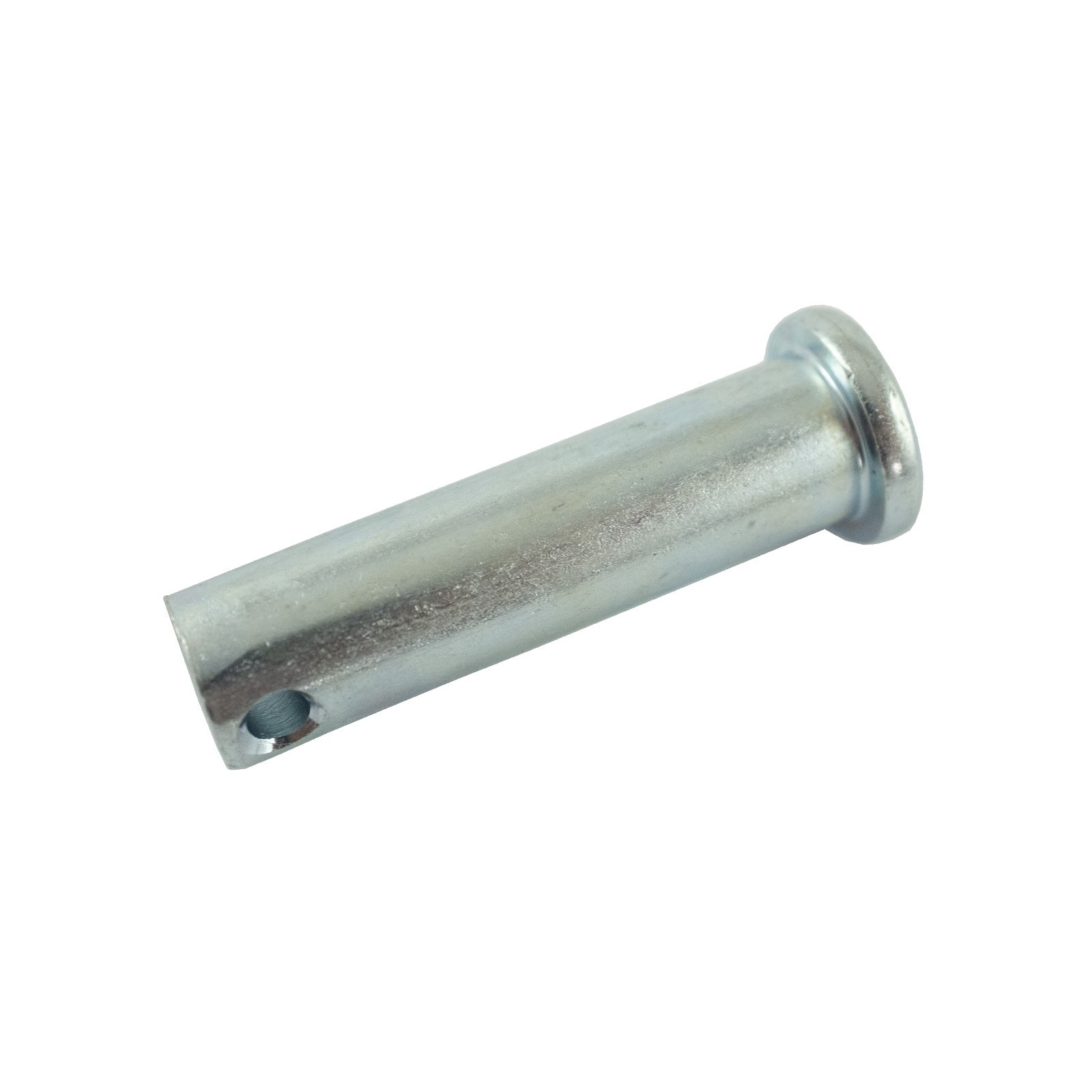

Three-point hitch pin 12 x 40 mm / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S427124013 / 40036102

Pin for chains pulling lower arms of three-point linkage . Pin with a total length of 48 mm , working length of 40 mm and a diameter of 12 mm for LS Tractor series tractors LS MT3.35, LS MT3.40, LS MT3.40, LS MT3.50, LS MT3.60 and others.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin.

Dimensions :

• diameter: 12 mm,
• head diameter: 17 mm,
• total length: 48 mm,
• working length: 40 mm.
• reference numbers: S427124013, 40036102.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LSMT3.60.

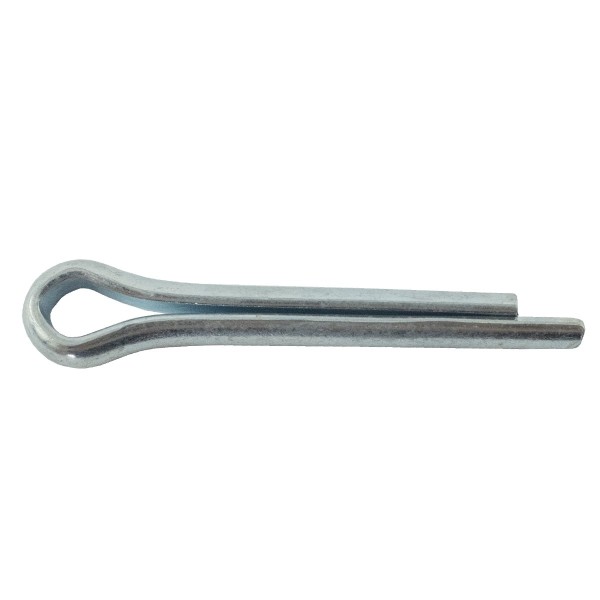

The dedicated locking pin for pin 40036102 is a straight pin with number 40036103 .

Warehouse :
L01:B242

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
