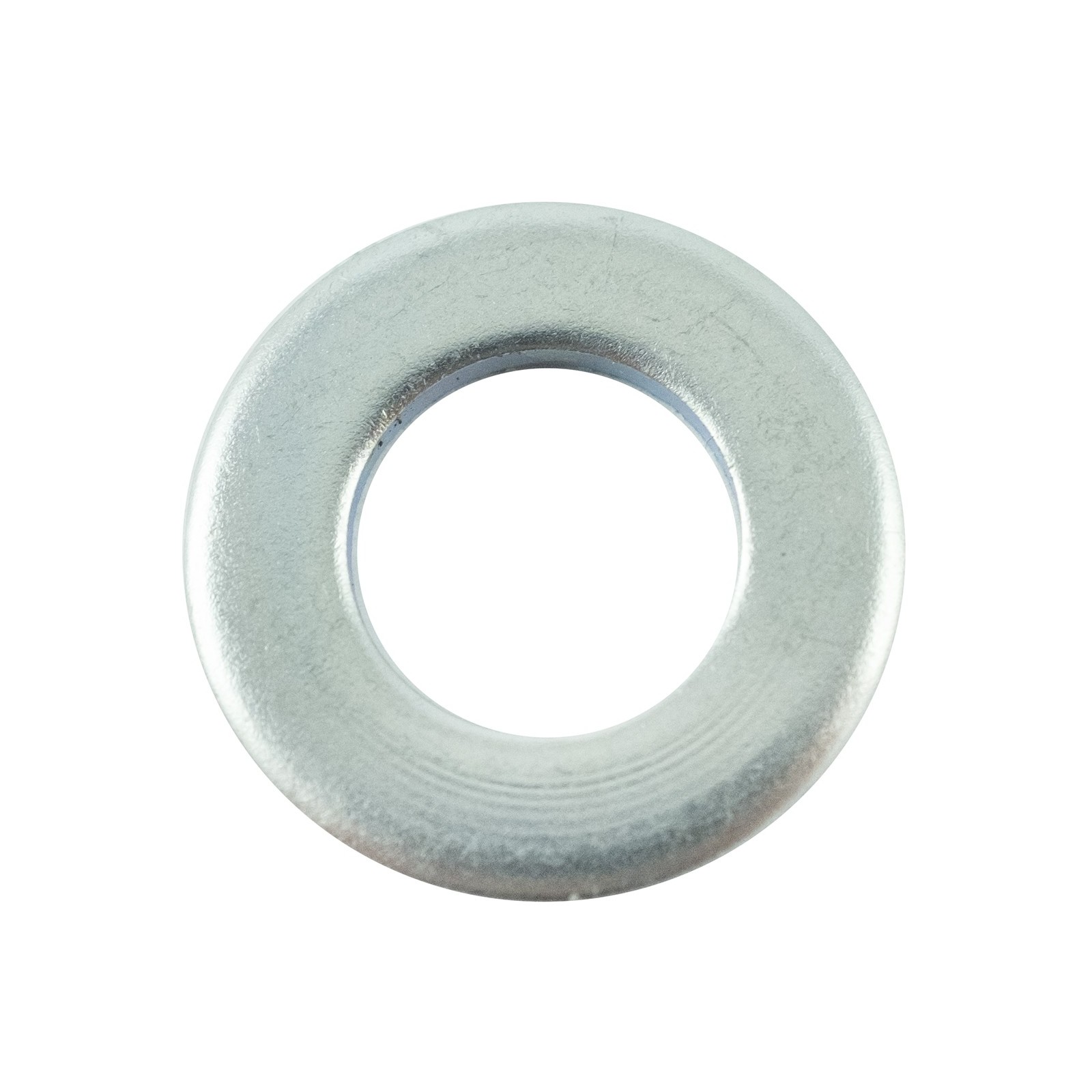

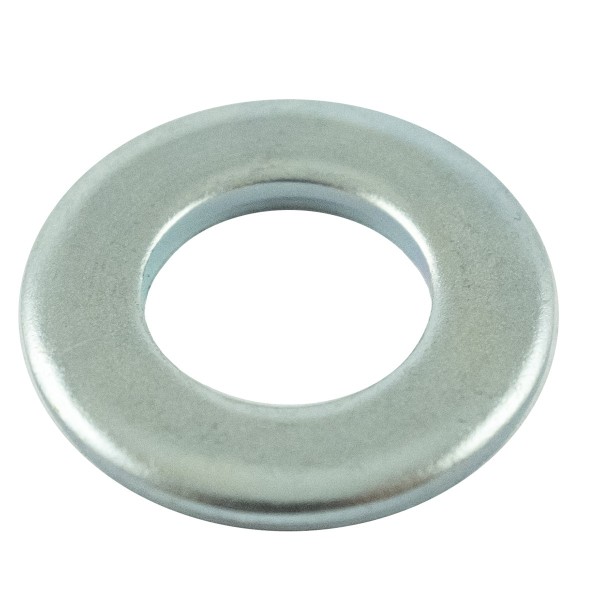

Washer 24 x 13 x 2.5 mm / LS XJ25 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S364120013 / 40028172

Standard washer with an internal diameter of 13 mm, an external diameter of 24 mm and a thickness of 2.50 mm for LS Tractor tractors of the LS XJ25, LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series for:

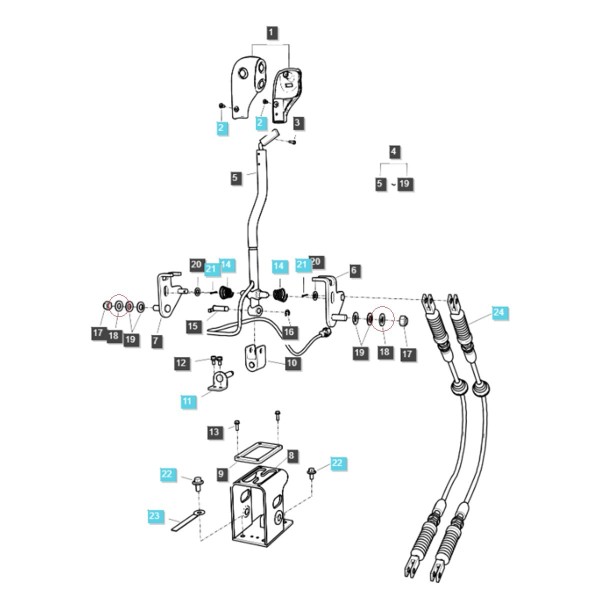

• engine speed change lever,

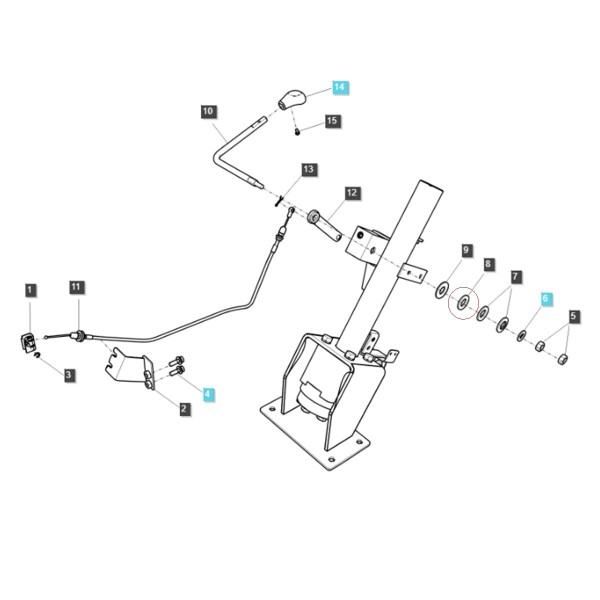

• hand throttle lever,

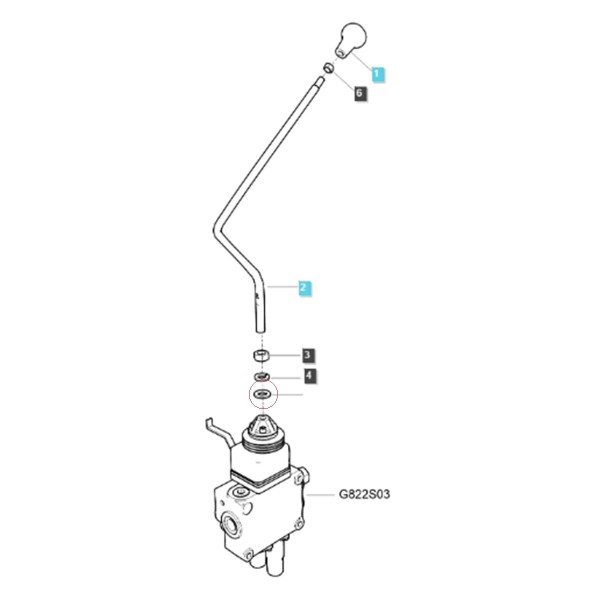

• hydraulic distributor lever,

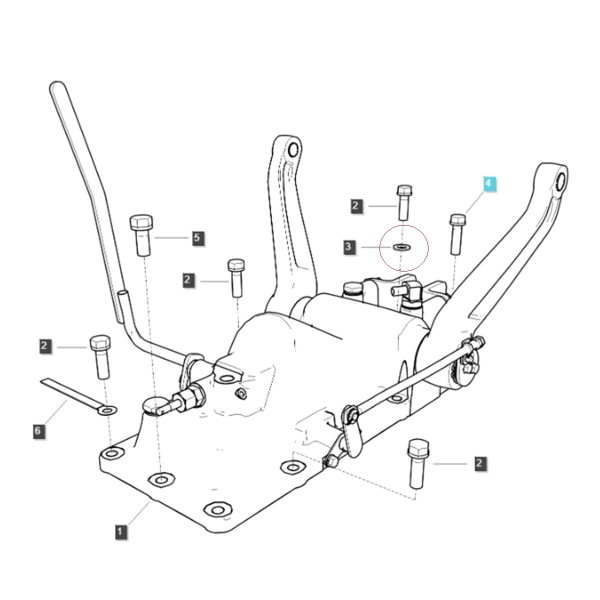

• screws of the rear linkage linkage housing,

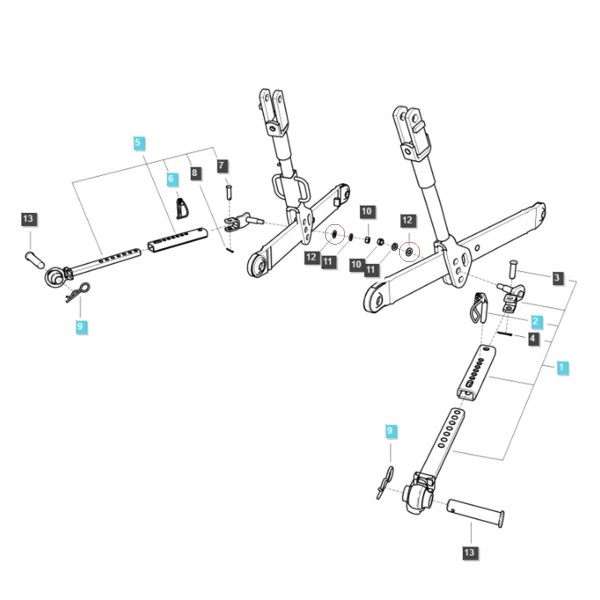

• screws of the chains pulling the lower arms (lasers) of the three-point linkage,
• gear lever bracket,

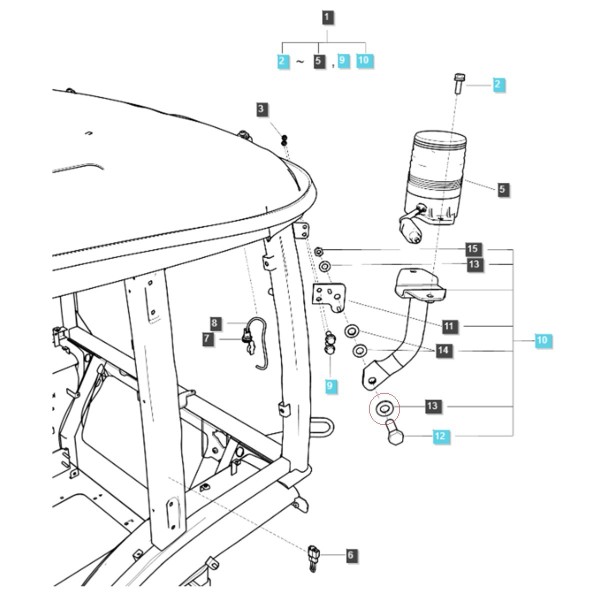

• warning lamp mounting bracket,

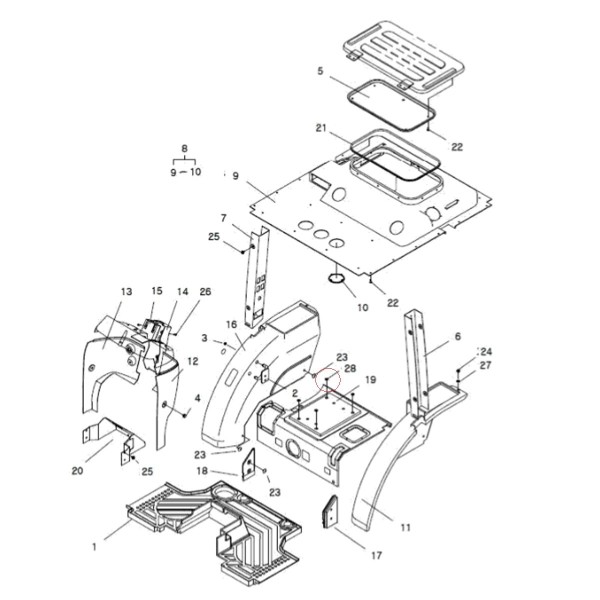

• plates under the operator's seat,

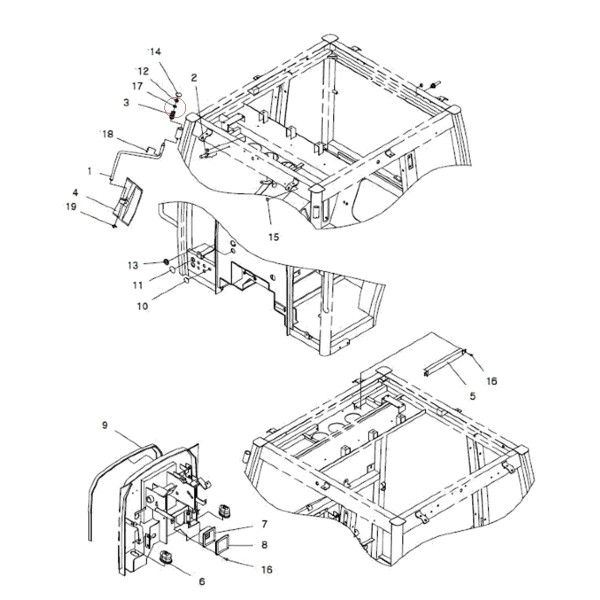

• side mirror screws.

The washer is a basic element that occurs in all screw connections, and its main task is to separate the nut from the connected element. Another function is to prevent spontaneous loosening of screws in threaded connections. Additionally, copper washers can act as sealing and are used due to the metal's plasticity and high anti-corrosion properties. We divide the washers into three groups:

• ordinary (protective, increasing the pressure surface of the screw),
• securing against unscrewing (spring),
• leveling, spacers, copper sealing (to level when the joined elements are not perfectly smooth).
• special sealing.

Dimensions :

• inner diameter: 24 mm,
• outer diameter: 13 mm,
• thickness: 2.50 mm,
• part numbers: S364120013, 40028172.

Tractor models:

LS Tractor :

• LS XJ25,
• LS MT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

Warehouse :
L01:B243
