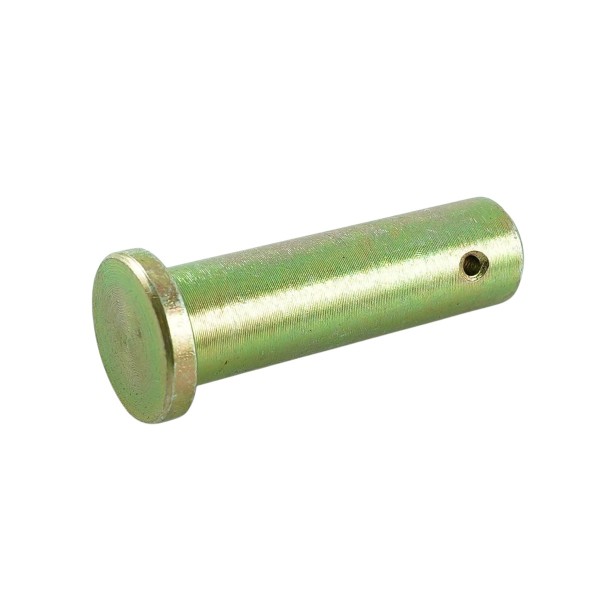

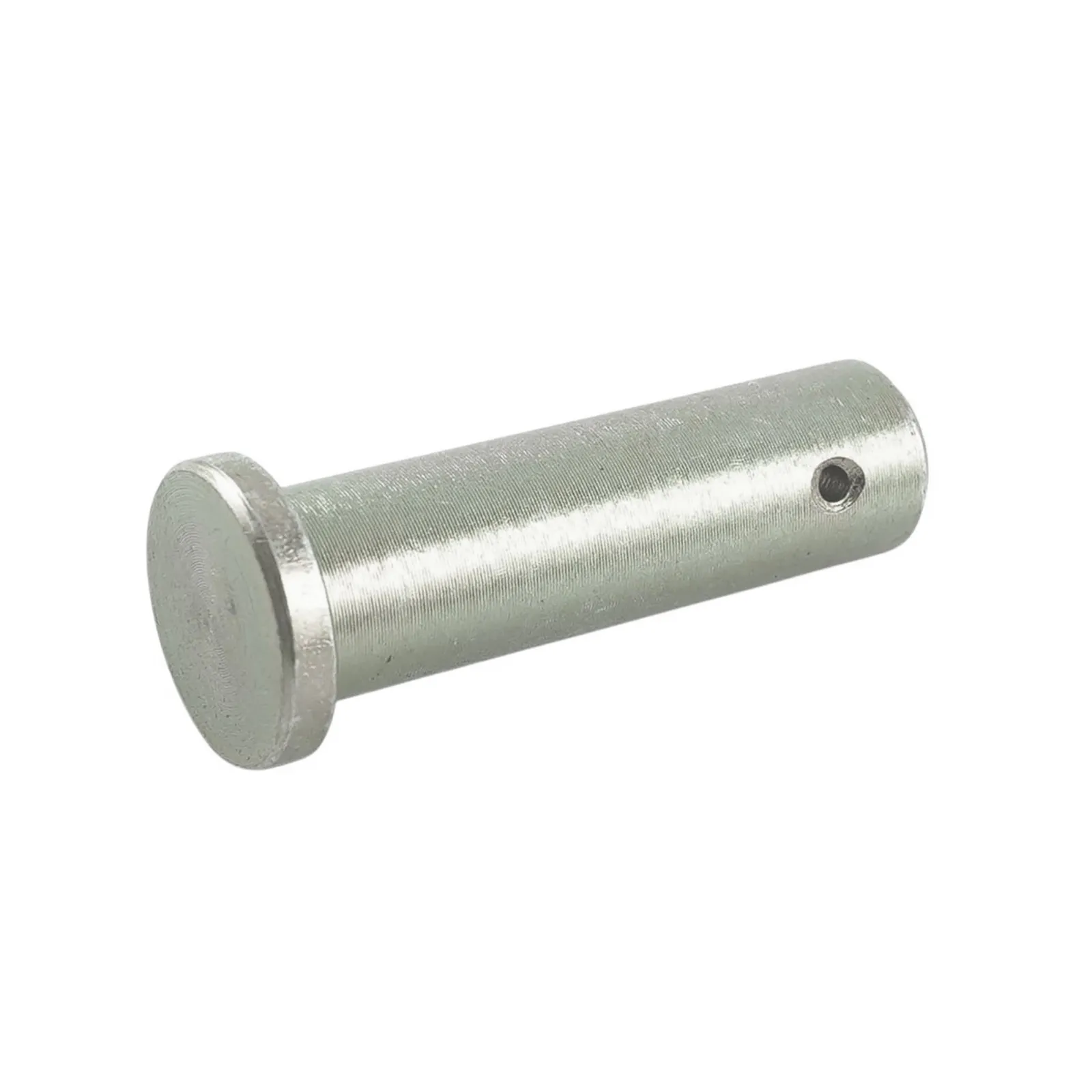

Linkage pin / 12 x 44 mm / LS Tractor 40194152

Hanger pin 40194147 , tie rods TUZ arms with a total length of 44 mm , working length of 34 mm and a diameter of 12 mm for LS Tractor tractors of the LS MT1.25, LS MXJ25 series and others. The TUZ pin 12 x 44 mm LS Tractor is a solid element designed to work with the TUZ system in various tractor models. Made of high-quality steel, it ensures durability and reliability, which is crucial for effective work in all conditions. Ideal for people looking for reliable and durable spare parts for their tractor.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin.

Dimensions :

• diameter: 12 mm,
• head diameter: 17 mm,
• total length: 44 mm,
• working length: 34 mm.
• comparison numbers: 40194152.

Tractor models :

LS Tractor :

• LSMT1.25,
• LSXJ25.

Warehouse :
L01:B242

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
