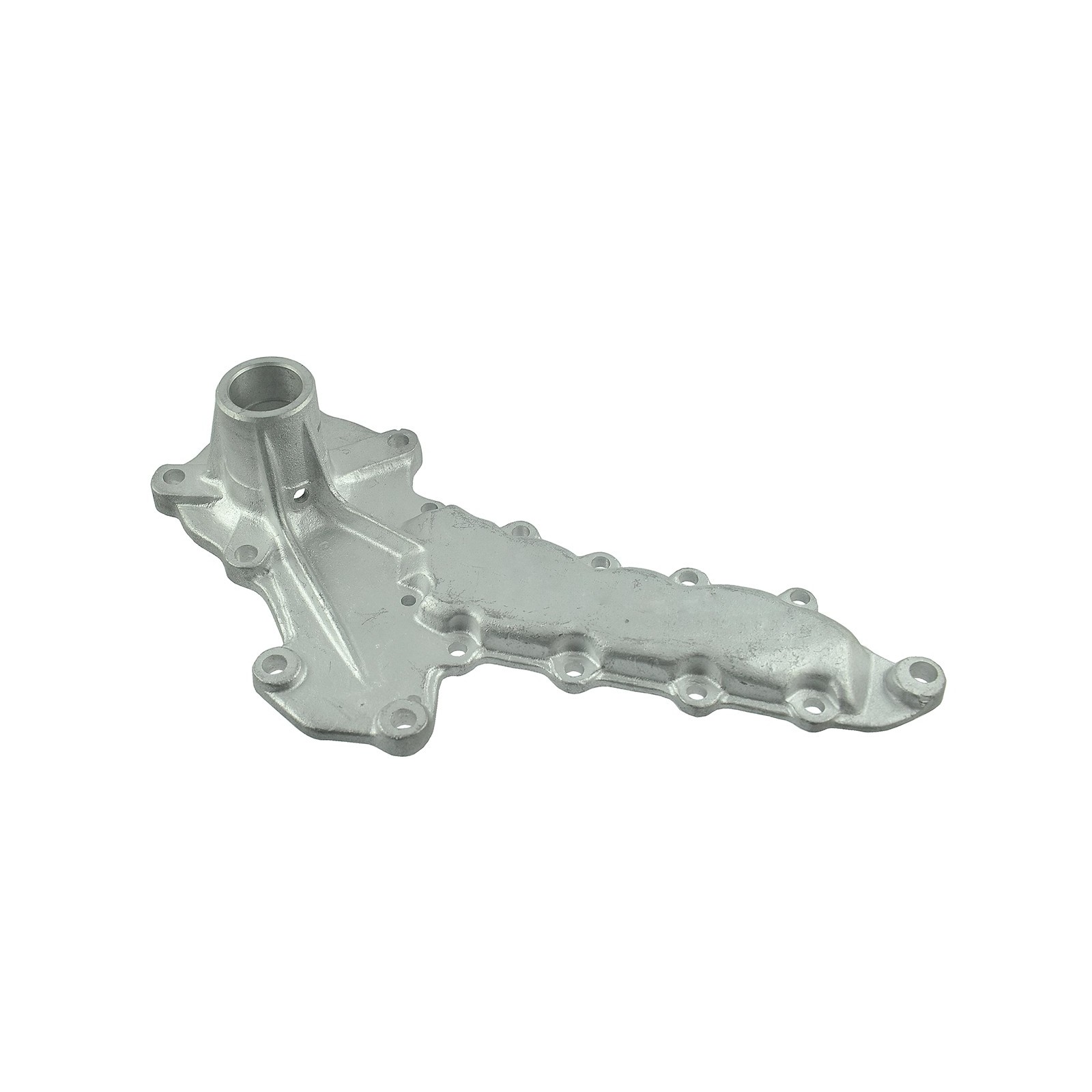

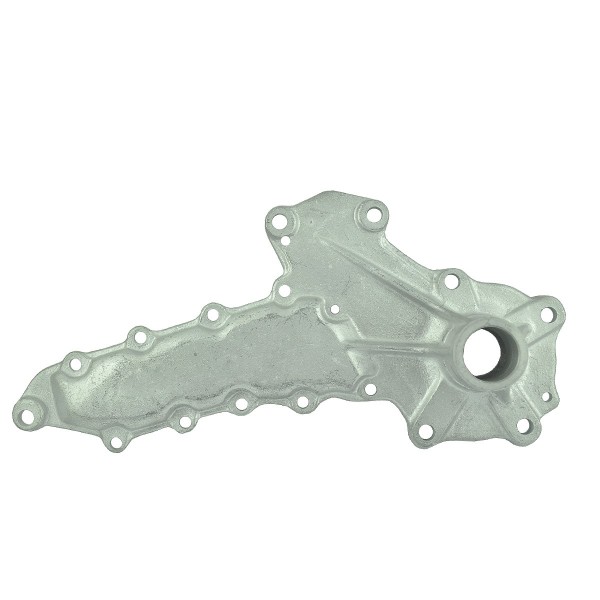

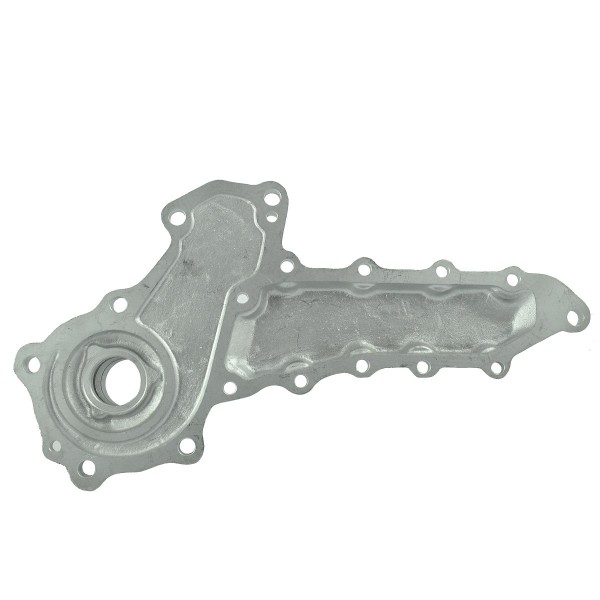

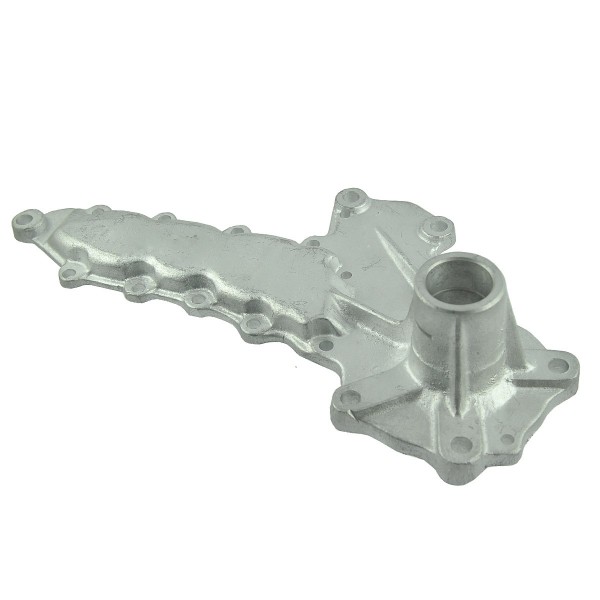

Water pump housing / Kubota L345/L1-225/L1-275/L2900/L3408 / Kubota D1462/D1703/V1702 / 17331-73410 / 17331-73414

Water pump housing (shaft 5-23-105-01, 15521-73550, 885166K-3A, pump 6-15-111-02 , seal, 6-08-100-01 , 16661-73050, gasket 5-15-117-03 , 1A021-73430) for Kubota tractors of the Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-275, Kubota L285, Kubota L2050, Kubota L2250, Kubota L2350, Kubota L2850DT, Kubota L2900DT, Kubota L3408 series with Kubota D1462, Kubota engines D1703, Kubota V1702, Kubota V1732 and others.

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator during engine operation.

Dimensions :

• height: 65 mm,
• total length: 330 mm,
• inner diameter: 30 mm,
• wheel bolt hole spacing: 49 mm (measured diagonally), 35 mm (measured apart),

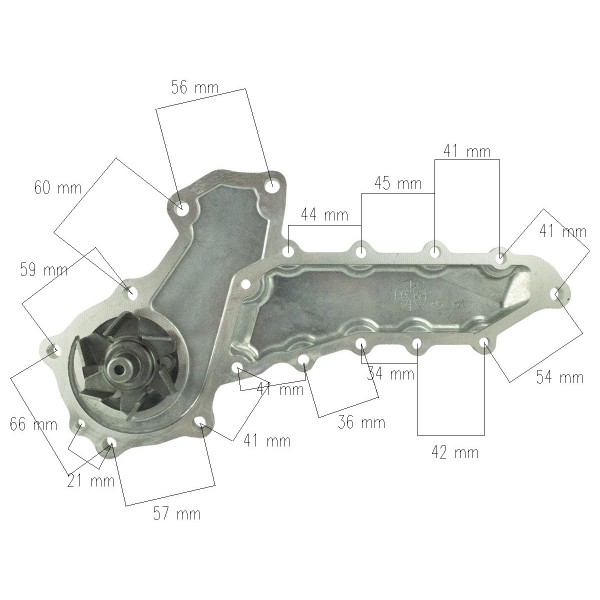

• the spacing of the holes for the pump mounting screws is clearly visible in the photo,
• original part numbers: 17331-73410, 17331-73414, 17331-73415,
• part numbers: 5-25-128-13.

Tractor models :

Kubota :

• Kubota L1-225,
• Kubota L1-235,
• Kubota L1-245,
• Kubota L1-255,
• Kubota L1-275,
• Kubota L285,
• Kubota L2050,
• Kubota L2250,
• Kubota L2350,
• Kubota L2850,
• Kubota L2900,
• Kubota L3408.

Engine model :

Kubota :

• Kubota D1462,
• Kubota D1703,
• Kubota V1702,
• Kubota V1732.

The most common problems and faults of the water pump are the bearing seizure , which is subjected to high rotational speeds and because the elements that directly cooperate with the pump, such as the pulley and the fan, which are not always properly balanced. Too tight a belt , worn belt , too loose V-belt, V-belt installed at the wrong angle , poor lubrication or lack of lubrication are other causes that cause water pump damage. The first signs of water pump damage or signs of improper operation are an unnatural sound from under the hood, a coolant stain under the tractor or temperature jumps visible on the dashboard gauges.

Magazine : M01:B34

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
